Simi Electric High Quality Mobile Scissor Cargo Elevator Lift |

Simi Electric High Quality Mobile Scissor Cargo Elevator Lift

Product Description

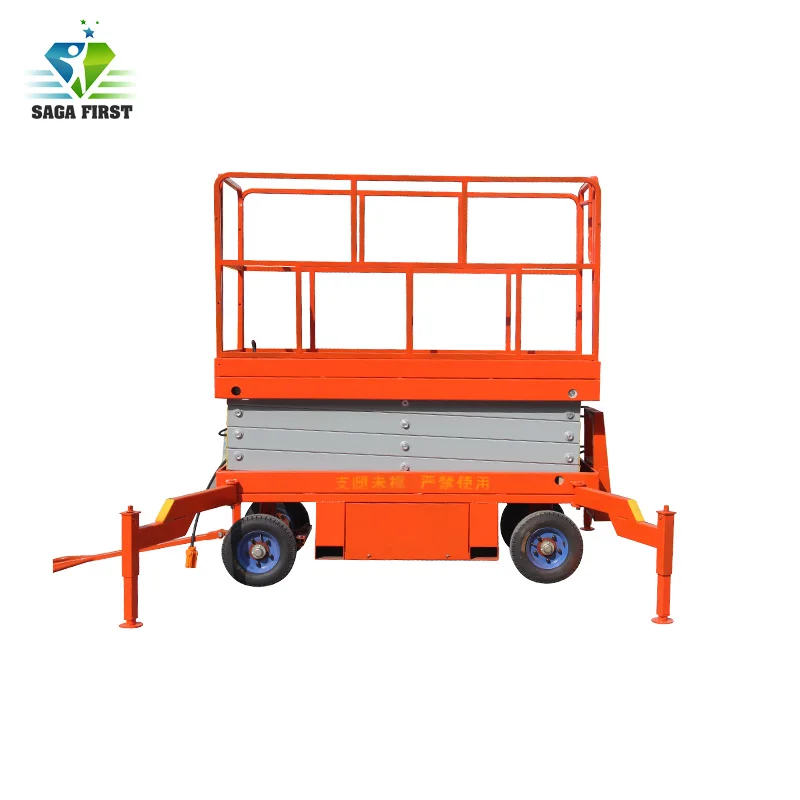

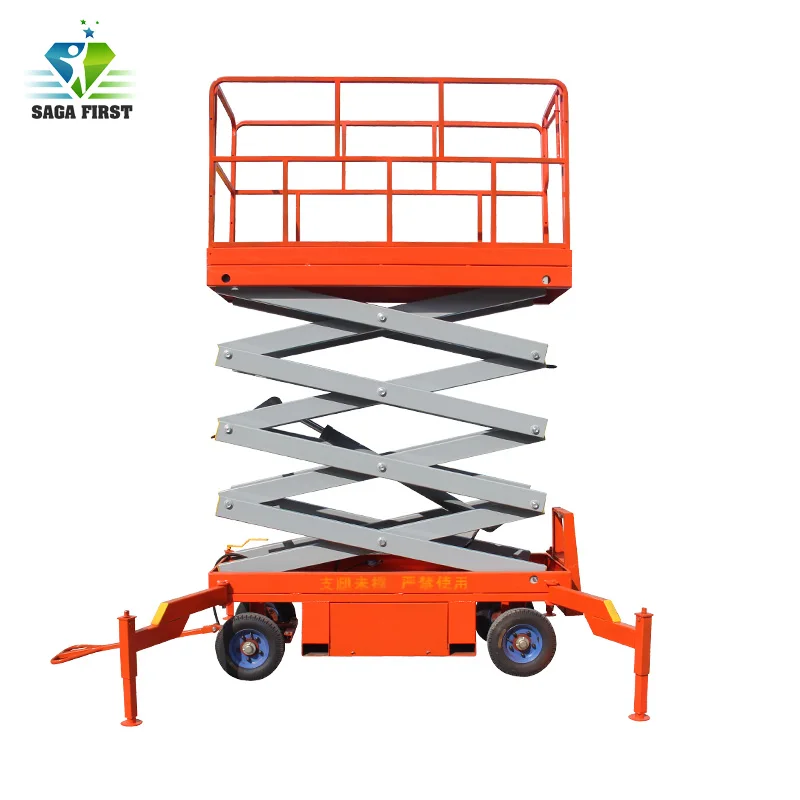

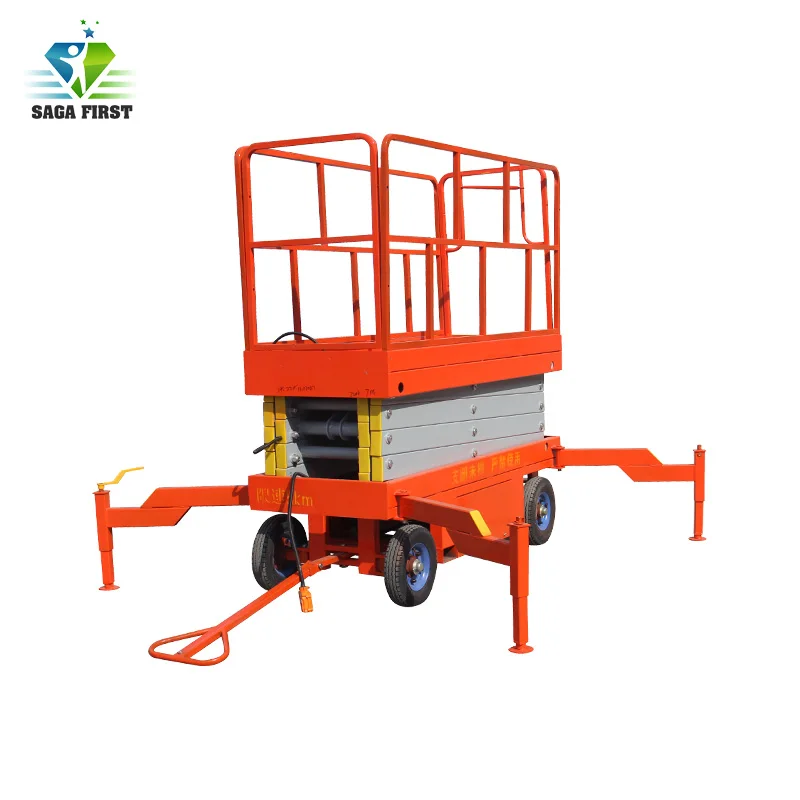

Sagafirst Brand Semi Electric Mobile Scissor Lift is moved by man manually or towed by tractor or car. And lifts by different power,such as AC, DC, Diesel or hybrid power.There are options for battery moving,which we call it Full Electric MobileScissor Lift. It moves and lifts both by DC battery power motor.

Product  Paramaters

Product Pictures

Detail Information

Fearrures&Advantage

Simple structure, easy to maintain.

Flexible producing technique, suitable for customization.

Load capacity 500~2000kg.Max platform height from 4m to 18m.

Moving by man manually or tractor towed. Lifting by AC(without battery) or DC(with battery) optional.

Configurations:

1. Platform Material:60mm*40mm rectangular tube +3mm checkered iron

2. Scissor material: 150mm*50mm*5mm high strength Manganese Steel.

3. Hydraulic system

4. Pump 310 10ml/r

5. High Precision Hydraulic Cylinder:￠80*2sets, ￠100*2sets

6. Piston Rod: ￠40*2pieces, ￠50*2 hard chromium plating surface.

7. High-pressure oil pump

 8. Hydraulic oil:Summer 45＃,Winter:32＃

9. Rubber wheel:600-9*4piece.

Safety Precautions

1. Explosion-proof valves

2. Equipped with anti-skid plate

3. Overload protective system.

4. Single control solenoid valves :prevent dropping if power failure.

5. Emergency decline valve

6.Four supporting legs.

Company Information

Qingdao Sinofirst Machinery Co., Ltd is specialized in Aerial Work Platform and Material Lift Platform, we are one of the leading manufactures of lifting equipment in China. SINOFIRST is established in 2000 with great experience in manufacturing and exporting. SINOFIRST factory covers more than 300 acres. Each year, we invest more than 10 million to develop new technology and new products. Great development and research team guarantee the high quality of SINOFIRST products. Now Sinofirst products are widely used all over the world. After service center is under construction in foreign countries.

SINOFIRST aims to "provide customer the most reliable product", the whole company work hard to achieve that goal. The whole company is positive and vibrant, we hope we can gain your trust and become one of our partner, we are sure you will enjoy cooperation with us.

Our Service:

We can design the customerized electric mobile lift platform as per your requirement.

The most suitable model will be recommended to you once we know about your requirement.

Shipment can be arranged from our port to your destination port.

Opetion video can be sent to you if needed.

Maintenance video will be given once the electric mobile lift platform break down to help you repair.

Parts of mobile lift platform can be sent to you by express within 7 days if needed.

Frequently Asked Questions:

1.How can customer  buy parts once it break down?

The electric mobile lift platform adopt most of the common parts of hardware.You can buy the parts in your local hardware market.

2.How can customer repair the mobile lift platform.

One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.

3.How long is the quality guarantee?

One year quality guarantee.If it breaks down within o​​ne year,we can send the parts free of charge to you.
