CHINT Store
Магазина CHINT Store работает с 10.10.2016. его рейтинг составлет 94.98 баллов из 100. В избранное добавили 27500 покупателя. Средний рейтинг торваров продавца 4.8 в продаже представленно 666 наименований товаров, успешно доставлено 8403 заказов. 319 покупателей оставили отзывы о продавце.
Характеристики
M8*1.25 110V PFS3508 No mercury Water level switch Tank Pool liquid Sensor Float Promotion new arrival | Инструменты
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-16-2025 | 0.37 руб. | 0.7 руб. | 0 руб. |
| Aug-16-2025 | 0.15 руб. | 0.5 руб. | 0 руб. |
| Jul-16-2025 | 0.65 руб. | 0.72 руб. | 0 руб. |
| Jun-16-2025 | 0.29 руб. | 0.90 руб. | 0 руб. |
| May-16-2025 | 0.41 руб. | 0.68 руб. | 0 руб. |
| Apr-16-2025 | 0.53 руб. | 0.97 руб. | 0 руб. |
| Mar-16-2025 | 0.56 руб. | 0.6 руб. | 0 руб. |
| Feb-16-2025 | 0.67 руб. | 0.73 руб. | 0 руб. |
| Jan-16-2025 | 0.76 руб. | 0.13 руб. | 0 руб. |
Описание товара
|
||||||||||||||||||
|
||||||||||||||||||
Contact form:A(Normally Open)
Max Contact Resistance:100m
Max Contact Rating:10W/50W
Quick Details
-
Place of Origin: Zhejiang, China (Mainland)
-
Brand Name: ELE
-
Model Number: -PFS3508
-
Contact Capacity: AC220V/1A;DC24V/0.5A
-
Working Pressure: 0.5MPa
-
Housing Materia: PP
-
Float Materia: PP
-
Wire Length: 50010mm
-
Working Temperature: -10~85
-
Ambient temperature range: -10~+60
-
Contact form: A(Normally Open)
-
Max Contact Resistance: 100m
-
Max Contact Rating: 10W/50W
Packaging
| Selling Units: | Single item |
|---|---|
| Single package size: | 6X5X5 CM |
| Single gross weight: | 0.125 KG |
Product Description

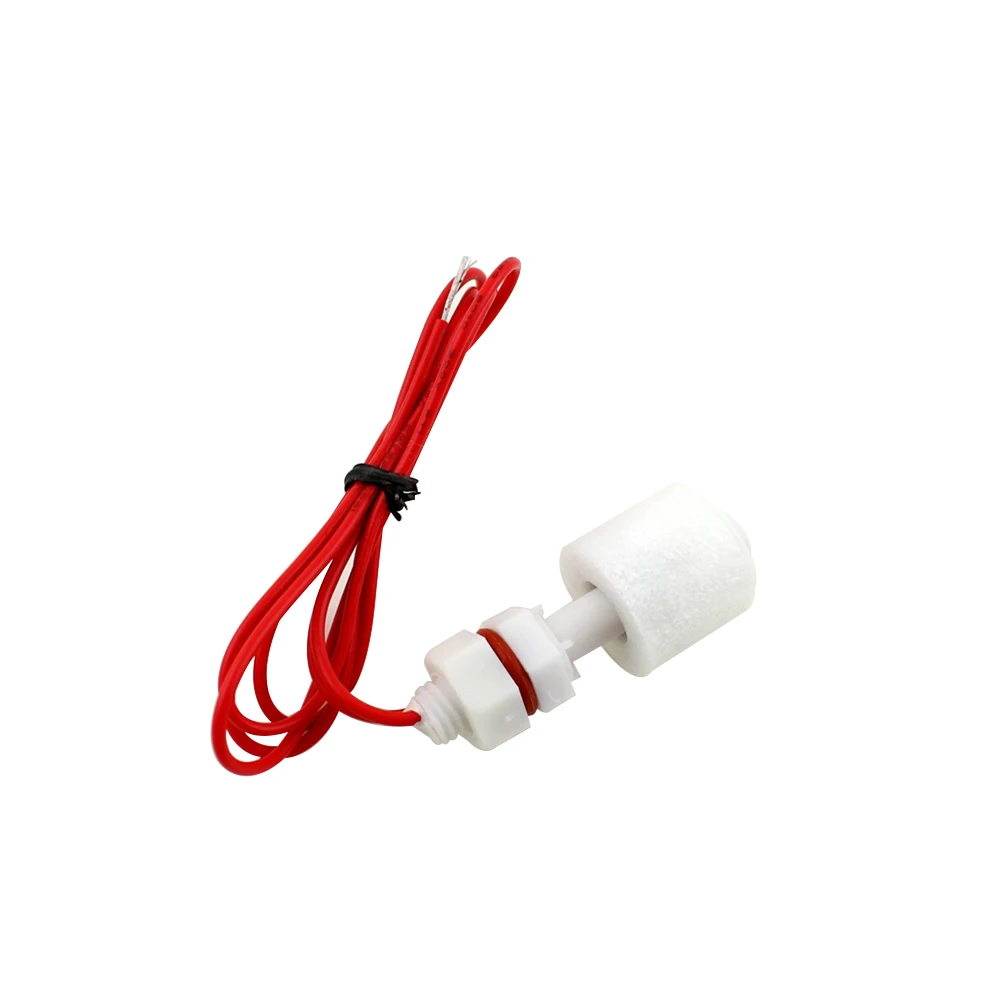

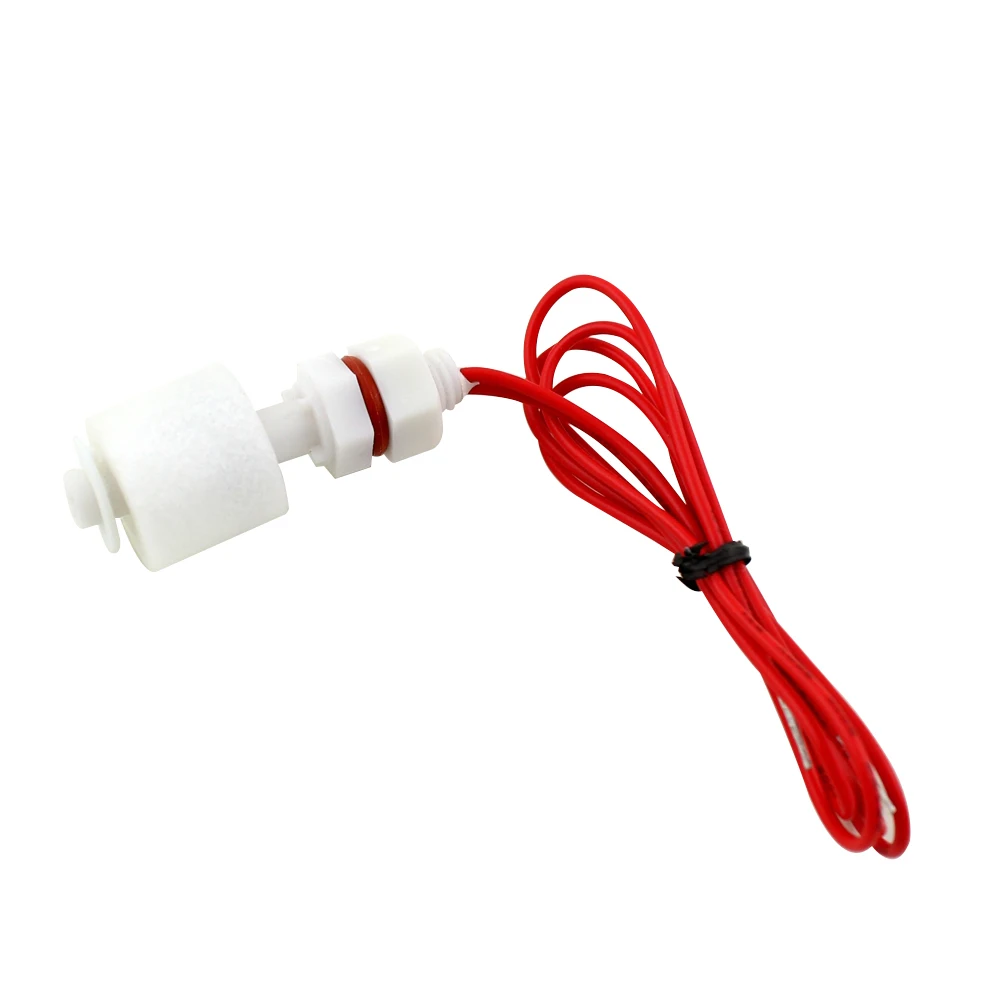

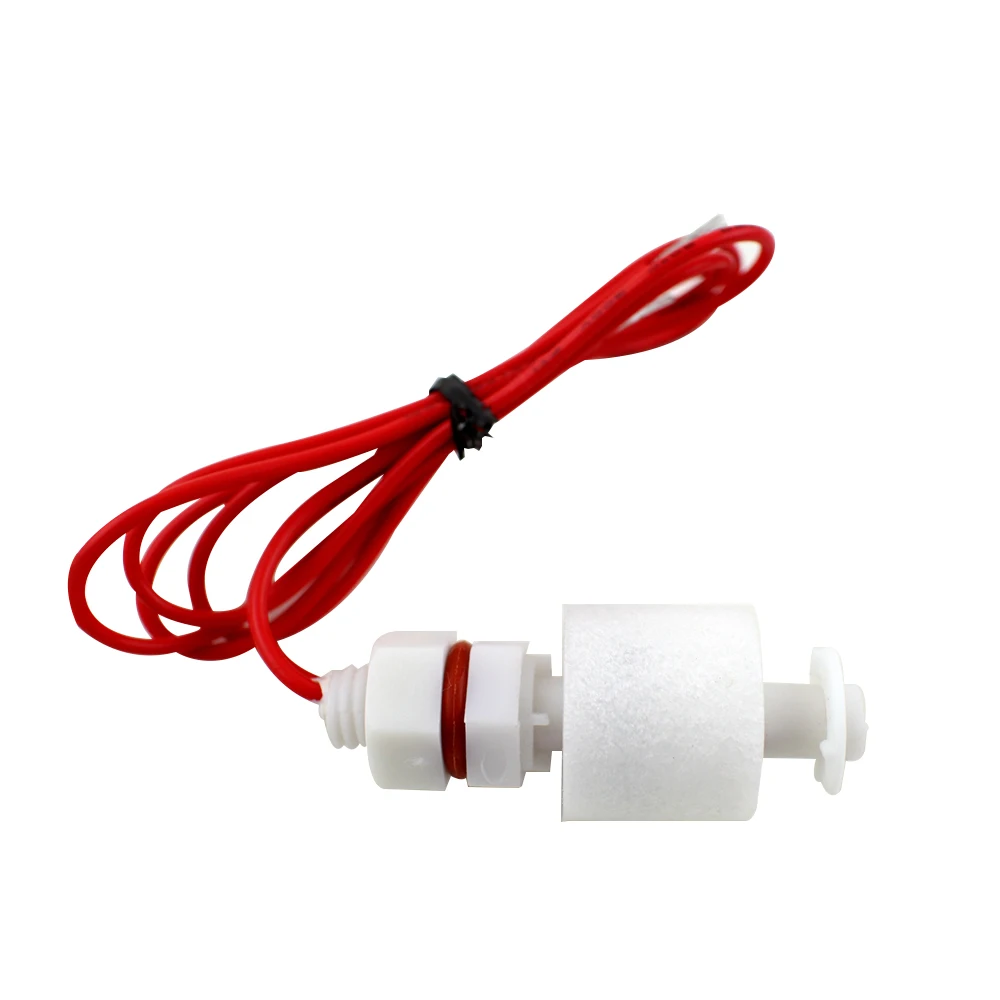

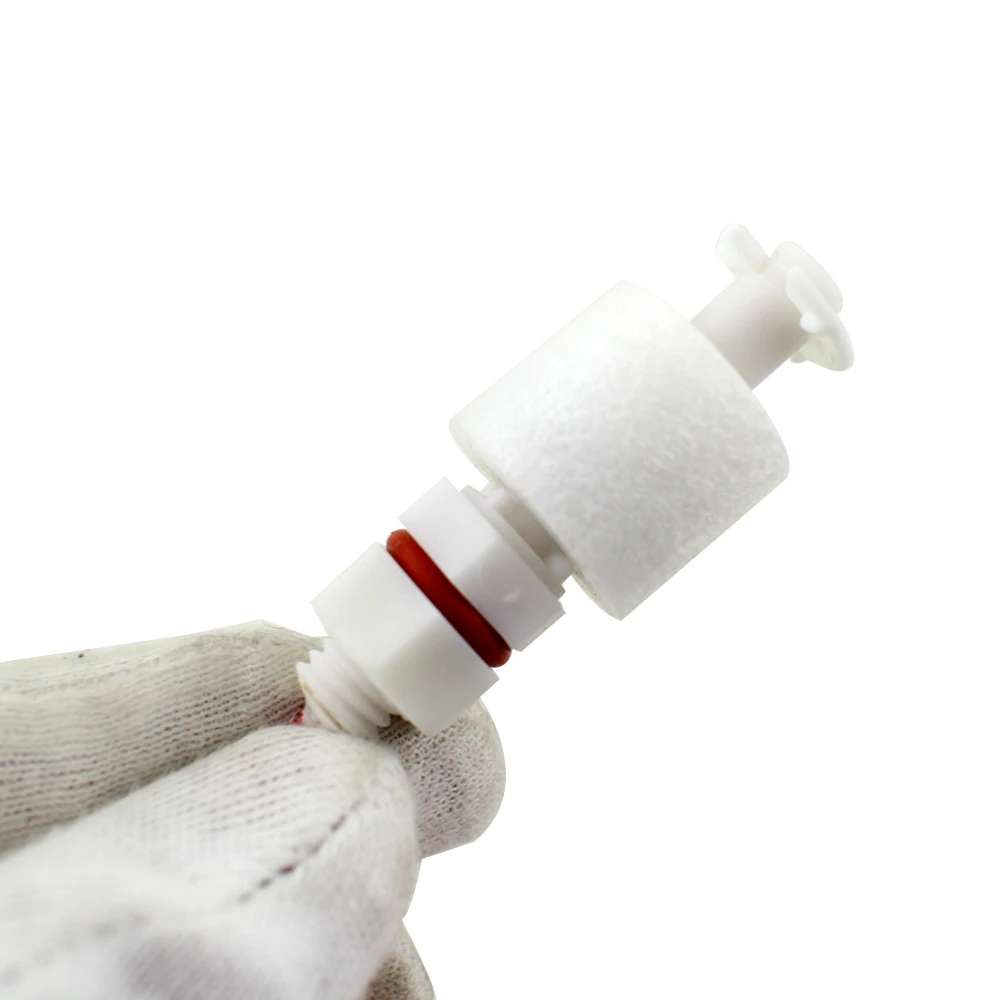

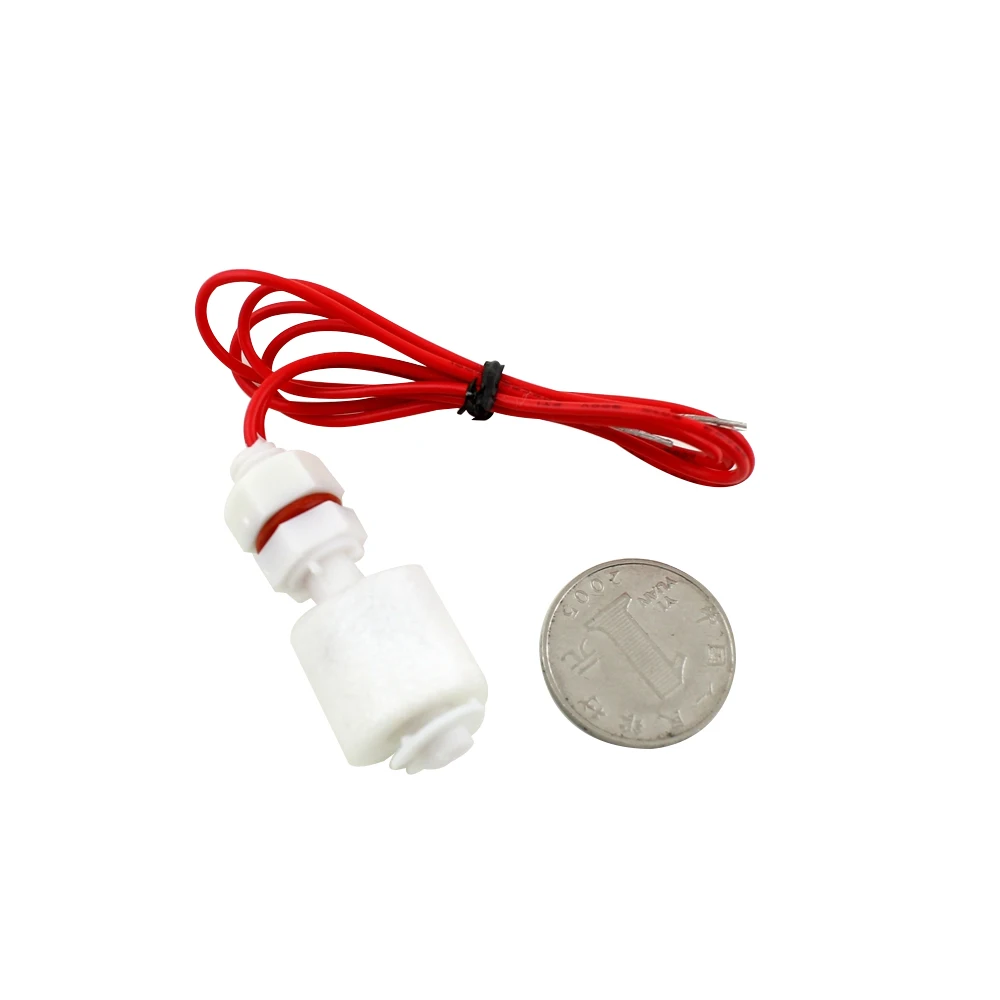

-PFS3508 Plastic Float Switches Introduction:
A float switch is a device used to detect the level of liquid within a tank. The switch may be used in a pump, an indicator, an alarm, or other devices.
Float switches range from small to large and may be as simple as a mercury switch inside a hinged float or as complex as a series of optical or conductance sensors producing discrete outputs as the liquid reaches many different levels within the tank. Perhaps the most common type of float switch is simply a float raising a rod that actuates a microswitch.
PFS3508 Plastic Level Switches Specification:
| Magneti reed type |
1A1 |
2A1 |
| Max Contact Rating |
10W |
50W |
| Max Switching Voltage |
100V DC |
220V DC |
| Max Switching Current |
0.5A |
1.5A |
| Max Breakdown Voltage |
220V DC |
300V DC |
| Max Carry Voltage |
1.0A |
3.0A |
| Max Contact Resistance |
100m |
100m |
| Ambient temperature range |
PP material |
-10~+60C |
| Stainless steel material |
-30~+125C |
|
| Liquid temperature range |
PP material |
-10~+85C |
| Stainless steel material |
-30~+125C |
-PFS3508 Float switches Applications:
Drinking fountains, water heaters, solar energy, air conditioners, humidifiers, water, bathroom equipment, vending machines, tanks, chemical liquid level control, automotive, industrial equipment, agricultural equipment, household appliances widespread application prospect.
How to choose suitable float switch for different liquid?
Packaging & Shipping
-
1. Item will be shipped within 5-7 business days.
-
2. Delivery Time:
-
----Via Air: Generally 1-3 working days
-
----Via Express: Generally 3-7 working days.
-
----Via China Post Air Mail: Generally 15-25 working days
-
----Via Sea: According to the order.
-
3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.
Transportation:
FAQ
Why Choose Us ?
1.Product development and special customized ability for clients
2.The independent intellectual property rights and the international certification authority
3.Higher cost performance - product quality exceed international counterparts
Company Information
Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing - The world-famous city for low-voltage electric apparatus.
-
Custom Product Design
-
OEM/ODM
-
Profession in export service from Maker Electric
-
High quality Product, Affordable Price
|
|
 |
|||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
