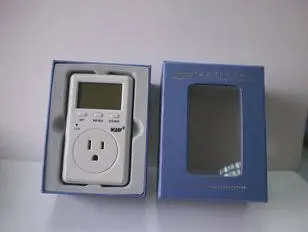

 Because of the extremely low price,  the meter comes without its gift box, to save the shipping weight.

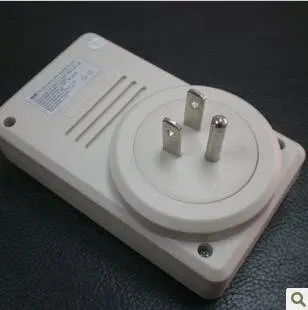

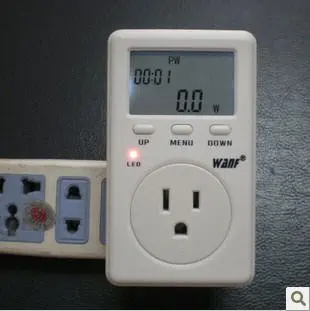

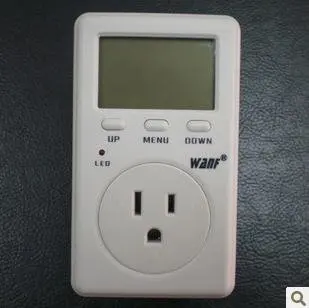

The default model shows above, with US standard socket.   If you want model with universal socket shows below, please note in the order.

Introduction

• Measure if the power supply has electricity and if the socket is in good.
• Observe the real-time voltage fluctuations of power supply.
• Measure whether the energy-saving lamp saves energy or not,and how much energy it save in the end.
• Measure the electricity consumption on electrical equipments.
• Clearly see the electricity consumption of electrical appliances.
• Clearly see how much you spend on your daily-used household appliances,like microwave ovens and washing machines.
• Other appliances:How much should you pay for your air conditioner within one hour and within one night?How much should you pay for your refrigerator for one day?Which takes more power consumption?The host of computer equipment are under working?How much does it cost for charging the mobile phone battery once?How much is the power consumption for charging the electric motor car once?
• Just imagine,you can find many more applications of this ammeter.

•  Measure real-time voltage of the power supply (90~150V AC or 160~280V AC);
• Measure real-time operation power of the appliances (0~3000W);
• Show the power consumption (0~999.9kWh);
• Calculate the cost of energy according to the pre-set price of energy (0~$9999); price of energy can be pre-set to the local price by users;  Two ways for calculating power consumption and power cost: electricity consumption andelectricity cost in single operation period and accumulated electricity consumption and electricity cost in all operation periods; can be manually cleared to 0.
• Operation condition monitor: The indicator light will flicker when the real-time ratio of operation condition reaches its alarm point. Ratio of operation condition is the ratio between accumulated operation time per hour(running power is over preset standby power) and 1 hour. Alarm point for ratio of operation condition and standby power can be pre-set.
• Show the operation time of appliances (0~24h~9999d). Two ways for calculating operation time: time in single operation period and accumulated time in all operation periods; can be manually cleared into 0.

Besides function above, another Model D02B can also measure real-time current (Amps), power factor (0-100%), for extra $10/each.

• Adaptable voltage: 90-150V/60Hz or 160~280V/60Hz AC
• Peak load: 15A
• Power measurement: 1-3000W
• Operating temperature: -10-60°c
• Humidity range: 10-95% RH
• Power consumption: 0.001-999.9kWh
• Size: 11 x 6.5 x 4 cm

Approvals:

CE, RoHS

Other versions:

UK version: standard 3-pin UK plug

EU version: 2-pin German plug (French plug optional)

US version: standard US plug, earthed

AU version: standard AU plug, earthed

Swiss version: standard Swiss plug

CN version: standard chinese plug

Others: this model is easy for customization with any different plugs.

• 1 x Advanced Multifunctional Energy Meter
• English Manual

Wholesale Pack information

Carton size: 43.5*43.5*38.5 cm
blister packing:
42pcs/ctn for EU version, G.W 8.2kgs;
46pcs/ctn for other versions, G.W 8.9kgs;
gift box packing:
48pcs/ctn for EU version, G.W 15.5kgs;
60pcs/ctn for other versions, G.W 17kgs
