SENDO SENSOR Store
Магазина SENDO SENSOR Store работает с 05.03.2011. его рейтинг составлет 99.21 баллов из 100. В избранное добавили 349 покупателя. Средний рейтинг торваров продавца 5 в продаже представленно 2513 наименований товаров, успешно доставлено 782 заказов. 126 покупателей оставили отзывы о продавце.
Характеристики

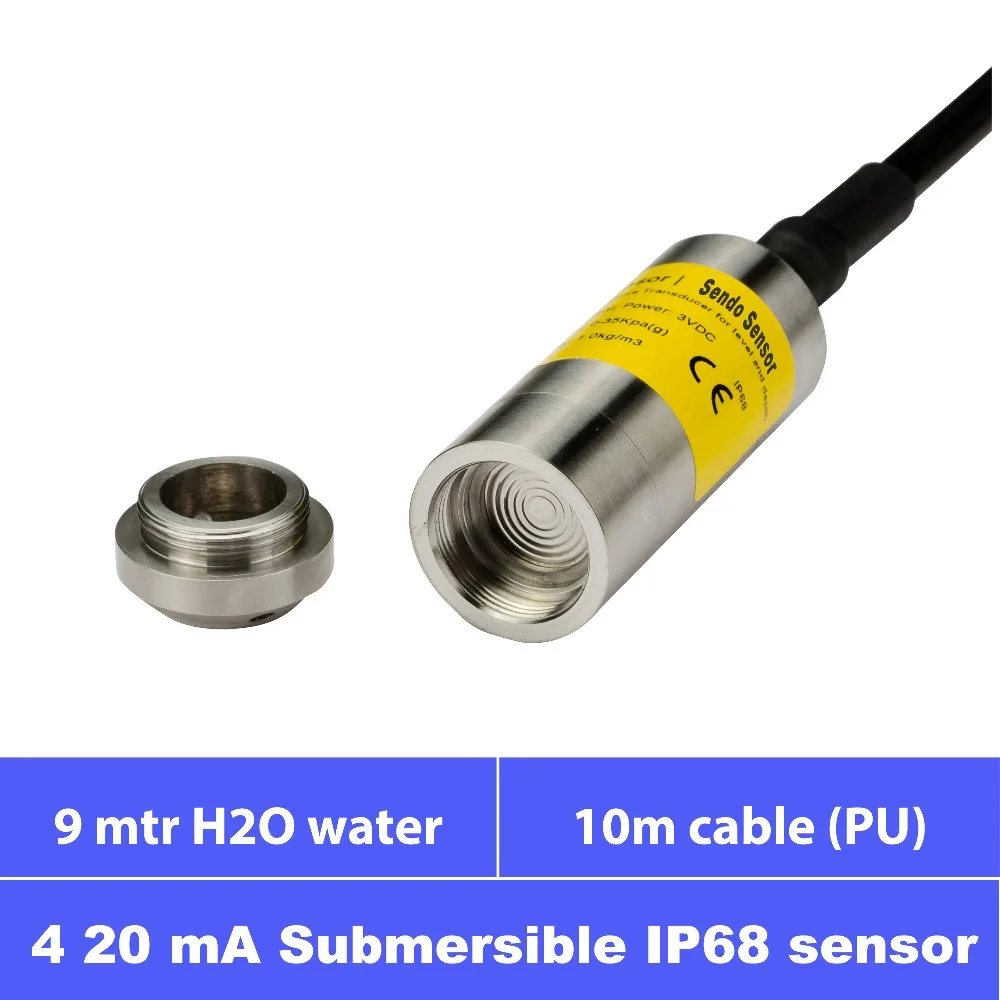

4 to 20 mA signal water level measurement pressure sensor submersible depth 9 mtr h2o range 10m PU cable |
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-16-2025 | 0.8 руб. | 0.88 руб. | 0 руб. |
| Aug-16-2025 | 0.87 руб. | 0.68 руб. | 0 руб. |
| Jul-16-2025 | 0.15 руб. | 0.48 руб. | 0 руб. |
| Jun-16-2025 | 0.78 руб. | 0.26 руб. | 0 руб. |
| May-16-2025 | 0.70 руб. | 0.62 руб. | 0 руб. |
| Apr-16-2025 | 0.52 руб. | 0.94 руб. | 0 руб. |
| Mar-16-2025 | 0.30 руб. | 0.8 руб. | 0 руб. |
| Feb-16-2025 | 0.92 руб. | 0.9 руб. | 0 руб. |
| Jan-16-2025 | 0.83 руб. | 0.83 руб. | 0 руб. |
Описание товара
Available products in different pressure and cable length
| CODE | MODEL | VOLTAGE | SIGNAL | CABLE LENGTH | PRESSURE |
| 63410M2W | SS634 | 9...30Vdc | 4...20mA | 10m | 2m water |
| 63410M4W | SS634 | 9...30Vdc | 4...20mA | 10m | 4m water |
| 63410M5W | SS634 | 9...30Vdc | 4...20mA | 10m | 5m water |
| 63410M6W | SS634 | 9...30Vdc | 4...20mA | 10m | 6m water |
| 63410M8W | SS634 | 9...30Vdc | 4...20mA | 10m | 8m water |
| 63410M9W | SS634 | 9...30Vdc | 4...20mA | 10m | 9m water |
| 63410M10W | SS634 | 9...30Vdc | 4...20mA | 10m | 10m water |
| 63420M10W | SS634 | 9...30Vdc | 4...20mA | 20m | 10m water |
| 63420M12W | SS634 | 9...30Vdc | 4...20mA | 20m | 12m water |
| 63420M15W | SS634 | 9...30Vdc | 4...20mA | 20m | 15m water |
| 63420M18W | SS634 | 9...30Vdc | 4...20mA | 20m | 18m water |
| 63420M20W | SS634 | 9...30Vdc | 4...20mA | 20m | 20m water |
Features
 |
 |
|
| CE conformity | Silicone oil filled | Stainless steel 316L diaphragm |
 |
 |
|
| Reverse polarity protection | IP68 grade |
| |
Technical data
| Accuracy @25°C |
±0.5% |
| Response time |
< 4 ms |
| Overload pressure |
2.0 × F.S. |
| Pressure range |
9m H2O |
| Pressure type |
gauge |
| Stability |
≤0.2%F.S./Year |
| Temp coefficient |
±0.03%F.S./°C |
Electrical specifications
| Output signal |
4 → 20mA |
| Supply voltage |
9 → 30VDC |
Environmental conditions
| Medium temperature range |
-20°C → +85°C |
| Ambient temperature range |
-20°C → +85°C |
| Compensated temperature range |
0°C → +60°C |
Mechanical characteristics
| Materials |
Diaphragm |
Stainless steel 316L |
| Enclosure |
Stainless steel 304 |
|
| Cable |
PU 10m |
|
| Sealing | O-ring Viton | |
| Sealing rating |
IP68 |
|
Dimensions & Recommended installation
| |
|
Electrical connections
| RED: Supply + |
BLACK: Output+ |
Installation and precautions
*** The installation place should be easy to operation and fixing
*** When installation, the metal probe should sink to the bottom of the container
*** The installation place should be away from the heat source as far as possible
*** If the customer need to connect with other cable, waterproofing measures must be taken
*** When the sensor put into the water, it is the best that the sensor can be fixed, and away from the inlet
Precautions for safety use
*** Clean the metal probe(sensor) regularly to avoid block the pressure port
*** The cable is a special waterproof cable, abrasion, puncture, and cut the cable is not allowed
*** The wiring should strict reference to the electrical connection, wrong wiring will cause damage to the sensor
*** A stainless steel 316L diaphragm is in the front part of the sensor, artificially foreign body touch is not allowed
