Good working effort LFM1325 cnc router 1300*2500 | Инструменты
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Apr-04-2026 | 0.59 руб. | 0.50 руб. | 0 руб. |
| Mar-04-2026 | 0.72 руб. | 0.52 руб. | 0 руб. |
| Feb-04-2026 | 0.1 руб. | 0.98 руб. | 0 руб. |
| Jan-04-2026 | 0.65 руб. | 0.0 руб. | 0 руб. |
| Dec-04-2025 | 0.94 руб. | 0.84 руб. | 0 руб. |
| Nov-04-2025 | 0.37 руб. | 0.0 руб. | 0 руб. |
| Oct-04-2025 | 0.56 руб. | 0.35 руб. | 0 руб. |
| Sep-04-2025 | 0.51 руб. | 0.48 руб. | 0 руб. |
| Aug-04-2025 | 0.63 руб. | 0.98 руб. | 0 руб. |
Описание товара

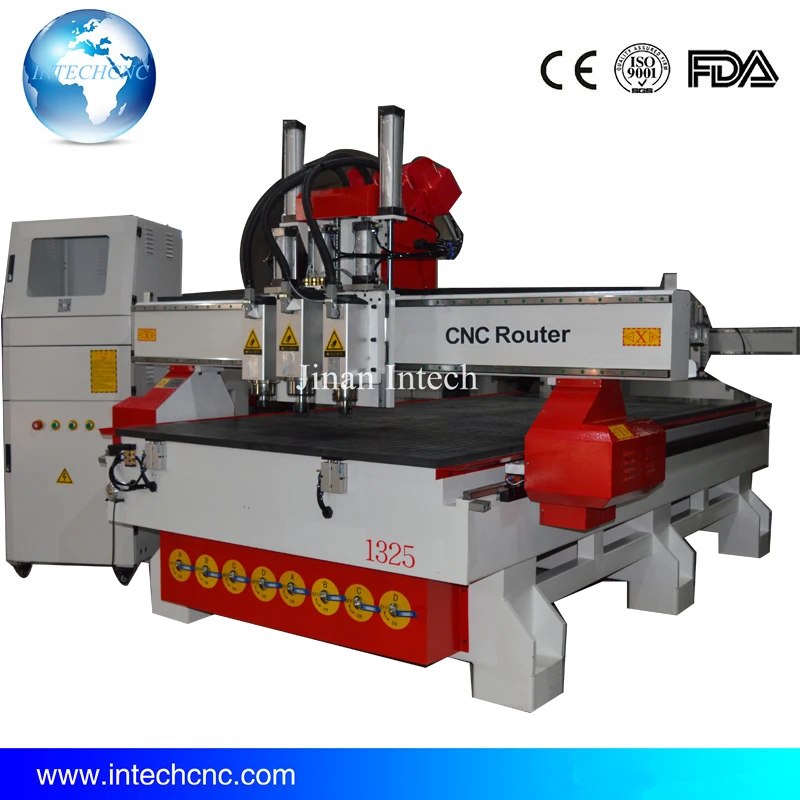

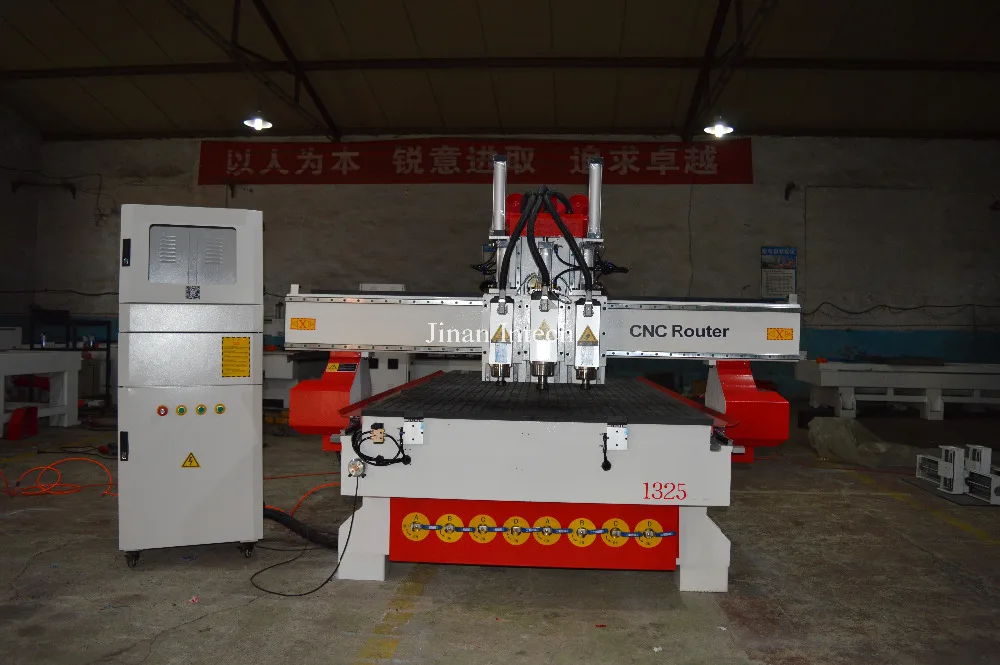

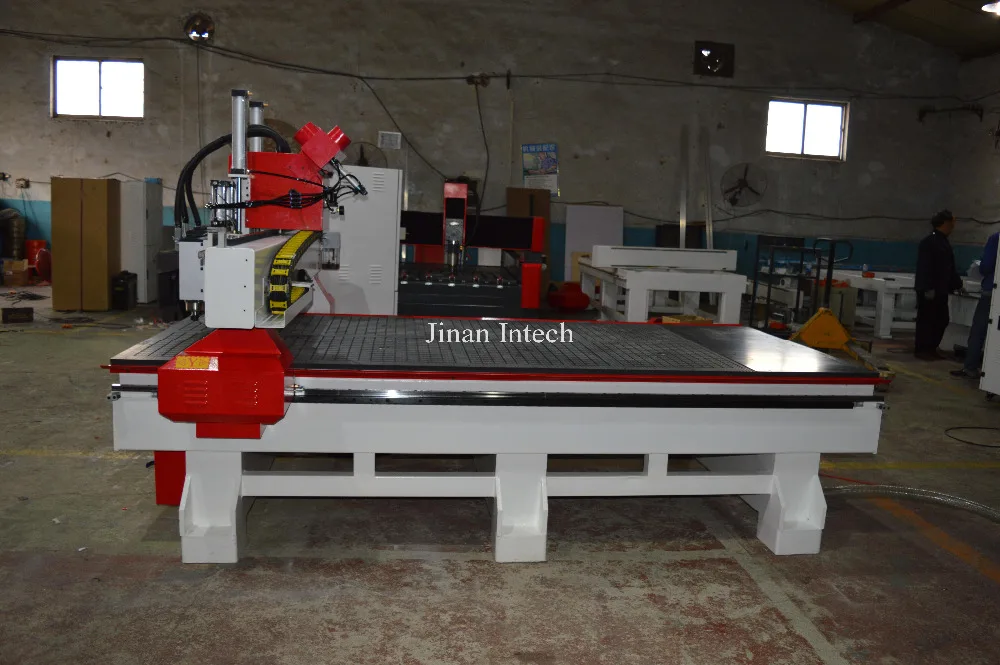

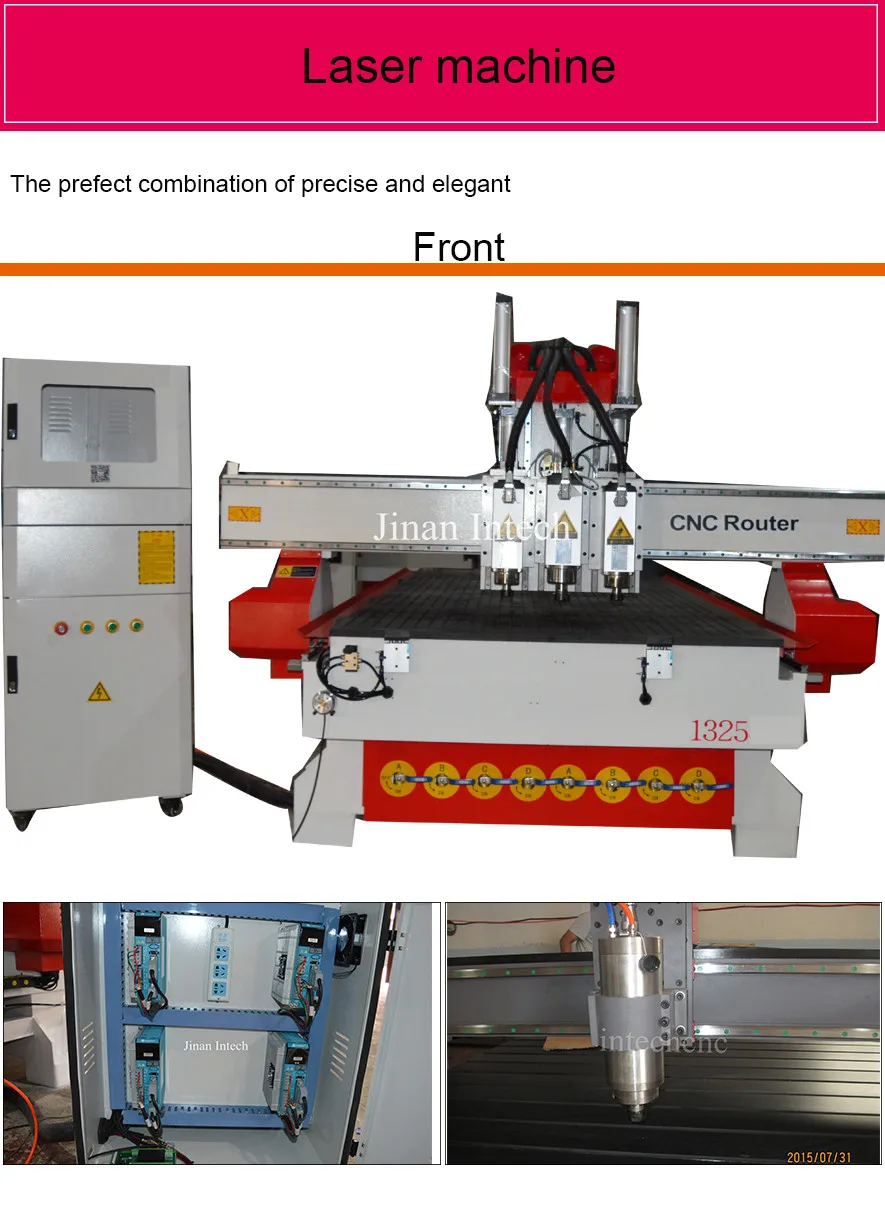

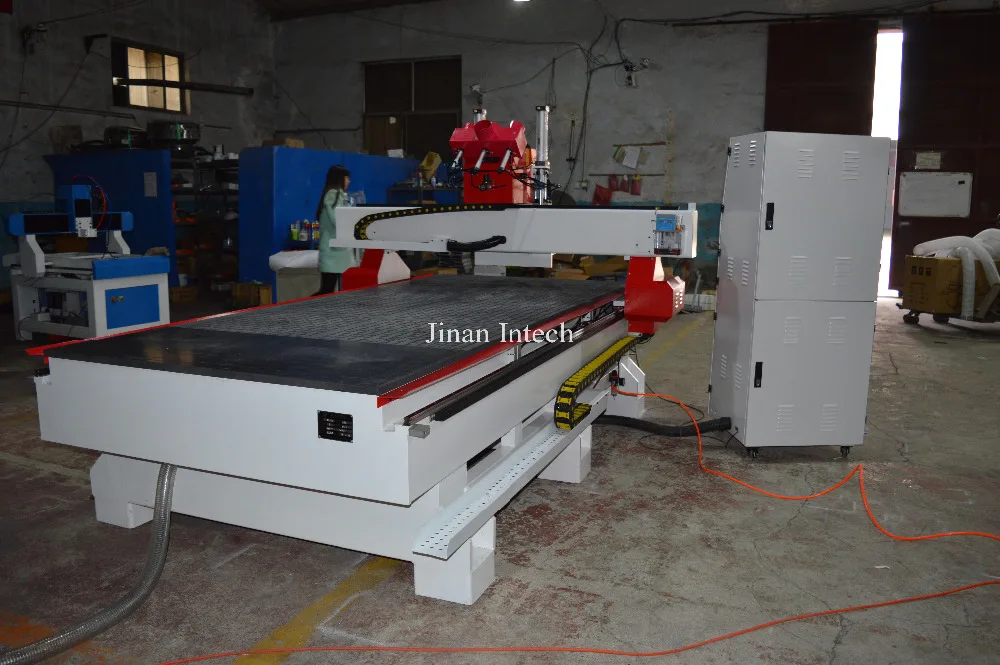

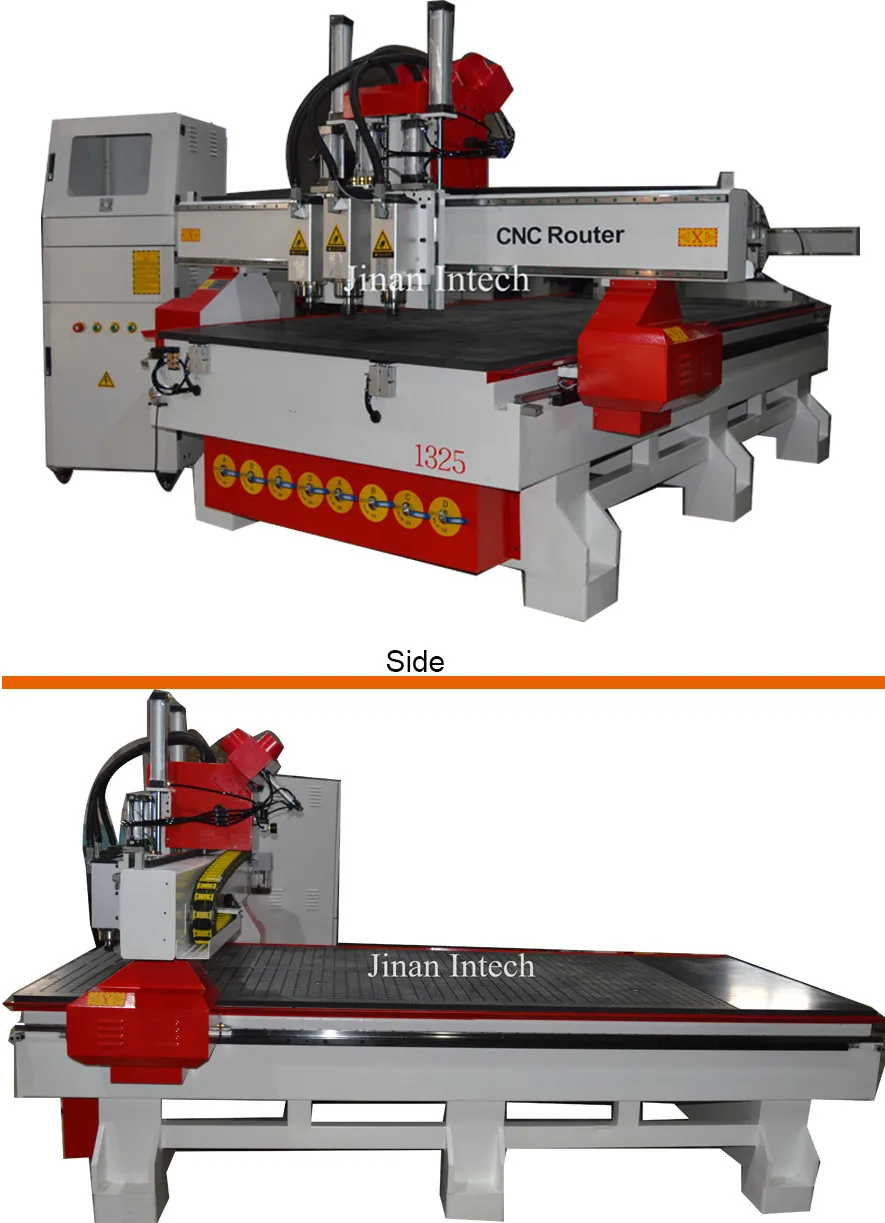

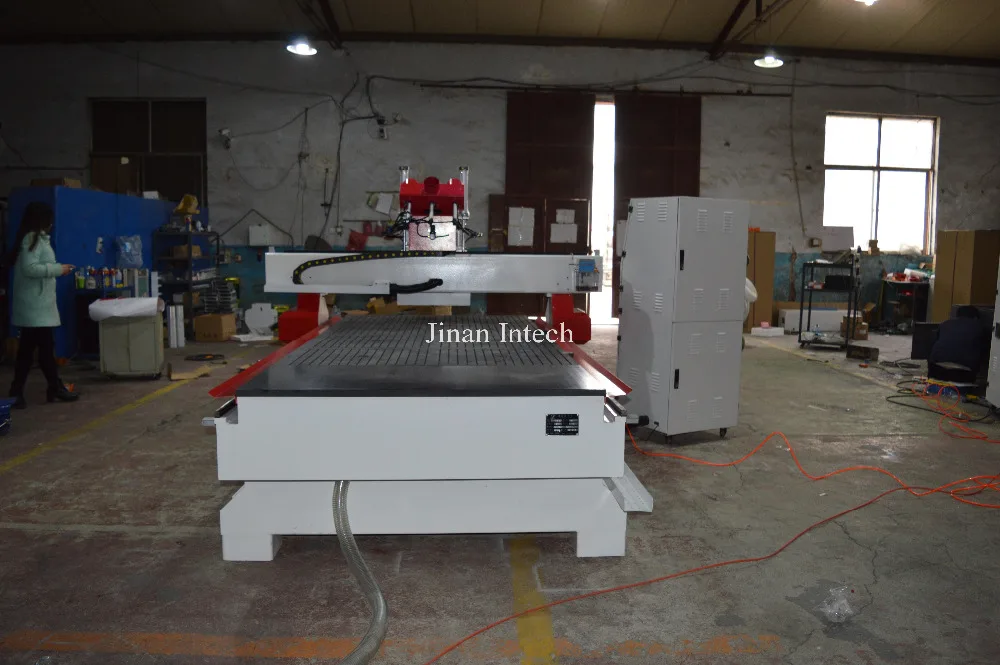

Good working effort LFM1325 cnc router 1300*2500
2.Configured with imported tool magazine the machine can change tools speedy and freely.
3.Tool sensor enables the machine compensate the tolerance of the tool length.
4.Vacuum working table with double cavities and Bakelite material with high absorption power.

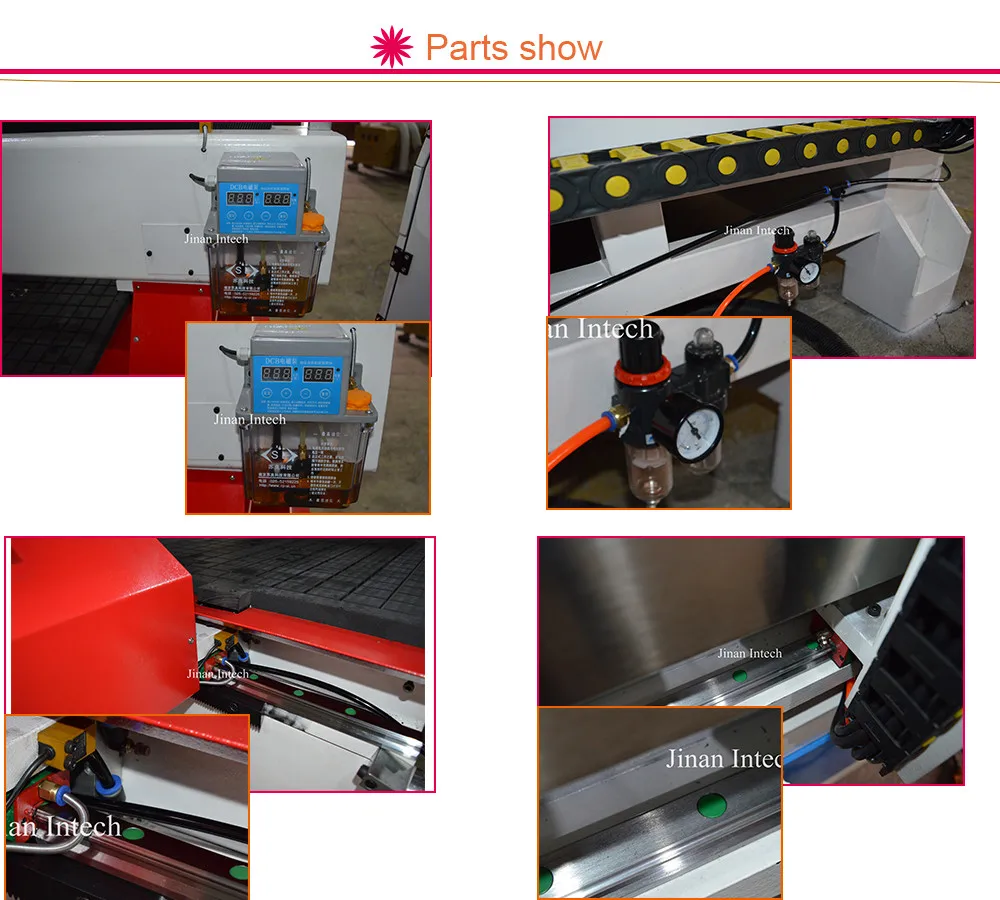

5.Imported control system, separated keyboard control, color LCD display add No.25 Hiwin linear guide rail and
rack from Taiwan
Technical Parameters
| Description | Parameter |
| X,Y,Z Working Area | 1300x2500x150mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
| X,Y,Z Repositioning Accuracy | ±0.05mm |
| Table Surface | Vacuum table(Option: aluminum T-slot Table) |
| Vacuum Pump | 4.5KW*3(Option:7.5KW) |
| Frame | Square pipe Welded Structure |
| X, Y axis transmission | Rack and Pinion gear |
| Z transmission | Ball Screw |
| Max.Traveling speed | 25000mm/min |
| Max.Working speed | 15000mm/min |
| Rail Configuration | 20 square rail (opitioinal 25 square rail) |
| Spindle Power | air-cooling 4.5KW |
| Spindle rotationg Speed | 0-18000RPM |
| Drive Motors | Stepper System(Opitional YASKAWA sevo) |
| Working Voltage | AC380V/50Hz/3PH |
| Operating System | Ncstudio system(Option: DSP) |
| Computer Interface | USB |
| Command Language | G code, u00, mmg, PLT, HPG |
| Software Compatibility | Type3 or Wentai (ArtCUT), or ArtCAM software |
| Packing and Size | Wooden case,L3200mmW2000mmH1900mm |
| N.W. | 1800KG |
|
Optional parts | 1. Water cooled type spindle (China or Italian brand air spindle) 2. Smaller power spindles 3. Mist spay cooling system 4. Double-head or multi-heads 5. Other control system:DSP, Syntec etc 6.Chinese water vacuum pump, oil free vacuum pump or German vacuum pump 7.Servo motors (China or Japan brand) 8.Rotay with diamater 80mm,125mm,150mm,200mm,300mm 9.Dust collector 10.Oher features could be customized accordingly . |
Application
1.Furniture industry: wooden doors, cabinet doors, board, office, solid wood furniture
2.Other wood products industry: speakers, game consoles cabinets, computer tables, sewing machine table, musical instruments, etc.
3.Board processing industry: insulation piece, plastic chemical products; PCB; fast train inside body, bowling tracks, stairs; compact grade laminate, epoxy resin, ABS, PP, PE and other cementitious mixtures’s milling process
4.Decoration industry: folding screen, wave plates, large wall, advertising boards, signs and logo’s processing.
Our Services 1.2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
Packaging & Shipping
Packaging : 1.Outside package:Standard marine export plywood cases
2.Inner package:Stretch film and plastic film for humidity
Shipping: Maritime transport,air transport,land transport and the logistics transport
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or
other ? What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we do not know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp.
Q5.How about your guarantee period?
two year and during the time,if you have any questions ,we will solve it for free.
