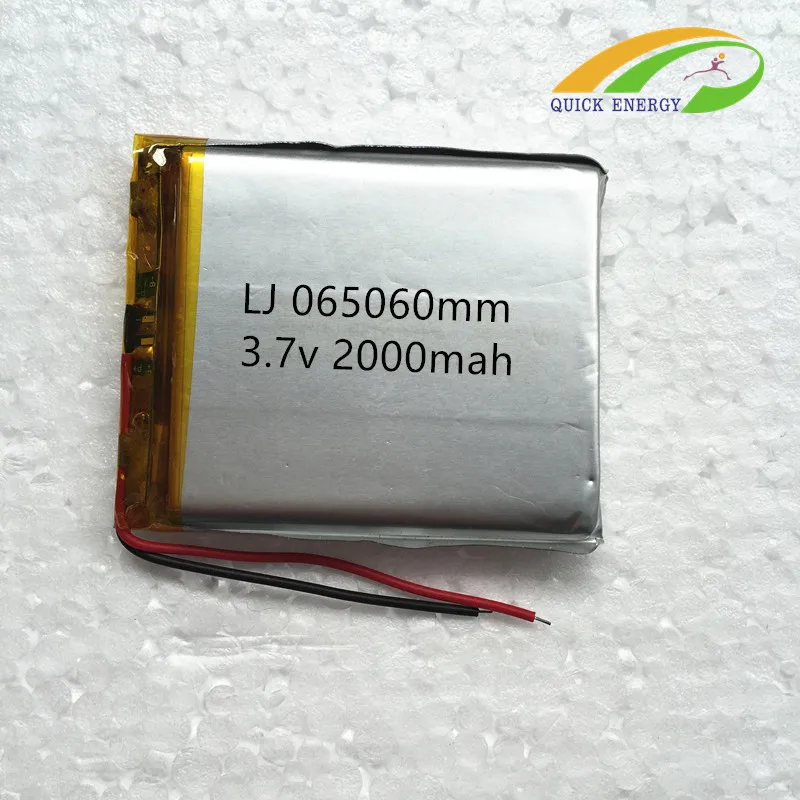

Product Type: LP605060

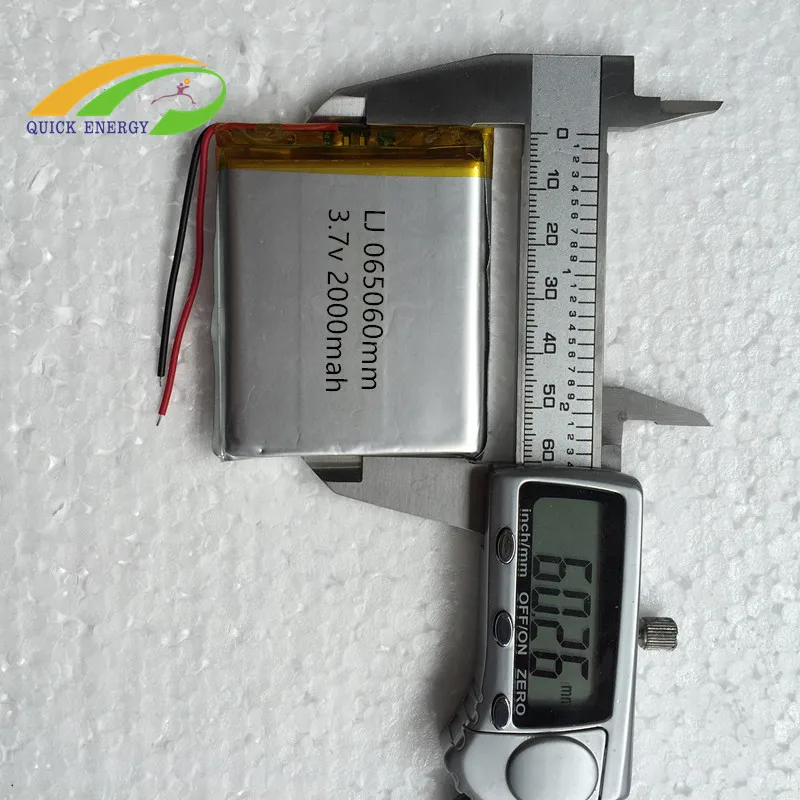

Product Dimensions: Length 60x wide 50x 6.3mm thick
Batteries Capacity: 2000mAh
Nominal voltage: 3.7V
Product weight: 40.2g

Charging current: Standard charge: 0.2C; fast charging: 0.5C

Standard charging method: 0.2C CC (constant current) charging to 4.25V, then CV (constant voltage 4.2V) Charge until the charging current 0.05C

Maximum charge current: 0.5C

Continuous discharge current: 0.5C

Maximum discharge current: 1C

Discharge cut-off voltage: 2.75V

Discharge Temperature: -10~ + 60

Charging time: 12hrs (standard); 3hrs (fast)

Charge and discharge times: more than 800 times

Self-discharge: less than 400uA

Protection Plates
Working Current: 1.5A
Limiting protection: 2 ~ 3A
Overcharge limit voltage: 4.2 +/- 0.05V
Over-discharge limit pressure: 2.9 +/- 0.10V

* Due to the over-discharge protection board limited pressure, measured capacity is slightly lower than the nominal capacity of the batteries.

Two shades of blue random delivery!

Other technical parameters of the product specifications shall prevail.

A battery with protection board, to prevent over charge, over discharge, over current, short circuit and other functions.

This product is mainly applied to stories, learning mhine, flash shoe, mobile standby power, MP3, mobile speaker, microP, navigation (GPS), cell Ps, toys and other electronic devices.

More models, size and capacity,Customized (MOQ and other details, please contact customer service).

Storage:

• To ensure the battery to maintain capacity levels, it is recommended batteries and battery packs-20 To 35Under low humidity, no corrosive gas storage conditions
• Avoid battery stored at high temperature or high humidity, otherwise it will lead to battery leakage, rust, and lower capacity.
• Long-term storage may cause the battery and battery capacity decreases, and the need1-3Charging/Discharge cycles in order to achieve the maximum discharge capacity.
• When the battery charge and discharge cycles required to place three months time.

Caveat:

• Not allowed to reverse charging, the battery should be conNted correctly according to the polarity can not be reversed.
• Do not allow short circuit, otherwise it will lead to permanent damage.
• Battery is not in use under extreme conditions, such as: Extreme temperature, deep cycling, extreme overcharge and over discharge.
• Keep the battery stored in a cool dry place, if a large number of battery storage or shipping batteries must first fully discharged.
• Do not solder the battery directly.
• If the battery is noisy, high temperature, leakage and other abnormalities, please stop using it immediaTy.
• Do not fire or attempt to open the battery may burn or produce harmful substances.
• Do not allow the old battery or use half of the battery and the new battery together, otherwise they will have been discharged.
• Not cut the shell and remove the battery outer casing.
• Do not allow the battery into the water.

NOTES:

• Should charge the battery before using the wires.
• The charging method according to our technical specifications.
• Use the appropriate charger.
• Avoid using sealed battery should provide appropriate ventilation, otherwise the battery may produce hydrogen in the presence of an ignition source will cause an explosion of the situation.
• Do not attempt to separate or bear squeeze and collision battery pack could cause the battery to generate heat, sparks, alkaline electrolyte spill will damage the skin and eyes may cause corrosion clothes.
• The battery should be away from the kids, if they are swallowed, should contact a doctor immediaTy processed.
• When the battery is not in use, it should be removed from the device.
• When using a new battery for the first time after long-term storage or use, fully charged before use.
• When the battery is hot, do not touch until it cools down.
• Found that when the battery power drops should be used to turn off the device to avoid over discharge.
• As you pull the battery pack should be holding the battery terminal and not holding the line.
• After the battery if the battery is hot, before recharging it can be put in direct sunlight without ventilation cooling.

Most types of batteries have not sprayed the word body type, V number, capacity, etc., mind do not shoot!
Tips: Voltage 3.7V-4.2V batteries are common to all we can correspond to a good size buy!

Package included:
1 x battery
NO Retail Box. Packed Safely in Bubble Bag
