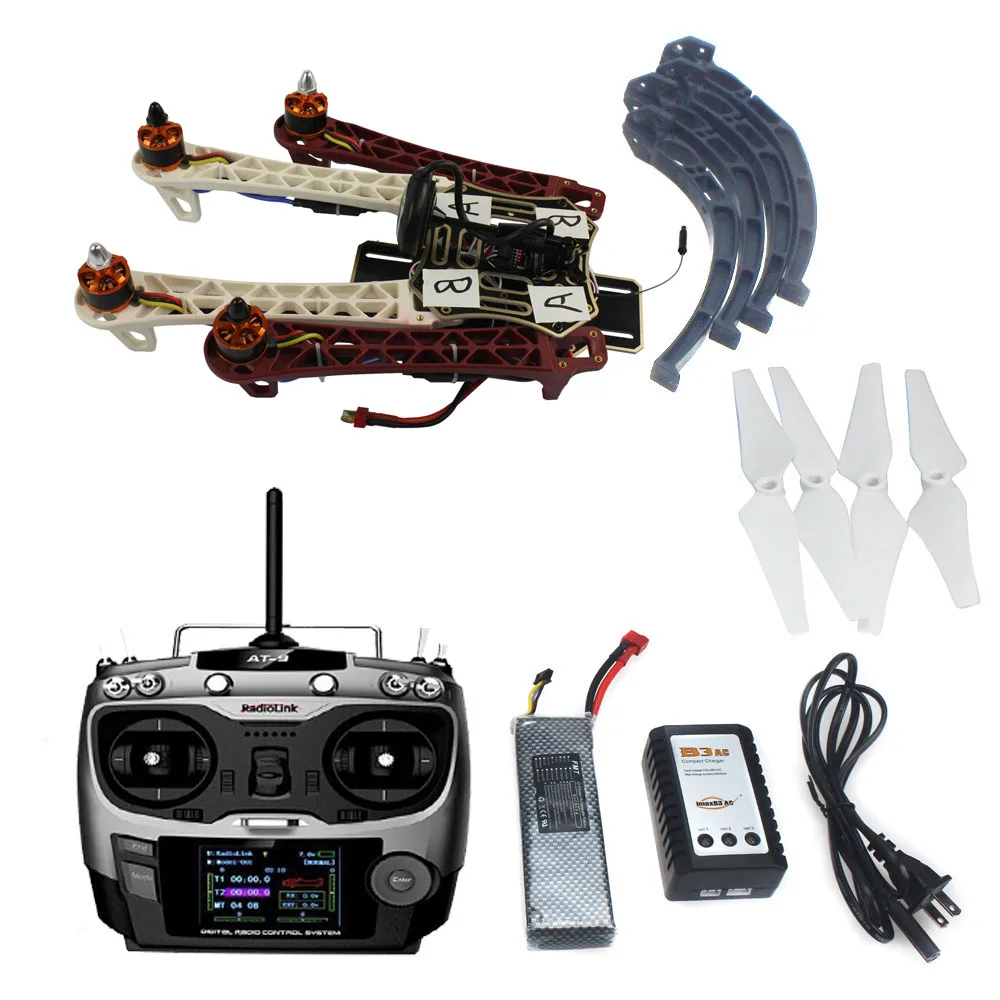

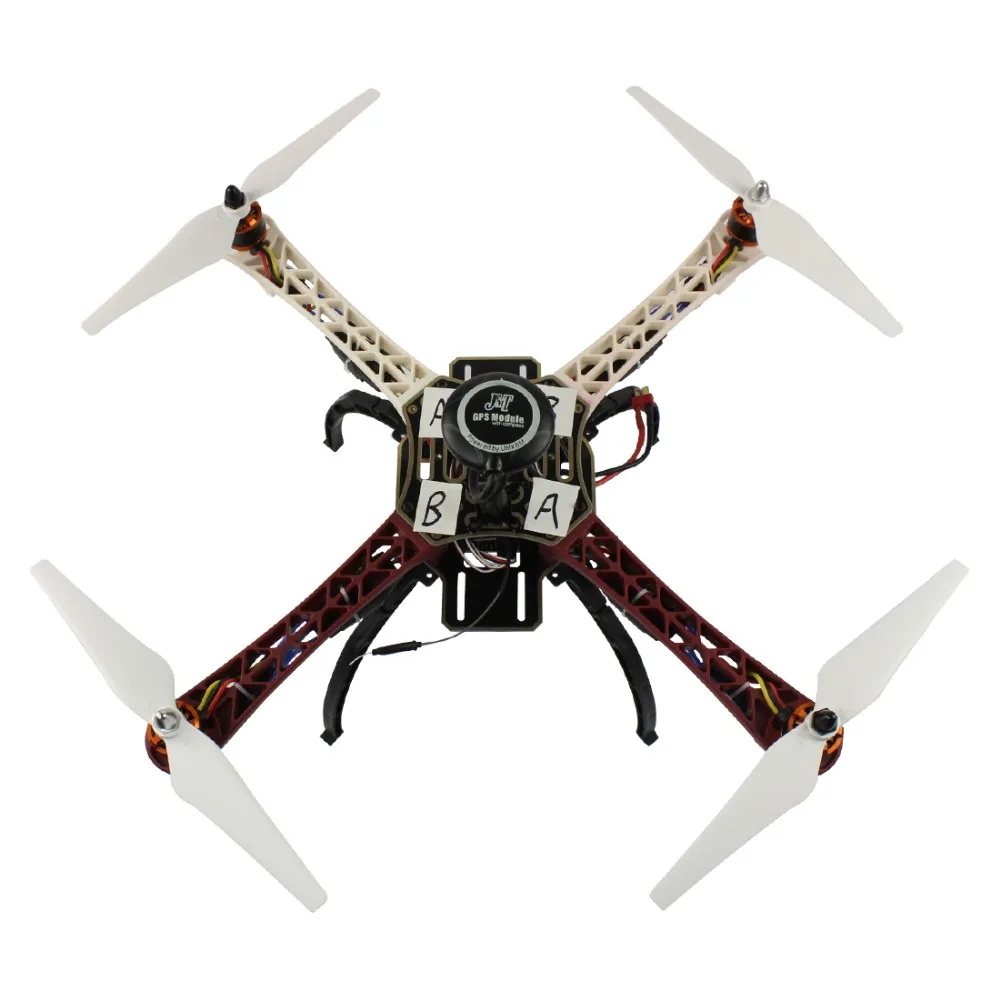

Assembled HJ 450 450F 4-Aix RFT Full Kit with APM 2.8 Flight Controller GPS Compass No Gimbal







Packing including :

1 X HJ 450 450F Nylon Fiber Flamewheel

2 X D2212 920KV Clockwise Brushless Motor

2 X D2212 920KV Counter-clockwise Brushless Motor

4 X 30A Brushless ESC

2 X 9443 propellers

1 X APM 2.8 Multicopter Flight Controller

1 X GPS with Compass

1 X Radiolink AT9 2.4GHz 9 Channel Transmitter Radio & Receiver

1 X 140MM High Landing Gear Skid

1 X 11.1V 3300Mah 25C 3S lithium battery

1 X IMAX RC B3 Pro Compact Balance Charger

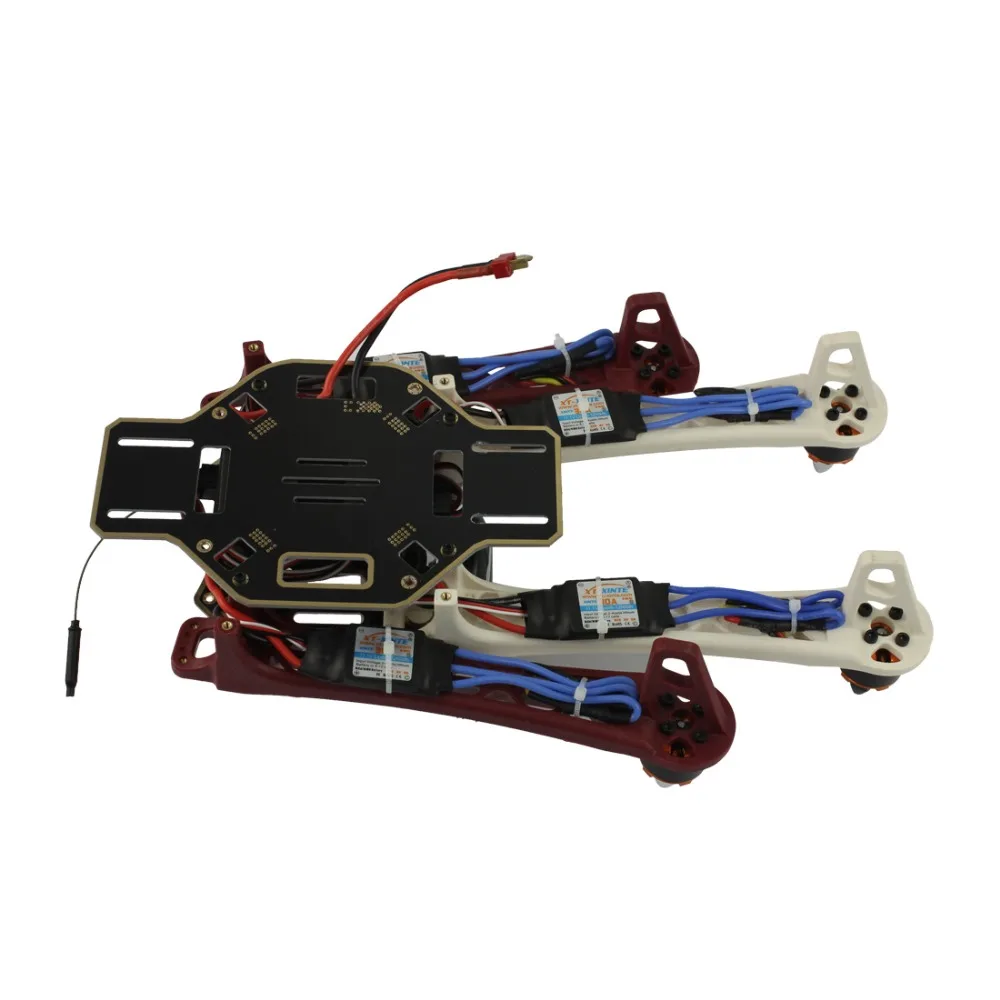

HJ 450 450F Nylon Fiber Flamewheel Frame Airframe kit HJ450





This is a very popular machine, it has a strong rack, beautiful appearance, and a stable system of flight for smooth flight. It is very suitable for both beginners and senior .

Notes:

This product only includes the airframe, no other config is included.

Shaft distance: 17.7in/450mm

- Net weight: 0.65lb/282g - by advanced engineering material,super strong & smooth

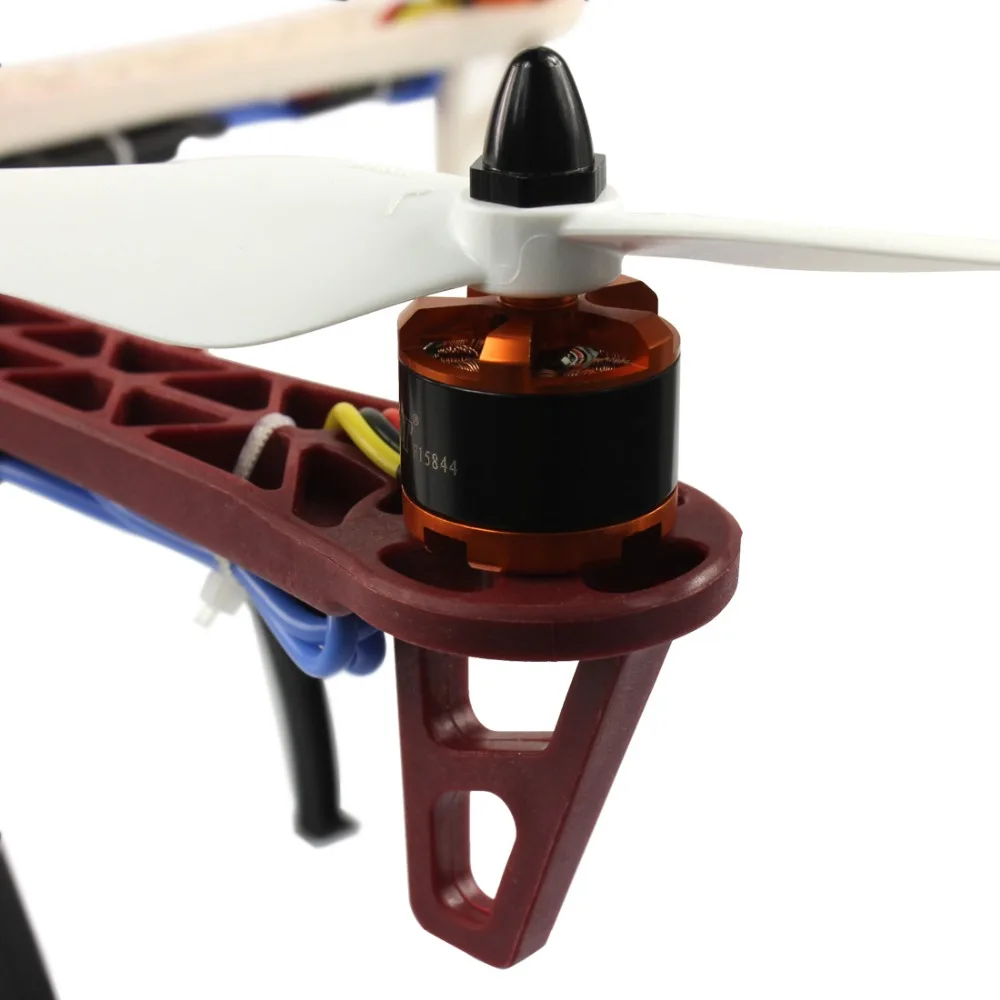

D2212 920KV Clockwise Counter-clockwise CW CCW Brushless Motor

  Outer diameter: 28.0 mm Height: 24.0 mm (Without Shaft) K V: 920kv

30A Brushless ESC Speed Controller



1.1 Output: Continuous 25A, Burst 40A up to 10 Secs.
1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3 BEC: 3A
1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
1.5 Size: 45mm (L) * 25mm (W) * 11mm (H).
1.6 Weight: about 25g.





propeller 9443

Length: 9.4 inches Product Pitch: 4.3 inches Color: White

APM2.8 ArduPilot Mega APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded

    Size: 70*45*13.5 Weight: 28G APM is an open source flight control, can you play APM well depend on individual ability. Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you're not ready, then We recommend that you prepare some introductory information first. Introduction: Eliminate V2.52  Version Old 1.0mm 6P SM06B GPS interface , changed to the DF13-4P compass external I2C interface, Place the DF13-5P GPS interface with external interfaces of the compass, more convenient to connections GPS with external compass. Replaced the V2.52 I2C interface to multi-purpose MUX interfaces, which can be used by the users themselves through the Pad of Back Board freely configurable function output, UART0,UART2,I2C,OSD optional, defaults OSD interface, avoiding 2.52 version when you want to use both Data Transmission and OSD, you need to use Y-line separating the interface programme. Improved OSD interface when used in conjunction with Data Transmission, because of the isolation resistance, more effective to avoid the interference of Data Transmission. New V2.8.0 use United States semi-LP2985-3.3, pressure-resistant up to 16V, increased reliability, reduced probability of Bad Gyro health due to voltage problems.





GPS with Compass



GPS Features: - Built-in compass GPS module - Main chip: 6M - With fast satellite searching speed and high precision - Compatible with APM serial port and I2C port - Includes round plastic shell

- Pre-configured, Flashed with the correct settings, and tested - Super Bright LED,BlackPlane with Standard Mk style mounting holes 45mm X 45mm - Cable included - With L5883 compass Cable length in 25CM - Dimensions: 53.5*53.5*15.5 - Weight: 30g

- Quantity:1 Piece

Description: C/A code,1.023MHz Receiver Frequency:L1 [1575.42MHz] Locate performance 2D :3m(Average) 2D:2m(average),with WAAS drifting<0.02m> accuracy:1us coordinate system:WGS84 max attitude height:18000 Max speed:515m/s

Specification: tracking sensitivity:161dBm Capture sensitivity:148dBm cold start time:38s average Warm start time:35s average hot start time:1s average Capture time:0.1s Average Temperature:40 centi grade to +80 centi grade wide power supply voltage:+3.5V~+5.5V





Radiolink AT9 2.4GHz 9 Channel Transmitter Radio & Receiver

  1 Size: 183*193*100mm 2 Weight: 0.88kg 3 Frequency: 2.4GHz ISM band (2400MHz to 2485MHz) 4 Modulation mode: QPSK 5 Channel bandwidth: 5.0MHz 6 Spread spectrum: DSSS 7 Adjacent channel rejection: >38dbm 8 Transmitter power: <100mW(PCB testing), <20dbm(3 meter air testing) 9 Operating Current: <105mA 10 Operating Voltage: 7.4~15V 11 Control distance: more than 900 meters ground, 1.5kms air 12 Channel: 9 channels, 5~9 channels are customizable 13 Simulator model: under the simulator model the transmitter action turn off, change to power saving model 14 Screen: 2.8 inches 16 colorful screen , 240*320 pixels 15 Compatible model: Include all 120 degree and 90 degree swashplate helicopter, all fix wing and glider, five flying model and aircraft Features FULL TYPES AND FUNCTIONS Suit for all airplanes including helicopter 8 swash plate models, fixed wing 2 airfoils 3 rears,  gliders 4 airfoils 2 rears and aircraft. FAST RESPONSE It takes 3ms only for 9 channels to response parallel, which is less than the average time 20ms. SUPER STABLE AND LONG DISTANCE OPERATING DSSS spread spectrum mode supplies better performance in anti-interference . QPSK modulation mode. Actual measurement: 900 meters ground and 1.5kms air.

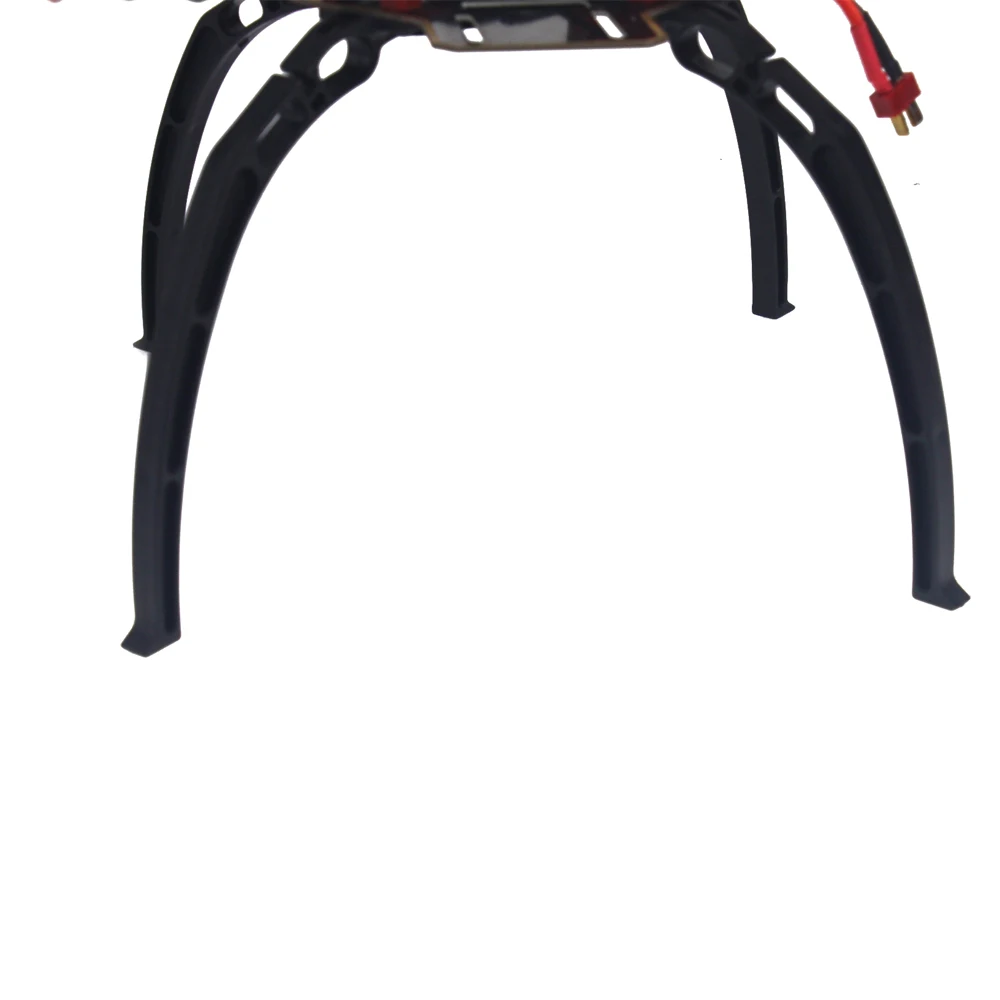

140MM High Landing Gear Skid Wheels Tripod





Features:

universal Tall Landing gear skids for DJI F450 F550 SK480 FPV aerial photo.

Specifications: Easy for install on the DJI F450 F550 or similar frame Come with 4pcs for one full set. Come with M3*8 Screws for assembling High(LxWxH): 140mm (Single) Weight: about 12g (Single)





11.1V 3300Mah 25C 3S lithium battery

Size: about 139x 43 x19MM Weight: about 268.8g

IMAX RC B3 Pro Compact Balance Charger

  Feature: Input Voltage : 100 - 240V AC50 / 60Hz Output Current: 3*800mA Suitable for 2 cell and 3 cell Li-Po Batteries Led Indicator: When power is on : Orange Stand by mode : Green Battery Charging : Red Battery Full : Green
