24 контакта капсульного скользящего кольца с твёрдым золотом для низкого сопротивления флуктуации для применения в военной технике.

24 контакта капсульного скользящего кольца с твёрдым золотом для низкого сопротивления флуктуации применения в военной технике.

Brand NameJINPATModel NumberLPC-24TOriginMainland ChinaCertificationCECertificationFCCCertificationRoHSMax Speed200rpmScale1:5State of AssemblyUnassembled KitControl Channels12 Channels & UpGyro1Measurement unitpiece/piecesEach pack1Operating Speed0-200 rpmCurrent Rating2 amps per circuitContact MaterialGold to GoldLead LengthStandard 250 mmNumber of circuits24 circuitsFeaturesRemote Control5 197,50 ₽5 197,50 ₽Add to CartBuy now5 197,50 ₽loader

Description

24 Circuits Capsule Slip Ring Hard Gold Plated Low Resistance Fluctuation , 240VDC/AC In Military Equipment

Description

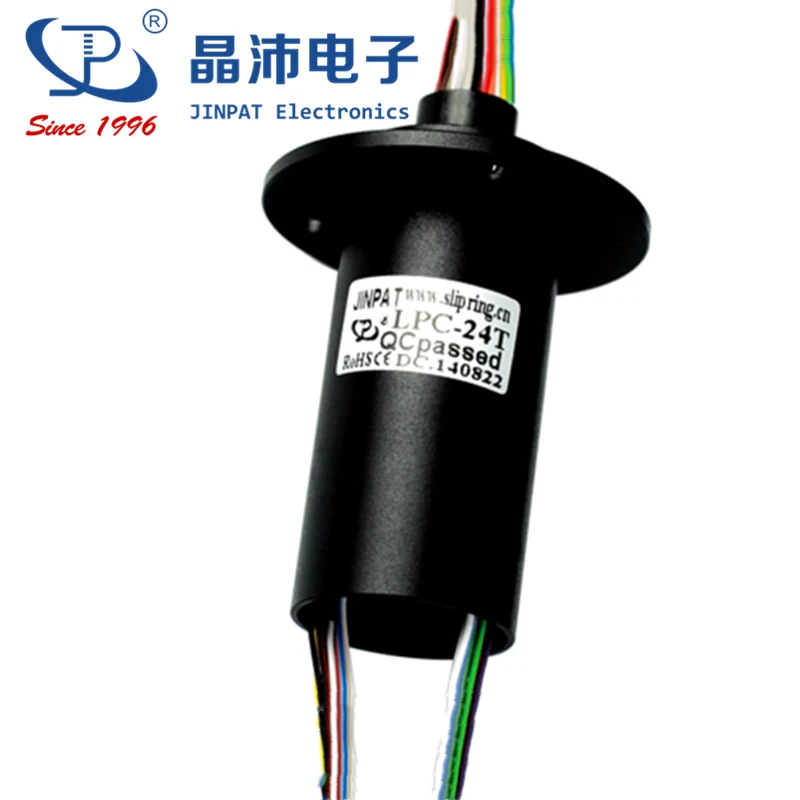

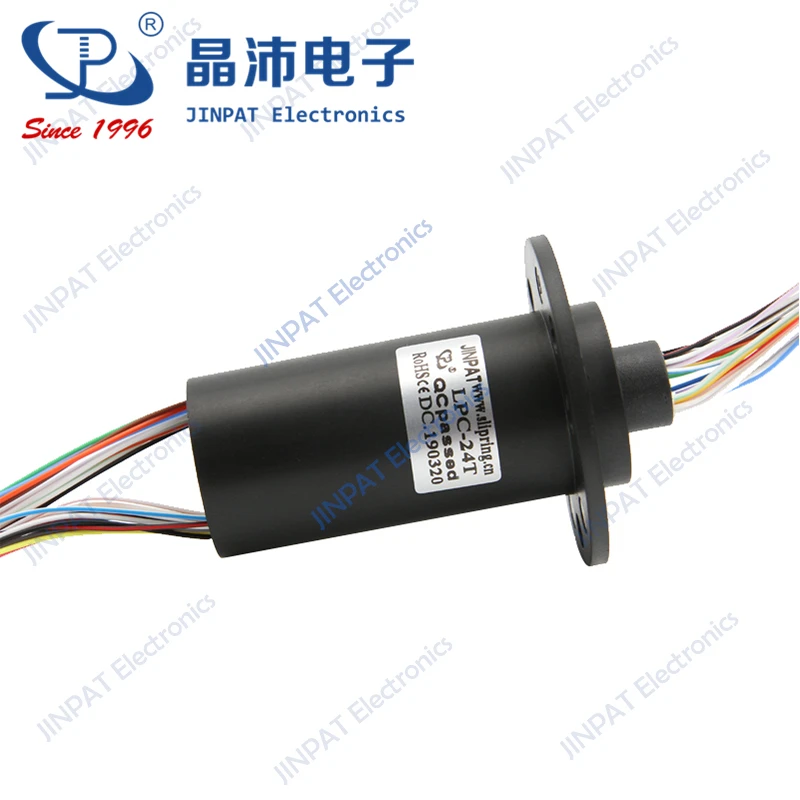

The LPC-24T slip ring capsule is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.Using a 90° V-groove ring design for each ring, the LPC-24T provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in 6, 12, 18 and 24 circuit models.

Outline Drawing

Installation Instructions

Features

• 24 circuits models

• 2 amps per circuit ,240VAC/DC

• Speed up to 200 rpm continuous

• Gold-Gold contacts

• Compatible with data bus protocols

•  Sealed units are available

•  Flexible, color-coded, silver-plated, lead wires

• Transfers analog and digital signals

• Also available with 5 and 10 amps power rings combined with 2 amps rings.

•  Precision ball bearings meet or exceed life requirements for most commercial applications

• Compact Size
• Low Friction
• Long Life & High Reliability
• Quick Delivery & Low cost
• Easily Customizable
• CE and RoHS Compliant

Main Application

•  Electrical test equipment

•  Manufacturing and process control equipment

•  Indexing table

•  CCTV pan / tilt camera mounts

•  Robotics, rotary sensors, urgent illumination equipment

•  Exhibit / display equipment.

•  Aviation, military ,instrument, medical equipment.

•  Mini-type wire-rolling machine

• Closed-circuit control

Advantages

•  Low torque minimize system torque budget

•  Tight packaging to fit in the most demanding space.

•  Smooth running

• Low electrical noise

• Quick shipment per your urgent requirement

• 360°continuous rotation

•  High bandwidth transfer capability

•  Addition of special components

Company introduction

JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 squaremeters with professional R&D team, advanced production equipment and skillful 300 employees. JINPAT slip ring is one of the best-known brands in the Europe and North America.

It is rich technologically advanced equipments with high precision test instruments.Our manpower is so competent that we meet the?demands having varied specifications with ensured durable and reliable quality.

Company look

Frequently Asked Questions

1. Who is JINPAT?

We are leading manufacturer specialized in many types and application of slip rings.

2. What is our ability and production capacity?

Our factory area is more than 50,000 square feet,which includes advanced production line,R&D center and Testing Laboratory.We offer standard model and customized solutions for various application . The factory is equipped with advance testing facilities.

3. What is JINPAT advantages?

We offer flexible solutions and prompt deliveryfor different customers.

4. Why choose JINPAT’s products?

We are ISO9001 certified company with stringent quality control system.

- Most of our test equipment are best advanced .

- Long life product span .

- We offer competitive price with reliability.

5. What signals could be transferred? Is Multi-signal capable?

It is very wide, such as USB, RS232, RS485, thermocouple, Ethernet, Servo, H1M1, video etc.

Notes:

1. The operating life of the unit depends upon temperature, rotation speed andenvironment. We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.

2. If you want to know more details about JINPAT slip rings, please contact us with you special needs!
