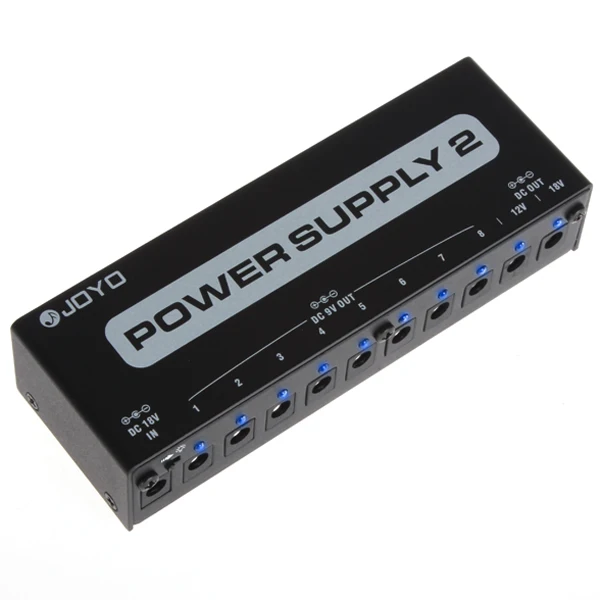

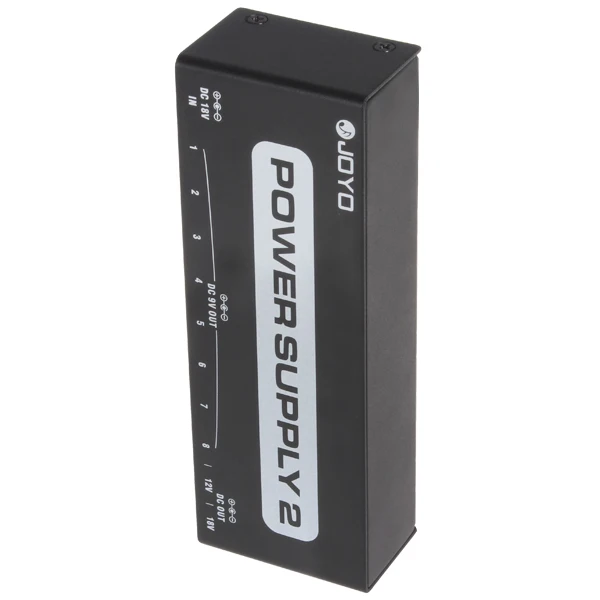

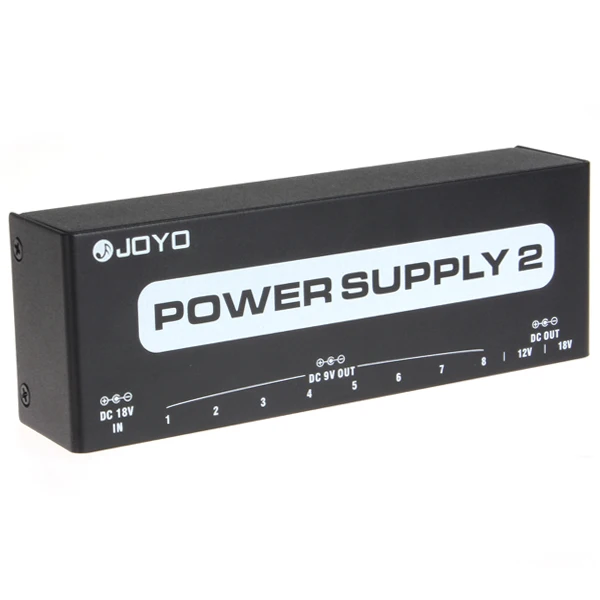

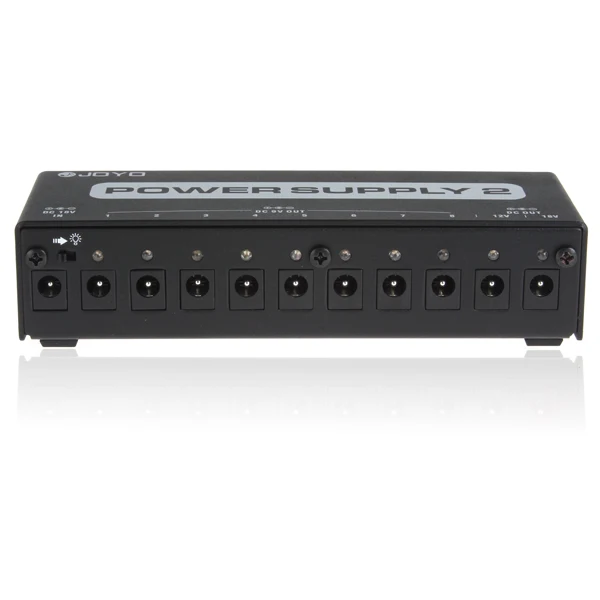

Joyo JP-02 Power Supply 2 Guitar Device with 10 Isolated Outputs & 3 Power Options

• • Specifications:
  • Brand: Joyo
  • Function: Joyo JP-2 guitar pedal with 10 outputs
  • Features:
    - 10 outputs featuring isolated short-circuit and heat protection
    - Power options for 9V, 12V or 18V effects
    - Bright blue LED for pedal board lighting & Short circuit warning indicators
    - Includes all necessary link power cables, fit for almost any existing pedal-board configuration
    - Rugged steel casing and new slim design
  • 9 Outputs:
    - OUTPUTS 1-7: All DC 9V power output with each output of 100mA. Suitable for most analog 9V effects on the market today. (negative center application)
    - OUTPUT 8: DC 9V power output but with maximum output of 500mA, which is suitable for many digital effects as well when more power is required normally for these units.
    - DC12 OUTPUT: The maximum output current is 100mA and is used for effects requiring 12V of power.
    - DC18 OUTPUT: The maximum output current is 100mA for effects that carry this rating.
  • Power Adapter: AC 110V ~ 240V (for International usage)
  • Input Current: DC 18V, 1000mA
  • Output Current: DC 9V 100mA x 7 / DC 9V 500mA x 1 / DC 12V 100mA x 1 / DC 18V 100mA x 1
  • Color: Black
  • Product Dimensions (L x W x H): 150 x 55 x 35mm
  • Package Dimensions (L x W x H): 195 x 195 x 75mm
  • Product Weight: 384g
  • Package Weight: 848g
  • Notes: All outputs are fully regulated and offer isolated short circuit protection, meaning if one output is overpowered beyond the power rating for any reason, all other outputs will not be affected.
  • After Sales Service: 1 Year Warranty
  • TOP_LIF_142

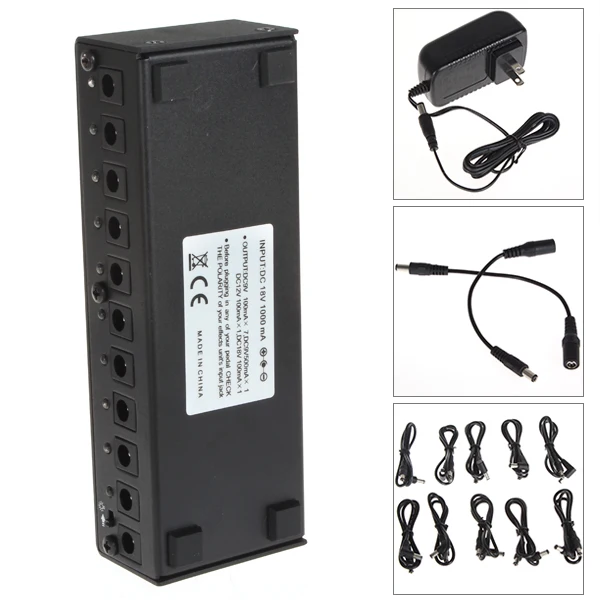

• • Package Include:
  • 1 x Host
  • 1 x DC 18V Power Adapter
  • 10 x DC Power Cable
  • 2 x Polarity Reversal Cable
  • 1 x User Manual
