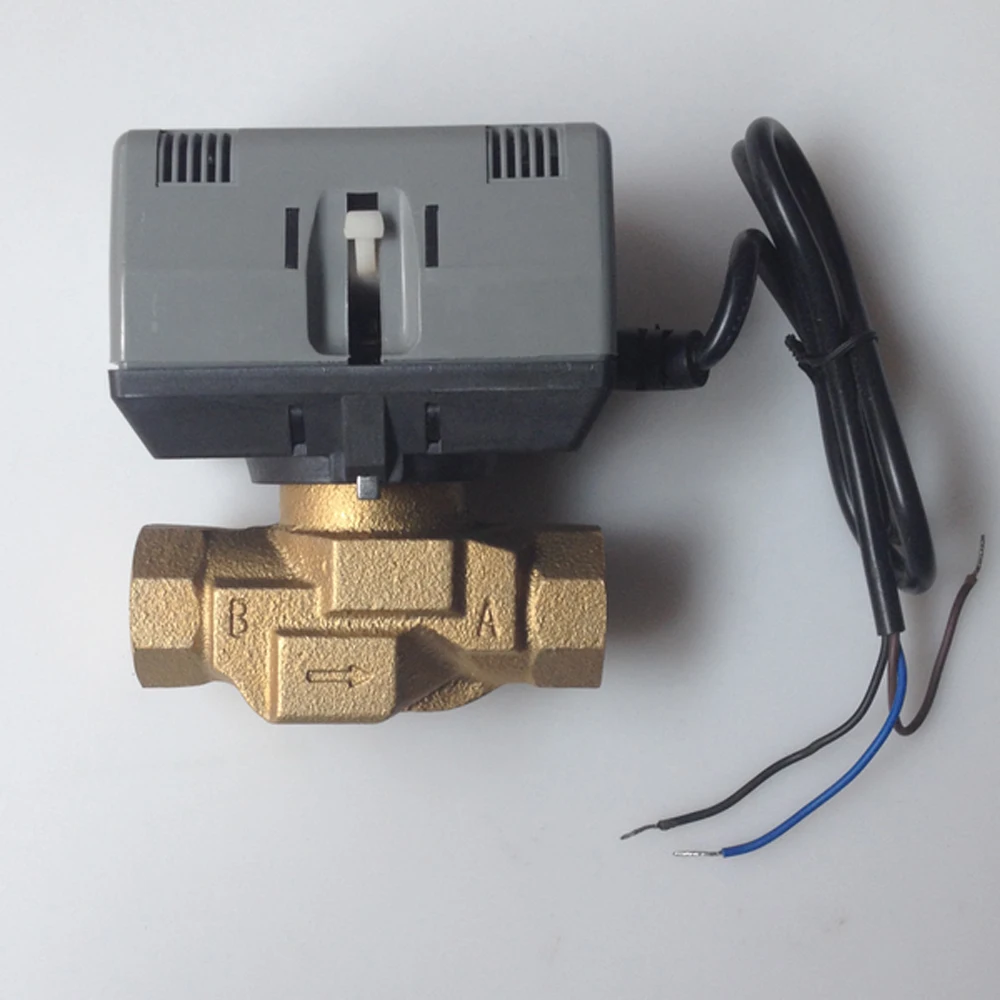

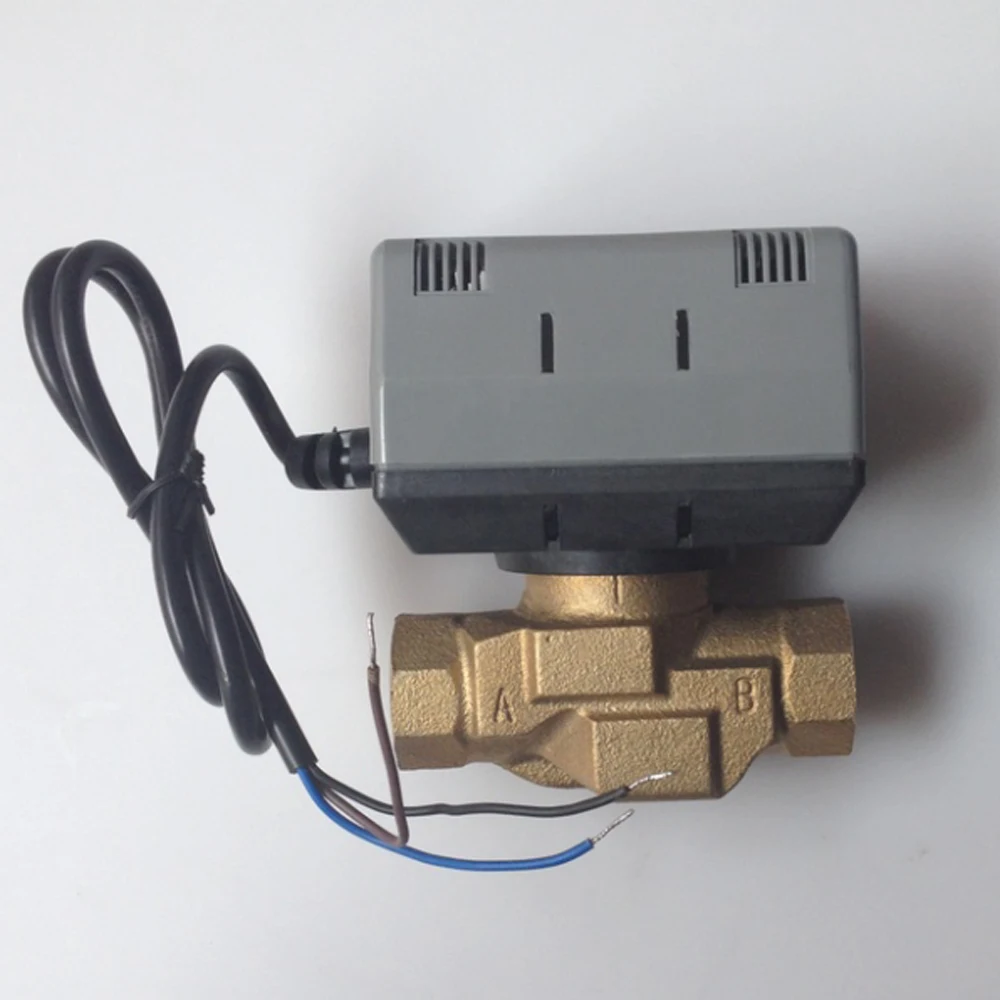

G1" Two-way Motorized Water Valve Electric Actuator Two Way 220VAC Power Supply | Обустройство дома

G1" Two-way Motorized Water Valve Electric Actuator Two Way 220VAC Power Supply | Обустройство дома

• Product Name: Motorised Valve
• Item No.:AE-D series
• Description:

• The AE-D series 2-position hydronic valves are used in domestic and small commercial applications to control the flow of hot and/or cold water. These 3-Way valves are designed for ON-OFF control and can be piped for either diverting or mixing valve applications for domestic hot water service, in central heating and/or cooling systems; or for individual room temperature control (fan coil, radiator or convector applications).

  Technical Specifications

• Power supply:220VAC

• Power consumption:5VA (only during valve position change)
  Norminal pressure: 1.6Mpa
  Allowed pressure differential: 1.0Mpa
  Media:hot or chilled water
  Opening and closing time:16S 16S
  Media temperature:1-95°C
  Ambient temperature:0-65°C
  Connection:inner screw (or customerized)
  Protection Class: IP40
  Approval: CE


  Port	Size		L	H	Kv
  2-way	1/2’’	DN15	90	114	4.5
  	3/4”	DN20	95	116	5.7
  	1”	DN25	105	128	8.7
  3-way	1/2’’	DN15	90	133	4.3
  	3/4”	DN20	95	133	5.5
  	1”	DN25	105	144	8.3
