Waveshare Raspberry Pi 7inch HDMI LCD Rev.2.1 1024*600 IPS Touch Screen with case for RPi 2 B/3 B/ Banana Pi BeagleBone Black

DESCRIPTION

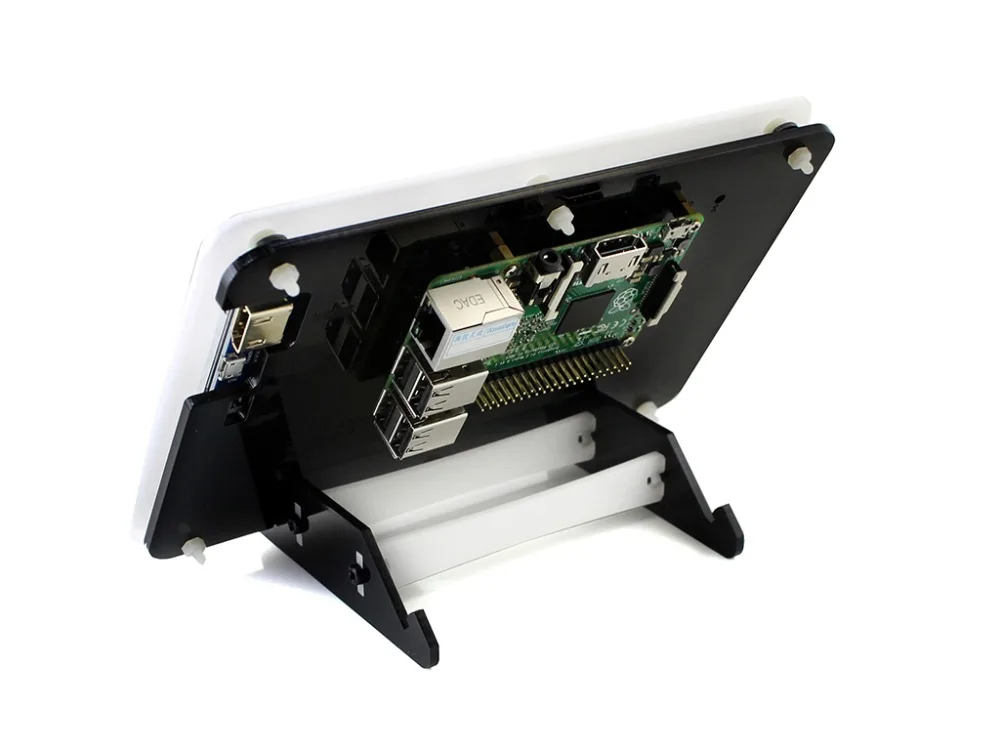

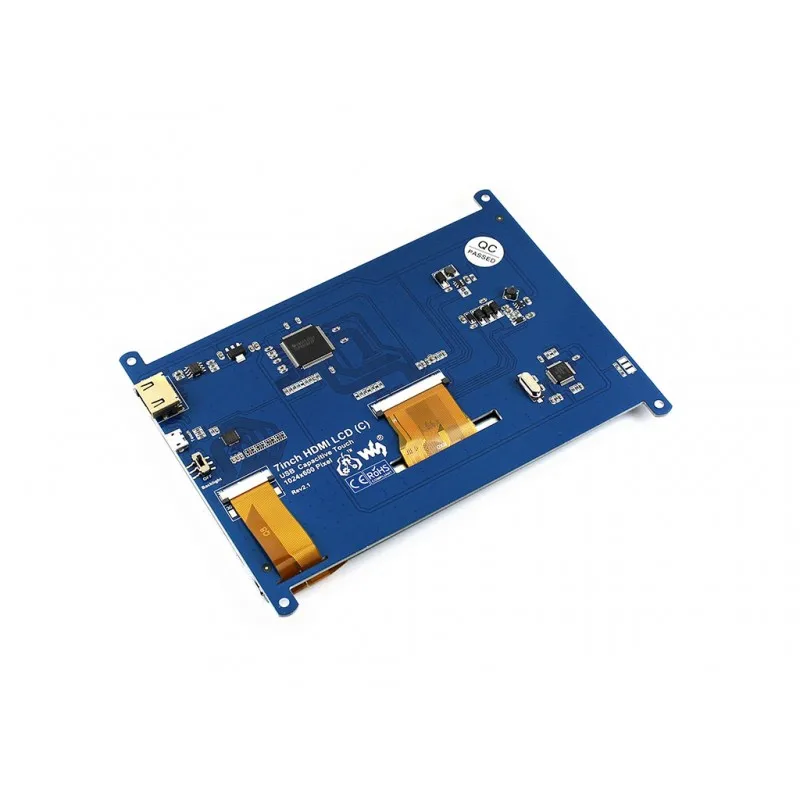

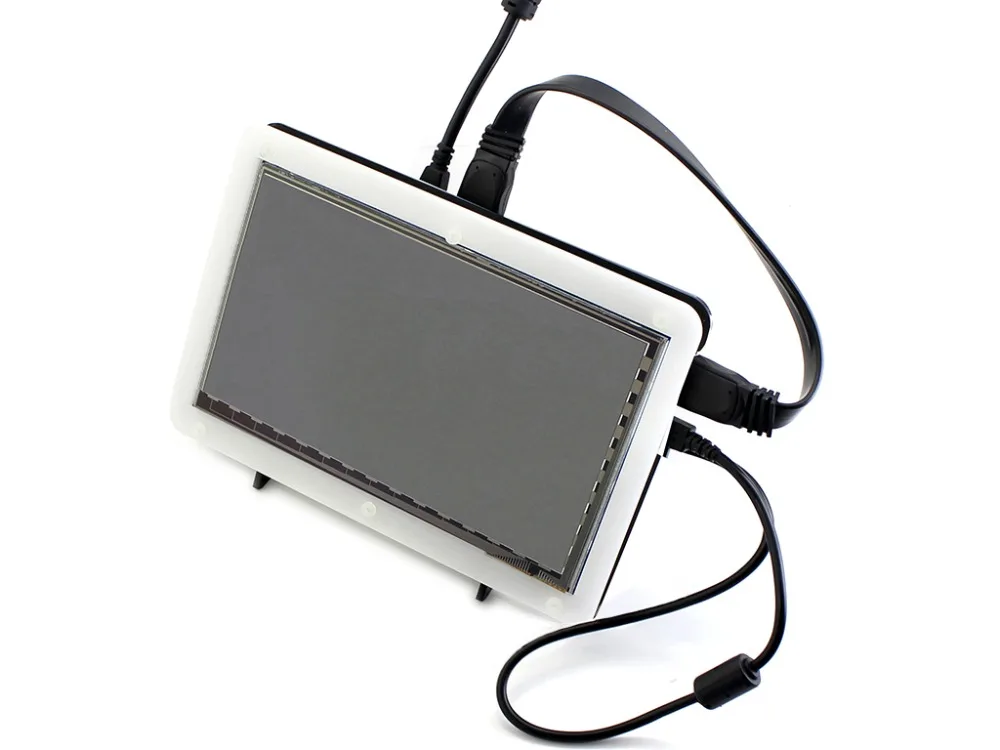

7inch HDMI LCD (C) + Bicolor case

The LCD

• 1024×600 high resolution
• Capacitive touch control

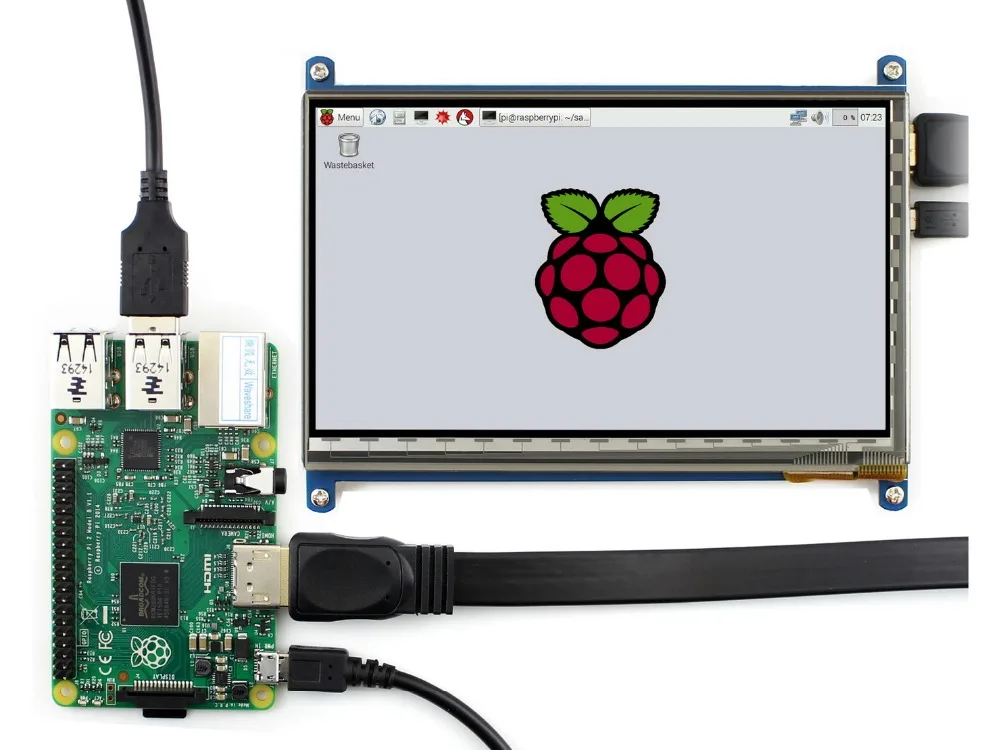

• Supports Raspberry Pi
• Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
• Supports BB Black, comes with Angstrom image
• For other mini-PCs, driver is required and should be developed by users

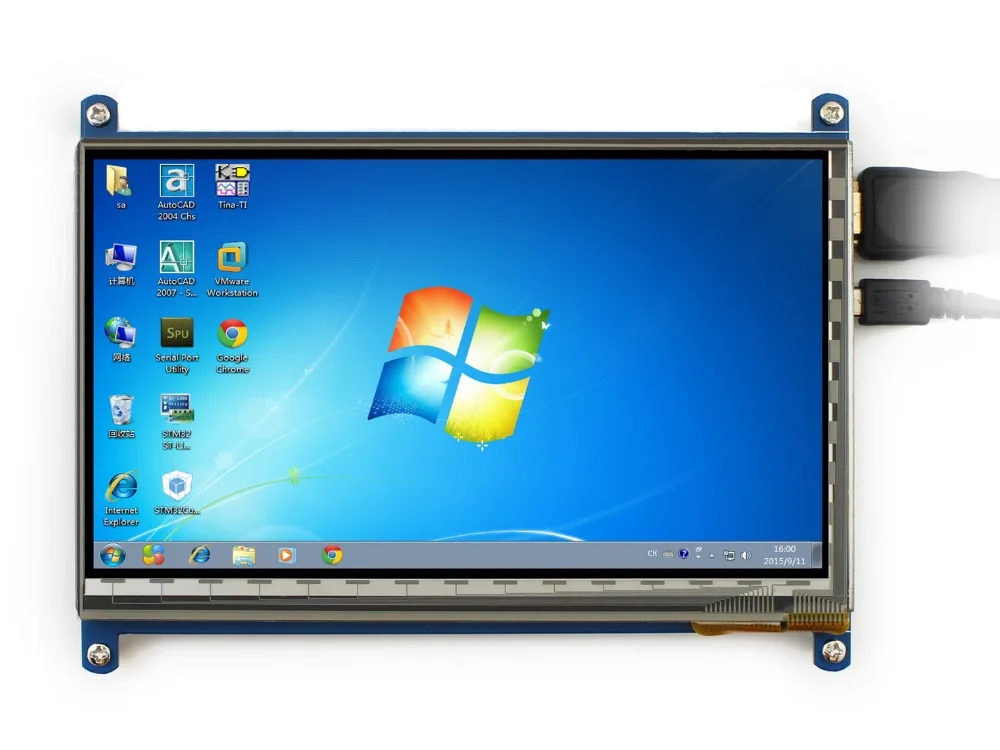

• Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen
• HDMI interface for displaying, USB interface for touch control
• Back light control to lower power consumption

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

For revisions under Rev2.1:

• For the Raspberry Pi, comes with Raspbian driver (works with your Raspbian directly), and Ubuntu image
• When work as a computer monitor, touch function is unavailable

Rev2.1 New Features:

• Upgrade to IPS screen, wider viewing angle, more clear displaying
• Standard HID protocol, easy to be integrated into your system
• For the Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
• When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free

More info : 7inch HDMI LCD (C)

Supported mini PC

Note :
Drivers can be added to your current system to support LCD display and touch control.
Images CAN NOT be used with your current system. They\'re stand-alone systems which support LCD display and touch control already.

Photos

External Dimension

Development Resources

Wiki : waveshare.com/wiki/7inch_HDMI_LCD_(C)

FAQ

Why the LCD doesn\'t work with my Raspbian?

To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.

Why the LCD still doesn\'t work with the Waveshare provided image?

Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.

Which power supply should I use?

It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC\'s USB port might have not enough power to support the Pi and LCD.

For more info, please check the wiki page.

Anti-Piracy

Since the first-generation Raspberry Pi released, Waveshare has been working on designing, developing, and producing various fantastic touch LCDs for the Pi. Unfortunately, there are quite a few pirated/knock-off products in the market. They\'re usually some poor copies of our early hardware revisions, and comes with none support service.

To avoid becoming a victim of pirated products, please pay attention to the following features when purchasing:

(Click to enlarge)

Note :

Pi 3B = Raspberry Pi 3 Model B
If the LCD is intended to play videos, please choose the one with HDMI display interface for better experience.

Have a look :

Note : If the LCD is intended to play videos, please choose the one with HDMI display interface for better experience.

PACKAGE CONTENT

Weight: 0.453 kg

1. 7inch HDMI LCD (C) x 1
2. HDMI cable x 1
3. USB type A plug to micro B plug cable x 1
4. RPi screws pack (4pcs) x

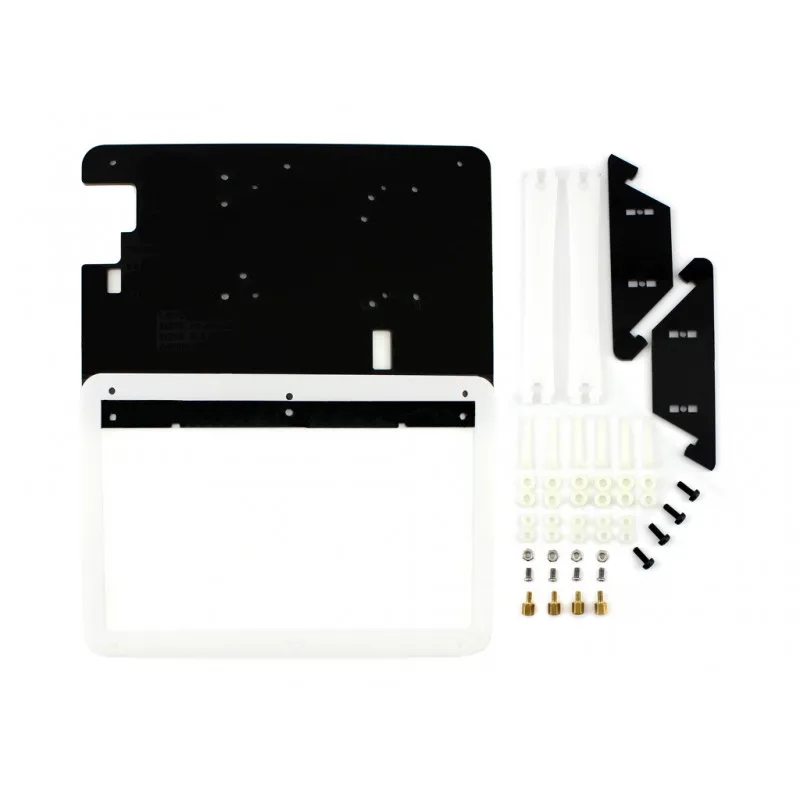

5. Bicolor Case for 7inch LCD × 1
6. Screws Pack × 1
