230V 14mm 105C Anti-freeze frost protection self regulating black heating cable electric copper heater wire for water pipe/roof |

Self Regulating Heating Cable and Its Twine Installation

230V 14mm 105C Anti-freeze frost protection self regulating black heating cable electric copper heater wire for water pipe/roof

Normal Standard+For Home Water Pipe

With Retardant,Shielding,Explosion-proof,Anticorrosive

Can Use In The Inside Water Pipe /Sewer,Water-Proof

14MM Width Heating Cable Can Use In The -30 ~ -40 degree cslsius

Destription:

• Self regulating heating cable provides reliable freeze protection of roofs and gutters. It automatically adjusts to the appropriate heat output as ambient conditions change, making it both energy efficient and cost effective.PTC brife introduction:

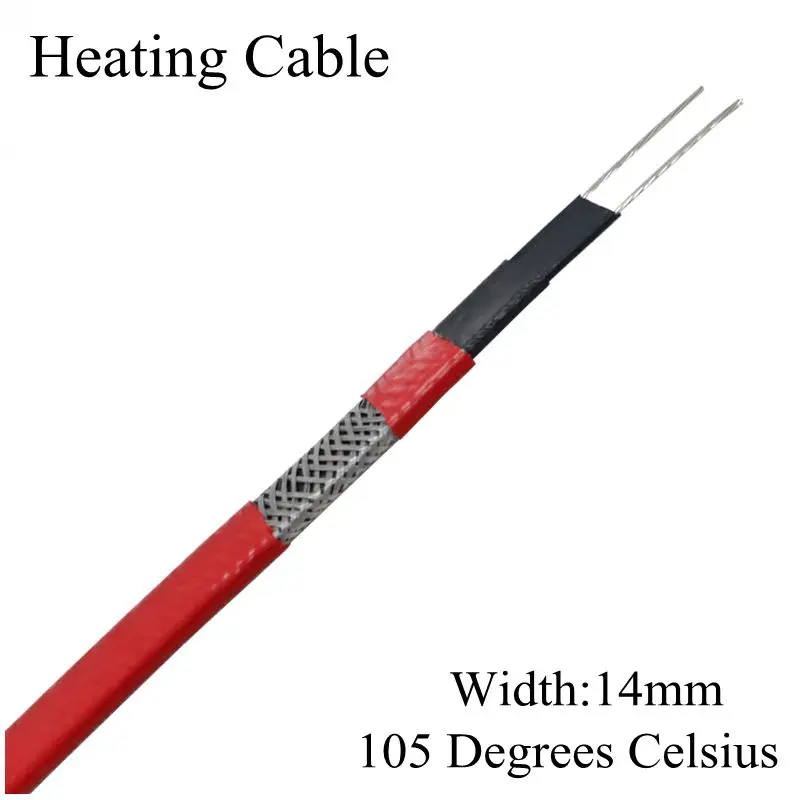

• Self Regulating heating cable, also known as PTC heating cable, is a flat ribbon cable composed of the conductive polymer composites and two parallel metal wires and insulating sheath. The feature is conductive polymer composites with positive temperature coefficient "PTC" feature

• When the temperature rises, its resistance will also rise, reducing the heat generated .when the temperature rises to a certain value, within the current semi-conductive plastic down to the minimum, with heat generated close to 0.

• Outerjacket standard color: Black

• Width:14MM

• Max. working temperature: 105C

• Max. exposure temperature: 110C

• Max. working length: 100M

• Min. installation temperature: -40C

• Voltage: 220V/230V

• Power: 15-20w/m

• Packing:1-100Meters

​Features:

• 1.Energy efficient, self regulating heating cable uses less energy when less heat is required.

• 2.Easy to install, self regulating heating cable can be cut to any length (up to max. circuit length) in the field.

• 3.Field splices can be performed easily in minutes with no scrap or wasted cold sections.

• 4.lower installed cost than steam tracing, less maintenance expense and less downtime.

• 5.can be single overlapped without burnout, which simplifies heat tracing of in- line process equipment such as valves, elbows and pumps.

• 6.Because of self-regulating, over- temperature conditions are minimized.

• 7.termination, splice, tee and end seal kits reduce installation time

Key Specifications,Special Features:

• 1.Security , uniform temperature of heating cables pipeline

• 2.No overheat or burnout when overlapping

• 3.convenient for automation management

• 4.Energy saving,low installation and low operation cost,easy installation and maintenance

• 5.Heats up quick,rapid start when intermittent operation

• 6.Suitable for complex pipeline heat tracing

• 7.long-distance pipeline heat tracing

• 8.Suitable for instrument box antifreezing

• 9.Energy saving and long service

• 10.No pollution

Applications:

Self regulating heating cables have found worldwide applications in industry pipes and tanks heat tracing, indoor and outdoor heating systems, farming, control panel and electric systems,

providing the best heating, warming, freeze prevention and snow melting solutions.

We also supply all kinds of accessories.

It is widely used in oil,chemical industry,iron and steel, electric power field and it is designed

for pipe work or vessel freeze  protection, preventing solidification and heat preservation.

We also can customize the design you want.

Installation Notes:

• 1) Don't damage cable. The bend radius should be more than 6 times of thickness of cable.

• 2) Well installation can guarantee the efficiency. Use nylon cable ties to fix heat cables.

• 3) Add an aluminum tape between the pipe and the heat cables if the Pipe is non-metallic.

• 4) After the installation, take a full test and make sure  the system works well.

• 5) Heat insulation materials should be dry and the joint of cable should be sealed.

• 6) Make a mark on the outer protective layer of the pipe.

• 7) The junction box should be sealed to prevent rainwater.

• 8) For explosion-proof products, the metal jacket should connected to the terminal.

• 9) Protective sleeve must not be damaged during installation, and the core wire can not bare.
