China Linear Type auto tool change CNC Router 9kw HSD ATC air cooling spindle 1325 3D wood ROUTER Spindle Motor 3 Axis Wood | Инструменты
История изменения цены
*Текущая стоимость 1 504 968,36 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Apr-04-2026 | 1790912.64 руб. | 1880458.57 руб. | 1835685 руб. |
| Mar-04-2026 | 1775862.6 руб. | 1864655.29 руб. | 1820258.5 руб. |
| Feb-04-2026 | 1489918.99 руб. | 1564414.89 руб. | 1527166 руб. |
| Jan-04-2026 | 1745763.92 руб. | 1833051.74 руб. | 1789407 руб. |
| Dec-04-2025 | 1520018.0 руб. | 1596019.51 руб. | 1558018.5 руб. |
| Nov-04-2025 | 1715664.58 руб. | 1801447.24 руб. | 1758555.5 руб. |
| Oct-04-2025 | 1700614.88 руб. | 1785645.26 руб. | 1743129.5 руб. |
| Sep-04-2025 | 1685564.75 руб. | 1769842.74 руб. | 1727703 руб. |
| Aug-04-2025 | 1670514.75 руб. | 1754040.19 руб. | 1712277 руб. |
Описание товара

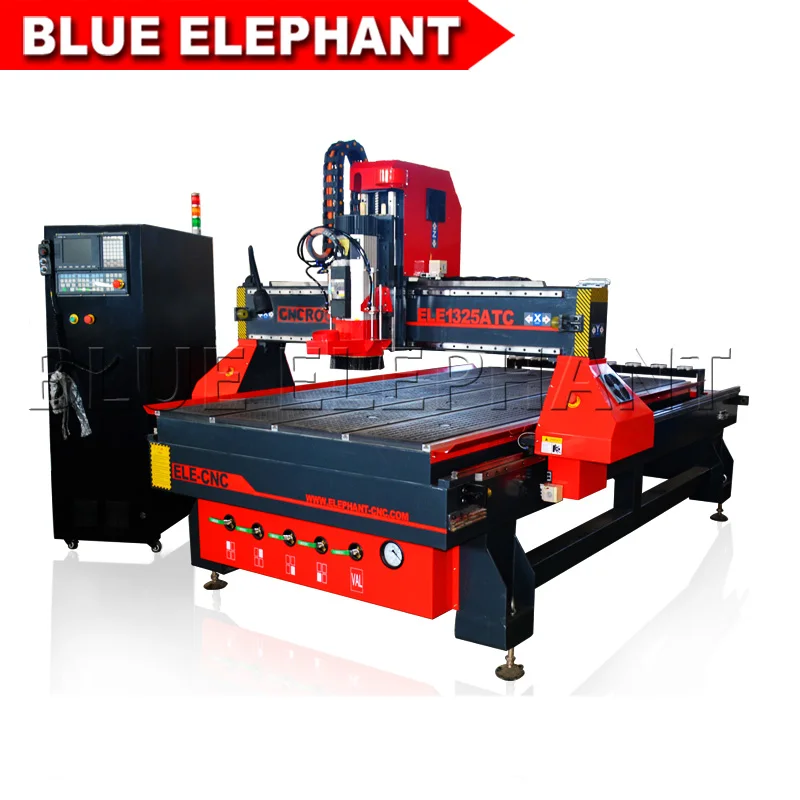

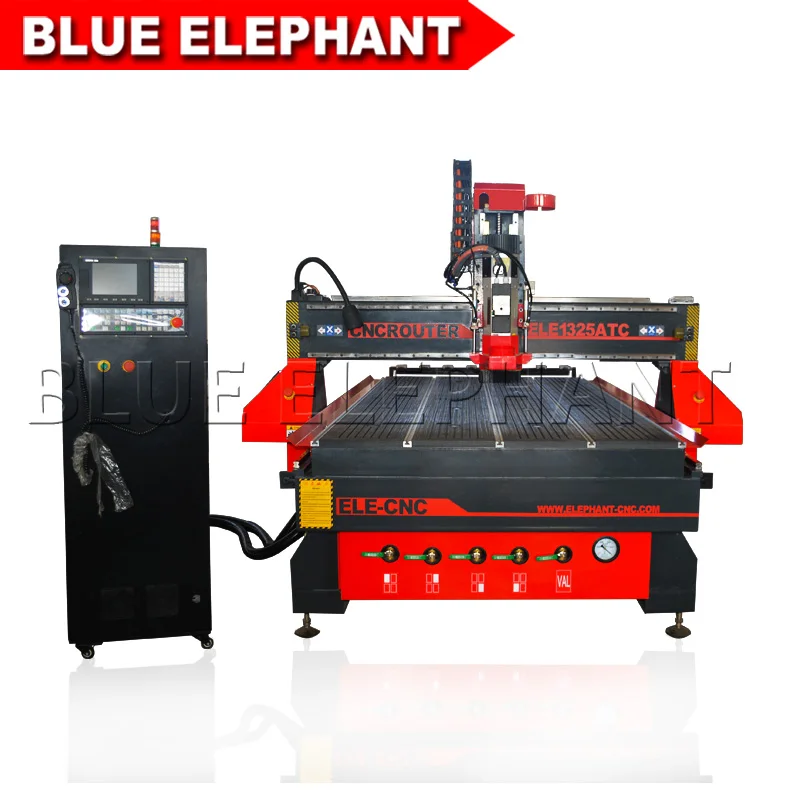

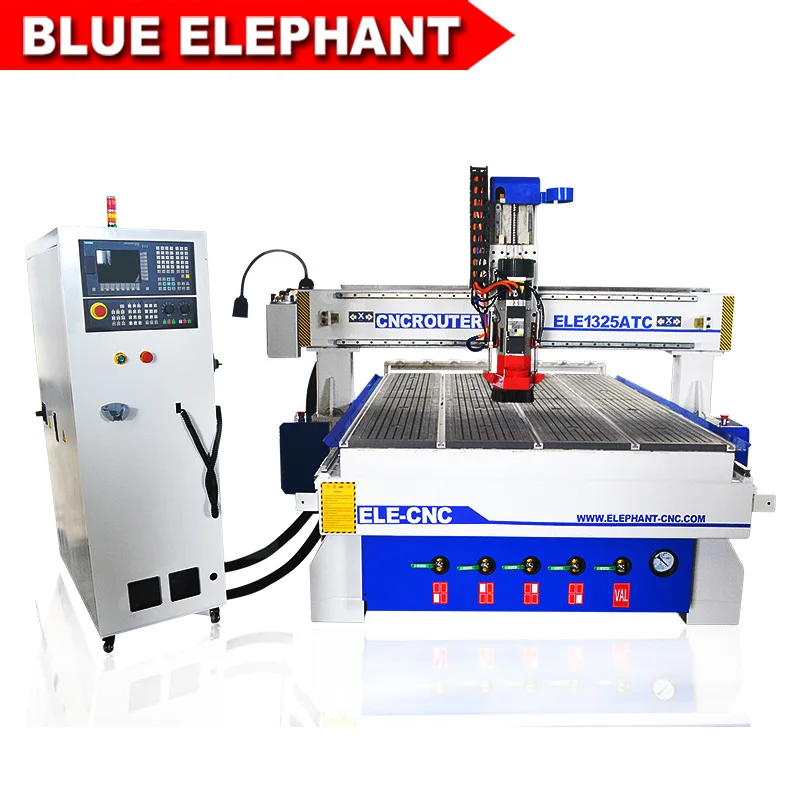

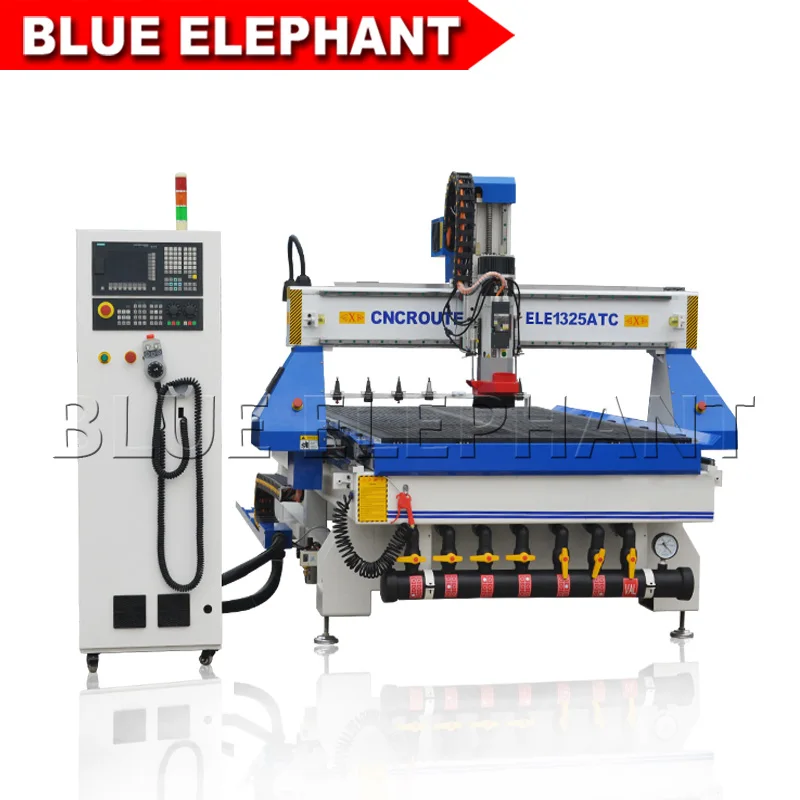

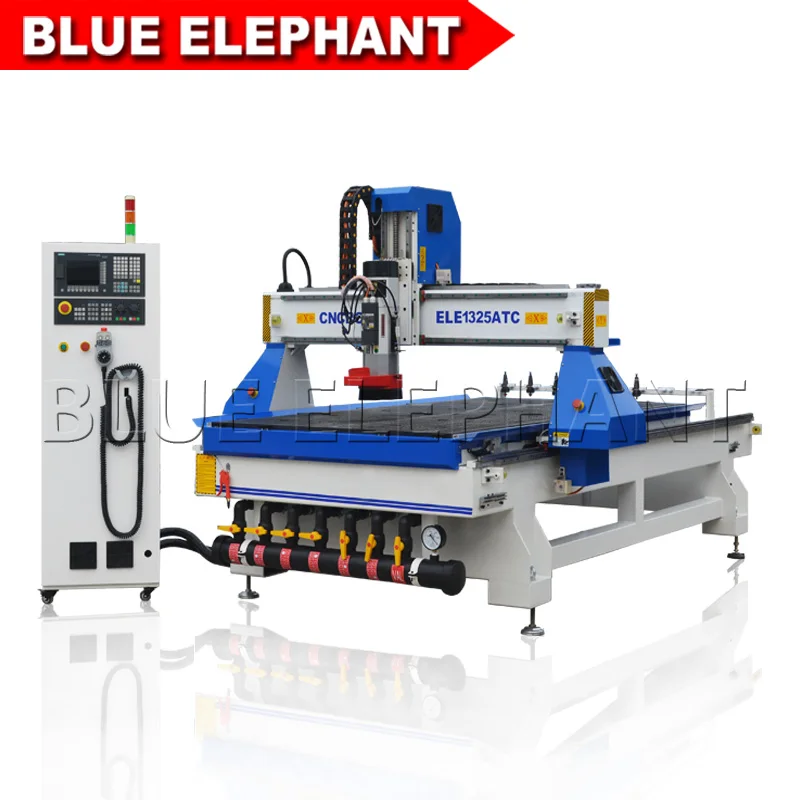

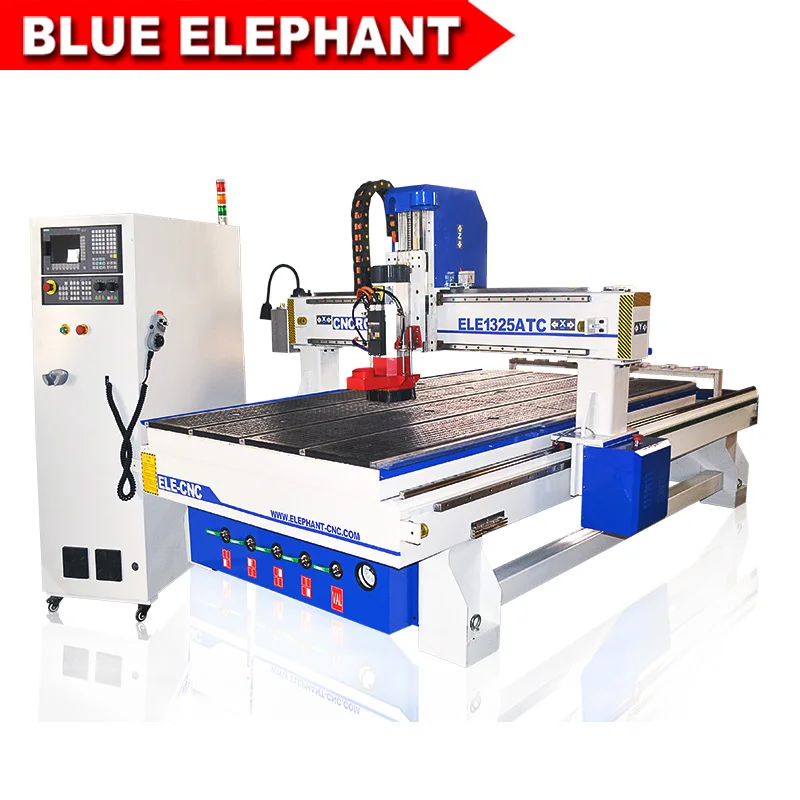

China Linear Type auto tool change CNC Router, 9kw HSD ATC air cooling spindle 1325 3D wood CNC ROUTER Spindle Motor 3 Axis Wood
Our Advantages:
1. As a manufacturer, we have 10 years factory experience for wood cnc router and laser cutting machine. We can devoted to the research and manufacture of many different models. 2. Factory outlet can provide the lowest price and professional after-sales service. 3. We joined the trade Assurance to make sure the buyer’s benefit. If can’t meet the details in the contact,100% of your payment will be returned. 4.Our products are very popular in USA, Russia, Middle East, South East Asia and so on.Features of 4axis ATC cnc router
9kw Italy HSD air cooling spindle 11KW Taiwan DELTA inverter Taiwan SYNTEC 6MB control system Japan YASKAWA servo motor and driver Taiwan HIWIN #25 linear guide for X Y Z axis France Schneider safety switch Taiwan SYNTEC MPG handle wheel Manual lubrication system Automatic tool sensor calibration Japan OMRON limit switch for X,Y,Z axis Shanghai Cardiff Highly flexible towline,fire-resitant double-sheathed cable Type3 or Art cam software Rotary device: 300mm diameter with 2400mm working length 3kw double packet dust collector auto oil mist cooling sprayer 7.5kw air vacuum pump Japan Shimpo Planetary driveMachine parts
Technical Specifications
| Working Size | 1300x2500*200mm(Can be customized) | |
| Traveling Positioning Accuracy | ±0.03/300mm | |
| Repositioning Accuracy | ±0.03mm | |
| Table | T-slot & vacuum Table | |
| Frame | Welded Structure | |
| X, Y axis | helical rack, Hiwin 25# Rail Linear Bearing | |
| Z axis | Hiwin Rail 25# Linear Bearing & TBI Ball Screw | |
| Max. Power Consumption | (Without Spindle) 3.2Kw | |
| Max. Rapid Travel Rate | 40000mm/min | |
| Max. Working Speed | 25000mm/min | |
| Spindle Power | 9KW Italy HSD ATC air cooling spindle | |
| Spindle Speed | 0-24000RPM | |
| Drive Motors | Taiwan SYNTEC 6MB control system | |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) | |
| Command Language | G Code | |
| Operating System | 1000W Japan YASKAWA servo motor and servo driver | |
| Collet | ISO30 with ER32 | |
| X,Y Resolution | <0.01mm | |
| Software Compatibility | Type3/UcancameV9/Artcam Software | |
| Running Environment Temperature | 0 - 45 Centigrade | |
| Relative Humidity | 30% - 75% |
Optional Parts for ATC machine
Rotary device:Can process cylinder material. Reducer: Well known Japan Shimpo reducer. Automatcic Mist Sprayer:During the processing can cool hard the materials. Dust Collecter: Can collect the pocessing dust of the materials. Vacuum pump:Working with the vacuum working table
Application
Advertising: Advertising signs, logo making, acrylic cutting, plastic molding, engraving on a variety of advertising decorative products materials.
Various Wooden product, like Solid Wood Furniture and Solid Wood Door,Decorative Panel,Computer Desk,Office Furniture. Other industry: relief, widely used in craft gifts industry, Aluminum industry, Cutting aluminum, aluminum composite panel, aluminum honeycomb panels, aluminum profile, 3D ornamental engraving process, wave board production, LED, neon trough literal cutting, plastic mold making light box . Acrylic, copper, PVC board, artificial stone, MDF board and other types of sheet processing.Samples
Company Information Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine. We have our R & D department, Quality control department, and after sale & service department. Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on. We had got CE and ISO9001 certification always offer best quality machine. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform! Just looking forward to service every customer, like you.
