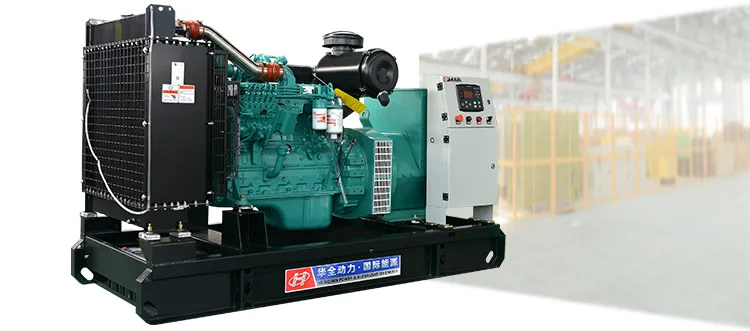

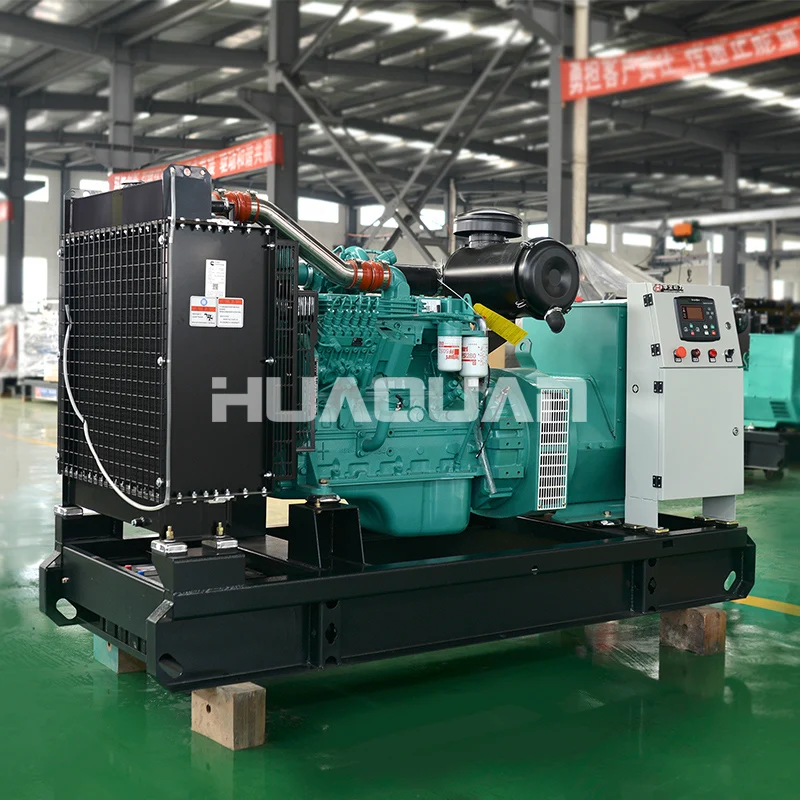

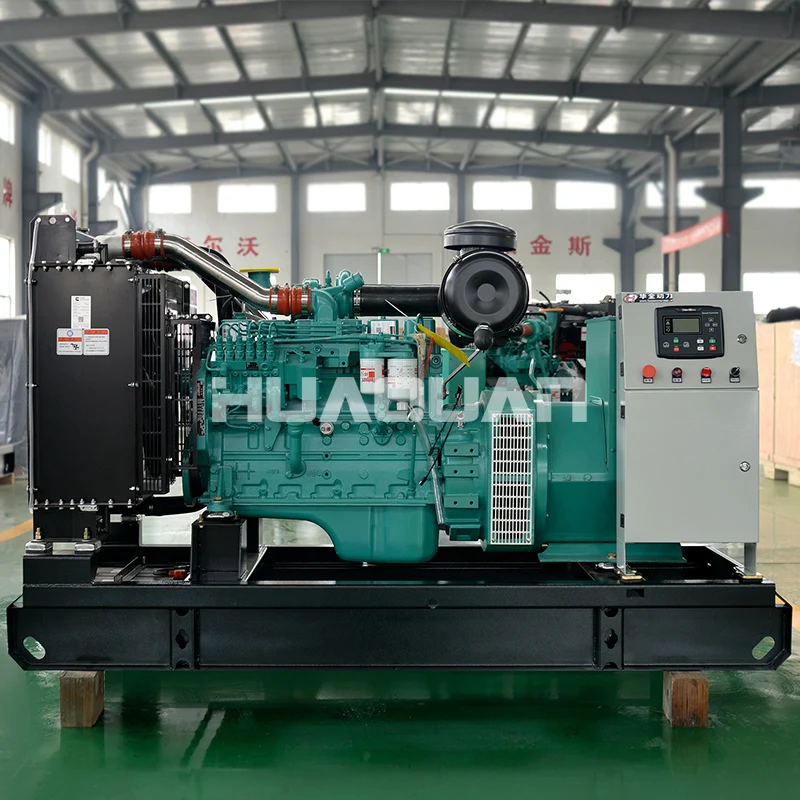

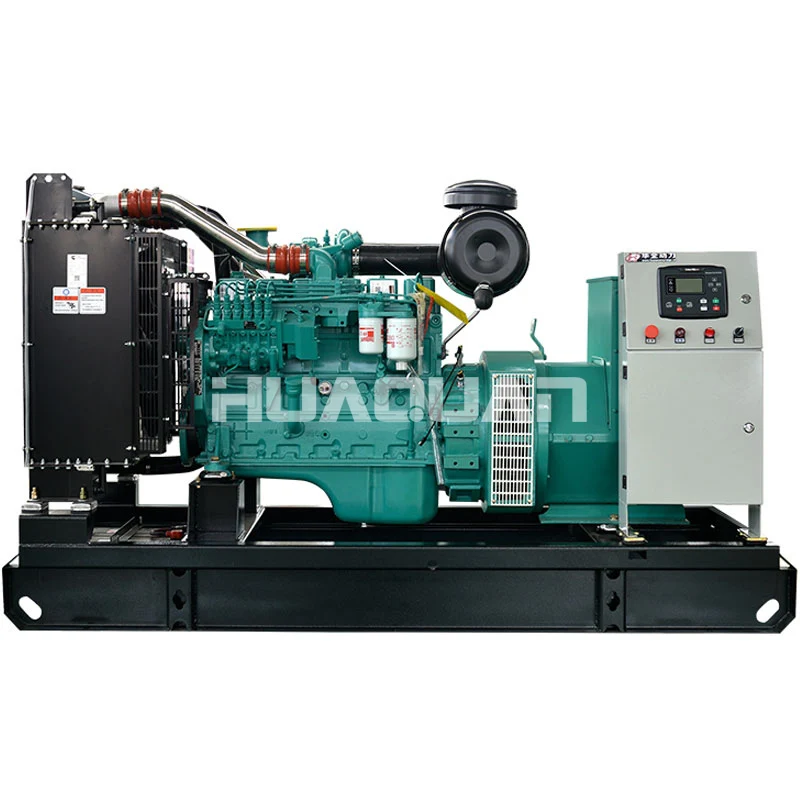

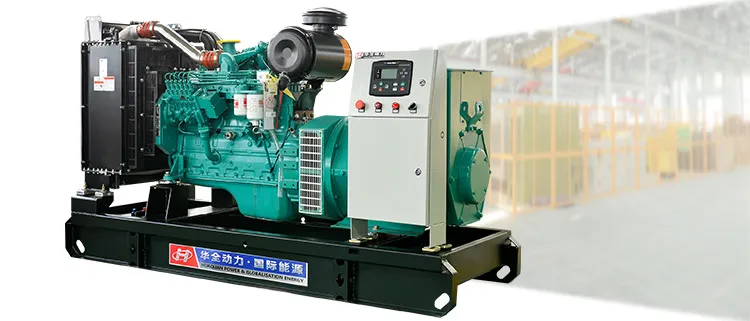

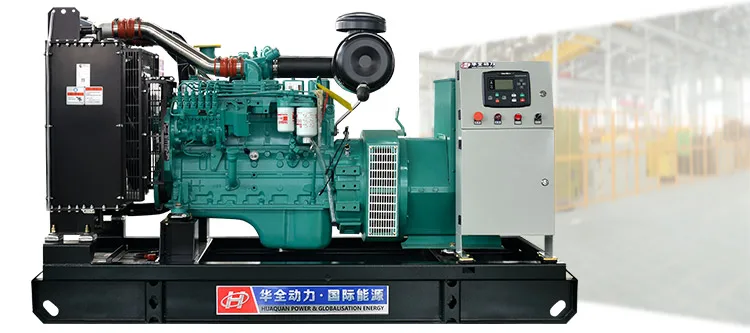

1500rpm ac generator 120kw powered by cummins diesel engine | Обустройство дома

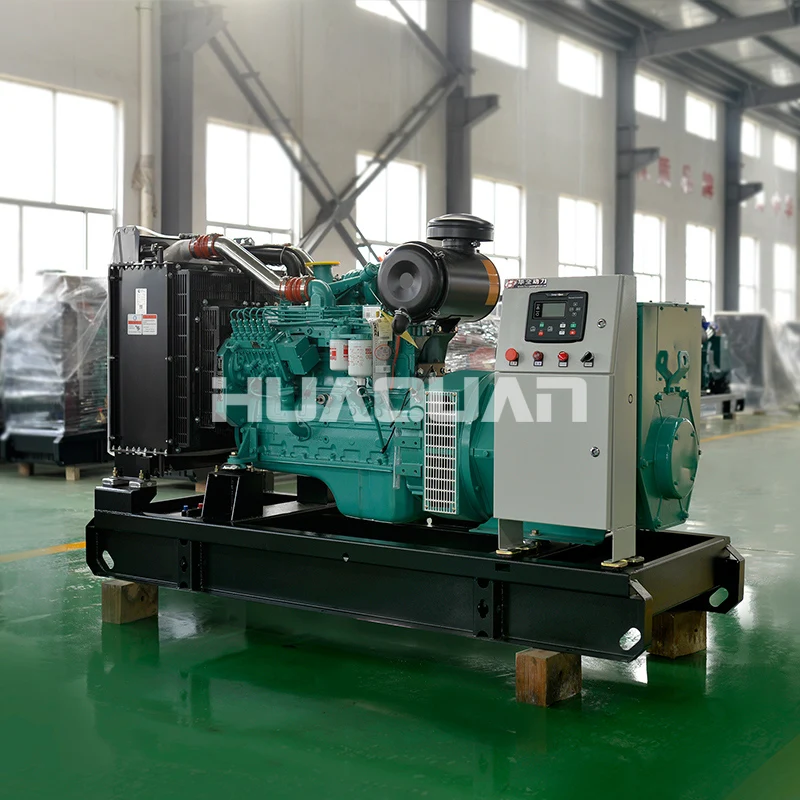

  1、Huaquan diesel generator set is 120 kilowatts. Dongfeng CUMINS diesel engine is matched with Huaquan Copper Brushless Generator. The brand image is good and maintenance is guaranteed.

  2、Turbocharger + electronic speed regulation, sufficient air intake and full combustion, the unit's transient speed regulation performance is good, and the loading capacity is strong.

  3、The AC synchronous generator is matched with the direct injection internal combustion engine to ensure the safe and stable operation of the unit and protect your production and life.

  4、The unit has strong adaptability. It is equipped with a radiator water tank suitable for the environment of 40℃-50℃, a belt-driven cooling fan, a fan safety shield, etc. to ensure the safe operation of the unit.

  5、The steel base of the unit is shared to improve the versatility of the parts and expand the performance of the unit.

  Genearal

  Unit model:

  HQ120GF

  Steady state voltage adjustment rate (%):

  ≤± 1

  Output power:

  120KW

  Voltage fluctuation rate (%):

  ≤ ± 0.5

  Power factor:

  COSΦ = 0.8 (lagging)

  Transient voltage adjustment rate (%):

  ＋20 ～－15

  Output voltage:

  400V / 230V

  Voltage stabilization time (s):

  ≤1

  Output current:

  216A

  Steady state frequency adjustment rate (%):

  ≤ ± 1

  Rated frequency:

  50Hz

  Frequency fluctuation rate (%):

  ≤ ± 0.5

  Rated speed:

  1500rpm

  Transient frequency adjustment rate (%):

  + 10 ~ -7

  Fuel grade:

  (standard) 0 # light diesel (normal temperature)

  Frequency stabilization time (S):

  ≤3

  Dimensions:

  2250×930×1600（L×W×H mm）

  Fuel consumption (100% load):

  224g/kW·h

  Start mode:

  1350kg

  Acoustic noise (LP7m):

  95dB（A）

  Technical parameters of diesel engine

  Brand/origin：

  DCEC engine

  Cooling method:

  Closed water-cooling

  Model:

  6BTAA5.9-G2

  Oil supply method:

  direct injection

  Number of cylinders / Dare to mention structure:

  6 / L Type

  Speed regulation method:

  Electric

  Bore stroke:

  102×120 mm

  Intake method:

  Turbo

  Compression ratio:

  17.5：1

  Overload capacity:

  110%

  Weight：

  DC 24V Electric start

  Speed:

  1500rpm

  Technical parameters of generator

  Brand：

  Huaquan Brushless Generator

  Protection level：

  IP22

  Model：

  HQF-120

  Wiring mode：

  Three-phase four-wire, Y-connection

  Rated power:

  120kW

  Adjustment method:

  AVR (Automatic Voltage Regulator)

  Rated voltage:

  400V / 230V

  Output frequency:

  50Hz

  Insulation class:

  H class

  Output factor:

  COSΦ = 0.8 (lag)

  Genset standard features

  Ø Direct injection internal combustion engine(Diesel)；

  Ø AC synchronous generator（Single Bearing）；

  Ø Water Radiator design for 40-45℃ Ambient belt-driven fans and guards；

  Ø Generation output air switch、Standard control panel；

  Ø Steel common base with shock absorber；

  Ø Dry-type air filter fuel filter，oil filter、starting motor、Self-charging alternator；

  Ø starter battery and connecting cables；

  Ø Industrial 9dB muffler and accessories；

  Ø The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet；

  Optional accessories（Extra charged）

  Ø Engine oil、diesel、water jacket、Anti-condensation heater

  Ø Battery floating charger

  Ø Self-protection unit/self-starting control panel

  Ø Tree-remote control panel

  Ø ATS AUTO-loaded transferring screen

  Ø Daily fuel tank、Integral fuel tank

  Ø Waterproof type(Cabinet)

  Ø Mobile trailer(Drip proof)

  Ø Mobile trailer(Silent type)
