2.0MP VGA HD Digital Industrial Microscope Camera USB AV TV Video Output+180X C-mount Lens+Big Boom Stand Holder+144 LED Light |

2.0MP VGA HD Digital Industrial Microscope Camera USB AV TV Video Output+180X C-mount Lens+Big Boom Stand Holder+144 LED Light |

2.0MP VGA HD Digital Industrial Microscope Camera USB AV TV Video Output+180X C-mount Lens+Big Boom Stand Holder+144 LED Light

Feature:

High Quality, High Resolution, Clear Images
800 lines Definition
CMOS
Certificate:CE,FC,RoHS

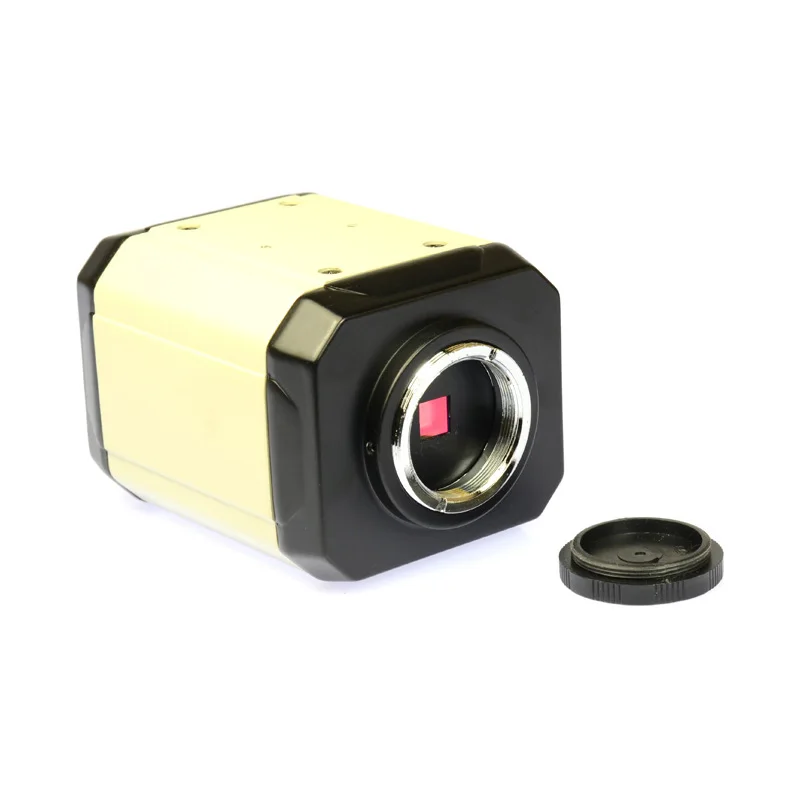

Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.
It build in digital crosshairs and color control,add line in the pictures,freeze,Mirror,Rotate, Negative,Compare function
Supply USB2.0, VGA, CVBS three output ports.
Supply USB2.0 + VGA or USB2.0+CVBS output at the same time.
We sell much to the industy factory, then the works can see the problems directly in the Monitor.


Specification:

Model: Camera with VGA AV USB2.0 three output
Sensor: 2.0mp,1/3 inch
Full Resolution: 1600X1200 (UXGA)
800 lines Definition
Frame rate: 10-15(USB2.0)
720P/1024x768/1280x1024/1366x768@60HZ
White Balance: Auto
Light: Auto
Color: Color/B&W
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Picture compare: Captured picture dynamic video 1/2 screen compare
Contrast: Support
Saturation: Support
Cross cursor: Support,different color
Line: different color,2 horizontal line
2 vertical line,any positions
Digital Noise reducer: Support
VGA(RGB): 720P/1024x768/1280x1024/1366x768@60HZ
USB2.0


8" HDMI TFT LCD Color Monitor:

8 inch (1024 x 768) high resolution TFT LCD monitor
Clear image and colorful display
Support BNC input for professional security system,which can reduce signal interference to achieved a best signal state
Multi video input supported (RCA, VGA, BNC)
Support 15-pin VGA input , connect with PC (1024*768)
Suitable for CCTV monitor, PC monitor or indoor use
Built-in high quality speakers
Auto standy function with timer switch and no signal
Screen Size : 8"
Screen Resolution : 1024 x 768 pixels
Aspect Ratio : 4 : 3
Screen Brightness : 400 cd/m2
Screen Contrast : 400 : 1
Viewing Angle : 160° (H) x 160° (V)
Response Time : <= 12ms
Video Input : HDMI, AV-in, VGA, BNC
Power Supply - Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 400mA
Dimensions : - approx. 195 (W) x 160 (H) x 32 (D) mm

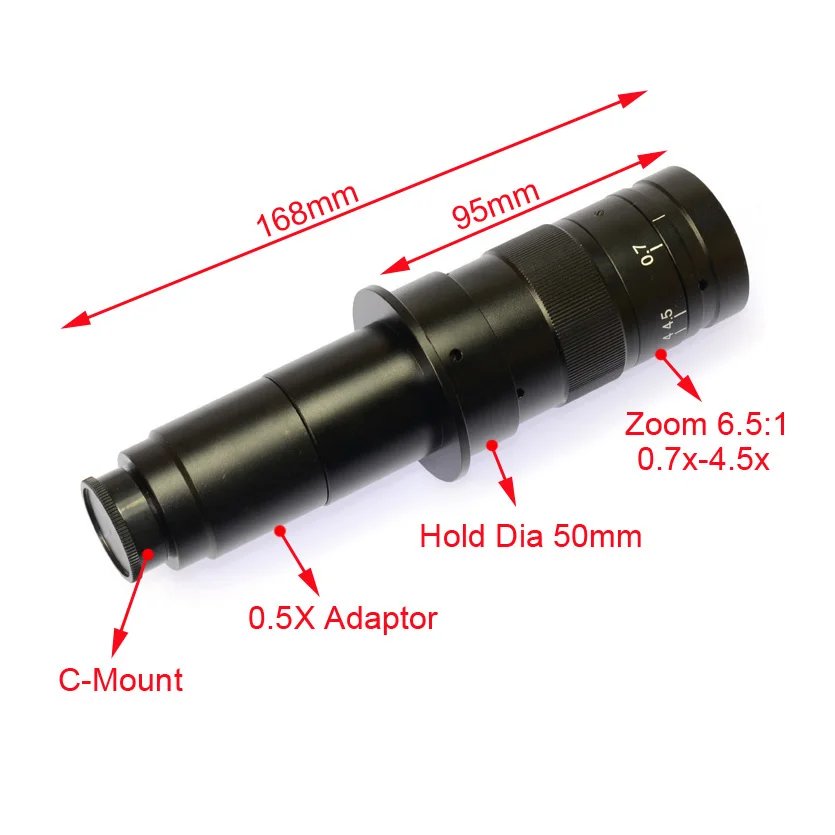

C-MOUNT Lens:

Working distance: 95mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 450g


144 Bulbs Microscope LED Ring Light:

144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm


Package Content:

1 x Microscope Camera
1 x Power Supply
1 x 180X C-mount Lens

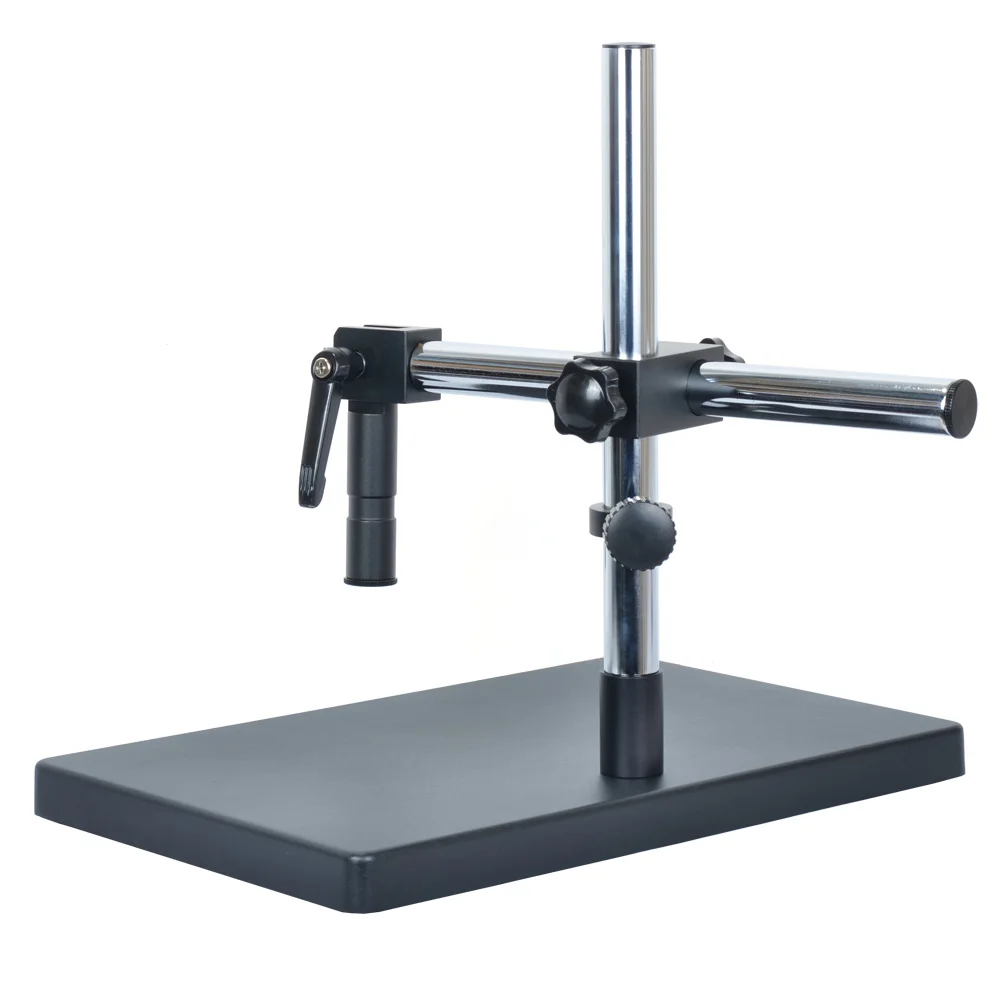

1 x Big Table Stand
1 x 144 LED Light with Power Adapter
1 x 8" LCD Monitor
