4" High Speed Dome PTZ Camera 1500TVL

  Product Description:

• Support Coaxial PTZ Control!! RS485 is no more required. Support PTZ control by both Coax and RS485. You could use either of them.
• Super good night vision.
• 8pcs High quality array LEDs, auto-switch to long/middle/close distance focus(Light up different numbers of LEDs), 100M IR distance.
• High performance constant-current design, leds light time up to 50,000 hours.
• Infrared light and magnification range matching algorithm based on infrared light adjustment, the brightness ratio, distance and angle for
• the image to achieve the desired state of image.
• 3 modes(Auto/On/Off) status for LEDs setting for different requirements in different environment.

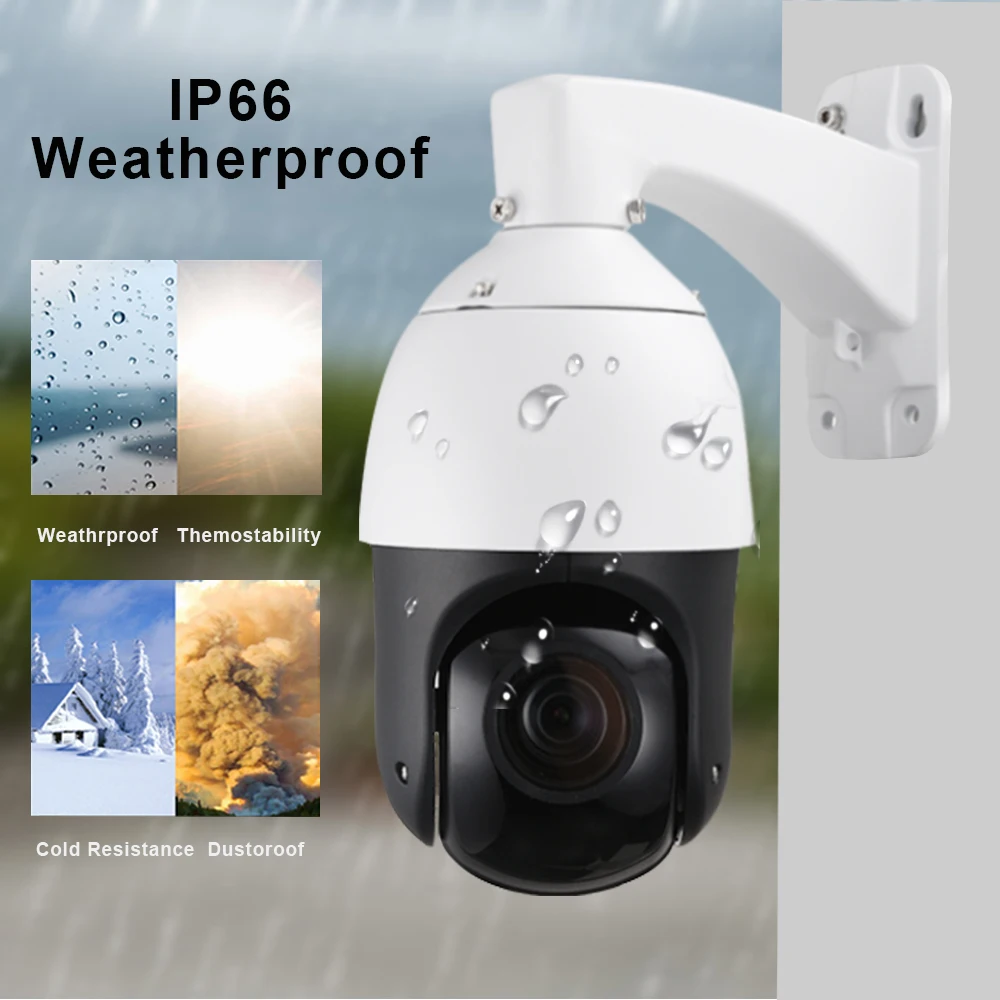

• Half-metal die-cast aluminum design for any weather, weatherproof, durable to use in different kind or weather/climate, IP66 grade waterproof.
• High precision motor, precise control, smooth motion, stable rotation.

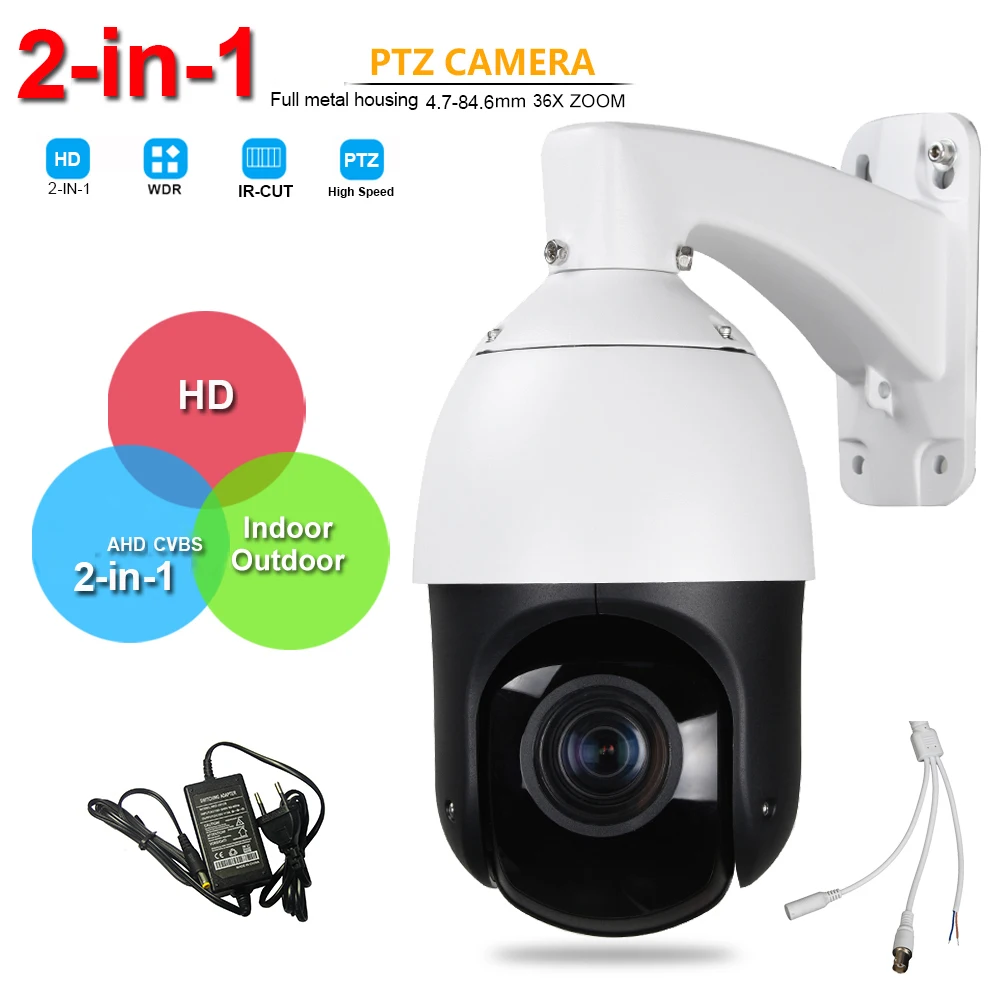

• 4" MINI SIZE AHD 960P High Speed Dome PTZ Camera 20X ZOOM.
• AHD & Analog 2-in-1

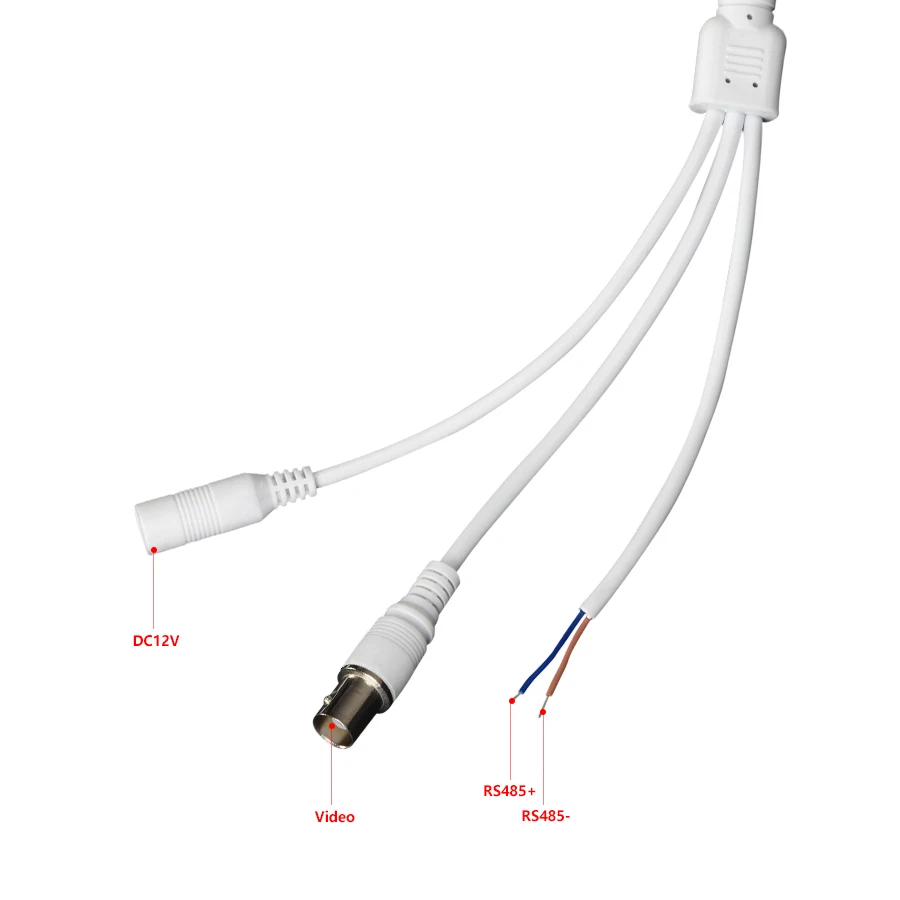

• Coaxial & RS485 PTZ Control

Parameters:       Model:                                                            HDR-403-920A Camera Image Sensor:                                             1/3" CMOS Resolution:                                                   1.3MP 1280(H)x 960(V) Video Format:                                              PAL/NTSC Minimum Illumination:                               Color: 0.1Lux   B/W: 0.01Lux Video Out:                                                    AHDH(1Vp-p 75ohm) S/N Ratio:                                                     ≥50DB White Balance:                                           Auto Day&Night mode:                                       Built-in IR-CUT  Auto/Day/Night optional Lens Focus Length:                                             4.7 to 84.6mm(F1.6 to F2.7) ZOOM:                                                          20X ZOOM Function IR control:                                                    Variable with focus length  IR Distance:                                                 100M Rotate Range Horizontal:                        0°~360° Vertical:-15°~90° Rotate Speed Horizontal:                        0.1°~100°/s; Vertical 0.1°~100°/s   Preset:                                                         255 Patrol Track:                                               4 path, each path can add 10 presets Automatic scan:                                         1 path  360°track:                                                  1 path Watch:                                                          Preset / Patrol Track / zone track / horizontal track Video:                                                           In/Out Video Out:                                                   1.0Vpp/75Ω,NTSC/PAL,BNC Port Pan/Tilt Control 2 method control:          a)Control over coax:Power & Video cable plug-and-play, no need to set up address code or DVR PTZ control. Easy and                                                                              quick b)PTZ Control via RS485  Other Power:                                                           DC12V Consumption:                                              12W Working Environment:                               Temprture-40~60 degrees; Humidity<90% Protection grade:                                        IP66 waterproof, 4000V Lightning protection, against-surge Material:                                                        Half Metal casting aluminum



Package Include:

• 1 x 4" MINI Size High Speed Dome PTZ Camera
• 1 x Bracket for camera
• 1 x Power Supply
