Product Name:  Wireless PSTN Home Alarm System

Model No. KL-T03

How does the PSTN alarm system work?

      A burglar alarm system consists of a central control panel, door/window contacts, motion detectors, Smoke Gas detectors, Panic Button, Doorbell and sirens etc., It includes the functions of anti-burglar, anti-intrusion, anti-fire, anti-gas, SOS help, elderly care, doorbell and smart home control etc., which can provide full protection in 24hours all through the year for your house and property. Each sensor works with control panel via hard wire or wireless frequency 433mhz. There are some defense zones in a burglar alarm system. A defense zone can be an entire room or a specific sensor. The panel receives signals from each sensor and forwards these alarm signals to user cellphone or monitoring center software by making phone call. The T03 PSTN control panel should be connected to PSTN Phone Line, which enable it communicate with user phone via PSTN Telephone Network.

   A person can trigger a burglar alarm when alarm system is armed by opening a door or window or by activating a motion detector or other sensors. Within seconds, the sensor sends a signal to the control panel, which causes the burglar alarm to go off. The system will automatically dial the preset phone numbers and report which sensor is alarming, and replay the preset alarm voice message. A siren usually sounds when an alarm is triggered.

Why choose PSTN Alarm System, not GSM alarm based on SIM Card?

1. PSTN alarm is very stable, but price is economical
2. Some countries have switched off 2G GSM Mobile Network or will switch off the service in near future, so GSM alarm based on 2G SIM card doesn’t work forever, such as in Australia, Singapore, but you don’t need to worry about it if use PSTN telephone network.

How to install the alarm control panel?

For details, please check picture diagram as below.

More details of T03 alarm control panel:

Basic functions:
Support maximum 50 wireless defense zones.
Support maximum 8 remote controllers.
Can record the voice for the remote controller and sensors separately.
Detectors' low voltage notification.
Door/window status alert.
Be Compatible to ADEMCO Contact ID protocol.
Voice prompt for all the operations.
Can preset 6 groups of alarming phone numbers. It will call the preset phone numbers automatically to send the alarm information.
Message record for 10 seconds.
Support external wired siren and wireless siren
Away arm, home arm, remote arm, and remote telephone arm.
Arm, disarm, and monitor remotely
Defense zones are programmable.
Wireless study and coding, easy to add the new accessories.
Built-in 4.2V Lithium battery provides electricity if the AC power is off
AC Power Failure Notification.

What advantages does it has if comparing with other alarm system?

1. Support Smart PIR detectors and door sensors in low voltage voice alert
   When PIR detectors or door sensors are in low power voltage,  the T03 control panel can detect it and inform which sensor in low power with voice prompts.

2. Auto check whether door/window is closed when arming with remote
   When the users plan to leave home and the door or window is not closed, T03 will remind of users to close the door or window.

3. Recording voice messages of each detector individually.
 The common alarm host in market can record voice messages, but can just record one type and replay same alarm voice messages for all types of different alarming, can't distinguish detectors.  but our T03 can record voice into each detector individually so that users can know which sensors triggering the alarming exactly after answer an alarm call.

Working Diagram

FAQ:

1.Could I add more wireless sensors, such as smoke/gas detectors, panic button, water leak detector etc.?
  Yes, all the wireless alarm sensors in our store can work with the alarm host. Please buy the extra sensors from our store 314132 or contact us.

 2.  How many remotes and wireless sensors could I link with the alarm host?
 50pcs of wireless sensor/detectors Max
 8pcs of wireless remote controllers Max.

FAQ 3:  Can the defense zone type of each detector be programmed?

          Yes, user can program the specific zone to have specific function and attributes.

          7 defense zone types: 1. Arm valid zone, 2. Arm and home arm valid zone,  3.  24 hours zone,

                                           4. bypass zone,    5. Doorbell,       6.  Elder Zone,     7.  Guest Zone,

Doorbell Zone: play music after being triggered;
Guest Zone: play voice “Welcome” if being triggered in DISARM Mode, and become common zone in AMR Mode.

Specification of T03 Alarm Control Panel

Power Input: DC 12V / 1A; AC110V to 240V
Standby current  ≤55mA;
Alarming current ≤300mA;
Backup Battery:  4.2V 350mAH rechargeable Lithium battery,
Full charged time: 10 hours. Standby time: 6 hours;
Built-in Siren volume: 80DB;
Wired Siren volume: 120DB (The default beep time is 180s when alarm);
Alarm Host RF receiving frequency: 433MHz（±75KHz）,PT2262 / 4.7MΩ  EV1527/300K
Working temperature: -10℃～+50℃

Mini Wireless Door/Window Magnetic Contact Sensors

     The appearance is unprecedentedly small and delicate. The antenna is built-in, which is a new design. The front cover can be opened to replace the battery by sliding. It works with the alarm host to detect whether the doors, windows or drawers are illegally opened or moved. Once the unpermitted opening or move is detected, it will send out signals to the host to achieve the goal of anti-theft alarm.

      The gap between the magnet and the sensor should be less than 10mm;
      The obstacles around will change the transmitting distance.

Wireless PIR Motion Detector

    It could identify the interference signals and human body motion signals efficiently with high intelligence and sensitive by using the MCU processing chip.When an intruder passes the detection area, the detector will detect the movements of human body automatically. If there are any movements, it will send alarm signals to the connected alarm host.

     The obstacles around will change the transmitting distance.

Remote Controller

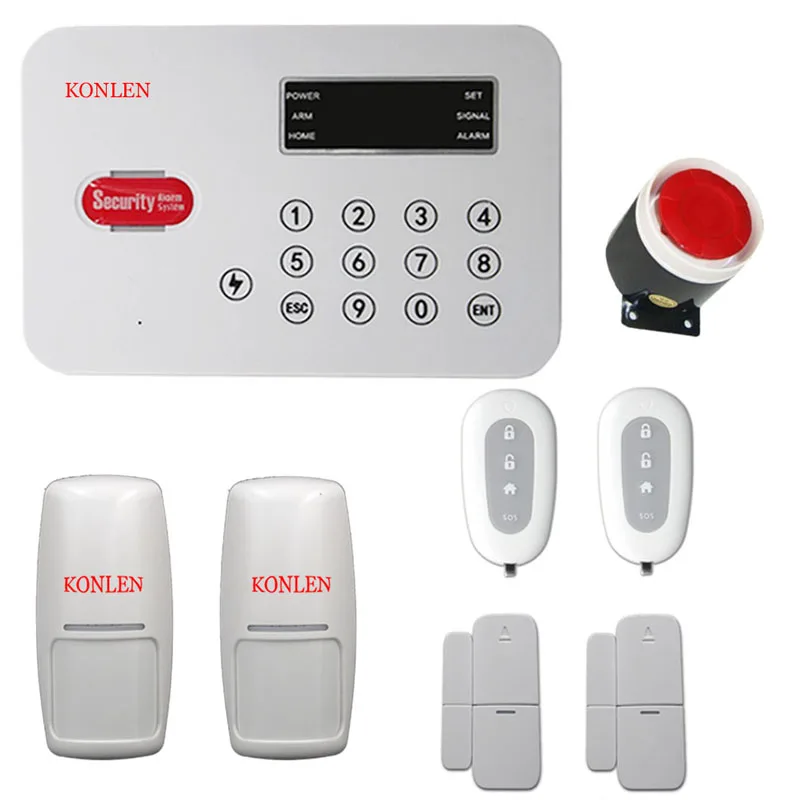

What's included in the package?

PSTN Alarm Control Panel  * 1

Smart Magnetic Door/Window Sensor * 2

Smart PIR Motion Detector * 2

Remote Controllers * 2

Wired Siren * 1

Power Adapter * 1

Telephone Line: * 1

All include batteries

Retail box included
