4g LTE UNLOCKED Huawei E3276-150 4G WIFI USB DONGLE 150MBPS FDD: 800/900/1800/2100/2600 Mhz |

4g LTE UNLOCKED Huawei E3276-150 4G WIFI USB DONGLE 150MBPS FDD: 800/900/1800/2100/2600 Mhz |

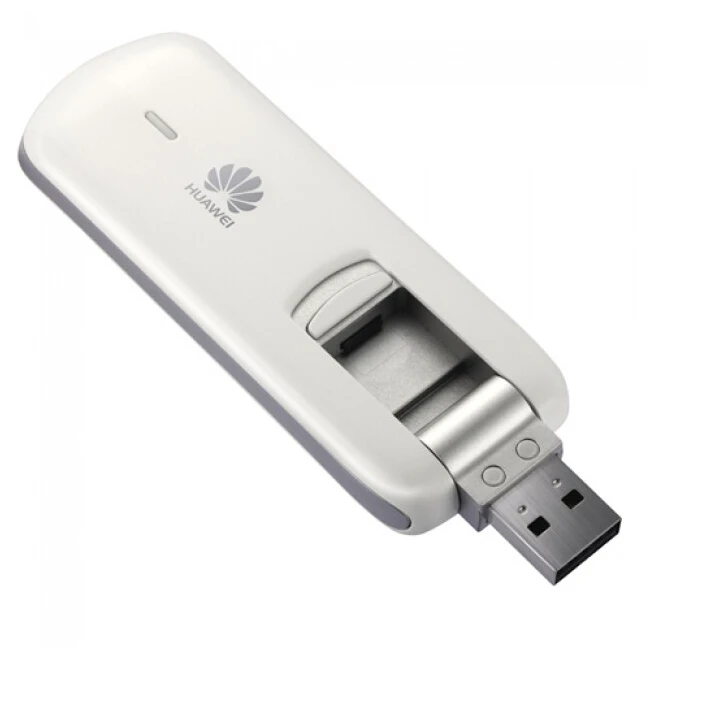

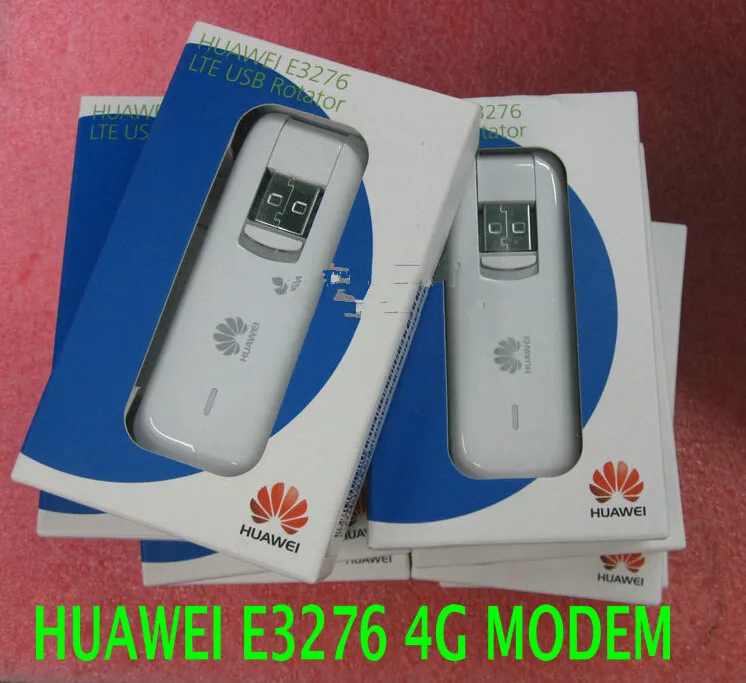

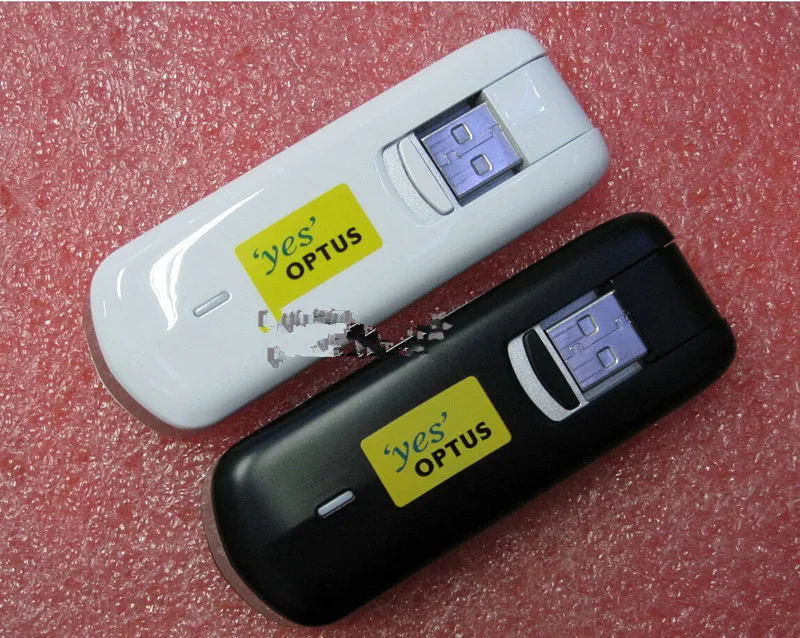

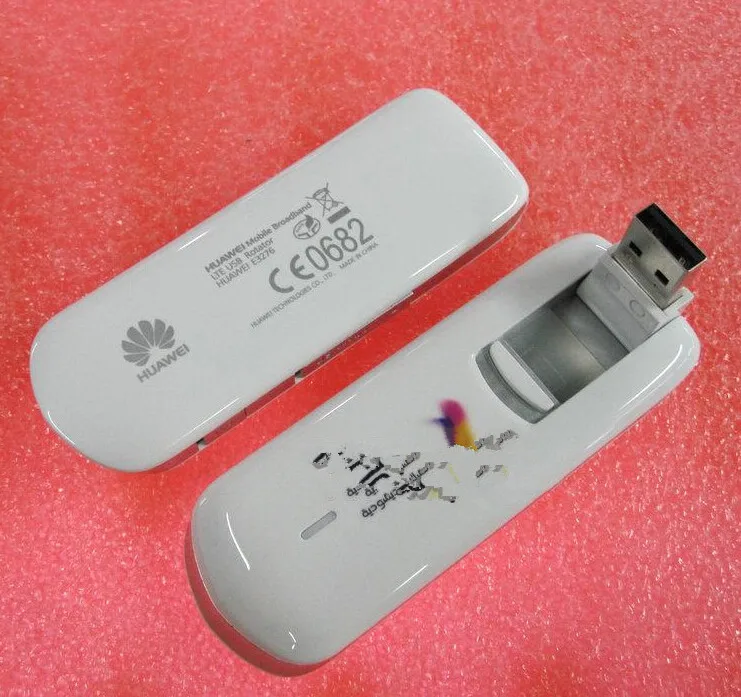

4g LTE UNLOCKED Huawei E3276-150 4G LTE WIFI USB DONGLE 150MBPS LTE FDD: 800/900/1800/2100/2600 Mhz

LTE FDD: 800/900/1800/2100/2600 Mhz

 UMTS: 2100/AWS/900/1900


 LTE Cat4 DL at up to 150Mbps


 LTE UL up to 50Mbps


 External Antenna Interface


we have the huawei e3276-150

 if you need the 4G Antenna for E3276

Two CRC9 Connectors

HUAWEI E3276 Variants

HUAWEI E3276s-151: Band 3/4/7/20 (800/1700/1800/2600MHz)

HUAWEI E3276s-150: 4G LTE FDD (DD800/900/1800/2100/2600MHz)

HUAWEI E3276S-861: Band 38/39/40 (1900/2300/2600MHz) Band 7 (2600MHz)

HUAWEI E3276S-210: B3 (1800 MHz), B7 (2600 MHz), B20 (800 MHz), B38 (TDD 2600 MHz)

HUAWEI E3276s-601: Band 3/7/40 (FDD 1800/2600MHz & TDD 2300MHz)

HUAWEI E3276s-920: Band 38/40 (TDD 2300/2600MHz)

HUAWEI E3276s-152: 4G LTE FDD 800/2600MHz

HUAWEI E3276s-500: Not Available Now

Huawei E3276 4G LTE Cat4 150Mbps USB Modem is the World's first LTE Cat4 Stick, and allows speeds of over 100 Mbit/s download - precisely 150 MBit/s on LTE FDD network. The FDD-LTE modem operates on the 800/900/1800/2100/2600MHz band with GSM and UMTS backward. The UMTS network can achieve up to 84 Mbps download speed due to DC-HSPA+ technology. There are many variants for HUAWEI E3276 Cat 4 LTE Surfstick, such as HUAWEI E3276s-150, HUAWEI E3276s-151, HUAWEI E3276s-152, HUAWEI E3276s-210, HUAWEI E3276s-500, HUAWEI E3276s-601 and HUAWEI E3276s-920 etc..



Below is the 4G LTE Sprctrum & Frequency band that HUAWEI E3276 could support by its variants:



HUAWEI E3276s-152:

 4G LTE FDD 800/2600MHz
 3G UMTS 900/1900/2100MHz
 GSM 850/900/1800/1900MHz


HUAWEI E3276s-151:

 4G LTE FDD (DD800/1700/1800/2600MHz)
 3G UMTS 900/1900/2100MHz
 GSM 850/900/1800/1900MHz



Huawei E3276s-150(Vodafone K5007 and Megafon M150-1):

 4G LTE FDD (DD800/900/1800/2100/2600MHz)
 3G UMTS 900/1900/2100MHz
 GSM 850/900/1800/1900MHz



HUAWEI E3276s-861:

 4G LTE FDD 2600MHz TDD 1900/2300/2600MHz
 3G UMTS 900/2100MHz  & TD-SCDMA 1900/2100MHz
 GSM 850/900/1800/1900MHz



HUAWEI E3276s-210:  Band 3/7/20/38 (FDD 800/1800/2600 TDD 2600MHz)


Huawei E3276s-601:  Band 3/7/40 (FDD 1800/2600MHz & TDD 2300MHz)


Huawei E3276s-920:

 4G Band 38/40 (TDD 2300/2600MHz)

 3G DC-HSPA+ 900/2100MHz

 GSM 850/900/1800/1900MHz



HUAWEI E3276s-500

HUAWEI E3276s-503

HUAWEI E3276s-505



The E3276 4G USB Stick has the Plug & Access function, which means you can plug in the stick and just start surfing, no drivers needed. Per the test from HUAWEI, the connection time is within 15 seconds.

Huawei E3276 100Mbps LTE Surfstick has a proprietary chip that emits less heat than previous modems, which results in lower power consumption and improved performance and longevity. It supports all LTE frequencies in Sweden, the 4G external antenna makes it possible to improve reception in areas with poor coverage. The LTE modem also supports 3G and 2G in areas without 4G coverage. Huawei E3276 4G Surfstick is easily installed, and supports the most common operating systems. The new upgrade version of driver is not available yet. Perhaps HUAWEI is now trying.

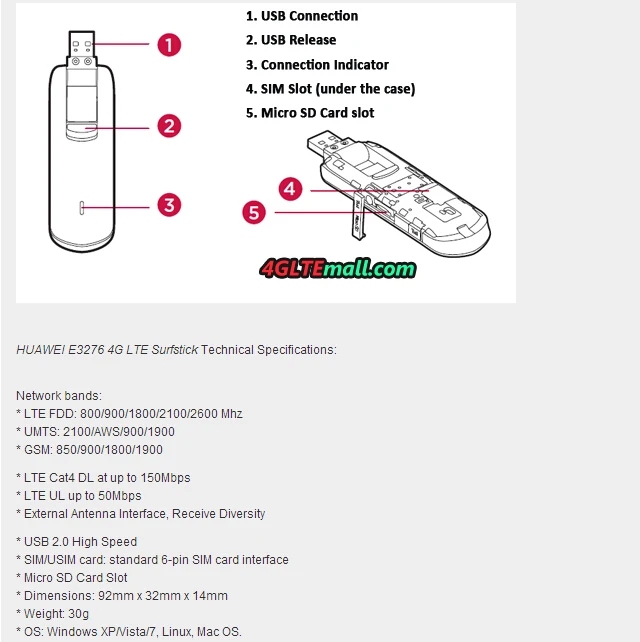

Network bands:

 LTE FDD: 800/900/1800/2100/2600 Mhz
 UMTS: 2100/AWS/900/1900
 GSM: 850/900/1800/1900

 LTE Cat4 DL at up to 150Mbps
 LTE UL up to 50Mbps
 External Antenna Interface, Receive Diversity

 USB 2.0 High Speed
 SIM/USIM card: standard 6-pin SIM card interface
 Micro SD Card Slot
 Dimensions: 92mm x 32mm x 14mm
 Weight: 30g
 OS: Windows XP/Vista/7, Linux, Mac OS.
