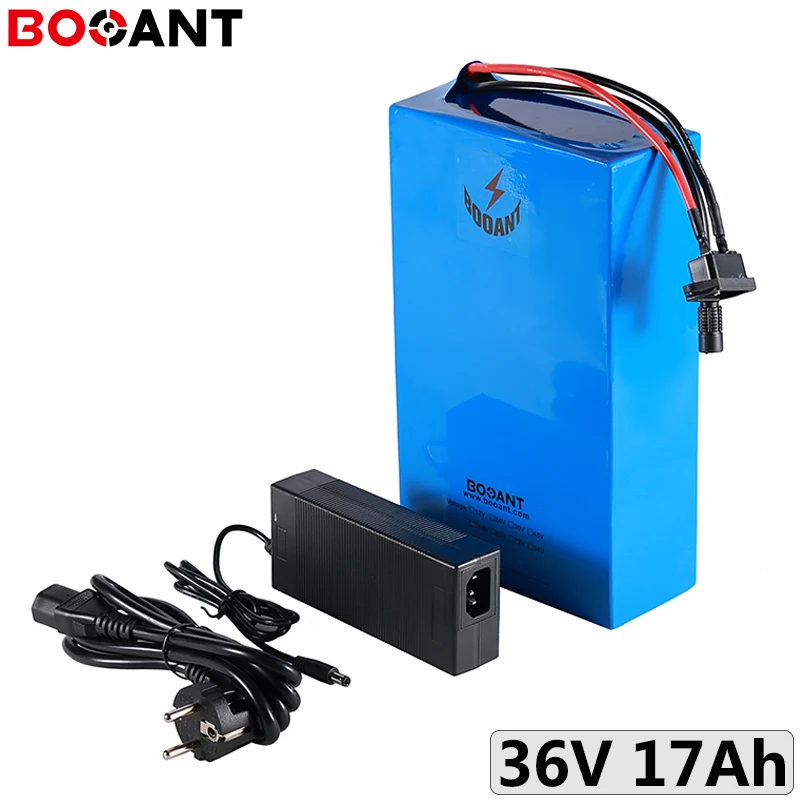

For Panasonic 18650 cell 36V 17Ah Electric Bicycle Lithium Battery 10S E-bike battery Bafang BBSHD 250W 500W 750W Motor | Спорт и

For Panasonic 18650 cell 36V 17Ah Electric Bicycle Lithium Battery 10S E-bike battery Bafang BBSHD 250W 500W 750W Motor | Спорт и

1. Longer battery life, the life expectancy is two times that of lead-acid batteries.

2. Rechargeable and no memory effect.

3. The weight is more lighter.

4. Smaller dimensions and can be customized.

5. Safer and more environmentally friendly, No heavy metals and hazardous substances.

6. BMS built-in IC chip will prevent battery pack over charge, over discharge, over-current, over-heat, short circuit .

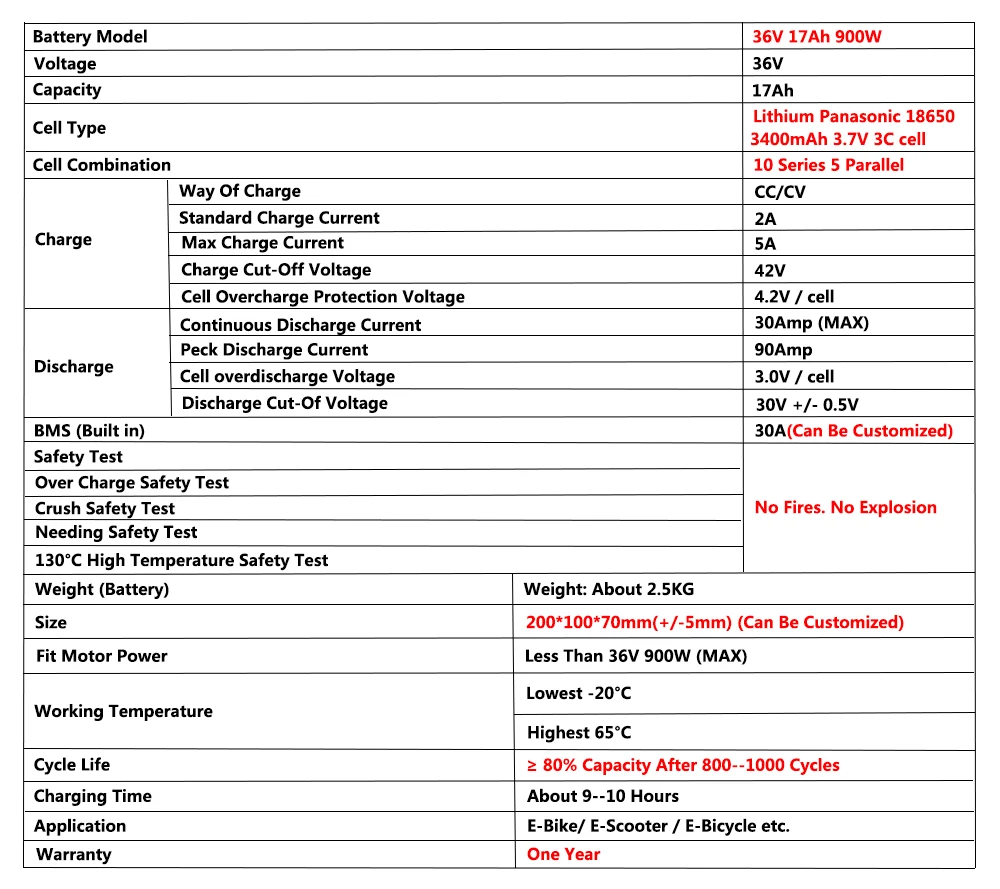

Battery Model: 36V 17Ah

Nominal Voltage: 36V

Nominal Capacity: 17Ah

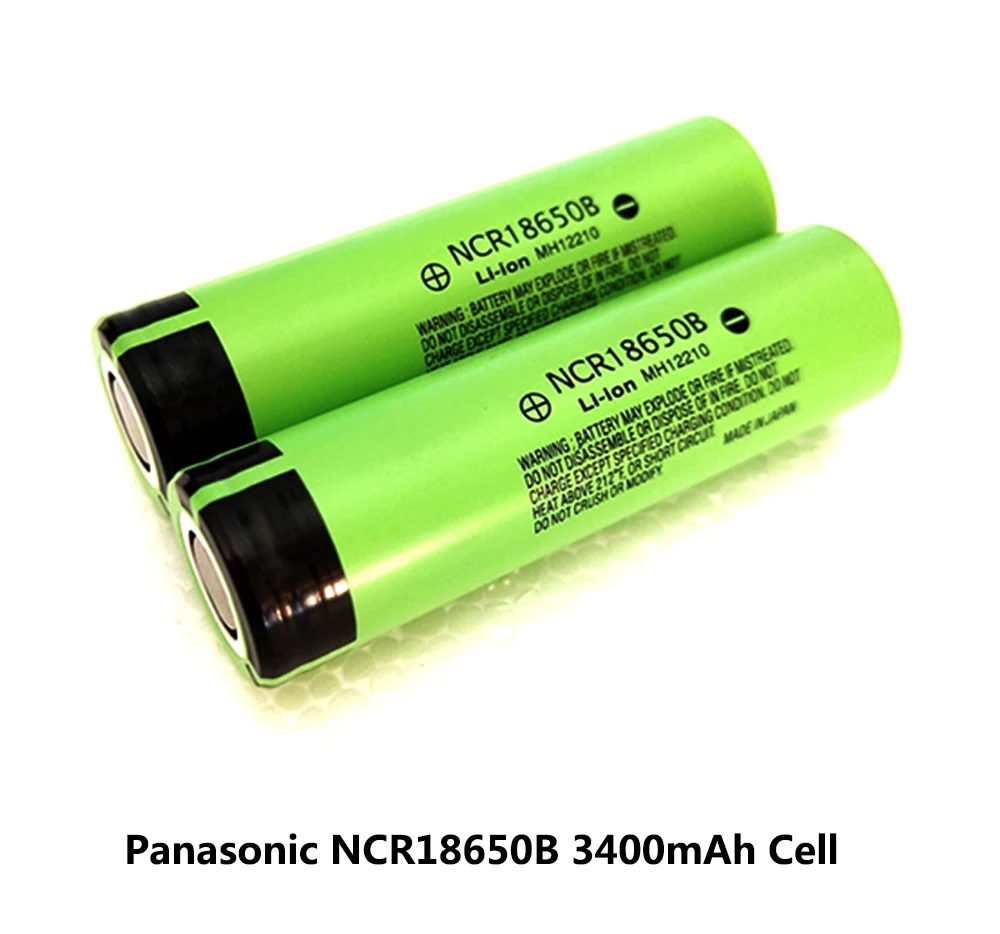

Cell Specification : For original Panasonic NCR18650B 3400mAh 3.7V Cell

Cell OverCharge Protection Voltage: 4.2V/Cell

Cell Overdischarge Protection Voltage: 3.0V/cell

Cell Source Resistance (mΩ): about 40mΩ

Cell Combination: 10 Series 5 Paralles

Cell Quantity (parallel x series): 50 pcs

BMS: 15A (can be customized)

15A BMS Suitable Motor: Less than 36V 450W(MAX) Motor

30A BMS Suitable Motor: Less than 36V 900W(MAX) Motor

Discharge Cutoff Voltage (V): 30V+/-0.5V

Charge Cutoff Voltage (V): 42V+/-0.5V

Rated Discharge Current (A): 30A

Maximum peak discharge current (A): 90A

Maximum Continuous Discharge Current (A): 30A

Charger mode: CC/CV

Standard Charge Current (A): 2A

Max Fast Charge Current (A): 5A

Charge Time under Standard Charge Current: about  9--10 hours

Charge Time 5A Fast Charge Current: about  4--5 hours

Discharge Temperature: -20 to 65°C

Charge Temperature: 0 to 45°C

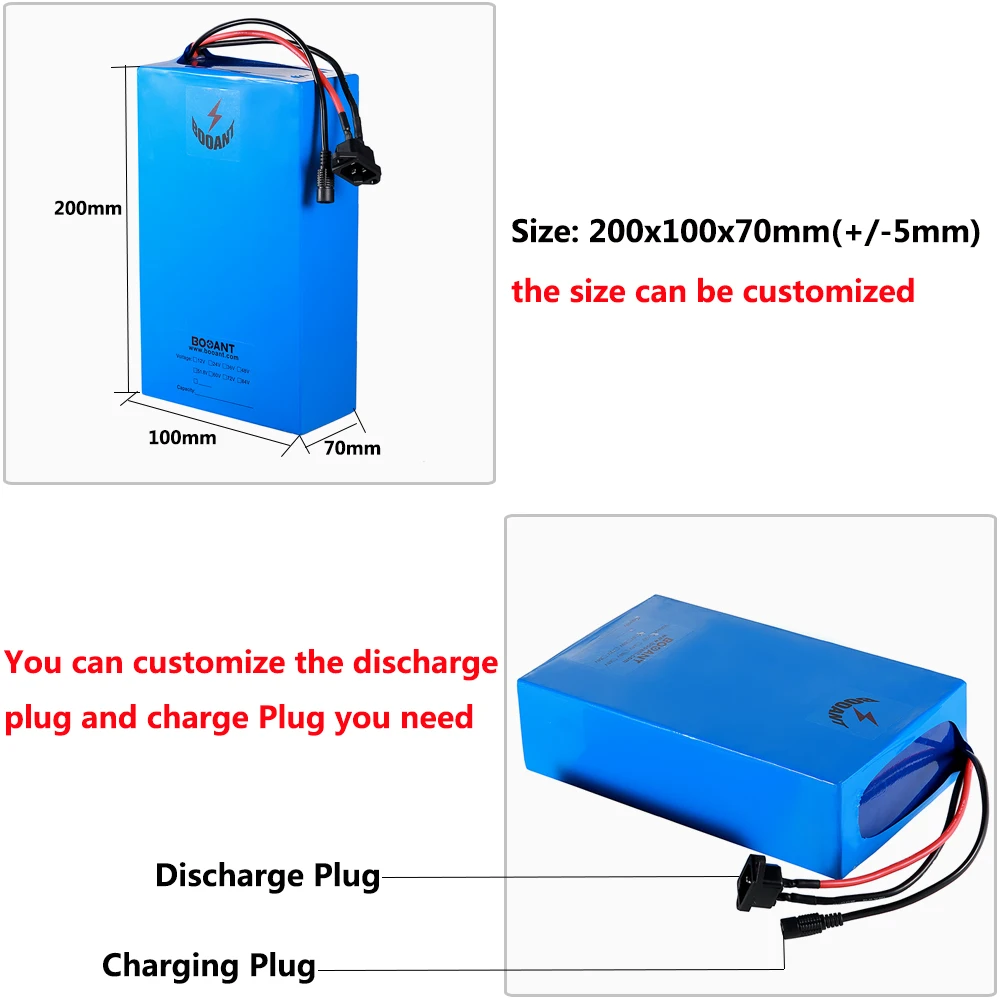

Dimensions:  200*100*70mm(+/-5mm) (can be customized)

Battery Weight: about 2.5 kg

Cycle life: ≥80% capacity after 800--1000 cycles.

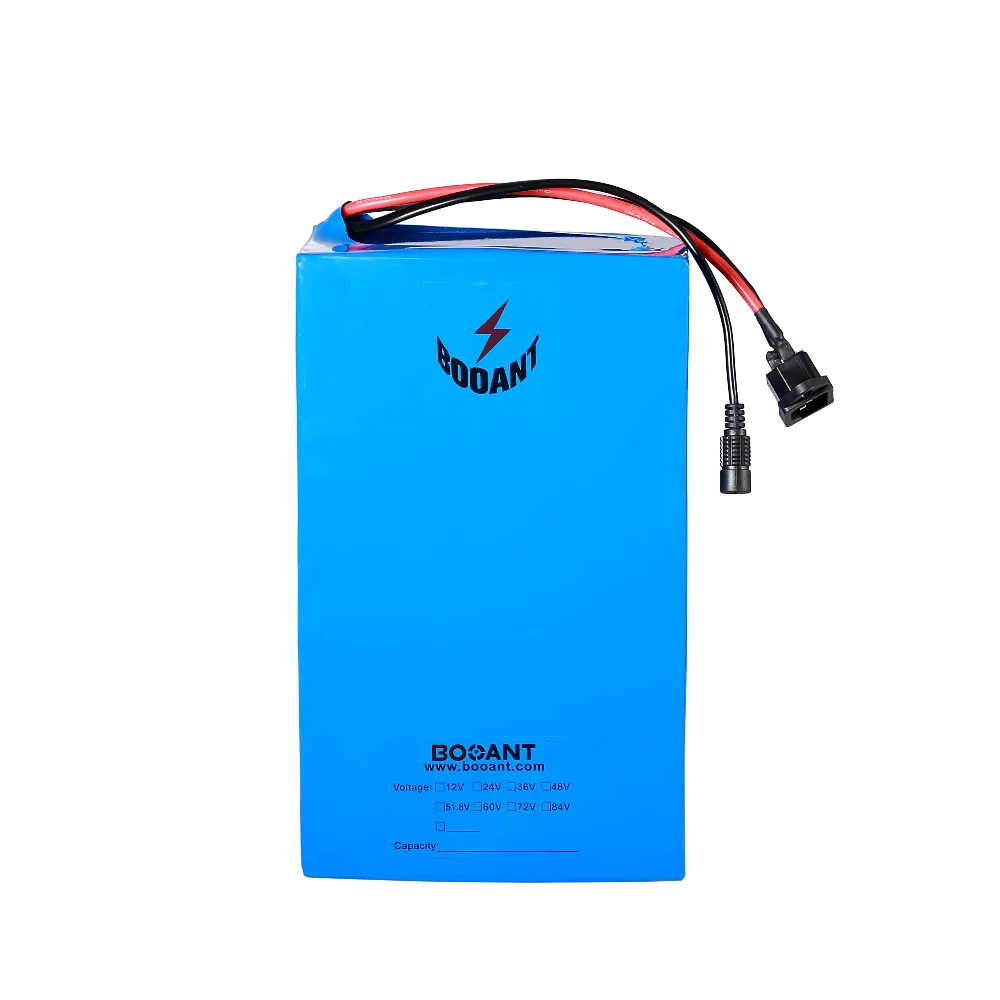

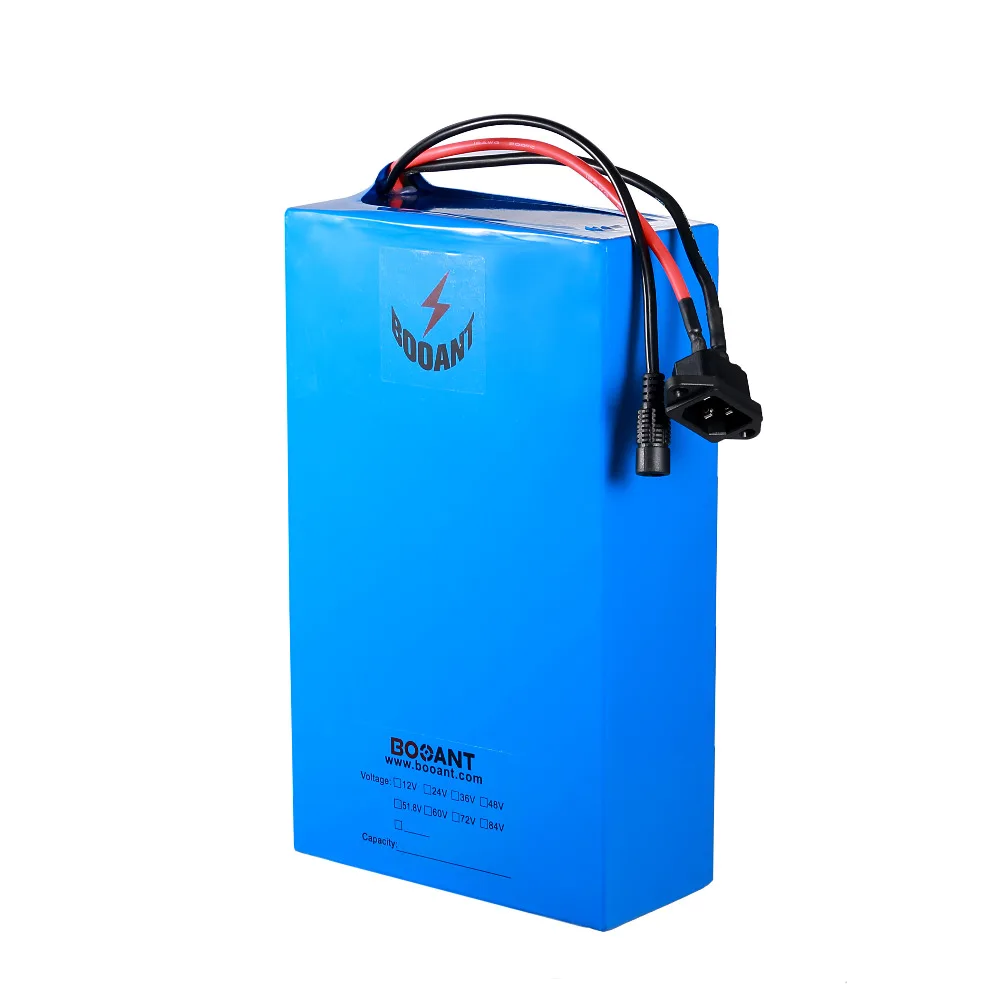

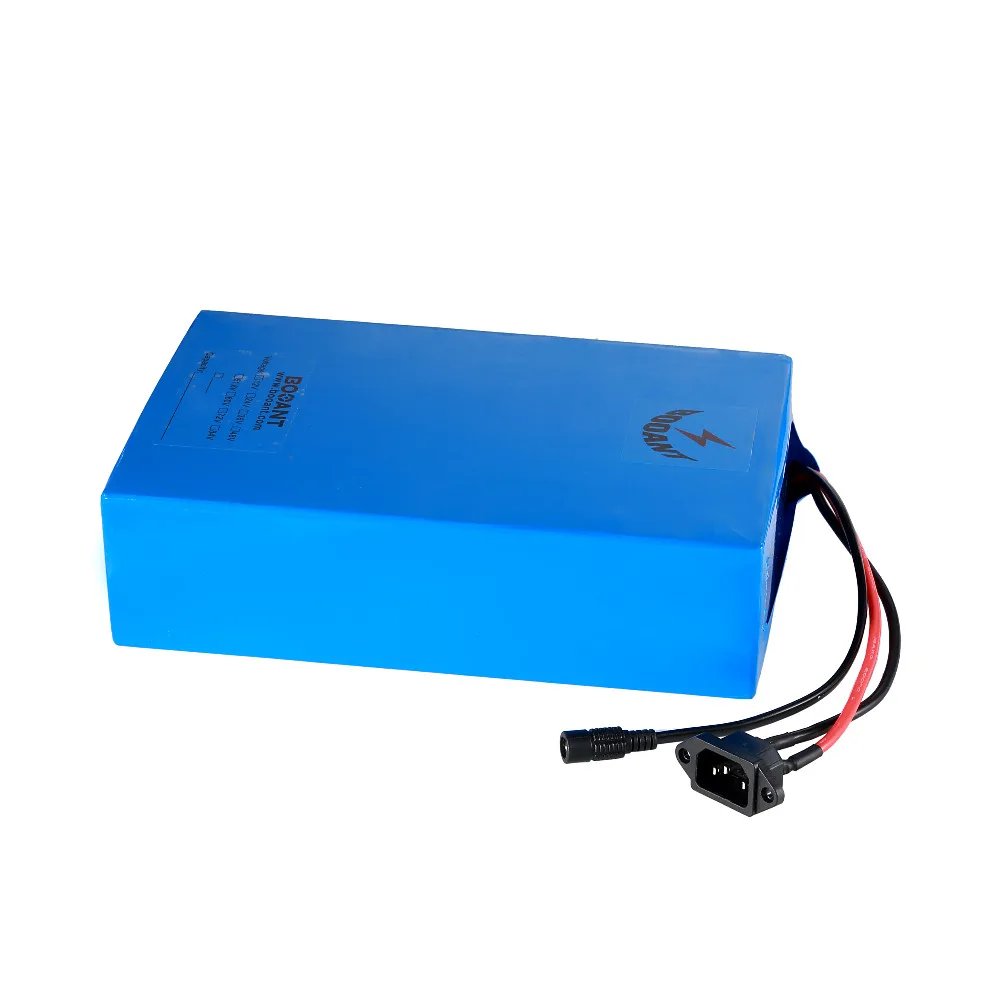

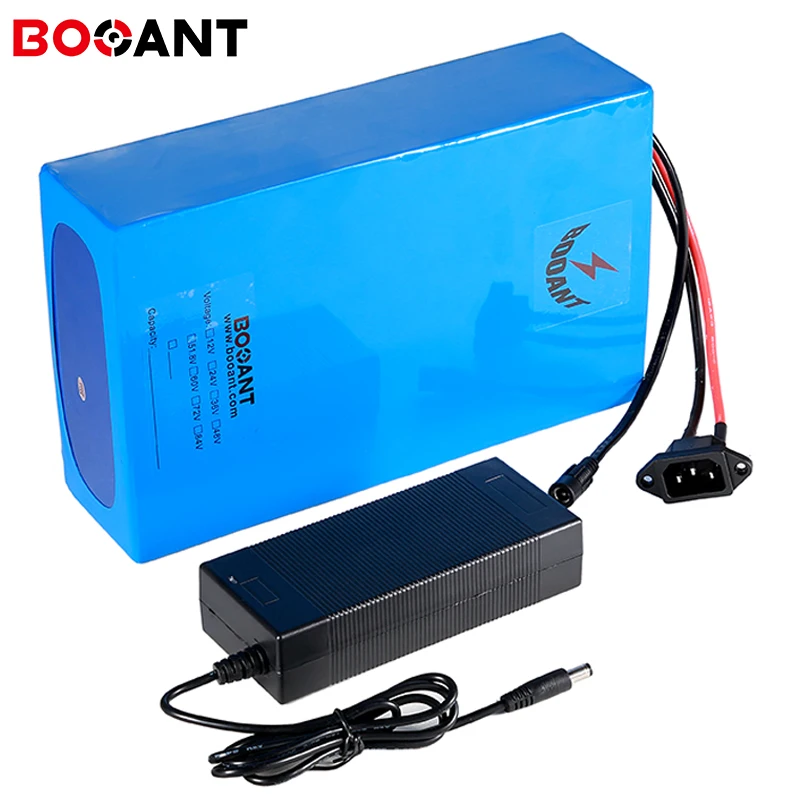

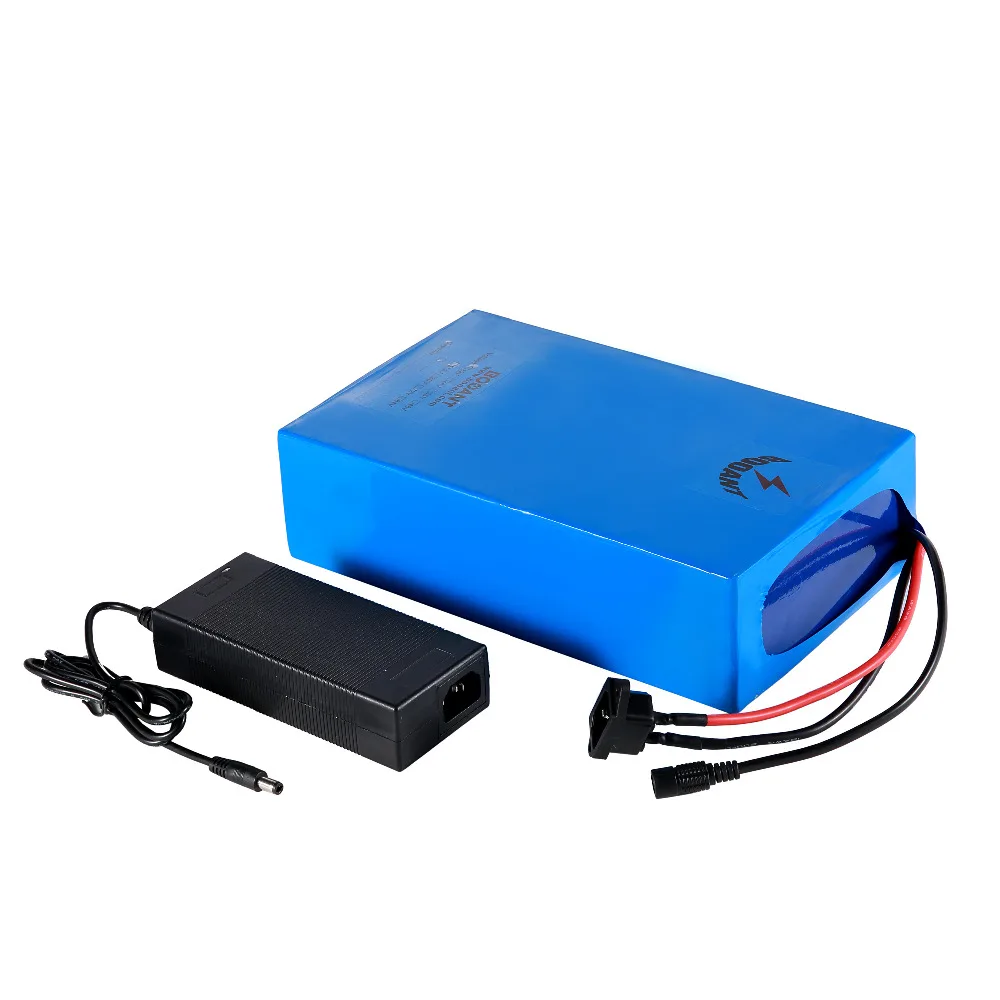

1. Lithium battery pack with PVC case

2. Built-in 15A/30A BMS (protection board)

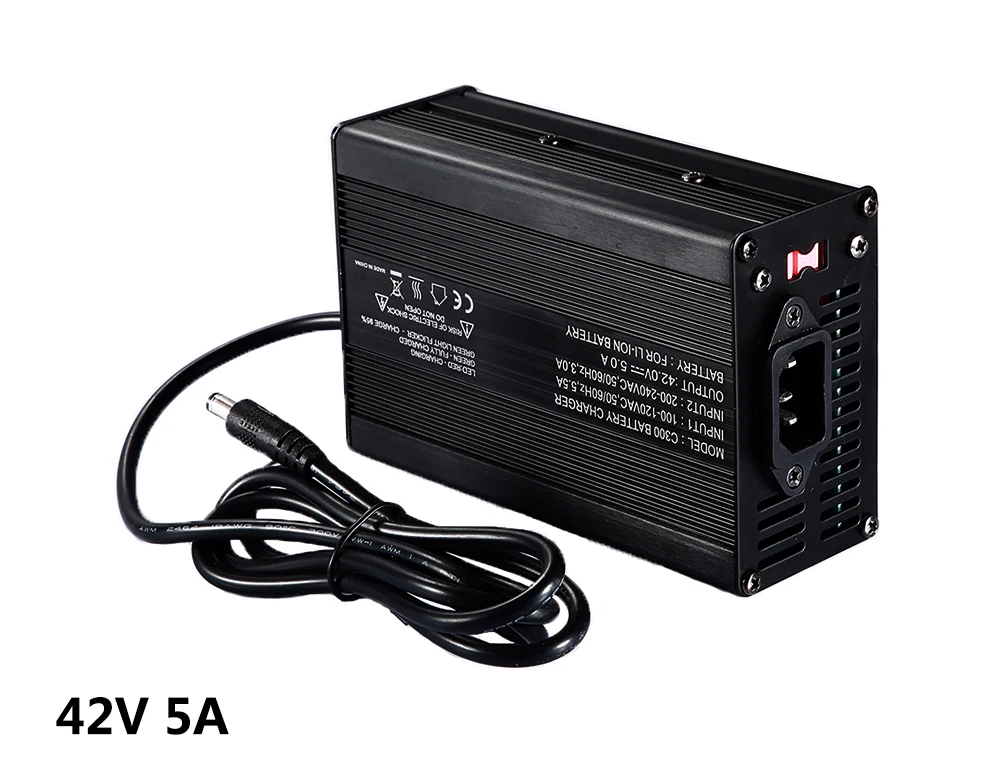

3. 42V 2A/5A Charger

4. Power Cable (Supply EU/ UL /AUS/ BS Plug)

 1. Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.

2. Does not use or leave the battery near a heat source as fire or heater.

3. Use the battery charger specifically for that purpose when recharging.

4. Do not reverse the position and negative terminals.

5. Do not connect the battery electrodes to an electrical outlet.

6. Do not discard the battery in fire or a heater.

7. Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

8. Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

9. Do not strike, trample or throw the battery.

10. Do not directly solder the battery and pierce the battery with a nail or other sharp objects.

Our batteries can be shipped to EU countries, The United States, Canada,

Switzerland, Norway, Russian, New Zealand, Australia, Japan, Korea, Singapore, Taiwan, Thailand,

Malaysia, Vietnam, etc., if your country is not in our shipment within the country, please contact us,

we will further consult the logistics company, thank you!

For EU countries: 8--12 Working days (usually shipped by UPS / DPD);

For The United States, Canada: 8--12 Working days (usually shipped by UPS / Fedex / DPD);

For Switzerland, Norway: 8--12 Working days (usually shipped by UPS / DPD);

For Russian: 20--28 working days (usually shipped by CDEK)

For New Zealand, Australia: 10-18 working days (shipped by Special Line）

For Japan, Korea, Singapore, Taiwan, Thailand, Malaysia, Vietnam, : 5-7 working days (shipped by Special Line)

In special circumstances, the logistics method sometimes will change, thank you!

For EU countries, The United States, Japan, Thailand, Malaysia, Vietnam, Russian: Free Taxes,

You do not need to pay any customs duties；

For Australia: Free Taxes (The product must below 1000 A$);

For Canada: Free Taxes (The product must below 20KG);

For New Zealand, Switzerland, Norway,Taiwan, Singapore, Korea: You need to pay a certain taxes,

But we will declare a reasonable low value to help buyer reduce it;

We will do our best to serve customers.

If you don't satisfied with ourproducts,

please contact us before you leave negative feedback or dothe detailed rating.

We will service you until satisfied.

The product have one year quality warranty ( warranty is invalid nature wearing or

any damage due to wrong operation ).

Do not disassemble any product by yourself, once you disassembled we do not provide warranty,

any question, please contect us.

We also support PAYPAL, Credit card, Bank transfer and other payment methods, thank you!
