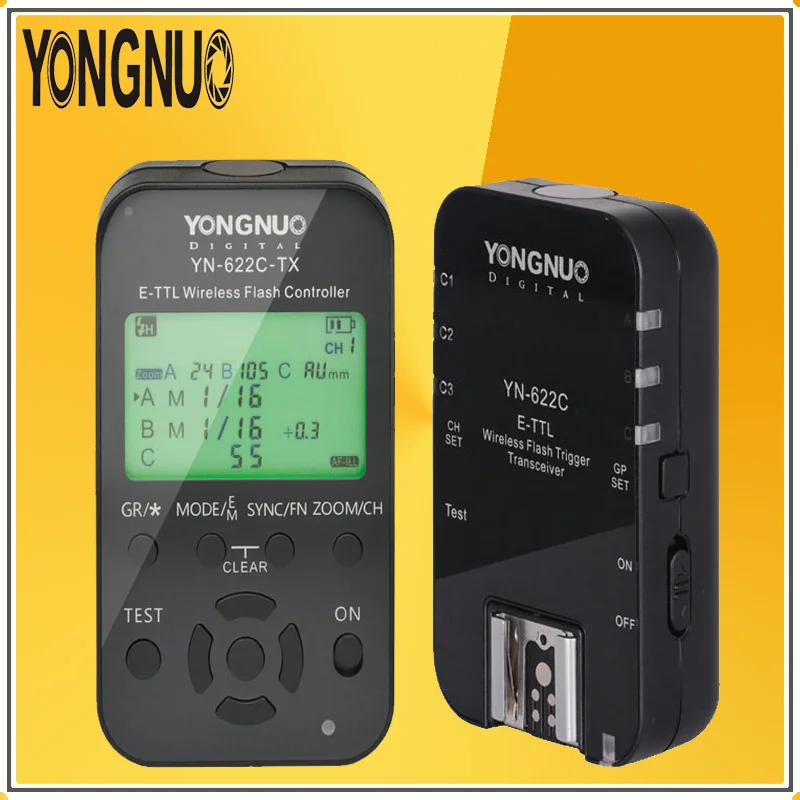

YONGNUO YN-622C-TX Transmitte + YN622C Single Transceiver Kit 2.4G Wireless TTL Flash Trigger Transceiver Controller For Canon

Specification:

  The YN-622C-TX transmitter acts as a master control unit to the popular YN-622C ITTL and Remote Manual transceivers, providing more functions and a far more user friendly built-in LCD user interface.   You can use YN-622C-TX and YN-622C Transceiver as Flash Trigger system to fire flash.

YN-622C-TX Features:

  1, 3 Groups ( A/B/C)   2, Mix TTL, Remote Manual, and SuperSync Groups   3, Syne mode ( front-curtain syne, rear-curtain sync, Hi-speed sync ( Auto FP ) )   4, Max Sync. Speed: 1/8000s   5, Trigger Interface: Hot shoe, PC   6, Individual 1/3rd stop Manual Power and FEC adjustment   7, Remote Flash Zoom in 3 groups, and Auto Zoom   8, 2nd Curtain Sync, HSS, SuperSync   9, USB port for Firmware Updates   10, AF Assist Light   11, Remote Shutter Release Function   12, Dedicated Buttons for Fast Adjustments   13, Battery Level Indicator   14, 2.5mm shutter release interface (c1 and c3)   15, PC Interface ( You can buy RF-602 PC/PC to connect it with your camera )    16, 7 Channels   17, Improved Stability and Transmission Speed   18, SuperSync Manual Timing Adjustment by Group   19, Flash Value Lock function (FVL)   20, Modeling Flash & Red-Eye Reduction flash   21, Settings Saved Automatically   22, Up To 100M Range

YN-622C Features:

  1. YN-622C i-TTL wireless transceiver is a high performance 2.4G wireless flash trigger designed for Nikon users. Different photographic effects can be produced through setting the flash at 360 degrees.   2. It supports i-TTL and manual flash, front-curtain sync, rear- curtain sync and high-speed sync(Auto FP), the highest sync speed is 1/8000s*.    3. It can remote change flash exposure compensation or flash output of each group, supports different flash modes.   4. Supports the transmitter installed i-TTL flash, in addition, it supports the master unit on transmitter sets the parameters of each group.   5. This product is a wireless transceiver design, the distance of remote control reaches 100M, supporting 7 wireless channels and A/B/C three groups, and with AF assist beam emitter function.

Function:

  ***Compatible flash mode: E-TTL, Manual flash   ***Compatible Shutter sync: front-curtain sync, rear- curtain sync and high-speed sync(HSS/FP), the highest sync speed is 1/8000s*   ***Support remote set the parameters of flash through the transceiver (Remote Control Mode)   ***Support E-TTL/Manual/Repeating flash mode mix using(Mix Control Mode)   ***Support the flash installed on transmitter(on-top flash)and supports i-TTL function    ***Support the use of master unit on transmitter sets the parameters of each group(Master Control Mode)   ***Support FEC, FVL function   ***Support modeling flash and red-eye reduction flash    ***Support flash zooming (auto)   ***Built-in AF assist beam emitter (AF Lamp)   ***Settings saved automatically   ***Compatible with YongNuo/ for Nikon series flashes   ***Support PC port triggering strobe flashes   ***port support front/rear curtain sync and high-speed sync(Super Sync)function   ***Support single-contact of camera & flash triggering (max sync speed is 1/250s)

Suit for:

  Camera:   A:The DSLR camera with external flash control menu:   for Canon 5D Mark II, 5D Mark III, 1Ds Mark III, 1D Mark IV, 1D Mark III, 7D 60D 50D 40D 450D 500D 550D 600D 650D 1000D 1100D   B:The DSLR Camera without external flash control manual:   for Canon 5D 10D 20D 30D 300D 350D 1D 1D Mark II   Compatible Flash: ( You should use it with YN-622C together )   A: ETTL Flashes support TTL function and HSS: (It supports wireless remote control through camera menu )   ---for Canon 600EX-RT, 580EX II, 430EX II, 320EX, 270EX II ---Yongnuo Flashes Canon version: YN-568EX, YN-565EX, YN-468II, YN-467II, YN-465 ---Other brand flashes work with Canon system: Metz, Sunpak, Oloong, Triopo   B: ETTL Flashes support TTL function and HSS: (Uers should set the flash through flash panel)   ---for Canon 580EX, 550EX, 540EZ, 430EX, 430EZ, 420EX, 420EZ, 380EX   C: Other Flashes: (Not support TTL function or HSS)   ---for Nikon SB-900, SB-800, SB-600, SB-28, SB-27, SB-26, SB-25, SB-24 ---Yongnuo YN-560II, YN-560, YN-460II, YN-460 ---for Pentax AF-540 FGZ, AF-360 FGZ, AF-400 FT, AF-240 FT ---for Sigma EF-500 DG Super, EF-500 DG ST, EF-430 ---Other brand flashes not for Canon: Metz, Sunpak, Oloong, Triopo

Campatible List

1. Compatible camera: For Canon EOS Series DSLR 2. Cameras compatible with the shutter release cable (parts): -For LS-2.5/C1/ 60D/ 70D/ 400D Series/ 500D Series/ 600D Series/ 1000D Series -For LS-2.5/C3/ 40D/ 50D/ 7D/ 1D Series/ 5D Series

Package Included:

  1 x YN-622C-TX Controller  1 x YN-622C Single Transceiver 1 x LS-2.5/C1 Shutter Connecting Cable  1 x LS-2.5/C3 Shutter Connecting Cable  1 x Manual in Chinese and English 1 x Original box
