2017 IP video door phone for multi apartment intercom system modern office SIP | Безопасность и защита

2017 IP video door phone for multi apartment intercom system modern office SIP | Безопасность и защита

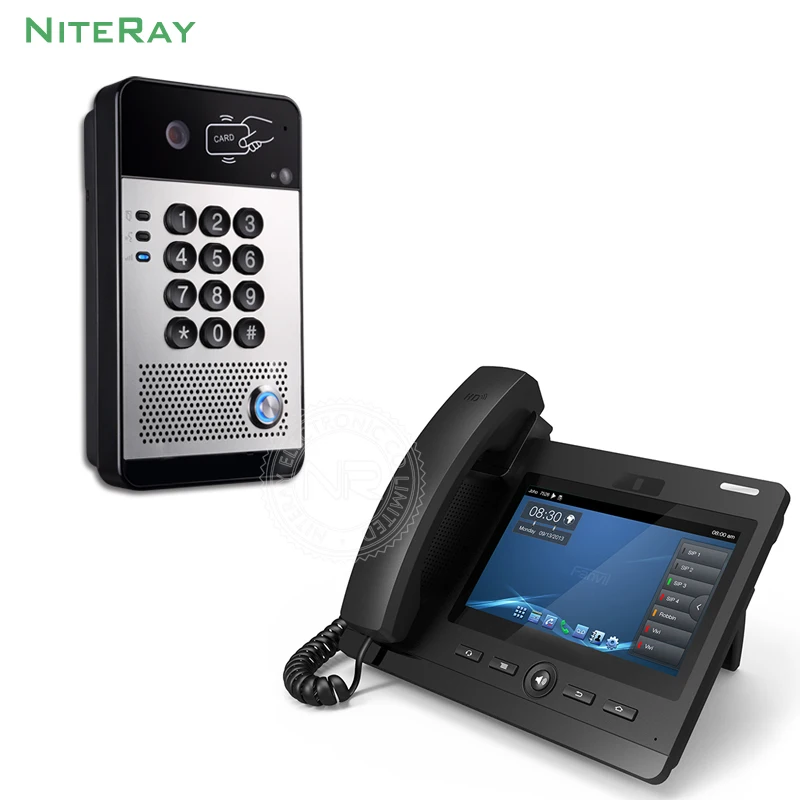

• Video SIP basic telephone(F600) + Video SIP door phone(Q520).
• Optional qty to buy: F600*N+Q520*N.

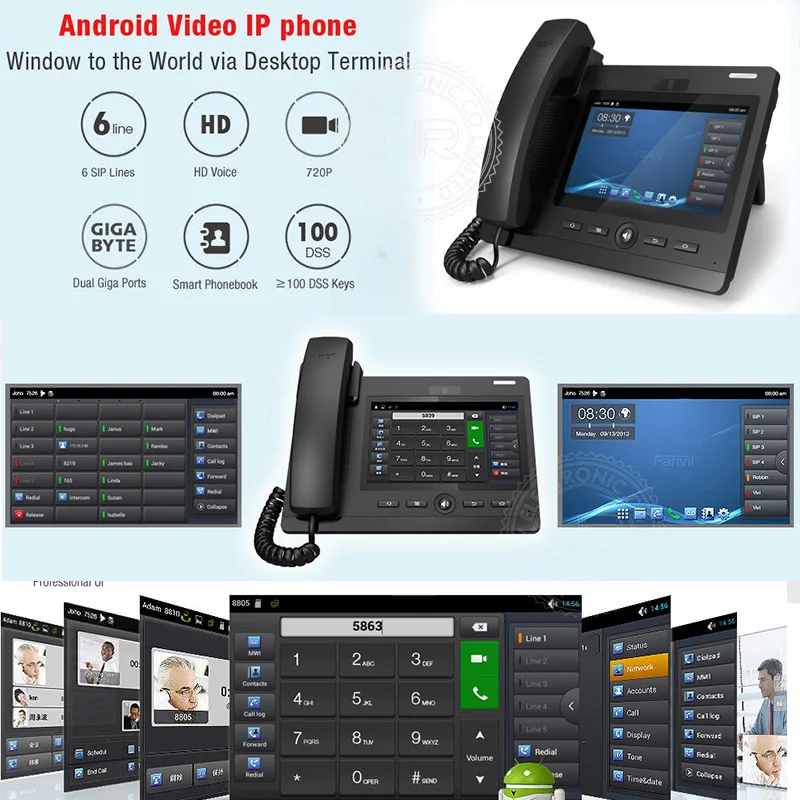

• 7 inch 720P HD video display, Android system on F600(F600 can be placed on desk or wall mounted).
• Hidden RFID Card Reader.
• Relay to Connect to Door Lock , NO/NC Relay Mode.

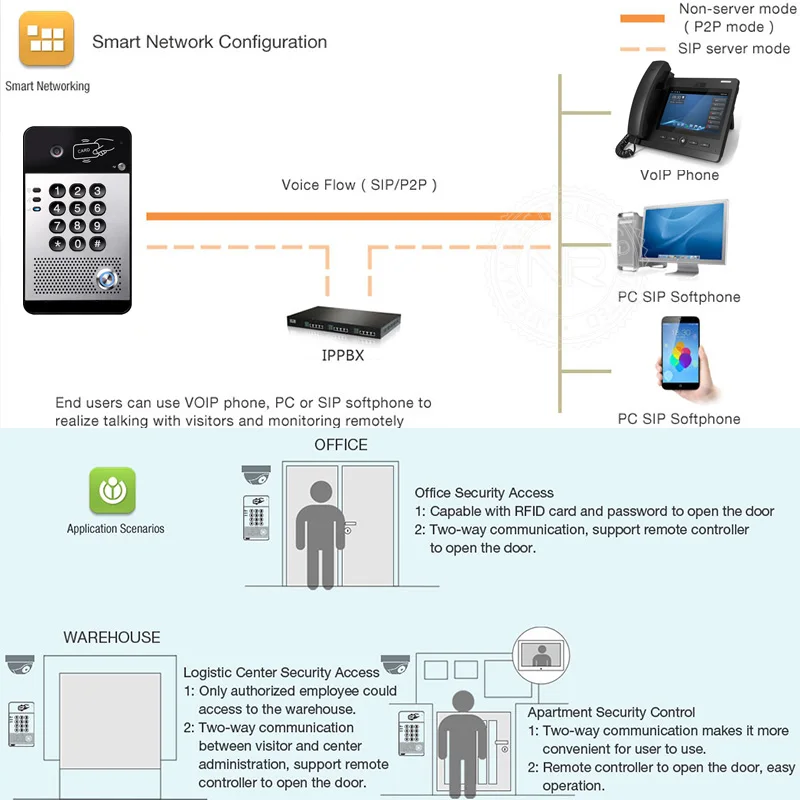

• Able to create Intercom with or without server/PBX.
• Use SIP Protocol, Easy to Deploy.
• Directly Call to Preset Telephone.
• Waterproof design.
• Hight Quality Conversation Voice.
• Full Duplex Intercom.
• Auto Answer , Auto Hand Down

• Access control function l

  Two SIP lines, support SIP 2.0 (RFC3261) and related RFC l

  Full-duplex handsfree (HF) l

  Default Auto Answer l

  Open the door operation: DTMF, password, RFID card, switch l

  Support 200,000 door open records l

  Support 2000 remote access list l

  Support2000 RFID cards  l

  Support electric lock internal or external power supply options l

  Support customized DSS keys l

  Network Time Synchronization l

  Action URL / Active URI remote control  Audio l

  Narrowband speech codec: G.711a / u, G.723.1, G.726-32K, G.729AB l

  Broadband speech codec: G.722 l

  Full Duplex Echo Cancellation (AEC) l

  DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Info

  Video l

  Sensor: 1/4 "color CMOS l

  Pixels: 1 million

  Video codec: H.264 l

  Resolution: The main stream1280 *720 Sub-stream 640*360, 352*288, 32*240 l

  Viewing angle: 110 ° (H), 95 ° (V) l

  Minimum illumination: 1Lux, temporarily does not support infrared lighting

  Networking/ Protocols l

  Support PoE (802.3af) l

  Primary and secondary DNS servers are supported l

  Support VLAN l

  Support SNTP client l

  Support VPN L2TP / openVPN l

  Support SRTP l

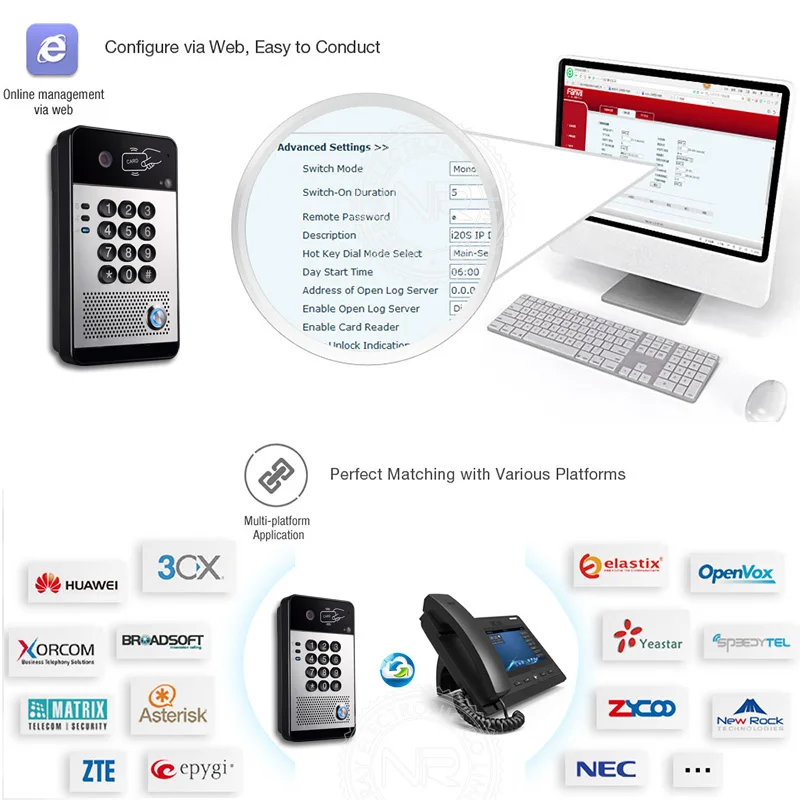

  Support HTTP / HTTPS web pages l

  Support Qos: 802.1p / q, DSCP l

  Support MD5 authentication l

  Support Web Filter l

  DHCP / static / PPPoE l

  Support STUN



  Physical Specifications l

  1 DSS button (speed dial button) l

  4 indicator lights (including hot-key backlight) l

  Numeric keypad

  1 indoor switch l

  1 relay: MAX DC30V / 1A, AC125V / 0.5A l

  Active switching output: 12V / 700mA DC l

  RFID reader: ID (EM4100) standard type IC(MIFARE ONE) custom type l

  RFID card number output: positive   sequence output 8H10D l

  Microphone: -38dB l

  Speaker: 4Ω / 3W l

  WAN port: RJ-45, 10 / 100M adaptive l

  Power supply: 12V ± 15% / 1A DC or POE l

  PoE: 802.3af (Class 3 - 6.49 to 12.95W) l

  Standby power: 2.76W, 12V / 230mA l

  Network cable: CAT5 or better l

  Shell material: metal surface, ABS bottom shell l

  Installation: wall-mounted installation l

  Operating temperature: -20 ~ 60 ℃ l

  Storage temperature: -40 ~ 70 ℃ l

  Relative humidity: 10 ~ 90% l

  Protection class: IP65 l

  Equipment size: 160x93x35mm l

  Packing size: 178x104x55mm l

  Equipment weight: 330g l

  Package weight: 450
