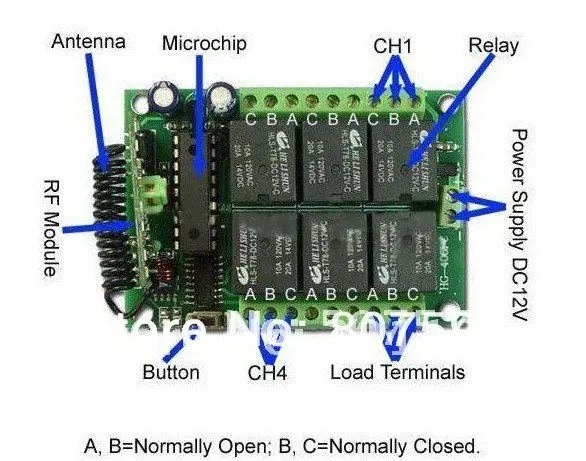

12V 6 CH 10A RF wireless remote control system
Main Function:
Control Lights, TV, Motors, Fans, Cameras, Video Signals, Audio Signals, Electric Doors/Locks/Windows/Curtains/
Cars or Other Appliances with voltage 12V
You can turn on/off the receiver with transmitter (remote control) from any place, the wireless signal can pass through walls,
floors, and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bits code.
One/several transmitters can control one/several receivers.
If you use two or more receivers in same place, you can set them with different codes.
Transmitting Frequency: 315MHz/433MHz.
specification
..
1, working voltage: 12 v
2, static working current: <= 6 mA
3, working temperature: - 20 \'C to - + 70 \'C
4, receiving sensitivity: >= -105 DBM
5, working frequency: 315 MHZ/433 MHZ Opotional (please tell me what frequency do you need before ordering them)
6, output voltage: AC, DC optional
7, output current: <=10 A
8, size: 9 mm x 52 mm x 26 mm
Notice
Here is a set( transmitter and receiver),,no matter what frequency it is..315mhz or 433mhz,
we always make it work before shipping to you, ,just the frequency is different ,but they work both very good ,
so you do not worry ,we have our own company and factory, if you need any help..please feel free to tell me..Just I can..,
,,i always try my best to help you..looking forward to doing more business with you in future,,
Button 1~6of the transmitter is corresponding to the relays 1~6 of the receiver.
press the learning the key on the receiver about 2 seconds - , the light will be on,,it said into the learning state
2, press any button of transmitter - the light will flash then off.. it means success in learning.
A. jog/signal non-lock press the No.1 button to learn
B.self-lock---- press the No.2 button to learn (each channel is independent .they won\'t interfere with each other
C inter-lock -press the No.3 button to learn
D ,1-3-relay jog and 4-6 relay self-lock---- press No.4 button to learn
E ,1-3-relay jog, and 4-6-relay inter-lock---- press No.5 button to learn
F ,1-3-relay interlock and 4~6 relay selflock ---- press 6 button to learn
out put way
Jog---- press one button is ON . loosen your finger on the same button is OFF
Self -lock----- press one button for one time is ON .press the same button again is OFF .
Inter-lock-------press one button is ON , press another button is OFF
How to remove code?
Press the receiver module learning key about 8 seconds until the light be off , It means the stored information has been successfully cleared
