2PCS CREE XM-L2 LED U2 10W White/ Neutral White /Warm White/Yellow High Power Emitter with 16mm 20mm aluminum PCB for DIY | Освещение



Сохраните в закладки:

Цена:RUB
*Стоимость могла изменится

Количество:


Новое поступление

Характеристики

2PCS CREE XM-L2 LED U2 10W White/ Neutral White /Warm White/Yellow High Power Emitter with 16mm 20mm aluminum PCB for DIY | Освещение

История изменения цены

*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"

Месяц Минимальная цена Макс. стоимость Цена
Sep-16-2025 0.93 руб. 0.9 руб. 0 руб.
Aug-16-2025 0.11 руб. 0.42 руб. 0 руб.
Jul-16-2025 0.77 руб. 0.8 руб. 0 руб.
Jun-16-2025 0.25 руб. 0.32 руб. 0 руб.
May-16-2025 0.89 руб. 0.58 руб. 0 руб.
Apr-16-2025 0.60 руб. 0.46 руб. 0 руб.
Mar-16-2025 0.79 руб. 0.46 руб. 0 руб.
Feb-16-2025 0.17 руб. 0.8 руб. 0 руб.
Jan-16-2025 0.39 руб. 0.70 руб. 0 руб.

Описание товара

2PCS CREE XM-L2 LED U2 10W White/ Neutral White /Warm White/Yellow High Power Emitter with 16mm 20mm aluminum PCB for DIY | Освещение2PCS CREE XM-L2 LED U2 10W White/ Neutral White /Warm White/Yellow High Power Emitter with 16mm 20mm aluminum PCB for DIY | Освещение2PCS CREE XM-L2 LED U2 10W White/ Neutral White /Warm White/Yellow High Power Emitter with 16mm 20mm aluminum PCB for DIY | Освещение2PCS CREE XM-L2 LED U2 10W White/ Neutral White /Warm White/Yellow High Power Emitter with 16mm 20mm aluminum PCB for DIY | Освещение2PCS CREE XM-L2 LED U2 10W White/ Neutral White /Warm White/Yellow High Power Emitter with 16mm 20mm aluminum PCB for DIY | Освещение2PCS CREE XM-L2 LED U2 10W White/ Neutral White /Warm White/Yellow High Power Emitter with 16mm 20mm aluminum PCB for DIY | Освещение

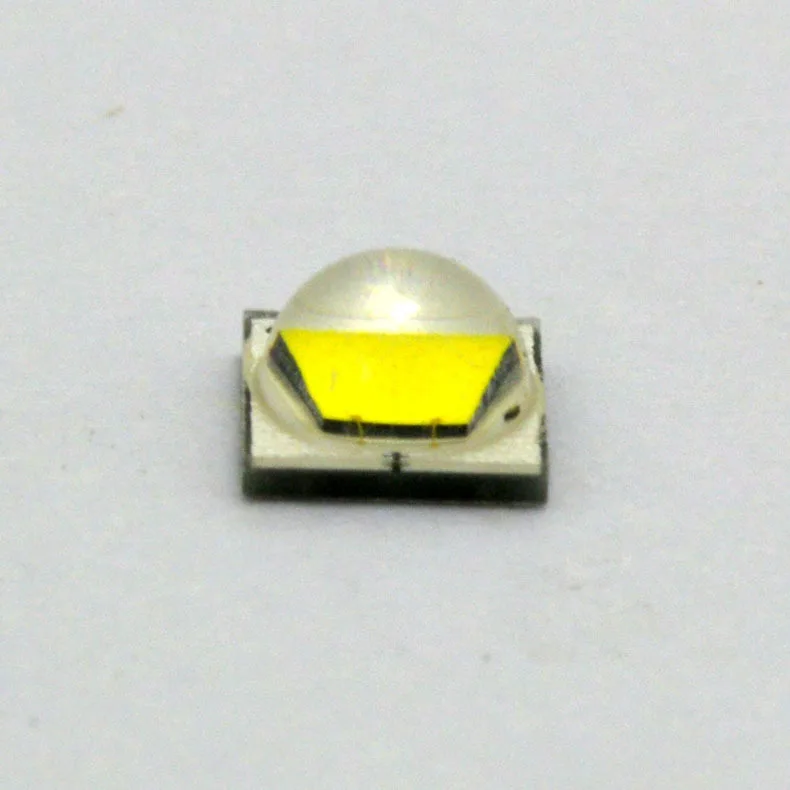

XLamp XM-L2

Highest-Performing, Commercially Available, Single-Die LED

Delivering breakthrough lumen output and efficacy in the XM package, the XLamp XM-L2 LED is the highest-performing, commercially available, single-die LED. Built on the SC⊃3; Technology Platform, the XLamp XM-L2 LED delivers up to 20% more lumens and lumens-per-watt and double the lumens-per-dollar of the original XM-L. The XM-L2 LED offers the unique combination of high efficacy and high lumen output at high drive currents, delivering an unprecedented 1198 lumens at 116 lumens-per-watt efficacy at 3 A, 25°C.



Features:
Maximam drive current: 3000mA
Low thermal resistance: 2.5C/W
Maximum junction temperature: 150C
Viewing angle: 125'
ANSI-compatible chromaticity bins
Unlimited floor life at <30C/85% RH
Reflow solderable-JEDES J-STD-020C
Electrically neutral thermal path



Technical Parameters:
Quantity:2pcs
Model Type: Cree XML2
Emitted Color :White/Natural White/warm white
Color Temperature: 6500-7000K/4000-5000k/3000-3500k
Viewing Angle: 110 Degree
DC Forward Voltage (VF): 2.9-4Vdc
DC Forward Current (IF): 3.0A
Power: 10W
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°
Diameter :16mm
ANSI-compatible chromaticity bins
Unlimited floor life at ≤ 30oC/85% RH
Reflow solderable - JEDEC J-STD-020C
Electrically neutral thermal path

2147071091_491183122147071105_491183122147071122_491183122147071138_49118312

IMG_20170508_085129IMG_20170508_085025IMG_20170508_085201
