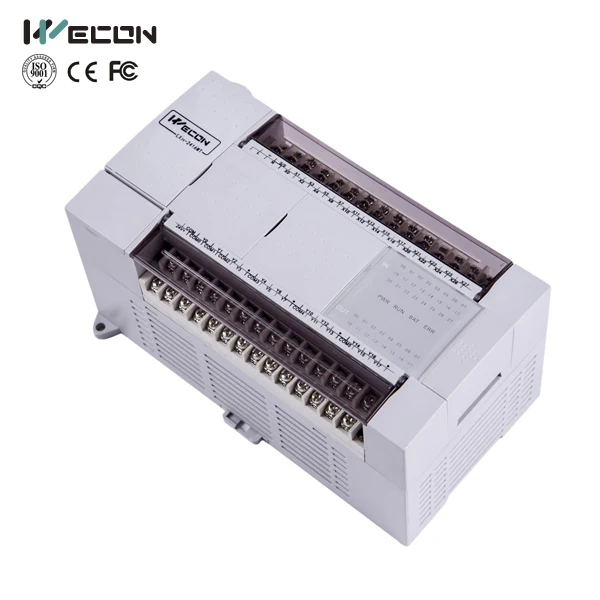

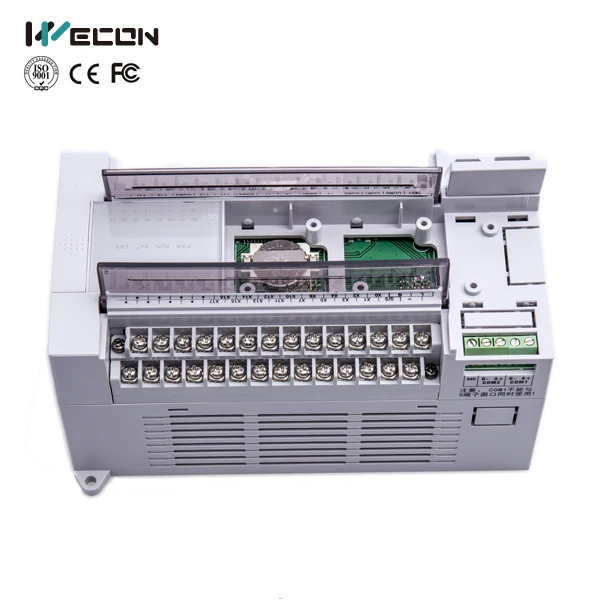

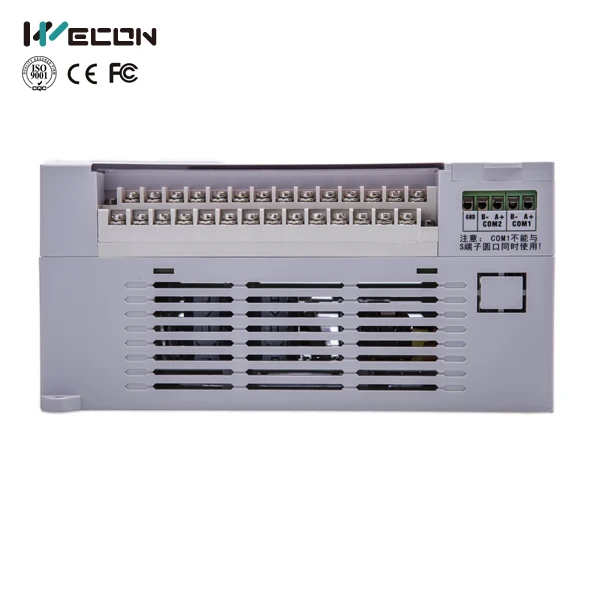

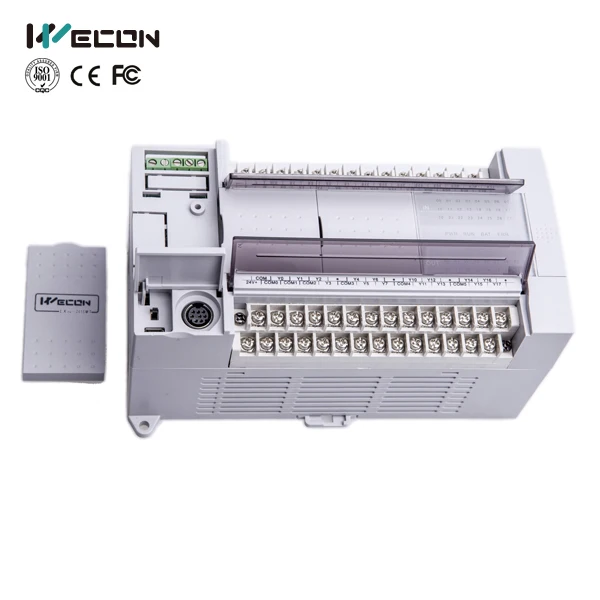

Wecon 40 digital I/O PLC (LX3VP-2416MT-D) small cheap plc | Компьютеры и офис

Feature

Description

Programming Software

GX Developer and GX Works2 are available. Totally free programming software: Wecon PLC Editor, lifetime free software and technical support

Program Security

Kernel mode encryption for downloading, uploading and opening the PLC program

Stand-alone Mini USB interface

Stand-alone Mini USB interface for downloading and uploading PLC program, also online monitoring included. you can do anything with PLC without communication disconnection.

Programming Language

Ladder and Instruction List support,

Communication Protocol

Modbus RTU and Modbus ASCII support, communication Protocol is compatible with Mitsubishi FX1N, FX2N. You can select Mitsubishi protocol to communication with Wecon PLC

Expansion Module

Variety of expansion modules to extend the function of PLC. Like AD/DA conversion, temperature measurement, weighting etc.

Item

1212MT4H-D

1412MT4H-D

1616MT4H-D

2416MT4H-D

2424MT4H-D

3624MT4H-D

General Specifications

PLC Running Mode

Scan round / Interrupt

Programming Language

Instruction List / Ladder

Instructions

Basic Instructions: 27

Applied Instruction: 136+2 (2 instructions different from Mitsubishi)

Operation Speed

Basic Instructions: 0.06us

Applied Instruction: 1~10us

Program Memory

Flash Rom built-in

Program Capacity

16K Steps

Programming Software

Wecon PLC Editor

SecuritySettings

Upload / download / program password

Programming Cable

Mini USB / USB SC09-FX USB to RS422 / Mitsubishi RS232 Programming cable

Digital Filtering

Yes, for all input terminal

Real Time Clock

Yes (Battery required)

High Speed Pulse Output

4 points (200K*2+100K*2),  Y1,Y2,Y3,Y4

High Speed Interrupt

6 points

Timer Interrupt

3 points

Power Supply Output

----

Communication Protocol

Wecon PLC Protocol /Mitsubishi FX2N No Protocol / Modbus RTU

Certificate

CE / FCC

Action Indicator

LED indication

Environment Specifications

Operating Temperature

0 ~ 55

Storage Temperature

-20 ~ 70

Operating Humidity

35~85%RH (No-condensate)

Shock Resistance

147 m/s2, 4 times in X, Y, Z each directions

Operating Environment

No corrosive gases or too much dust

Input / Output Specifications

Number of I/O Points

12/12

14/12

16/16

24/16

24/24

36/24

Expanded I/O Points

Max input: 256 points, Max output: 256 points

Rated Input Voltage

DC 24V±10%

Applied Voltage Range

DC 5~30V

Output Type

Transistor

Insulation Method

Optical coupling Insulation

Max. Load

0.5A / point, 0.8A / COM port, 0.3A/ HSPO point

ON / OFF Response Time

<0.2ms/ point, <5us/ HSPO point

Power Supply Specifications

Power Consumption

<35W

<35W

<35W

<35W

<35W

<35W

Rated Power

----

Voltage range

DC 24V

Power Outage Time

<10ms

Power Fuse

250V/1A

250V/1A

250V/3.15A

250V/3.15A

250V/3.15A

250V/3.15A

Inrush Current

<15A 1ms (DC 24V)

Screw of Terminal

M3

Register Specifications

Input Register (X)

X0~X377 (Octal)

Output Register (Y)

Y0~Y377 (Octal)

Intermediate Register (M)

M0~M3071, M8000~M8255 (System Reserved)

State Register (S)

S0~S999

Date Register (D)

D0~D7999 , D8000~D8255 (System Reserved)

Indexed Register (V)

V0~V7

Indexed Register (Z)

Z0~Z7

Timer (T)

100ms

T0~T199, T250~T255 (Accumulated)

10ms

T200~t245

1ms

T246~T249 (Accumulated)

Counter (C)

16bit Plus

C0~C199

32bit Plus-minus

C200~C234

32bit High Speed

C235~C255

Latched Register

Variable range

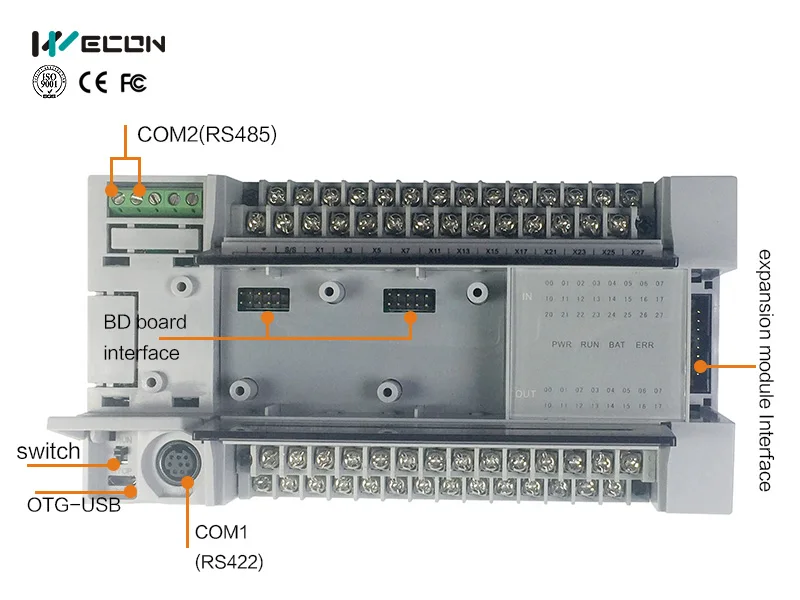

Interface Specifications

COM Port

COM1: RS422/ RS485, COM2:RS485

USB Interface

Download / Monitor / On-line editing

Extensible Interface

Ethernet / RS485 / CAN

BD Board Slot

For Wecon LX3V series BD board

Module Slot

For Wecon LX3V series expansion module

Appearance Specifications

Shell Material

ABS plastics

Dimension L*W*H (mm)

136*107*87

136*107*87

175*107*87

175*107*87

221*107*87

221*107*87

Package L*W*H (mm)

147*112*90

147*112*90

186*112*90

186*112*90

235*112*90

235*112*90

Net Weight (g)

520

520

742

742

920

920

Gross Weight (g)

600

600

839

839

1061

1061
