JRJ300-I JRJ300-S laboratory high shear emulsifying machine dispersion | Инструменты

JRJ300-I JRJ300-S laboratory high shear emulsifying machine dispersion | Инструменты

Overall size (L * w * h):800*320*300 (mm)
Weight:12 (Kg)
Throughput:60 (L / h)
noise:62 (dB)
Spindle speed:200 ~ 11000r/min (r/min)
Device mode:Stationary
Applicable temperature:40 (DEG C)
Specifications:JRJ300-I
Process customization:yes

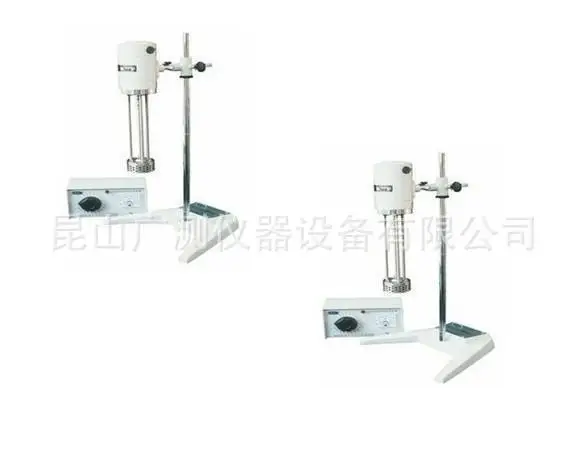

Attention: the price is different, please select the model, call consultation, thank you! JRJ300-I high speed shearing emulsifying machine (shearing, emulsifying, stirring, homogenizing machine)This shear emulsification machine uses high-power motors as power, the motor design is safe and reliable, low noise, power, stepless speed regulation, you can choose the speed you need. The machine has high shear mixing emulsification function, its unique mixing structure, to ensure that the processed material per minute withstand hundreds of thousands of times the shearing effect, solve the general mixer can not solve the mixed problems. Including cosmetics, emulsions, pharmaceutical industry, food processing, chemical industry, industrial coatings, and other resins that need to be churned, emulsified, crushed, suspended and dissolved. In some occasions, it can replace the colloid mill, ball mill, sand mill and other equipment. The machine is equipped with three different forms of stator work head (small hole, middle hole, waist round hole). Customers can change the stator working head according to different needs, and have reached the best effect of homogenization and emulsificationTechnical index:

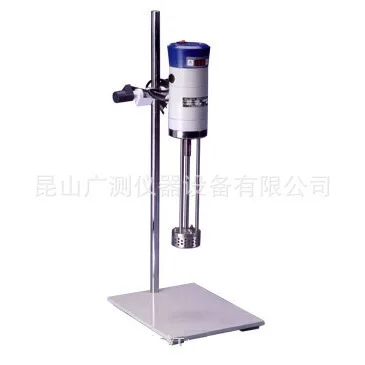

JRJ300-S digital display shearing emulsification mixer

Digital shear emulsification mixer adopts high-power motor as power, the motor design is safe and reliable, low noise, high power, digital display running speed status, digital acquisition correctly. Low noise mechanical reduction mechanism, any process requiring pulverization, emulsification, pulverization, suspension, and dissolution. In some occasions, it can replace the colloid mill, ball mill, sand mill and other equipment. The machine is equipped with three different forms of stator work head (small hole, middle hole, waist round hole). Customers can change the stator work head according to different needs, and have achieved the best homogenization and emulsification effect

A300-70G high speed shearing emulsifying machine

A300-70GShear emulsificationThe utility model is suitable for the mixing and emulsifying of liquid, liquid, emulsion, liquid, solid powder, dispersion, homogenization and pulping in biology, physics and chemistry, cosmetics, health care products, food, etc.. It is an ideal experimental equipment for scientific research, tertiary institutions, hygiene, epidemic prevention and product manufacturing to carry out scientific research, product development, quality control and production process application.

High quality engineering plastic shell:

- reduce the weight of the machine and make it easy to use;

- double insulation, safe to use;

- to ensure stable operation and low noise.

Work head:- - good corrosion resistance and high mixing efficiency; - multiple configurations of the stator, expanding the scope of application.

Open frame: - dielectric containers are very selective; -- bias mixing, easy mixing.

Parameter description:

Use power: AC 220, V 50, Hz

Input power: 510 W

Output power: 300 W

Speed range: 200 ~ 11000r/min

Stepless speed regulation with graduation display

Mixing work head diameter: Phi 70 mm

Work head stator configuration: long hole 5 mm²Round hole 20 mm²Square hole 50 mm²

Maximum throughput: 100-5000 ml

Packing size: 550 * 510 * 205 mm

Size: 800 * 320 * 300 mm

A300-70G-S digital shearing emulsifying machine

Applicable to biological, physical, chemical, cosmetics, health care products, food and so on, liquid / liquid mixing and emulsification, liquid / solid powder not dispersed, homogeneous, paste experimental field. It is an ideal experimental equipment for scientific research, tertiary institutions, hygiene, epidemic prevention and product manufacturing to carry out scientific research, product development, quality control and production process application.

High quality engineering plastic shell:

- reduce the weight of the machine and make it easy to use;

- double insulation, safe to use;

- to ensure stable operation and low noise.

Mixing head: -Good corrosion resistance, mixingHigh efficiency; - multiple configurations of the stator, expanding the scope of application.

Open frame: - dielectric containers are very selective; -- bias mixing, easy mixing.

Basic parameter:

Use power: AC 220, V 50, Hz

Input power: 510 W

Output power: 300 W

Speed range: 200 ~ 11000r/min

Digital control, liquid crystal display

Mixing work head diameter: Phi 70 mm

Work head stator configuration: long hole 5 mm²Round hole 20 mm²Square hole 50 mm²

Maximum throughput: 100-5000 ml

Packing size: 550 * 510 * 205 mm

Size: 800 * 320 * 300 mm

A500-90G high speed shearing emulsifying machine

AG/AG-S series high speed dispersed shearing emulsifying machine is widely used in factories, scientific research institutions, colleges and universities, hospitals and so on.

.,,,.,,,,,,,,.,,,,,.,1,,,,,.

Parameter description:

:(AC)220-240V 50/60 HZ

:

(r/min):500-18000

90

m10, 30, 60

(H2O)L60L

mm: 800*320*300
