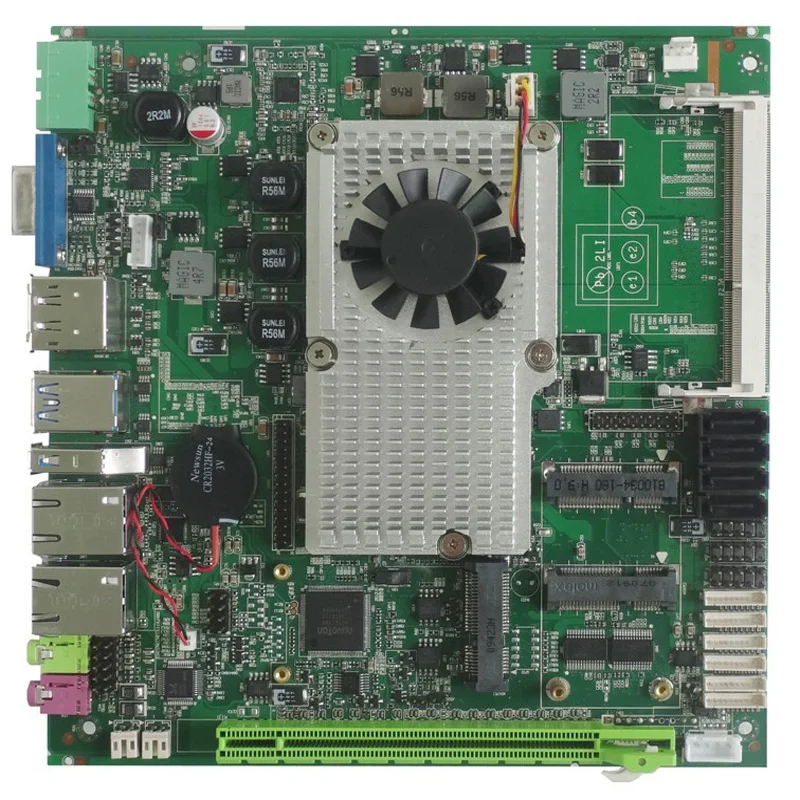

original factory fanless Mini ITX industrial Motherboard



Pcm5-qm77


Advantages:


1.Windows7 mini car pc with dual display


2.Ultra fanless design and no cable design, good at shockproof


3.Support RS-485 & WIFI & 3G & HDMI, it's a multi-function industrial  embedded computer.


4. With Intel Core I3/I5/I7 CPU , and Intel SATA SSD Compatible





Features:


Wide Operating Temperature(-20-60 Celsius degree), storge temperature (-40-60 Celsius degree)


Ultra Low Power and Fanless Design


Support One VGA/HDMI /EDP Outputs


Support Optional WIFI Connection


Wide Range DC Power Input


Rugged Design  for Shock/Vibration Protection


Easy Installation/Maintenance


Intel SATA SSD Compatible










More industrial motherboard






























































































System Specification




Processor




Intel Core I5-3210M 2.5G




BIOS




AMI EFI 64 Mbit




System Chipset




Intel QM77




System Memory




2 x DDR3 support SO-DIMM 2G/4G/8G




Graphic Interface




18/24Bit LVDS,HDMI VGA HD4000




Ethernet Controller




2x RJ-45, Integrate intel 82583V/82579LM Chip




I/O Chipset




ITE 8718F/HX-L




Serial




6x Serials ports,(6xRs485,Rs232)




Audio




ALC892 1xMic in/1xLine out  2x2W




USB




Onboard 3 x USB 3.0ports, 6xUSB 2.0 pin




LVDS




18/24 bit LVDS

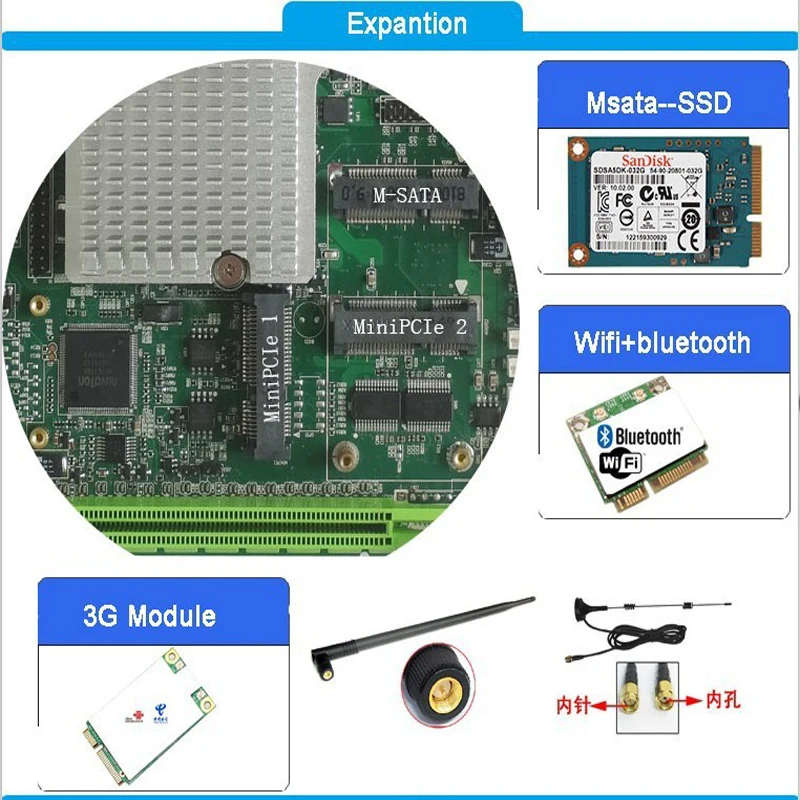

expansion




2xPCIE/ 1xpci-e(M-sata),1xPCI (16X)




Watchdog Timer




1~256 levels




Key Features




Support dual corevItel Core 2xGbE, 6xCOM, 6xUSB

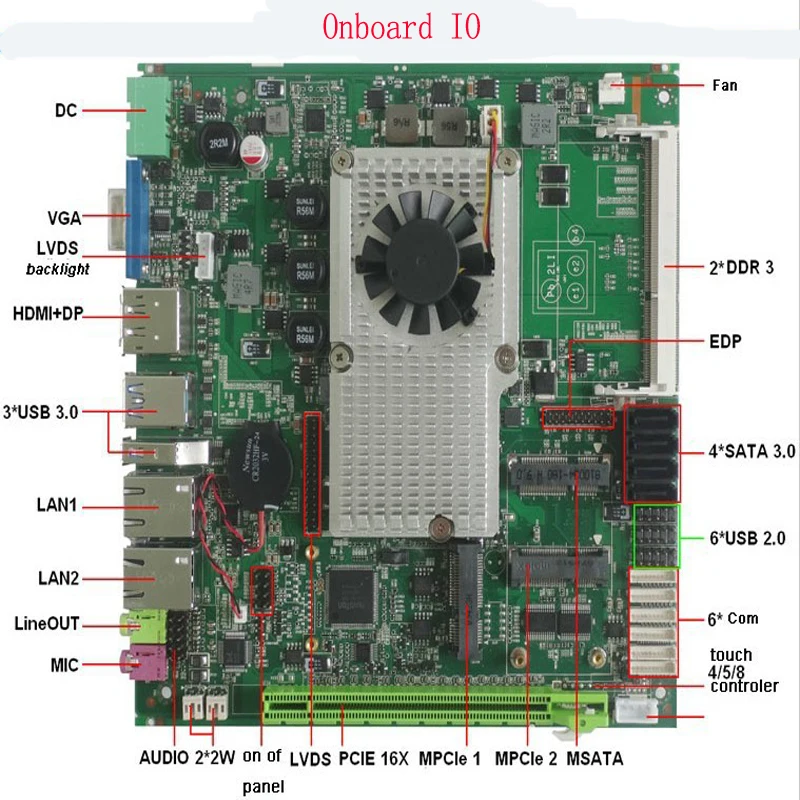

I/O Connectors




Front Side I/O




3 x USB Type-A Receptacle




Back Side I/O




2 x RJ-45(10/100/1000 Mbps)



1 x VGA 15P DSUB (male)



1xHDMI



6 x RS232/Rs485



4 x USB Type-A Receptacle








Mechanical and Environment

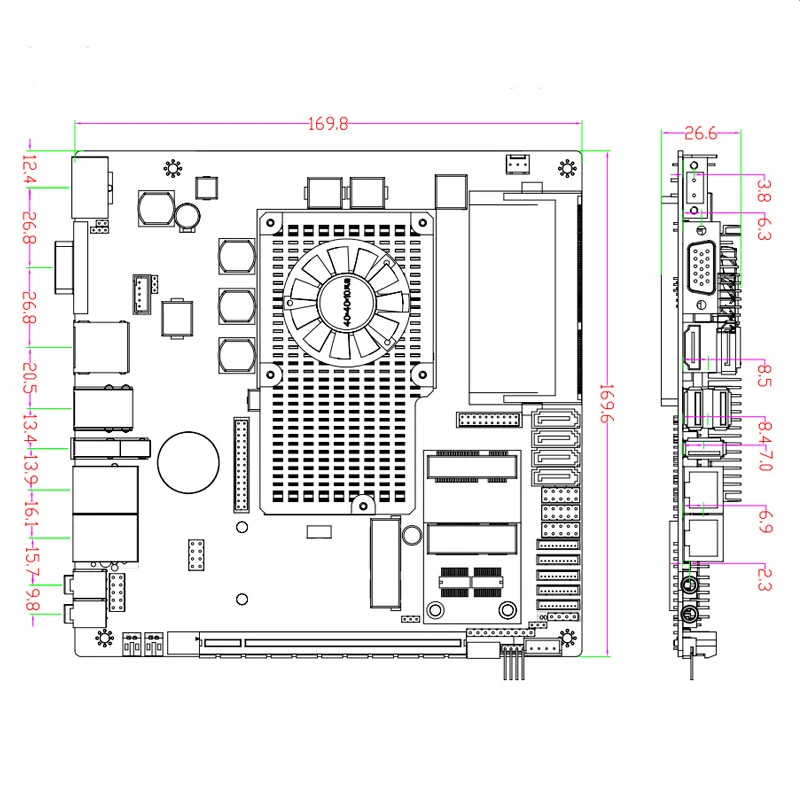

Dimensions (L x W)




170*170mm




Construction




Aluminum housing / Metal

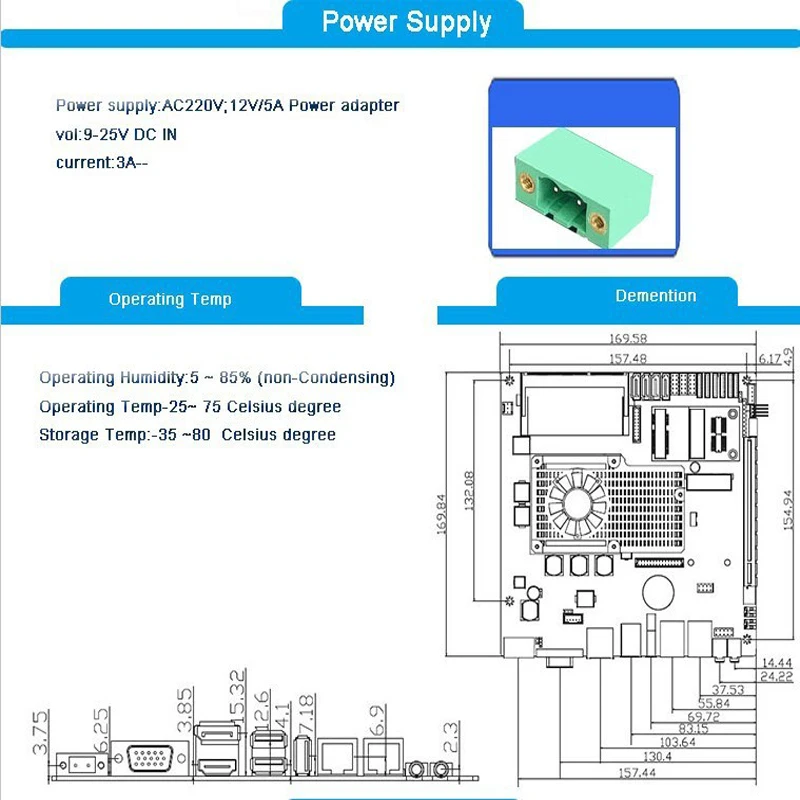

Power Input




+9-25V DC IN (Lockable, Power Jack)




Net Weight (kg) (without touch)




0.35KG









 Normal Packing:


23*21*7 Cm/ carton


 Packing List: CD Drivers;Sata cables
