New AC220V 1CH 10A Wireless Power Switch System Receiver & Transmitter Learning Code Toggle Momentary Lamp/ Window/Garage Doors |



Сохраните в закладки:

Цена:US $11.90RUB
*Стоимость могла изменится

Количество:


Новое поступление

all power store

all power store

Магазина all power store работает с 13.10.2013. его рейтинг составлет 83.18 баллов из 100. В избранное добавили 363 покупателя. Средний рейтинг торваров продавца 4.4 в продаже представленно 460 наименований товаров, успешно доставлено 3122 заказов. 107 покупателей оставили отзывы о продавце.

Характеристики

New AC220V 1CH 10A Wireless Power Switch System Receiver & Transmitter Learning Code Toggle Momentary Lamp/ Window/Garage Doors |

История изменения цены

*Текущая стоимость US $11.90 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"

Месяц Минимальная цена Макс. стоимость Цена
Aug-18-2025 14.44 руб. 14.23 руб. 14 руб.
Jul-18-2025 11.88 руб. 11.3 руб. 11 руб.
Jun-18-2025 14.18 руб. 14.80 руб. 14 руб.
May-18-2025 14.9 руб. 14.61 руб. 14 руб.
Apr-18-2025 11.36 руб. 11.12 руб. 11 руб.
Mar-18-2025 13.64 руб. 13.25 руб. 13 руб.
Feb-18-2025 13.26 руб. 13.23 руб. 13 руб.
Jan-18-2025 13.76 руб. 13.92 руб. 13 руб.

Описание товара

New AC220V 1CH 10A Wireless Power Switch System Receiver & Transmitter Learning Code Toggle Momentary Lamp/ Window/Garage Doors |New AC220V 1CH 10A Wireless Power Switch System Receiver & Transmitter Learning Code Toggle Momentary Lamp/ Window/Garage Doors |New AC220V 1CH 10A Wireless Power Switch System Receiver & Transmitter Learning Code Toggle Momentary Lamp/ Window/Garage Doors |New AC220V 1CH 10A Wireless Power Switch System Receiver & Transmitter Learning Code Toggle Momentary Lamp/ Window/Garage Doors |New AC220V 1CH 10A Wireless Power Switch System Receiver & Transmitter Learning Code Toggle Momentary Lamp/ Window/Garage Doors |New AC220V 1CH 10A Wireless Power Switch System Receiver & Transmitter Learning Code Toggle Momentary Lamp/ Window/Garage Doors |


Application:

Our products are widely used in (remote control switch, remote control of the pump on and off, remote control machine on and off, remote control motor positive and negative, remote control socket, remote control LED, remote control audio, remote control electric door, remote control garage door, remote retractable door,  remote control curtains, alarm host, alarm,remote control motorcycle,remote control electric car,remote control MP3,remote control lights, remote control cars,) security and other civil and industrial supporting remote areas, has the advantages of simple matching, safe and reliable for the modification of ancillary products.

New AC220V 1CH 10A Wireless Power Switch System Receiver & Transmitter Learning Code Toggle Momentary Lamp/ Window/Garage Doors

_0010_2



IMG_9726IMG_9734IMG_9735220v 3 (1)220v 3 (2)

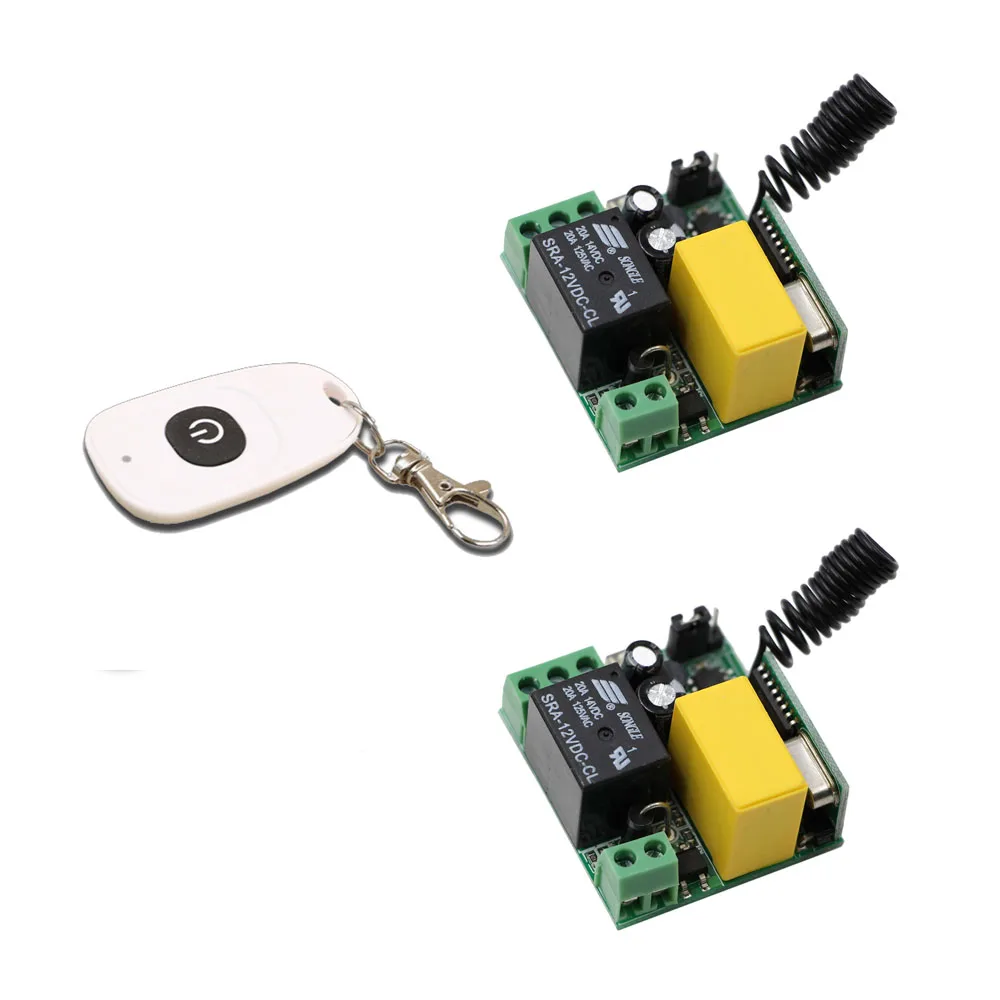

Packing list:

2x Receiver

1x Transmitter  (Battery not include)

Note:     if you have sample can be customized,according to your requirements.

Specification:

1.Transmitter

Buttons: 1 Button

Working Voltage:DC12V

Operating frequency :315/433MHz (Default 315mhz)

Remote Control Distance: 0-200m

Encode: Fixed code by soldering or EV1527 code

2.Receiver

Working Voltage: AC220V

Channel: 1CH

Decode: Learning code (jog/Non-Latched .inter-lock/Latched )

Output Current: 10A

Receiver Sensitivity: -105dBm

Working temperature :  -10\'C - +60\'C

Output way : Momentary Toggle Latched  Adjustable

Size : 35*32*17mm





Working/output way:

Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.

Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.

Inter-lock /Latched : press one button is working/ON ,press another button is stop/OFF . ( one channel switch need 2 buttons remote control

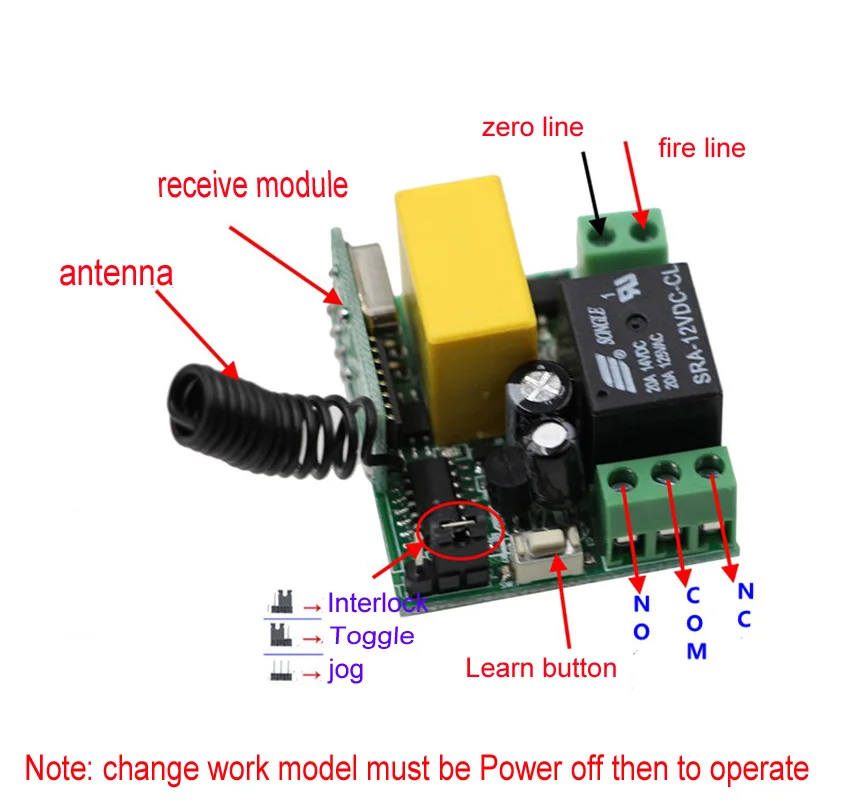

Learning Method:

  Press the learning button 3 seconds, the indicator light off .then you press any buttons of the remote control to transmitter  signal . it means studying successfully when the indicator flash 3 times until the indicator light on.   Remove code: Press the learning button about 8 seconds , the indicator turn on to off to on , it means the information that you keep have been removed successfully .       Please notice that :

Here is the 2*1CH and 1*1 button remote control.  You can choose the all the working way that you can choose, you have better choose the Jog or self-lock, so all the buttons has been used .



Please tell us what output state do you want after placing the order, or we will ship to you as default "Momentary (jog)".  It can be changed by Welding Spot by Soldering.
