WS2813A full color light bar main function description:

1, LED WS2813A full color light bar All electronic components integrated in a 5050 lamp beads, do not need any other external electronic components to help form a complete external control pixels. At the same time WS2813A light strip with a reduction in the product installed when the inverted drag welding, resulting in bad.

2, LED WS2813A full color lantern with serial cascade interface, dual signal line transmission, WS2813A achieve breakpoint function, which single pixel damage in the case will not cause the next pixel normal light, silk ho Does not affect the overall effect of LED full color light bar.

3, LED WS2813A Symphony light with intelligent reverse protection, product installation access 5V power supply in the case of reverse, will not cause damage to the lamp beads.

4, WS2813A full-color light bar built-in signal shaping circuit, any pixel received after the signal waveform shaping and then output to ensure that the line waveform distortion will not accumulate.

5, WS2813A light strip of each pixel of the three primary colors can be achieved 256 brightness display, complete 16777216 kinds of colors of the true color display port scanning frequency 2KHz / s.

6, LED WS2813 light bar any two-point transmission distance of not more than 5 meters without adding any signal amplification circuit.

7, when the refresh rate of 30 frames / sec, the number of cascade is not less than 1024 points.

8, the data transmission speed up to 800Kbps. Light color consistency, cost-effective.

LED WS2813 full color light bar parameters:

Operating voltage: DC5V

IC Type: WS2813

IC type: internal seal type

IC number: 60 / m

Operating current: 0.06A / segment 8.64A / m

Power: 18W / m

Number of beads: 60 lights / m

Lamp beads type: Patch 5050

Lamp beads color: RGB

Board Type: Double FPCB (Flexible Board)

Plate width: 15mm

FPCB Color: White / Black

Each roll length: 1 m / roll

Packing: aluminum foil bag anti-static packaging

Each plate Weight: 100g (Dijiao) 50g (bare board) 80g (casing)

Waterproof: IP20 / IP65 / IP67 / IP68 optional

Operating temperature: -40 ~ 70

Storage temperature: -50 ~ 80

Light source life: 50,000 hours

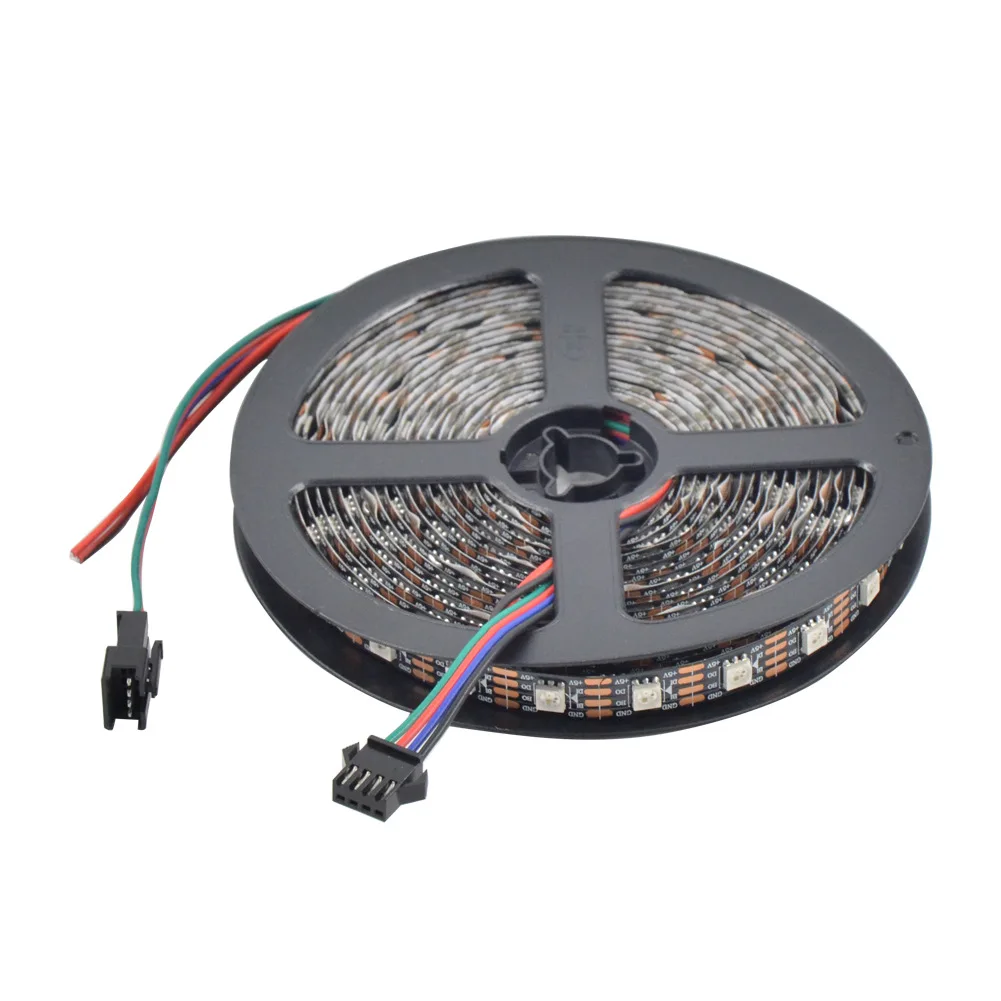

Connector: 4PIN terminal pair connector

(Red: 5V power supply, green: signal line, yellow: standby signal line,

Black: ground)

LED WS2813 Symphony light bar Features:

Control single lamp Happy Valley, water, window, meteor rear-end, chase, animation, video, text and other patterns change. In the use of light, one of the pixels is bad, does not affect the normal operation of other lights, which will not affect the overall effect. Any color can be displayed, arbitrary combination into any pattern, in particular, made of light bar screen to use. Do not need to write a separate address to the lamp can be achieved breakpoint resume, installation and commissioning is more simple. At the same time there are also integrated within the lamp beads capacitor resistance, making the light board does not need the original electronic auxiliary, thus increasing the stability of the product.

LED WS2813A full color light bar Description:

The series of light source with high quality ultra-high brightness 5050RGB LED, with high brightness, low power consumption, consistency, angle, no radiation, environmental adaptability, long service life. Each LED can be composed of a loop (pixel), lightweight, rich color, any fixed, easy to install and so on.

LED WS2813 Symphony light Application:
The product light source rich and colorful, high visibility, more visually appealing. Widely used in wall corridors, indoor environment decoration, product model lighting decoration, game lighting decoration, speaker lighting decoration, entertainment, wine bar bar backlight, smallpox backlight, LED light box light, LED light, aquarium supplies, car decoration And so on, is to replace the traditional neon lights, fluorescent lamps and lamps of a new generation of lighting.
