12 in 1 Type-C PD USB tester DC Digital voltmeter current voltage meter amp volt ammeter detector power bank charger indicator |

12 in 1 Type-C PD USB tester DC Digital voltmeter current voltage meter amp volt ammeter detector power bank charger indicator |

Multi-interface USB Meter Tester with Digital Display

By HIDANCE

Production Description

Measurement Ranges (and resolution accuracy):
Voltage: 3.60 - 30.0 V (0.01 V)
Current: 0.00 - 5.10 A (0.01 A)
Capacity accumulation: 0 – 99999 mAh (0.001 Ah)
Power accumulation: 0 – 999999 mWh (0.01 Wh)
Power calculation: 000.000 - 150.0 W (0.01 W)
Impedance: 1 - 999.9 Wh (0.1 Ω)
Temperature: 0 - 80 °C (1 °C)
Timing time: 999H59M59 S (1 S)
USB D+ voltage: 0 - 2.99 V (0.001 V)
USB D- voltage: 0 - 2.99 V (0.001 V)

Product Details:
Input Interface: Type-C / Micro USB / USB
Output interface: Type-C / USB
Timed charge reminder settings: 24-hour countdown
Full charge threshold parameters: < 2 W / 0.5 hours
Refresh time: > 500mS / time
Measurement rate: about 0.5 time / S
Alarm mode: siren sound and display prompt (double warning)
Display type: micro-power LCD module LCM white font in English display
Product dimensions: 60 x 60 x 11 mm
Current consumption: < 0.02 A
Operating temperature: -10 to +60 °C
Working humidity: 10 to 80 (no doubt)
Work oppression: 80 - 106 Kpa

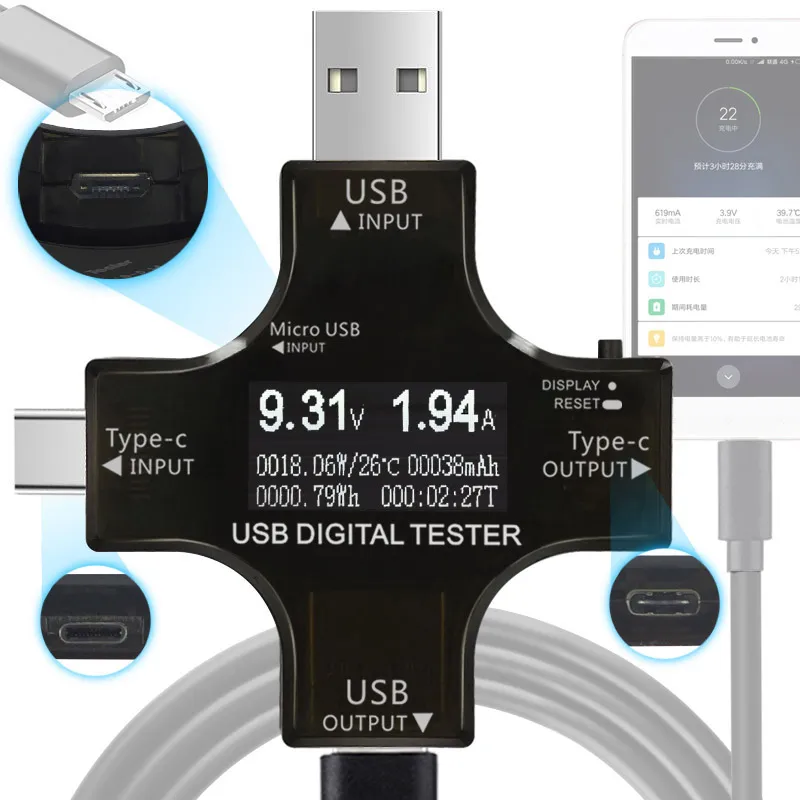

USB and Type-C input and output testing connections

Information Display

USB and Type-C input and output testing connections

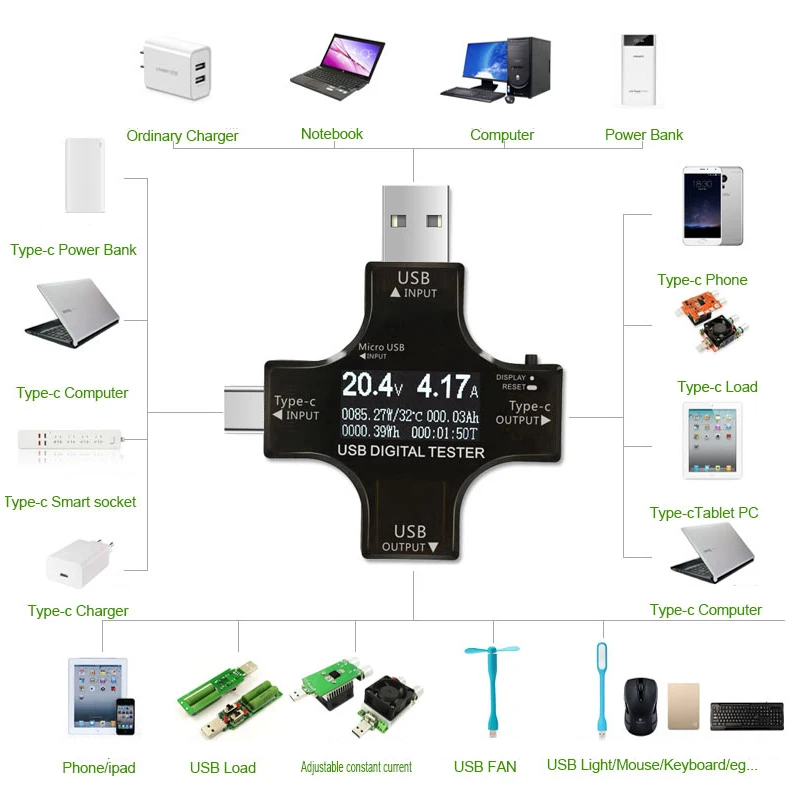

Use with a wide variety of electronic equipment

Testing a charger

Insert the meter tester into the Type-C USC charger output, adjust the constant current to match the charger's voltage, and read the resulting data.

Powerbank capacity monitoring

To clear the testing data, long-press the key button and insert the tester into the powerbank USB output port. Allow the power bank to export its charge to fill the tester capacity, then note the capacity results on your tester.

Laptop charge monitoring

Meter Testing:
Connect your laptop power supply to the HIDANCE Type-C digital tester to read the following information at a glance:
Voltage monitoring, charging current, capacity, power, temperature, electric capacity, internal resistance, charging timing and other technical information.
Bonus Features:
This meter tester can help you operate your equipment in a safer manner by offering usage tips, automatic reminders, voice reminders, countdowns, and more.

USB interfaces

Monitor electrical equipment like a U disk, mouse, keyboard, mobile power, USB hub, and more peripherals.
