Good quality fiber laser marking machine/portable machine for sale | Инструменты

1. Fiber laser marking machine with high tech and it can marking on both
metal and non-metal very well.Order one fiber laser marking machine means order two laser marking machines(CO2)
2. The lifetime of this fiber laser marking machine is very long(about the
50000)The better co2 generator is only about 10000 hours.
3. This one is more easier to operate, even though the freshman can operate
the machine smoothly,just like home computer, after you open, then you can
use, any one can use it very well.And about the co2 laser marking , the turn on process is a littlecomplex, it need several days to learn, and operator need to be that carefulkind of person.
4. the power consumption of fiber marking is very very low, it can help you tosave lots of money based on long term use.
The co2 laser marking machine must work together with a big water
chiller to cool down the laser tube, and the power consumption of the water
chiller is about the 0.3$/hour And the power consumption of the whole machine of laser fiber machine is less 0.08$/ hour
5.About the maintenance: the fiber laser marking machine almost never need maintenance in life
6. The accuracy and speed of the fiber laser marking machine is more better
than  Co2. The working performance is much better.

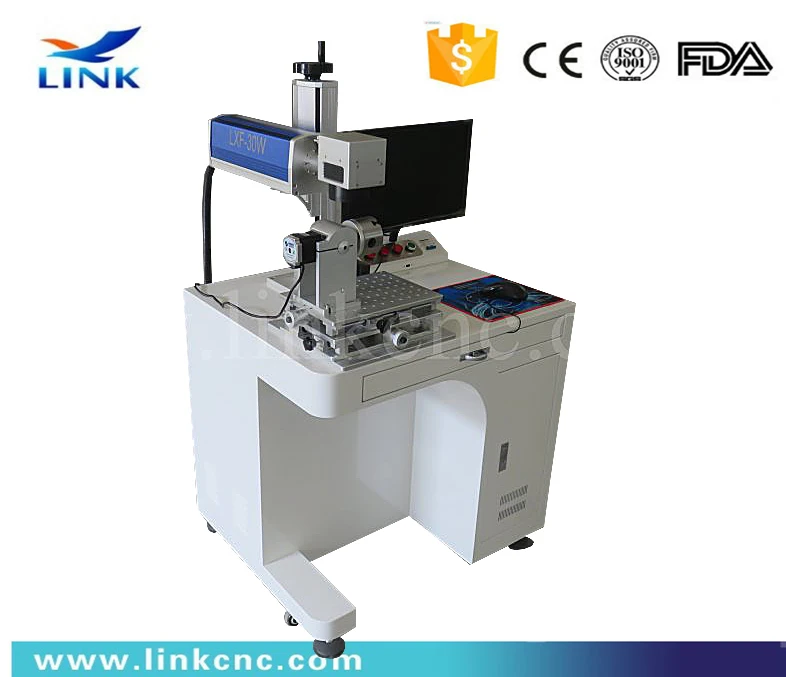

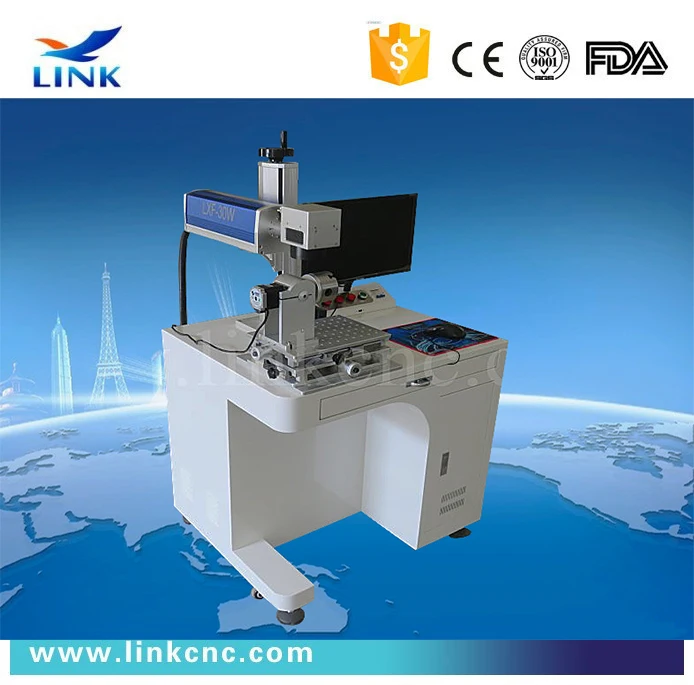

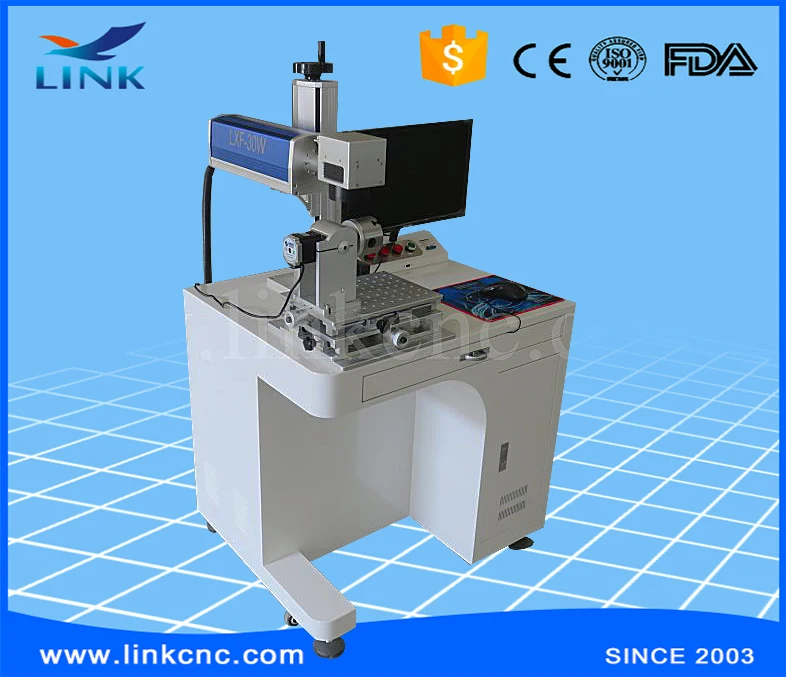

Model

LXF-30W

Laser power

20W/30W/50W

Laser Wavelength

1064±10nm

Q-frequency

20KHz~100KHz

Divergence

0.3mard

Marking range

110*110mm/150*150mm/175*175mm/200*200mm/300*300mm

Minimum line width

0.01mm

Minimum character

0.1mm

Marking speed

7000mm/s

Marking depth

0 ~1mm

Engraving line speed

≤7000mm/s

Repeatability accuracy

±0.001mm

Beam quality

M2:1.2~1.8

Marking Format

Graphics, text, bar codes, two-dimensional code, automatically

marking the date, batch number, serial number, frequency,etc.

Graphic format supported

bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.

working voltage

220V±10%/50Hz/4A

Unit power

<0.5kw

Working environment

Clean and dust free or dust less

Working (Humidity)

5%-75%,free of condensed water

Laser module life

100000~200000 hours

Net weight

60kg

Warranty

24 months

Because we are direct manufacturers, we have professional and technical personnel to do after-sales service. whentechnical problems encountered in theuseof all the relevant machine, we will teach you how to use, and help you to solve all the technical problems about the machine.

1.Two years quality guaranty, the machine with main parts(excluding the consumables)

shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery

Jinan Link Manufacture & TradingCo.,Ltd.is manufacturer and specialized in fiber laser

marking machine,co2 laser machine,plasma cutting machine and cnc router machine with 14years production and sales experiencein this field and 8 year exportand service

experinece for overseas’ buyers.

Q1:Which model should I choose?

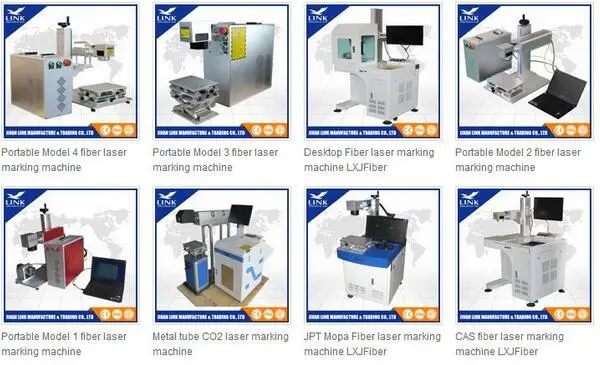

A: It depends on your demands.One is portable laser marking machine,the other is desktop.

Q2:Which laser power should I choose?

A: This depends on the material and max cutting thickness.

Q3:The means of transportation and how long?

A:By DHL/ Fed EX (within one week)

  By sea(it depends on the seaport ,usually it takes one month)

Q4:Terms of payment

A:1.By T/T  2.Western Union 3.Paypal 4.One touch etc.

Q5:How often should I clean lens?

A:It depends on the materials your process .It would be better to clean it once a week.
