Product Description

1. Input Frequency: C Band: 3.4-- 4.2GHz

                                  Ku band: 10.7-11.7GHz

  2. L.O. Frequency: C Band: 5150MHz

                                  KU band 9.75/10.6GHz

3. Output Frequency: C Band: 950 to 1750 MHz

                                    KU band: 950-2000MHz

4. L.O. Leakage Input Port: 45dBm

5. L.O. Stability: ±2MHz (-40centigrade to +70centigrade)

6. Noise Figure): C band :< 17°K typ

                              KU band: 0.2db

7. Conversion Gain: C band: 65dB (min)

                                   KU band: 60db (min)

8.Gain Flatness:±1 dBm(max)

9.Intput VSWR:2.5:1(max)

10.Output VSWR:2.0:1(max)

11.Output Connector:F-female Connector

12.Output Impedance:75Ω

13.Cross Polar Isolation:20dB(min)

14.Image Rejection:45 dB (min)

15.Phase Noise:-75dBc/Hz@10kHz(max)

16.Supply Voltage:

 1)11.5-14.0v(Vertical Polarization)

 2)16.0-19.0v(Horizontal Polarization)

17.Operating Temperature:-40to+70

18.Storage Temperature:-40to+80

19.Relative Humidity:0%-95%

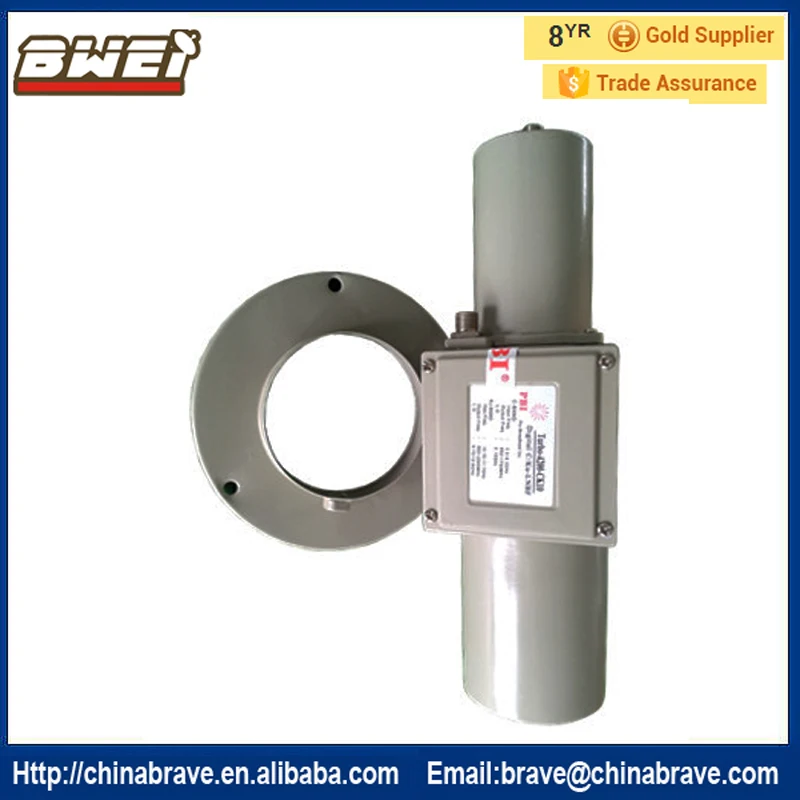

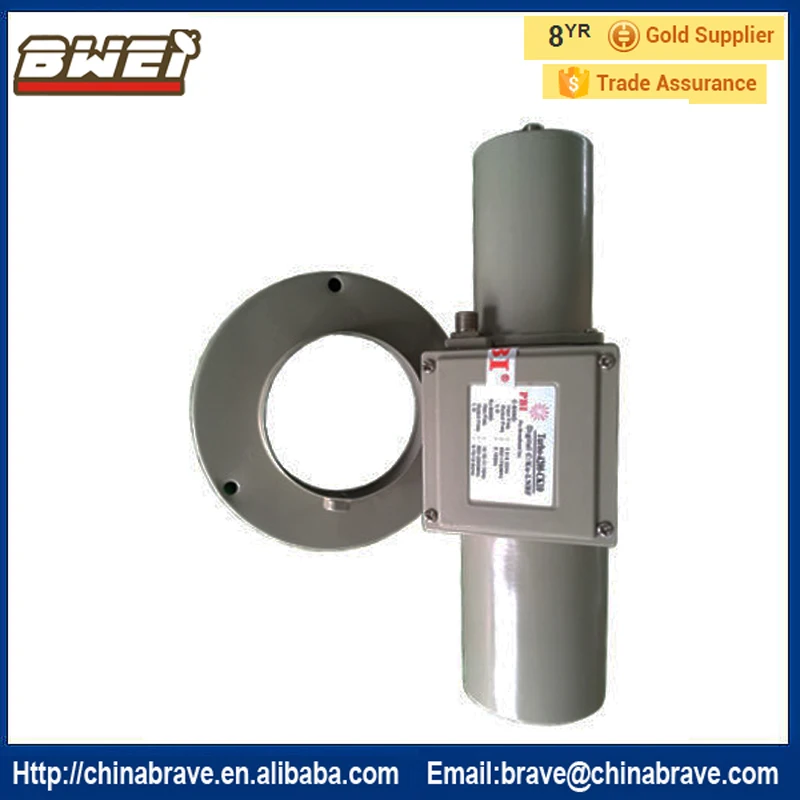

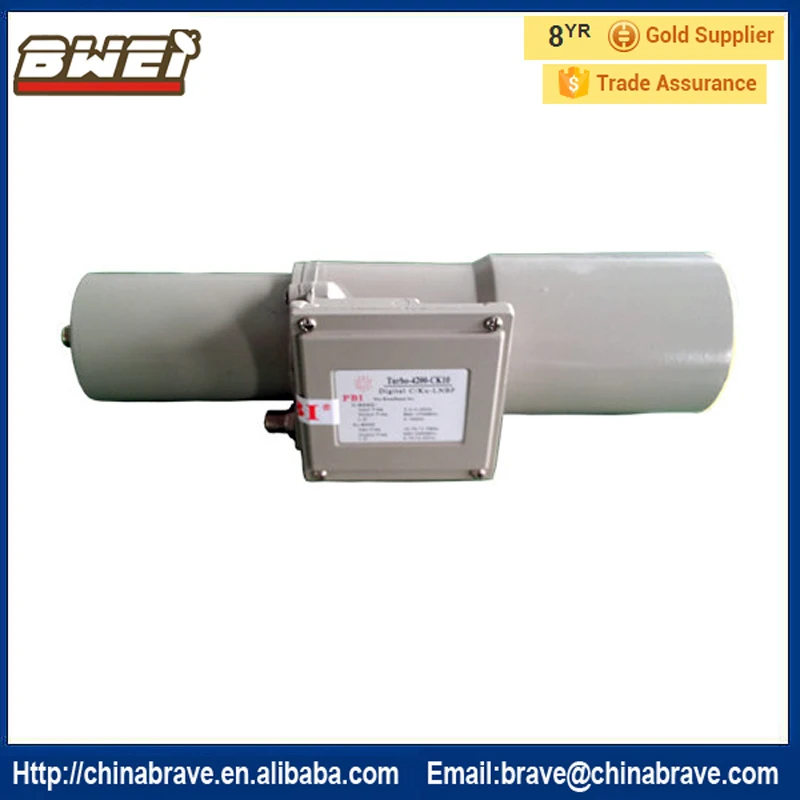

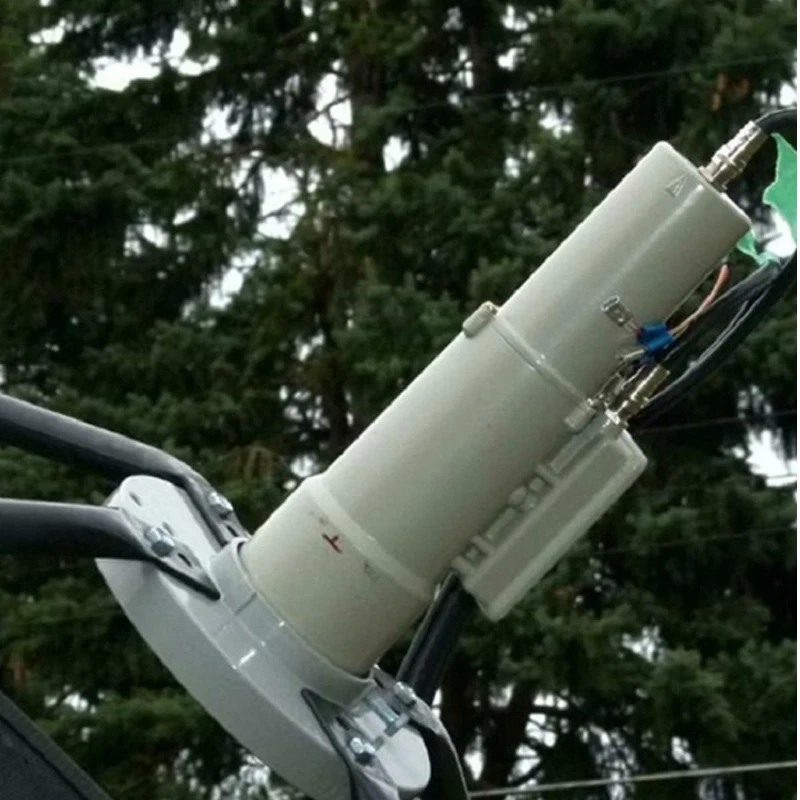

Detailed Images Show

Our Company

Welcome to Anhui Bowei Electronics Technology Co., Ltd

Bowei Electronics is a professional manufacture21 years specialized in LNB, MMDS down converter and Antenna etc.Anhui Bowei Electronics Technology Co., Ltd is a National High-tech Enterprise mainly engaged in the research, development, production, fabrication, marketing of microwave high frequency electronics and over-voltage and over-current protection equipment

Our products command a good market both at home and abroad. Microwave High Frequency Electronics are mainly exported to Europe, Southeast Asia, Middle East, North America etc. 86 countries and areas. In the domestic markets, Anhui Bowei Electronics services for the national Radio and Television“Hu Hu Tong” Household Project and also supports the digital improvement for Regional Radio and TV Cable Network Companies. Meanwhile, Over-voltage and Over-current Protection Equipment are widely distributed around the country and mostly applied in fields of electricity, petroleum, chemistry, metallurgy, cement and steel.

In the future, Anhui Bowei Electronics will continue to communicate and cooperate with domestic and overseas counterparts in the main products to arrive at the aim of providing our honored customers with more excellent quality products and more superior service.

Certifications

FAQ

1. Are you a factory or trading company?
Re: We are a factory with more than 18 years MMDS downconverter and LNB manufacture experiences.

2. What's the Material of your products?
Re:The material main Aluminum.

3.Can you make products as our specification?
Re: Yes. Our Company have a professional engineers team,can design the products as your specification.

4 How does your factory do regarding about quality control ?
Re:Quality is priority.The products will be check many times before final packing.

5.What about your services?
Re: Factory supply directly,OEM service available,Supply high quality after sale services .

OEM and ODM are highly welcome ! Waiting for your news !
