LINK-MI TV06 2x2 3x2 Video Wall Controller USB HDMI VGA AV TV processor 6 screen splicing Display 180 degrees rotation | Электроника
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-15-2025 | 0.51 руб. | 0.80 руб. | 0 руб. |
| Aug-15-2025 | 0.58 руб. | 0.95 руб. | 0 руб. |
| Jul-15-2025 | 0.37 руб. | 0.71 руб. | 0 руб. |
| Jun-15-2025 | 0.74 руб. | 0.38 руб. | 0 руб. |
| May-15-2025 | 0.71 руб. | 0.75 руб. | 0 руб. |
| Apr-15-2025 | 0.17 руб. | 0.25 руб. | 0 руб. |
| Mar-15-2025 | 0.13 руб. | 0.92 руб. | 0 руб. |
| Feb-15-2025 | 0.14 руб. | 0.59 руб. | 0 руб. |
| Jan-15-2025 | 0.15 руб. | 0.75 руб. | 0 руб. |
Описание товара

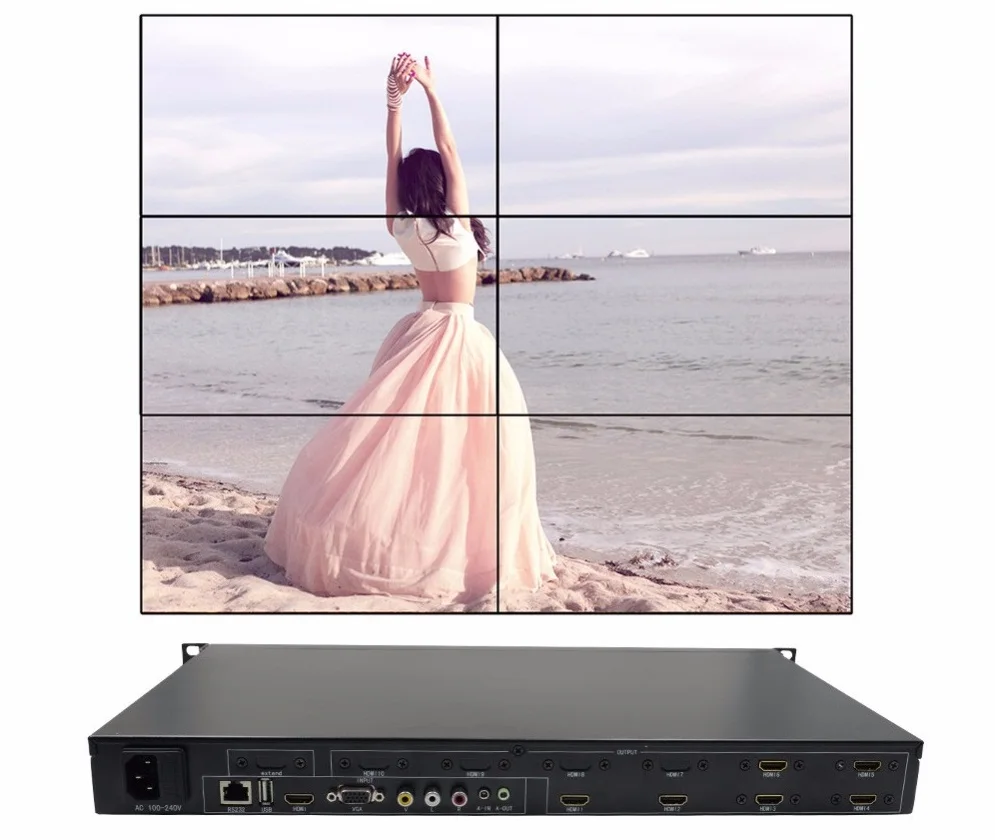

LINK-MI LM-TV06 is a professional 6-channel Full HD Video Wall Controller. It's used to distribute signals to multiple display units for splicing display. It comes with 4 input signals like HDMI+USB+VGA+AV and 6 channels HDMI outputs. User can switch any one of the 4 input signals to display on max 6 TV monitors to make a large video wall. It supports all splicing modes for 6 displays, such as 2x3, 3x2, 2x2, 1x2, 1x3, 1x4... And it supports high resolution up to 1080P@60Hz and supports 180° rotation. User can control it easily via remote. It's easy to maintain and suitable for all environment.

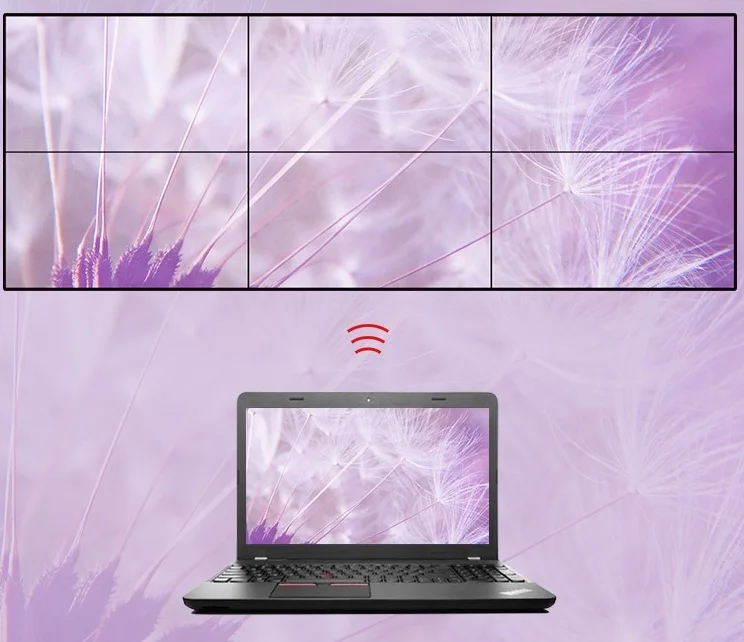

Features1. Video Wall Function
Distribute 1 input to 6 splicing screens to make a large video wall

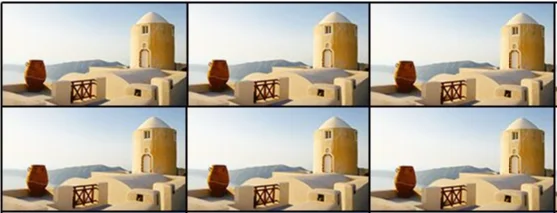

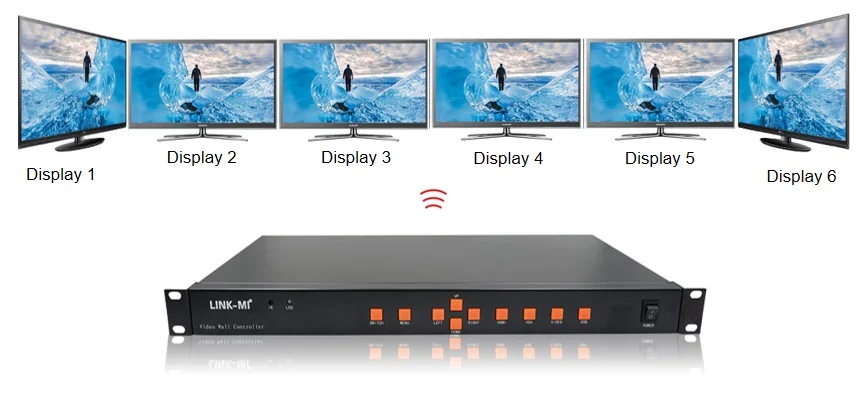

2. Split Function
Distribute 1 input to 6 splicing/single screens separately
Application 1:
Application 2:

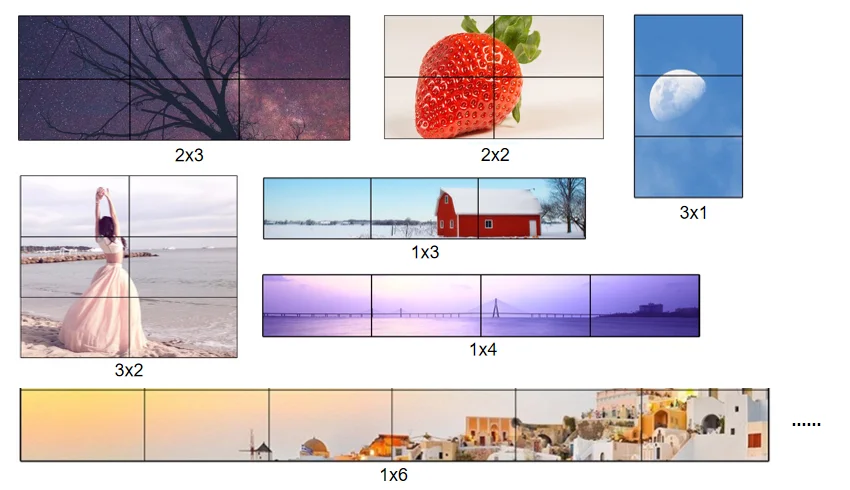

3. Multiple Video Wall Modes
Supports 2x3, 3x2, 2x2, 1x2, 1x3, 1x4...etc
4. 180° Rotation
Each output individually supports 180° rotation
5. Edge Shielding Function (Horizontal 0 and Vertical mosaic pitch 0)
A complete image is strong pulled some distance due to the physical gap of the LCD, making the image deformed/distorted. Horizontal and Vertical mosaic pitch 0 setting adjusts the size of the jointing horizontal and vertical assembly size to makes the image lost part of it, but keep image without deformation, as shown below:

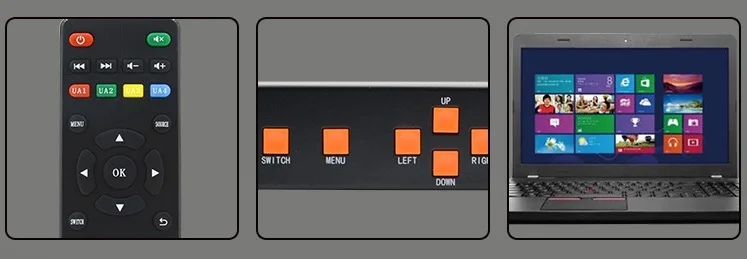

6. Control Methods
No software is required, user can achieve all functions via remote or panel buttons
7. Multiple Input Signal
Inputs: Supports HDMI/USB/VGA/AV (Composite Video); Audio binding input with VGA;
Outputs: Supports 6 HDMI outputs; 3.5mm stereo audio output (to speaker); IR Extend Port (RS232)
8. High HD Resolution
Up to 1080P@60Hz; HDMI supports HDMI 1.3, HDCP 1.3 protection, compliant DVI 1.0
9. Menu
Menu 1, 3, 4 have been set in the best status by factory, no need to change, users only need to set menu 2
10. Fully-digital processing channel inside
Built-in conversion for analog/digital, interlaced/progressive, resolution, aspect ratio and refresh rate

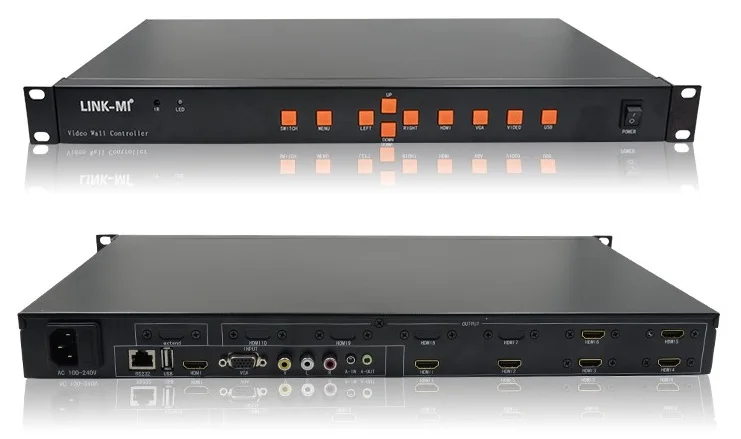

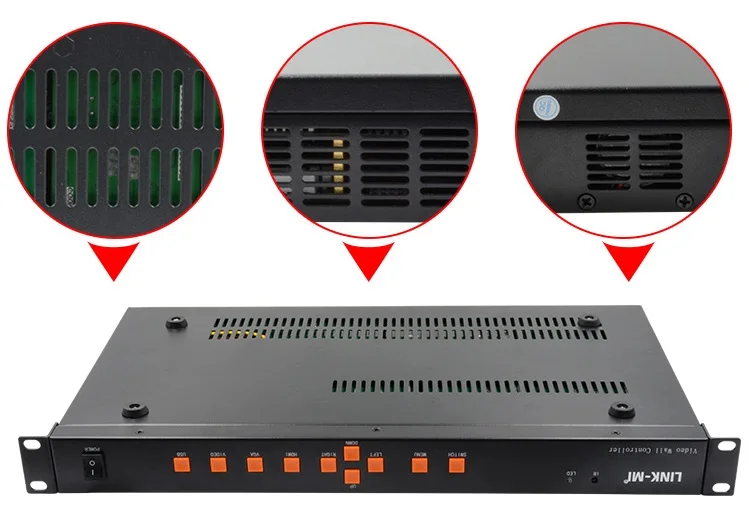

11. Metal case, Strong shield, Fast heat dissipation

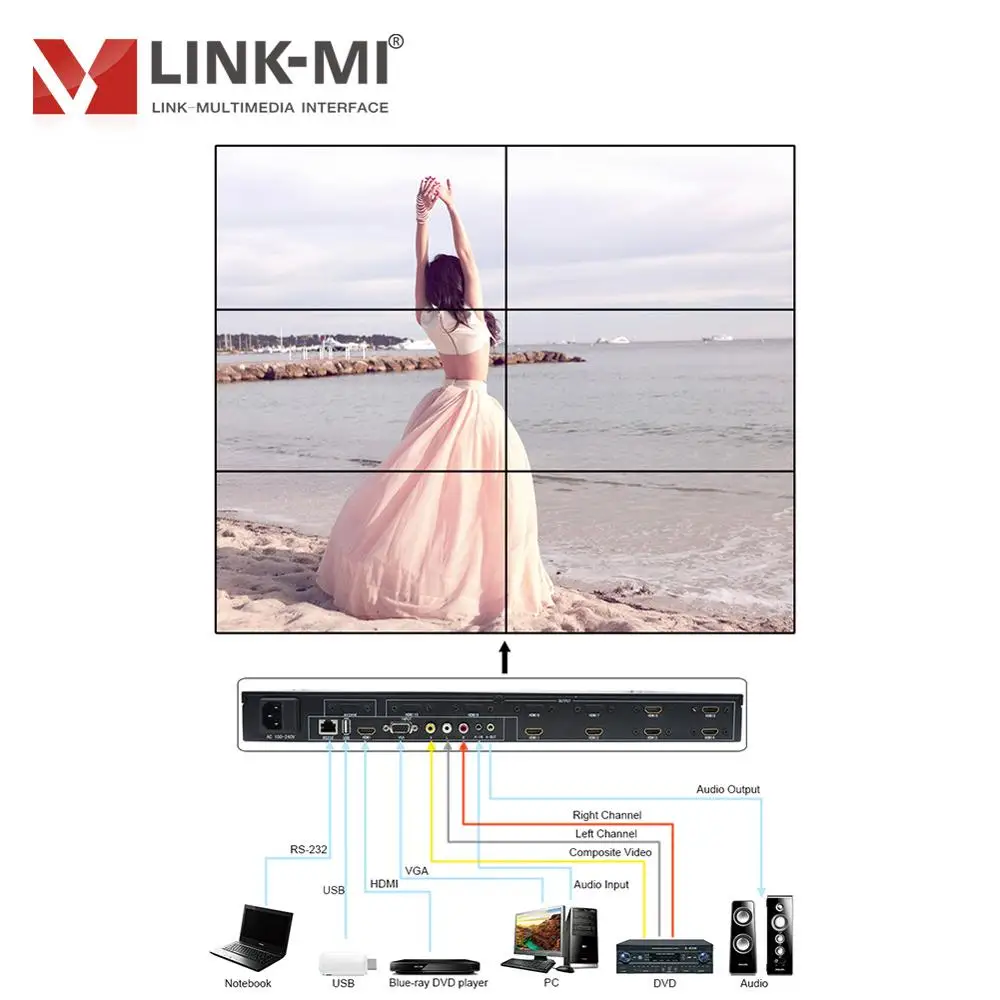

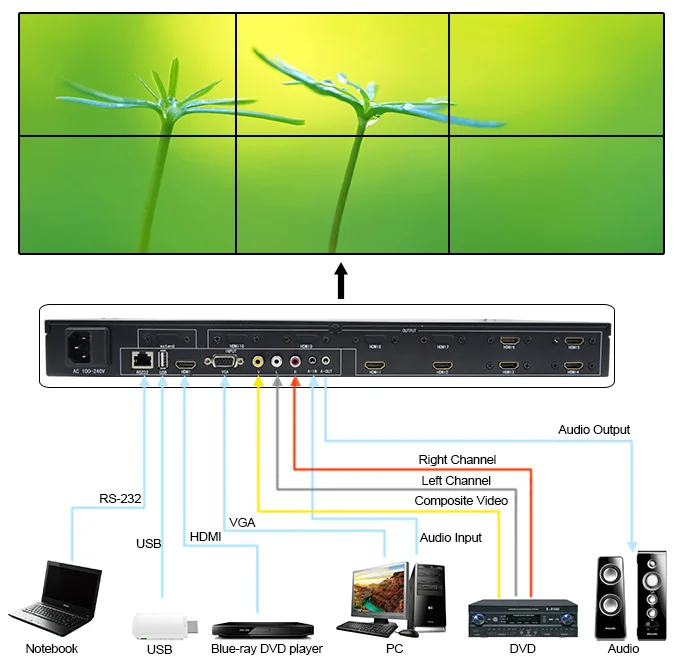

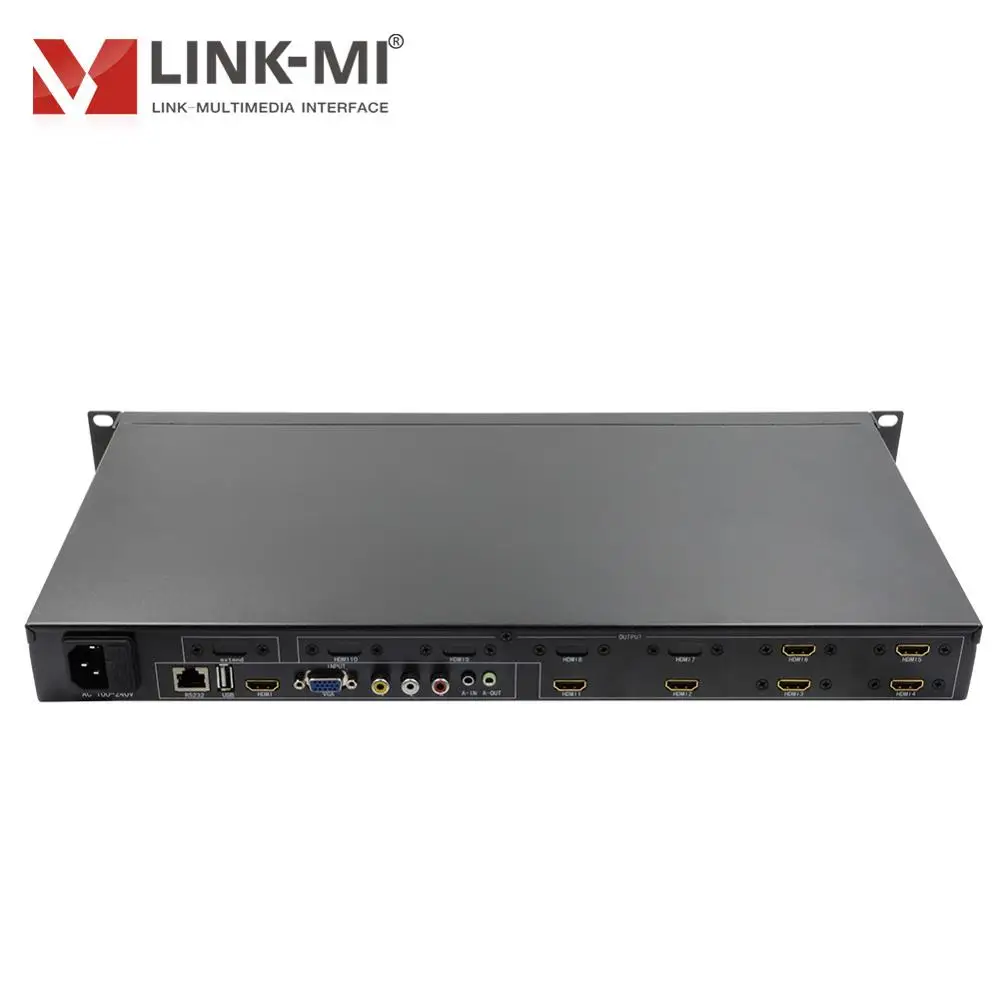

Connection
| Model No. | LINK-MI LM-TV06 |
| Inputs | |
| HDMI Input |
Support HDMI 1.3, HDCP 1.3 and DVI 1.0, up to 1920x1080@60Hz Color 24bit, 16.77M |
| VGA Input | DB15, 800x600 to 1920x1080@60Hz |
| AV Input | Identification: Auto Standard: PAL, NTSC |
| USB Input |
Video: Mpeg1, 2, 4 (Up to 1920x1080@30P); Divx, Xvid (Up to 1920x1080@30P); RM, RMVB(Up to1920x1080@25P); MJPEG (Up to 640x480@30P); H.264 (Up to 1920x1080@30P); VC-1(Up to 1920x1080@30P) Audio: MP3, WMA, FLAC and so on Picture: JPG, BMP, PNG Text: TXT |
| Outputs | |
| HDMI Outputs | 6 channels HDMI outputs, 1024x768@60Hz, 720P@60Hz, 1080P@60Hz |
| Audio | |
| Audio in | Fit for VGA video |
| Audio out | Fit for output video |
| Function | |
| Control Methods | Remote, panel buttons |
| Video Wall Modes | 2x3, 3x2, 2x2, 1x4, 1x3, 1x2...etc. |
| Other Functions | 1x6 Splitter Mode, 180° rotation, Edge Shielding... |
| Mechanical | |
| Power Supply | AC 100-240V |
|
Operating Ambient Temperature |
0℃~60℃ |
| Storage Temperature | -20℃~70℃ |
| Humidity | <75% |
| Housing | |
| Dimension | 441mm(L)x239mm(W)x44mm(H) |
| Weight | 3.1kg |
| Note: Specifications are subject to change without notice | |

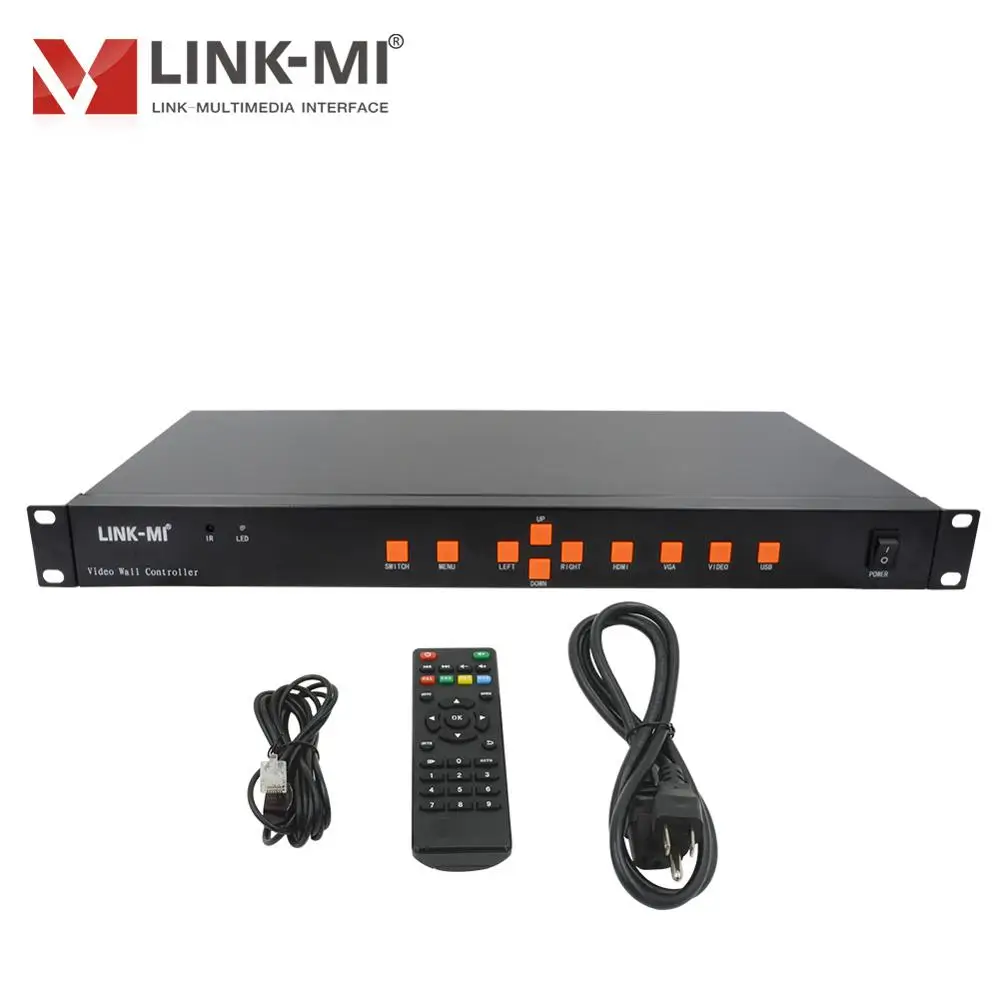

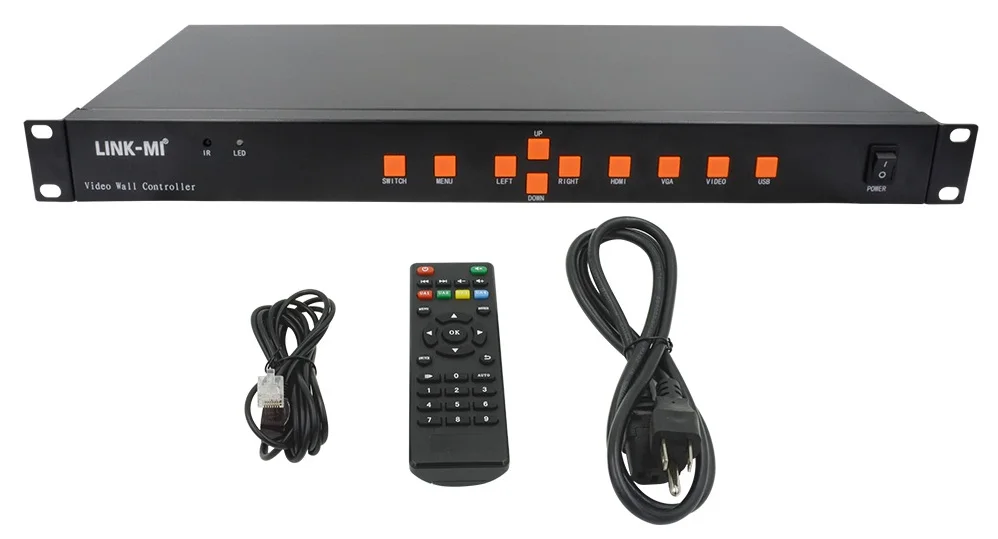

Package Contents
1) 1x Main Unit (6-channel HD Video Wall Controller)
2) 1x Power Cable
3) 1x IR Remote
4) 1x IR Cable
5) 1x User Manual
