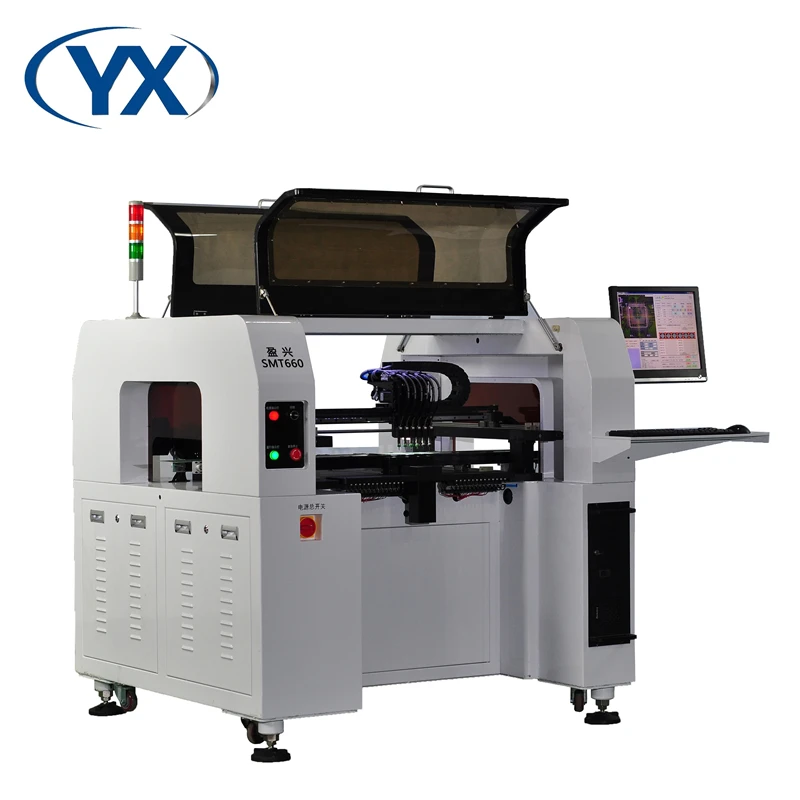

Higher Efficiency Pick and Place Machine SMT660 with Vision System Vibrate Feeders/LED Production Machine/SMT Equipment | Инструменты
История изменения цены
*Текущая стоимость 904 341,60 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Jun-25-2026 | 1148513.23 руб. | 1171483.41 руб. | 1159998 руб. |
| May-25-2026 | 931471.51 руб. | 950100.52 руб. | 940785.5 руб. |
| Apr-25-2026 | 1130426.88 руб. | 1153035.96 руб. | 1141730.5 руб. |
| Mar-25-2026 | 1121383.2 руб. | 1143811.48 руб. | 1132597 руб. |
| Feb-25-2026 | 895298.25 руб. | 913204.95 руб. | 904251 руб. |
| Jan-25-2026 | 1103296.1 руб. | 1125362.0 руб. | 1114329 руб. |
| Dec-25-2025 | 1094253.48 руб. | 1116138.80 руб. | 1105195.5 руб. |
| Nov-25-2025 | 1085209.86 руб. | 1106913.11 руб. | 1096061 руб. |
Описание товара
Product Description Desktop SMT Pick and Place Machine,SMT660,0402,0805,0603,5050, BGA Led Mounter
1.Technical Parameter
| Specification | |
| Number of feeders | 64 |
| Number of head | 6 |
| Number of camera | 8 |
| Number of IC Tray | 6 |
| Average power | 500W |
| Positioning precision | 0.01mm |
| The buffer range of suction nozzle | 4.5mm |
| Power supply | 220V, 50/60Hz |
| Compressed air | 0.5-0.6Mpa |
| Drive motor | Panasonic servo motor |
|
Guide |
Screw Guide |
| Vacuum source of suction nozzle | high-speed on-off vacuum generator with vacuum breaker |
| Maximum circuit board area | 600×455mm |
| Maximum travel scope in Z axis | 20mm |
| Tape feeder | 8, 12, 16, 24mm and vibration suction (mounting pipe chip) |
| Maximum mounting speed | 12000 Pcs/h |
| Average mounting speed of actual mounting resistance | 9600Pcs/h |
| XYZ drive guide rail | TBI high-precision reloading linear guide rail |
| Motion drive system | Panasonic high-speed DSP drive |
| Operating system | full-automatic chip mounter operating system independently |
| developed by Huawei Guochuang based on Windows | |
| operating systemand it supports windows xp | |
| win7 operating system | |
| Element angle | 0-360°, synchronous rotation during movement |
| X/Y operation mode | intelligent curve of the linear acceleration and deceleration linkage |
| MARK point positioning | full-automatic (the MARK point can be adjust at will) |
| Intelligent alarm | automatic correction, automatic filling, feeding shortage alarm |
| Plate entering mode | automatic connection from left to right in single sections, |
| automatic PCB transfer positioning. /plunger positioning, | |
| manual plate feeding. | |
| Visual display | 17-inch industrial control display, 4:3, resolution: 1280 x1024 |
| Number of recognition cameras | One Mark recognition camera, four quick-recognition cameras |
| and one precise-recognition camera | |
| Number of recognition cameras | One Mark recognition camera, six quick-recognition cameras |
| and one precise-recognition camera | |
| Adaptive mounting scope | Adaptive to 0201, 0402, 0603, 0805, 1206, diode, audion, SOT, QFP |
| within 40*40mm and the pin distance ≥0.3mm | |
| (0.5mm center distance) and BGA | |
| Product weight | 500KG |
| Dimension | 1450*1370*1550mm |

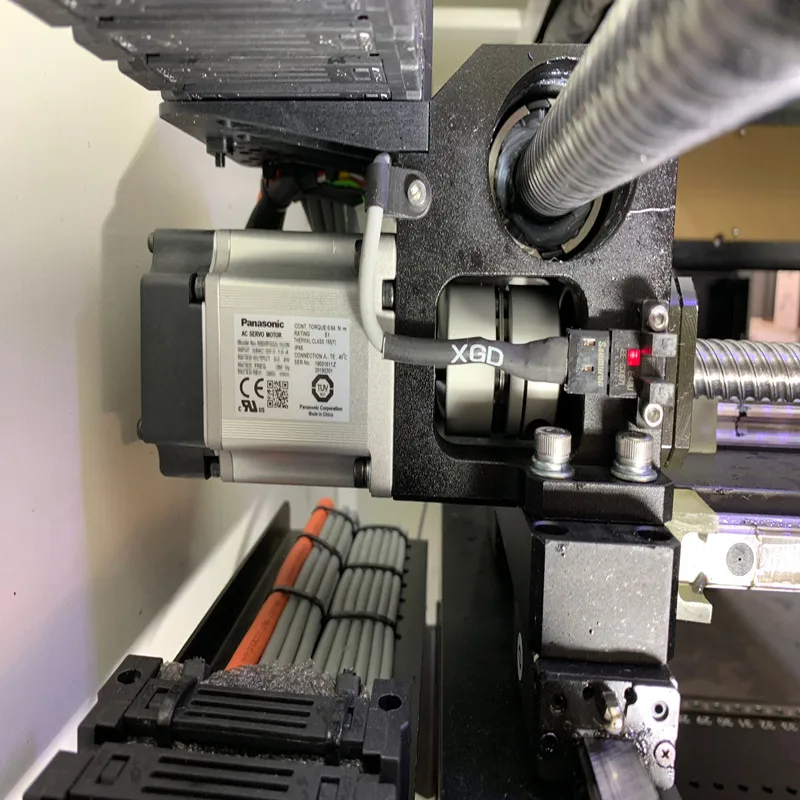

2.Panasonic Servo Motor

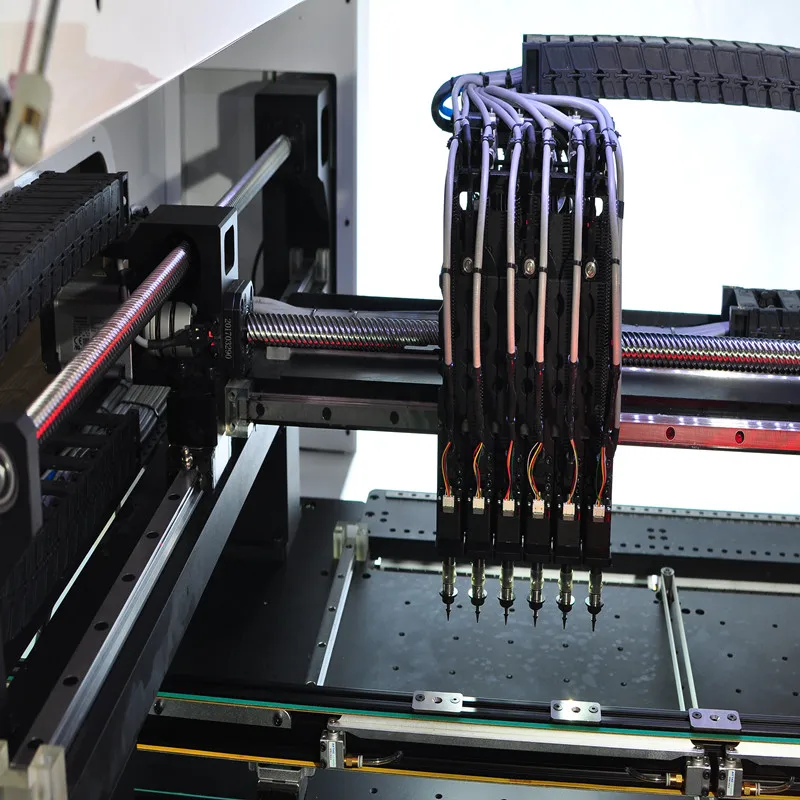

3. 6 Placement Heads

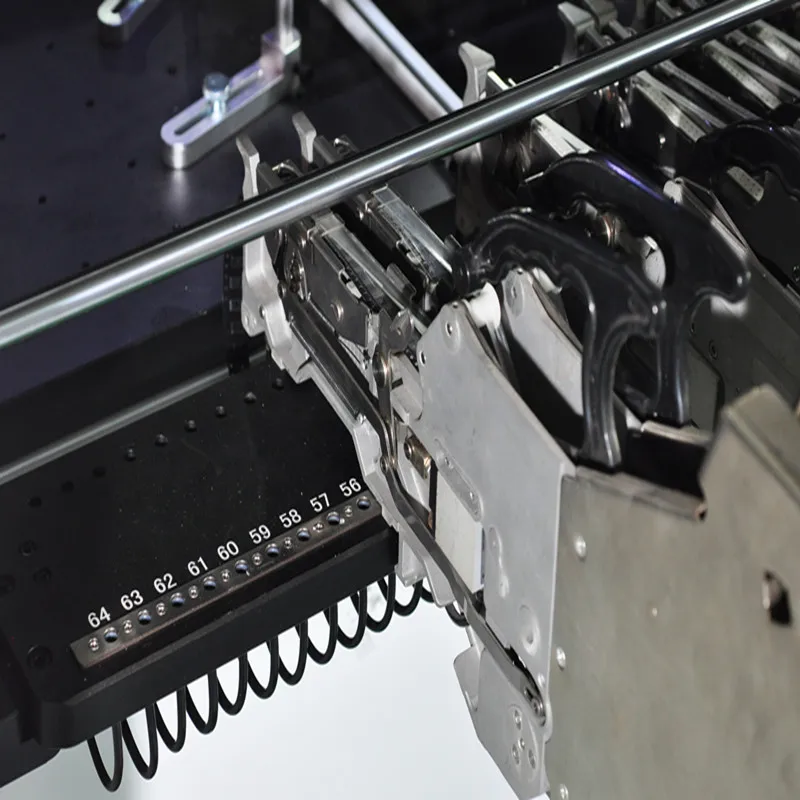

4.64 Feeders
5.TBI Guide Line
6.Come with Computer + Monitor + Keyboard and Mouse
7.Details
8.Package
