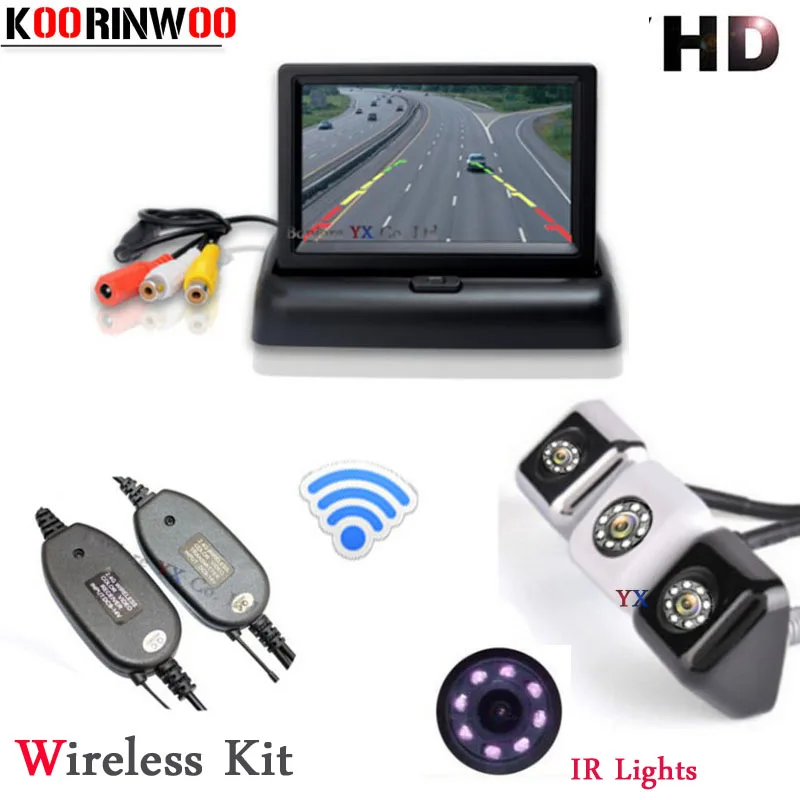

Koorinwoo Wireless Adopter 4.3 Monitor 800*480 Display LCD Car Rear view Camera 8 Lights Cam Parking Assistance Blind Reversing |

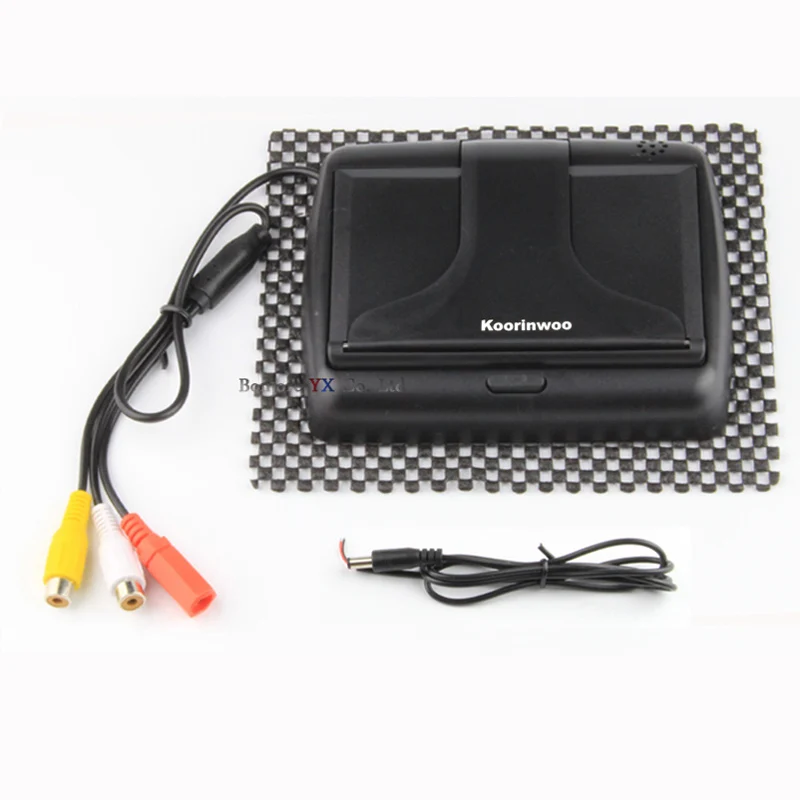

Car Monitor

• With 2 video input port, white video cable connects to car rearview camera, the yellow one connects to DVD or VCD.
• When parking the car, the rearview image appears onto the screen automatically.
• Designed ith menu buttons,the brightness/contrast/hue/language is adjustable.
• Supports car DVD, VCD, camera, and other video equipment.
• Easy installation without damaging any parts of the car: just clip on the original mirror.
• Easy installation ,without damaging any parts of the car, clip on the original mirror
• No Audio input or output.

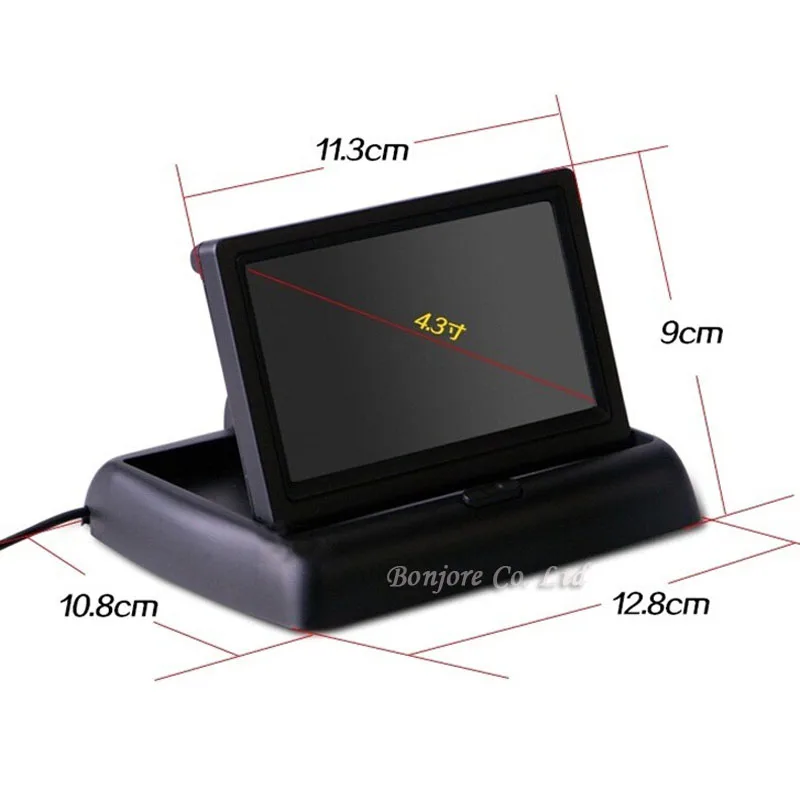

• Screen Size: 4.3 inch TFT 16:9 screen
• Display Component: Color TFT-LCD
• Number of Dots: 800W * RGB * 480H
• Video system: PAL/NTSC compatible
• Power supply: DC 12V
• Rated power consumption: 3W
• Operation temperature: -30~+60°
• Storage temperature: -40~+60°

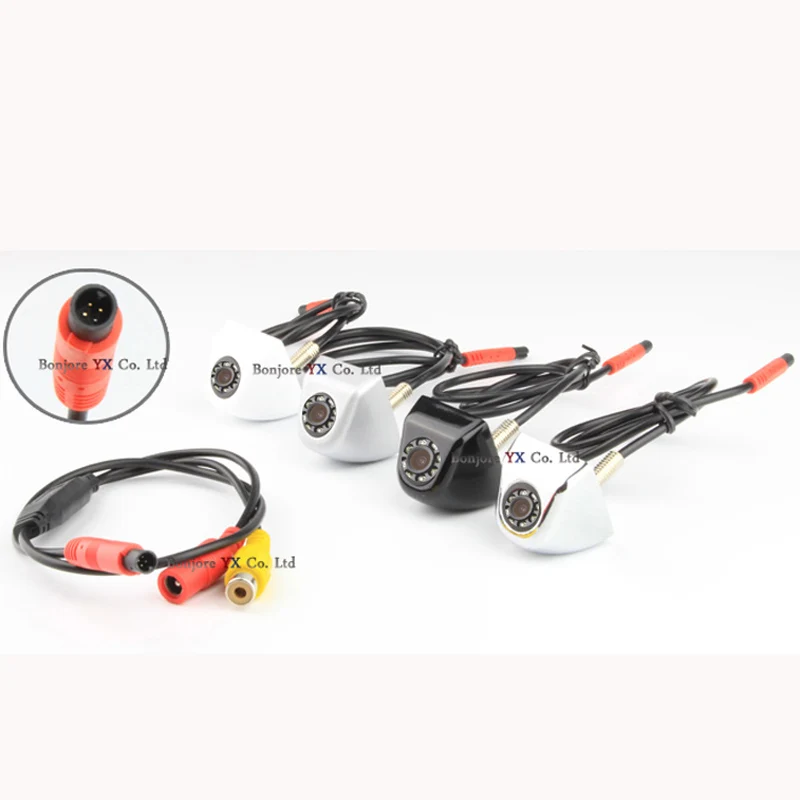

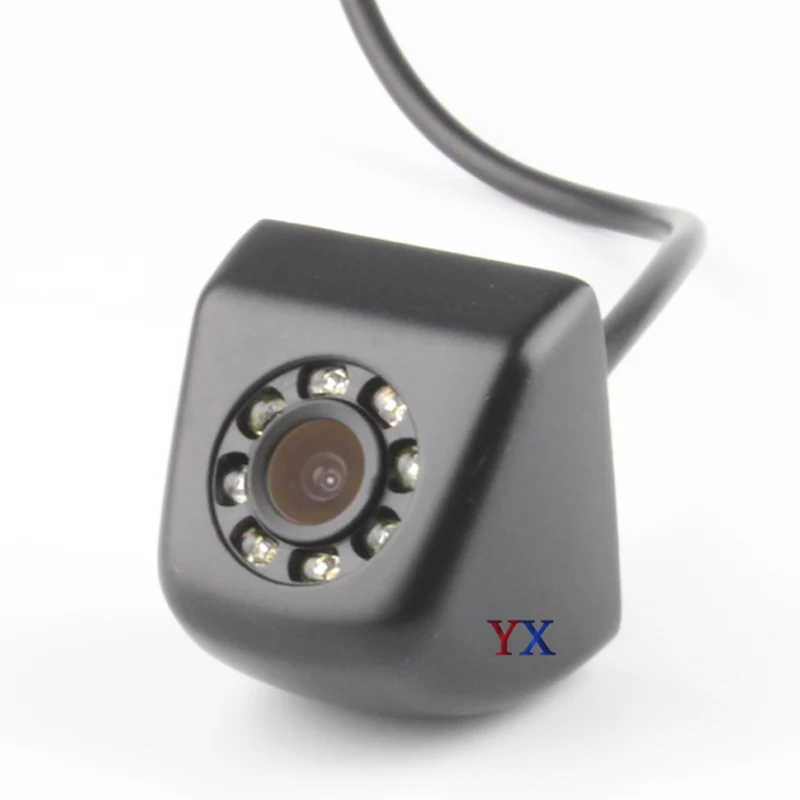

• CCD imaging sensor
• High grade of waterproofing: IP68.
• High-definition and 140-170 degree wide viewing angle.
• Applicable to variety of vehicles: car, truck, RV, etc.
• Easy to install.
• Its simple and modest design and small size won't draw any attention.
• It helps to avoid incidents and accidents abrasion well

• Color: Black/Chrome/White/Silver (Option)
• Image Sensor: 1/4" CCD
• TV system: NTSC（Default) or PAL
• Horizontal Resolution: 520 TV lines
• Pixels: 656(H) * 492(V)
• Sync. System: internal
• S/N Ratio: >48dB
• Electronic Shutter: 1/60 to 1/100,000 seconds
• Video Output: 1.0Vpp, 750hm
• White Balance: Auto
• Power: DC 12V
• Operating Temperature: -40 to + 80 degree, 95% RH maximum
• Storage Temperature: -40 to + 105 degree, 95% RH maximum

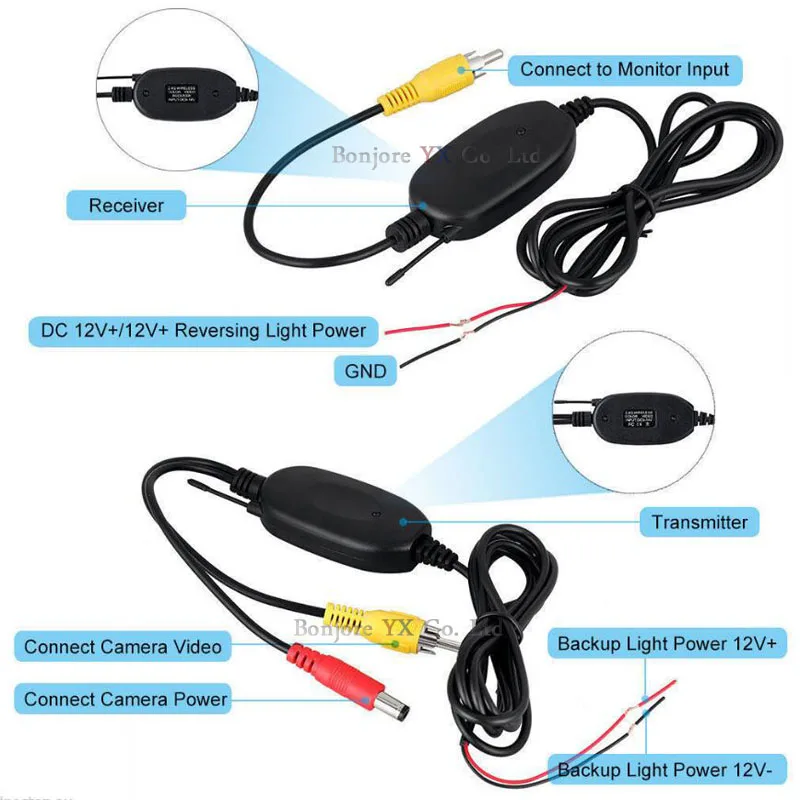

Wireless module for car reverse camera that enables normal reverse camera

• This listing is for the wireless module only.only can use one camera
• Take out your stock license plate light at the back of your car.

• Fix the camera to where the stock license plate light was.
• Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
• Connect the wireless module (transmitter) to your camera via the two cables - one plug for AV output and one plug for power
• Connect the wireless module (transmitter) to the reverse light of your car to get the power - red wire for positive and black wire for negative
• Connect the wireless module (receiver) to your car monitor - yellow plug for AV input.
• Connect the wireless module (receiver) to your car battery or cigarette lighter to get the power - red wire for positive and black wire for negative
• You will see the images when your car is in reverse shift.
