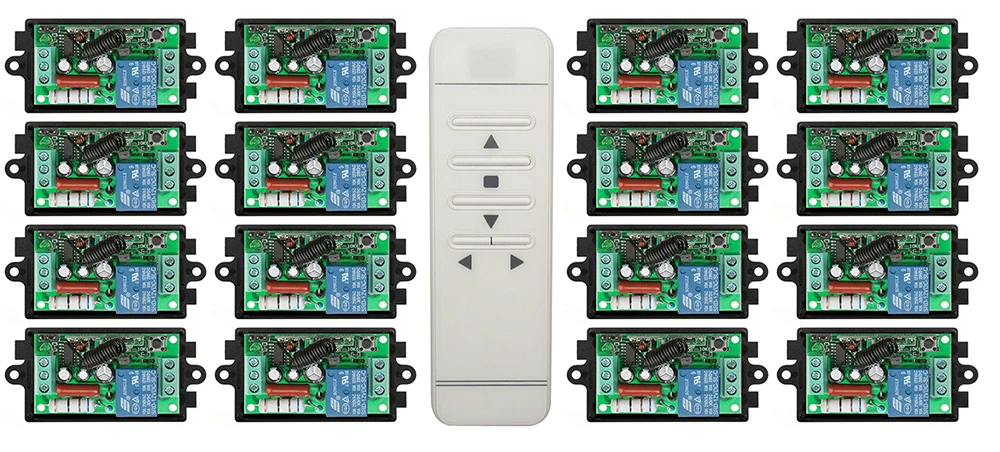

latest AC220V 1CH 10A 433MHZ intelligent digital RF remote control switch +16*receiver Garage Door/window /lamp/blinds | Электроника

Feature:

1.Working Voltage: AC220V(180V-240V)

2.Max Load:10A Relay, Resistive load≤8A, Inductive load≤3A

3.Channel: 1CH

4.Working Frequency : 433MZH

Receiver sensitivity: : -105Db

Working temperature : -10'C - +60'C

Output way : Momentary. Toggle .Latched Adjusted by Jumper

Code type: Learning code Add Controller by the Learning Button on the receiver

Output State:

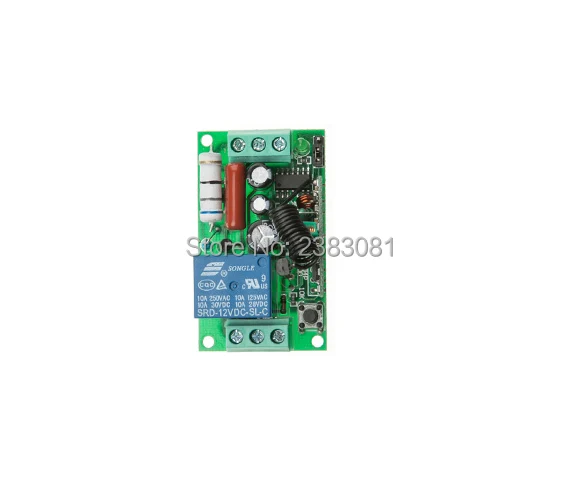

It is adjusted by the Jumper on the Receiver Board,

(before you change it .you need turn OFF the power. Until you have changed it, then turn ON the power again, or the State will not be changed)

A: Momentary-----------Put the Jumper on “M&G”.

B: Toggle------------put the Jumper on “T&G”

C: Latched------------- Take way the Jumper or put the Jumper on any 1 Pin.

Momentary------------Press the Transmitter button A, the receiver relay A is ON, release button A; the receiver relay A is OFF,

Toggle---------------Press transmitter button A for 1 time , the receiver relay A is ON, press button A again, the receiver relay A is OFF,

Latched------------Press transmitter button A, the receiver relay A is ON, Press transmitter button B, the relay A OFF.

Learning Method:

Input AC220V for the Receiver .Press the Learning Button until the Led indicator ON. Then press transmitter, the Led indicator flash fast, it mean learning successfully.

Clearing Code

Keeping press the Learning Button on the receiver until the LED indicator OFF, it mean the code have been cleared successfully.

 New  production of digital multi-frequency 3-key wireless remote control using digital display technology, can be used as a number of remote control Use, a total of 20 remote control can switch (default)

Remote elevator controller is a very widely used wireless control device, can be used in garage door control and projection screen control, remote control curtain, and other fields, has the advantages of convenient installation using a simple safe and reliable.

System composition:

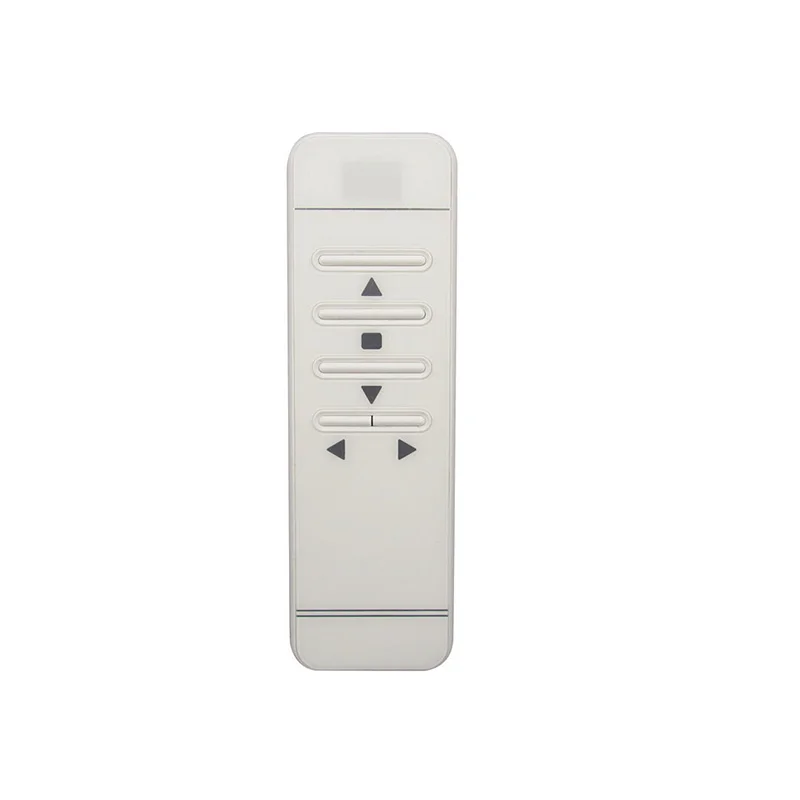

1  three key remote control (function :  up - stop - down)

2  remote elevator controller

Main technical indicators:

1   working frequency: 433MHZ

2  transmitter operating voltage: 12 v23a (battery)

3 receiver working voltage: AC 220 v

4  rated power: 1000 w

Method of code:

Hold  the key learning two seconds, lights out, press any key, remote control lights flashing, learning success.

Note

1  pay attention to choosing the right working voltage, otherwise  may damage the device even life-threatening

2  load power contact capacity, correctly approach should be less than 70% of contact capacity.

3 If found remote distance changes to be  shorter, please replace the remote control( battery 12 v 23A)

4 When installation, please disconnect the input power!!!!!!

 Package Includes:

1 x Transmitter( with battery)
