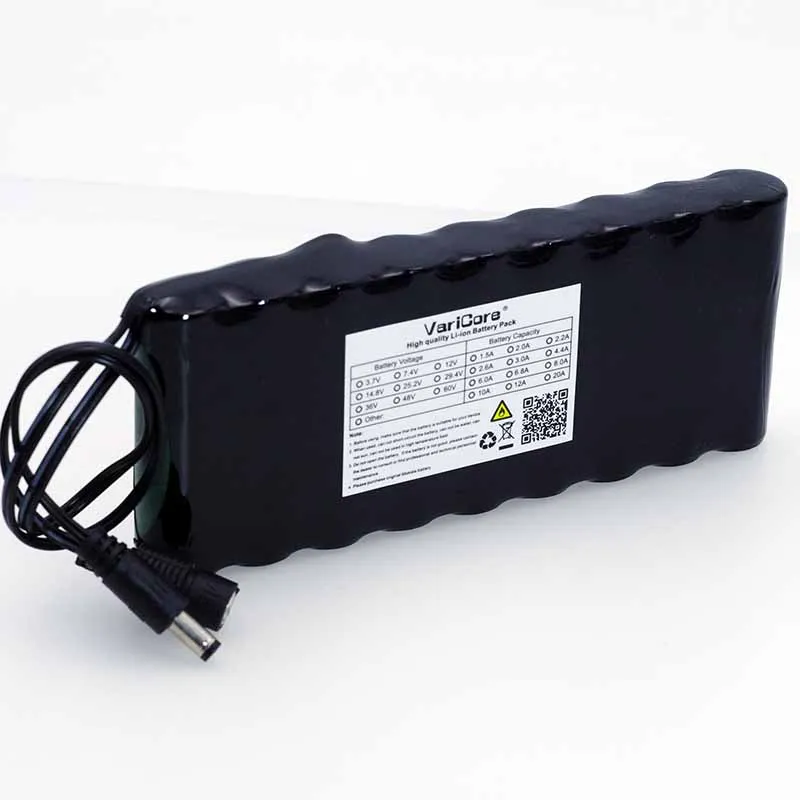

VariCore 12 v 9.8Ah 9800mAh 18650 Rechargeable Battery 12V Protection Board CCTV Monitor battery pack | Электроника

VariCore 12 v 9.8Ah 9800mAh 18650 Rechargeable Battery 12V Protection Board CCTV Monitor battery pack | Электроника

Product Description

• technical parameters

  Nominal voltage: 12V

  The input voltage: 12.6V

  Output voltage: 9V to 12.6V

  Battery capacity: 9800mah (9.8Ah)

  Outside diameter size:

  Can choose size:162*70*19MM

• Have the shipping list

  12V    9.8Ah li-ion batteries 1PCS.

•






  Total weight: 400G

  Packing: black PVC

  With protection circuit: have overcharge, over discharge, over current, short circuit protection functions

  the battery requirements

  1: need li-ion battery chargers for; Constant current constant voltage;

  2: the charging voltage: 12.6 V

  3: charging current: 3A

  4: supporting the charger is charging when the red light is full of green light

  battery discharge Requirements

  1: input: 5.5 * 2.1 plug wire

  2 the maximum instantaneous current: 15A

  3: maximum working current: 10A

  4: output input if there is any other requirement can be contact with the owner, the above parameters for the default delivery



  applicable scope

  All the 12 v electric equipment, washing equipment, coal, hernia lamp, instead of the 12 v battery, instruments and meters, amplifiers, monitoring, electric class, all sorts of article 12 v lamp.

  lithium battery advantage

  1. Small volume, light weight, large capacity, environmental protection, no memory effect.

  2. Is the power supply for portable electronic devices, but more delicate, lithium-ion batteries in use, please note the following points.

  Lithium battery common sense

  1. You must use a 12.6 V li-ion battery charger charging standard.

  2. The ban on large current discharge.

  3. Prohibited discharge, single battery voltage should not be below 2.5 V.

  4. It is strictly prohibited to disassemble, short circuit batteries, most likely caused by short circuit on fire.

  5. Use temperature 0 to 60 degrees.

• ​

• Storage

  The battery should be stored in a clean, dry, ventilated room and should be kept in contact with corrosive substances away from fire and heat sources. Under normal circumstances, no more than 3 months of storage environment temperature range of -20 ~ 40 ℃, no more than 6 months of storage temperature allowed to allow the scope of the ambient temperature range of -20 ~ 35 ℃, special products to products The permissible scope of the specification shall prevail. The company recommended the best storage temperature of 20 ~ 25 ℃. In general, the relative humidity of the battery storage environment allows a range of 65 ± 20%. The company recommended the best storage environment relative humidity of 50 to 70%. The battery should be stored at high temperatures or at high humidity, otherwise it will cause the battery to leak, rust, and reduce capacity. 'Long term storage will result in reduced battery and battery capacity and require 1-3 charge / discharge cycles to achieve maximum discharge capacity. After three months of battery storage need to charge or cycle charge and discharge once. If the storage period of more than 6 months, should be charge and discharge activation to reduce performance loss.   caveat `Do not immerse the battery in seawater or water. When not in use, it should be placed in a cool, dry environment. `Do not throw the battery in a fire or heater, or try to disassemble it, the battery may burn or produce harmful substances. `It is forbidden to use the battery in the hot high temperature source, such as fire, heater and so on. `It is strictly forbidden to use the battery. `Do not reverse charge, the battery should be accurate polarity connection, not reverse. `It is forbidden to use or place the battery at high temperatures (hot sun or hot car), which may cause the battery to overheat, fire or malfunction, and shorten life. `Do not connect the battery directly to the power outlet. `Direct use of metal directly connected to the battery positive and negative short circuit. `Do not transport or store batteries with metal, such as hairpins, necklaces, etc. `Do not knock or throw, trample the battery. `Do not open, change, solder the battery directly and pierce the battery with a nail or other weapon. `Is strictly prohibited in the strong electrostatic and strong magnetic field where to use, or easy to damage the battery safety protection device, bringing insecurity risks. `Do not solder directly to the battery. `It is forbidden to cut the shell and remove the outer casing of the battery. `Batteries can not be used under extreme conditions, such as: extreme temperature, deep cycle, extreme overcharge and overdischarge. `Discard the battery application Insulation paper wrapped around the electrode, to prevent fire, explosion. `Do not allow the old battery or half of the battery with the new battery mixed use, otherwise it will produce over-discharge. `Please store the battery in a cool dry place, if a large number of battery storage or shipping when the battery must first discharge. `If ​​the battery leaks, the electrolyte into the eyes, please do not rub, rinse with water, immediately to the doctor, otherwise it will hurt the eyes. `If ​​the battery is exposed to odor, heat, discoloration, deformation, noise, leakage or use, storage, charging any abnormalities during charging, immediately remove the battery from the device or charger and disable. `If ​​the electrode is dirty, use a dry cloth before use, otherwise it may cause poor contact failure.   Precautions `Battery should be used before the Secretary of the technical specifications and other documents required to charge a good charge. The charging current and voltage shall not exceed the maximum charge current and rated voltage specified in the documentation and other documents. Use of a charge that is higher than the recommended value will cause charge and discharge performance, mechanical and safety performance of the battery and may cause heat or leakage. `In general, the allowable range of the charging environment temperature of the battery is 0 ~ 45 ℃, the allowable range of the discharge environment temperature is -10 ~ 60 ℃, and the special product is the allowable range stipulated in the product specification document. `Use the appropriate dedicated charger to charge the battery. `Discharge current must not exceed the maximum discharge current specified in the product specification. High current discharge can cause the capacity of the discharge cell to decrease drastically and cause overheating. `The battery should be sealed and used, should provide the appropriate ventilation device, otherwise the battery may produce hydrogen, in the case of a fire source will cause an explosion. `Do not attempt to separate or withstand the squeeze and impact of the battery pack, may cause the battery to heat, spark, spill alkaline electrolyte will damage the skin and eyes will corrode clothes. `Keep the battery away from the child and, if swallowed, contact your doctor immediately. `When the battery is not in use, it should be removed from the device. `When the first use of new batteries or long-term use after storage, before use to be fully charged. It is important to note that during long periods of unused batteries, it may be in an overdischarge state with its self-discharge characteristics. In order to prevent the occurrence of over-discharge, the batteries should be charged regularly. `When the battery is hot, do not touch until it cools down. `When the battery is used, it is found that the energy should be turned off when the device is turned off to avoid overdischarge. When you pull out the battery pack, you should hold the battery pack terminal and not hold the wire. `After the battery is used, if the battery is hot, it can be placed in a place where there is no direct sunlight before being recharged.   Disclaimer `We are not responsible for any accidents caused by the use, storage and transportation of batteries beyond the conditions specified in the Company's product specifications. The Company shall have the right to revise the documents such as the product specifications provided by the Company, and the Company will notify the Client after the revision of the product documents.



  `Sincerely hope that users can strictly in accordance with the company to provide the product specifications and other documents and attached note to use, storage, transport batteries. Improper use, storage, transportation of batteries, such as accidents or fire, may cause the battery to heat, fire or break.

•
