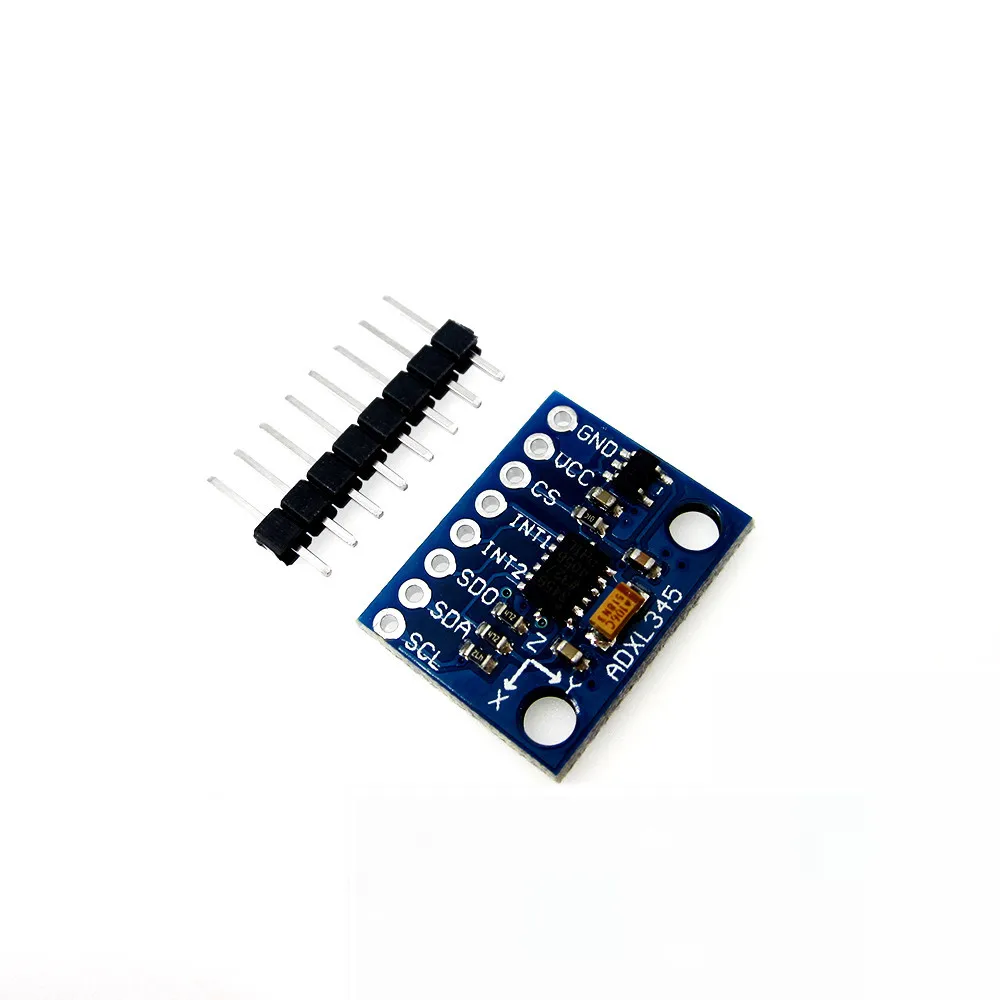

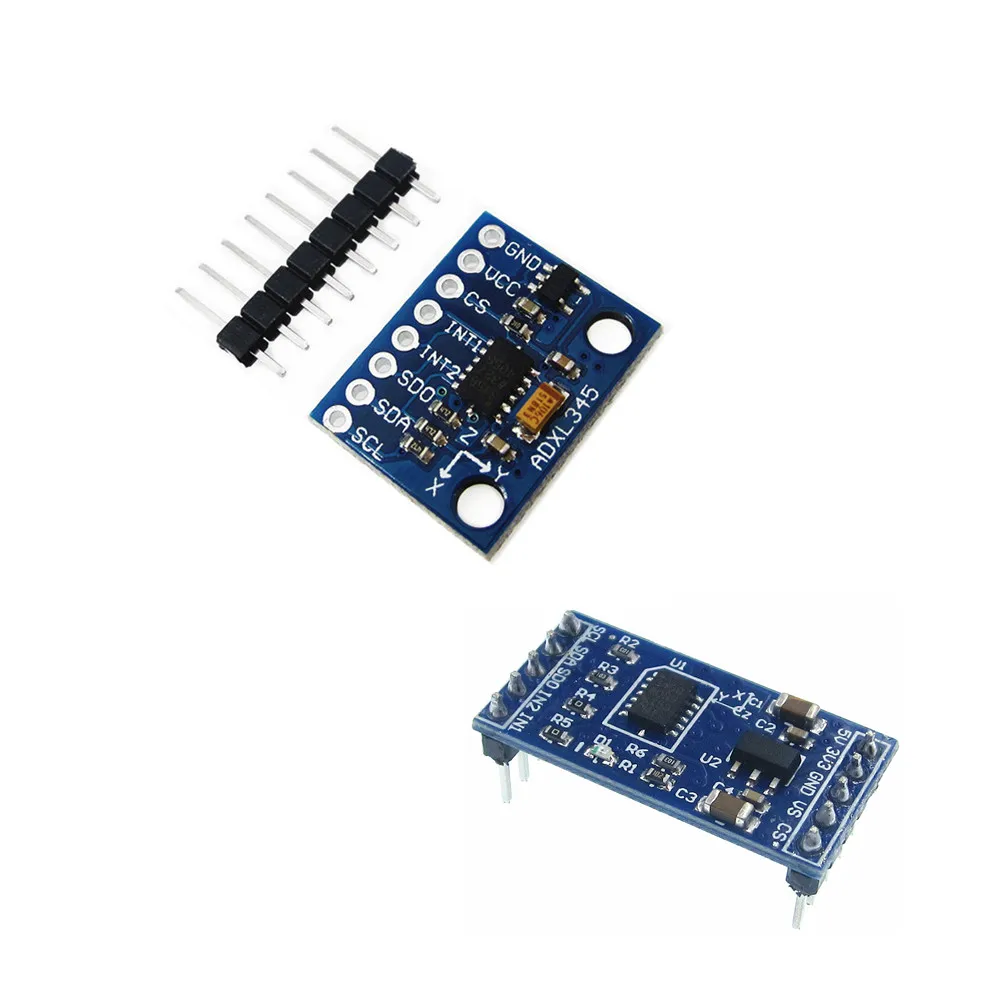

GY-291, ADXL345 digital, three axis gravity acceleration, slope module, IIC/SPI transmission
Data download address http://pan.baidu.com/s/1jG3l1hs
Name: ADXL345 module (three axis gravity acceleration)
Model: GY-291
Using chips: ADXL345
Power supply: 3-5v
Communication mode: IIC/SPI communication protocol
Measuring range: + 2G + 16g
Provide schematics, related data manuals and reference documents
Provide 51, AVR, Arduino SCM test code
A large number of stock, you can directly take, the amount of big price excellent!
3 axis, + 2g/ + 4g/ + 8g/ + 16g
Digital acceleration module
Summary
ADXL345 is a compact and slim low power three axis accelerometer, on high
Acceleration of + 16 g is performed with high resolution (13 bit) measurements. Digital output
It is a 16 bit binary complement format,
Access via SPI (3 line or 4 line) or I2C digital interface.
ADXL345 is ideal for mobile device applications. It can be used in tilt detection applications
Measure the static gravity acceleration, and also measure the dynamic addition caused by motion or impact
Speed. It has a high resolution (4 mg/LSB) and is capable of measuring about 0.25 degrees of inclination
Angular variation. The use of ADXL345 and other digital output acceleration timing, without the need to proceed
Analog to digital conversion, which can save system cost and circuit board area. Besides,
ADXL345 is a small, thin, ultra low power, 3 axis accelerometer with resolution
High (13 bit), measuring range of + 16g. The digital output data is 16 bit binary
The complement format can be accessed via SPI (3 line or 4 line) or I2C digital interface.
ADXL345 is ideal for mobile device applications. It can be applied in tilt detection
Measure the static gravity acceleration, and also measure the movements caused by motion or shock
State acceleration. Its high resolution (3.9mg/LSB) can measure less than 1 degrees
Tilt angle change.
The device offers a variety of special detection functions. Active and inactive detection function
Compare the acceleration on the arbitrary axis with the threshold set by the user to check if there is any movement
Occur. The knock detection function can detect single vibration and double vibration in any direction
For. The free fall detection function detects whether the device is dropping. These ones here
The function can be mapped independently to one of the two interrupt output pins. Shen Shen
The patented integrated memory management system employs a 32 stage FIFO
(FIFO) buffers can be used to store data and thereby load host processors
Minimizes and reduces overall system power dissipation.
Low power mode supports motion based smart power management, resulting in extremely low power
Power consumption is measured by threshold sensing and motion acceleration measurements.
The ADXL345 uses 3 mm x 5 mm x 1 mm, 14 lead Mini slim plastic
Encapsulation.

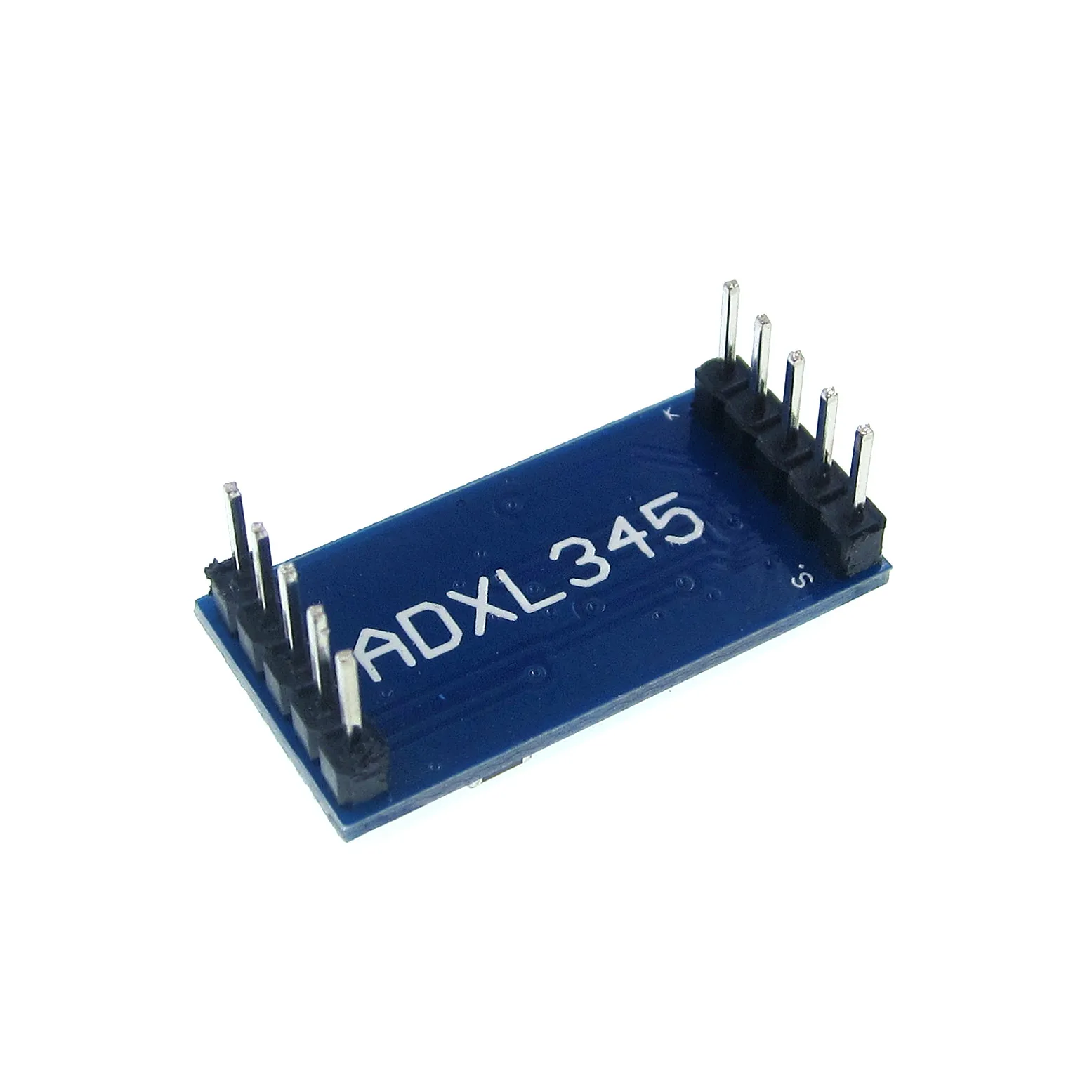

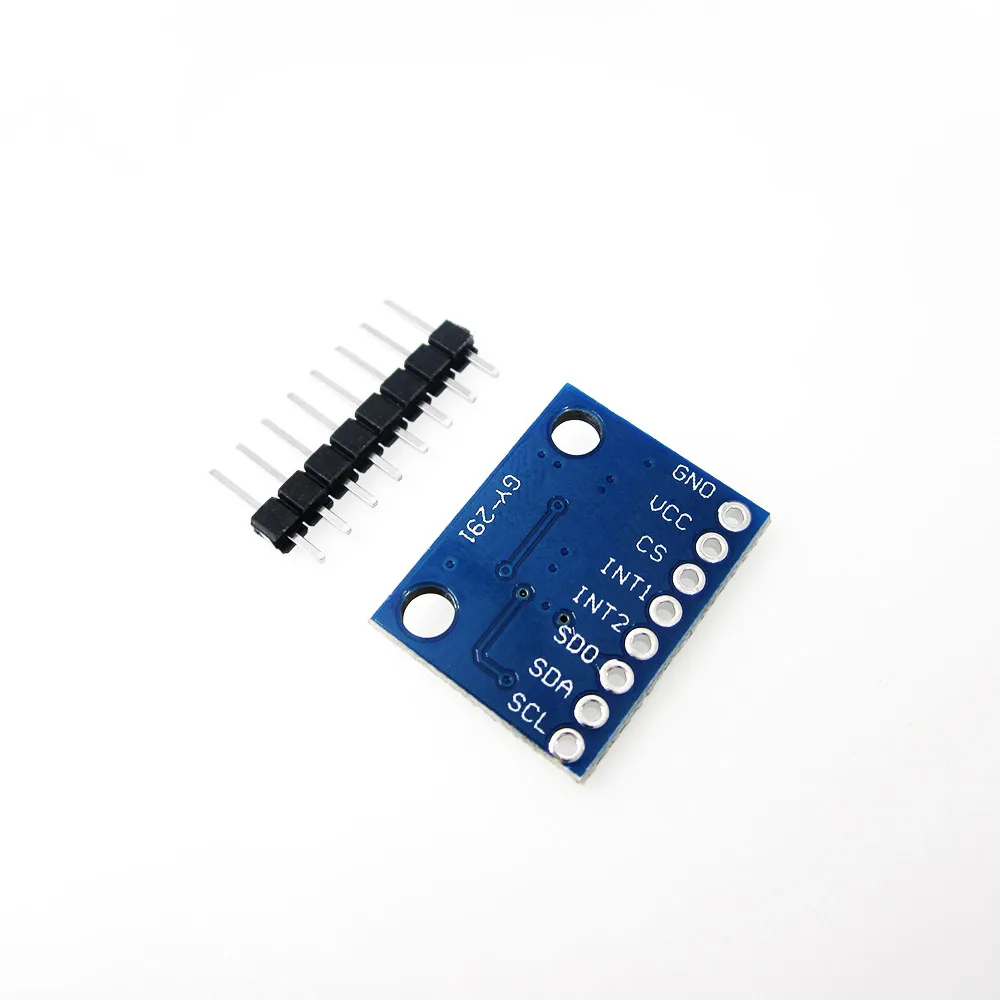

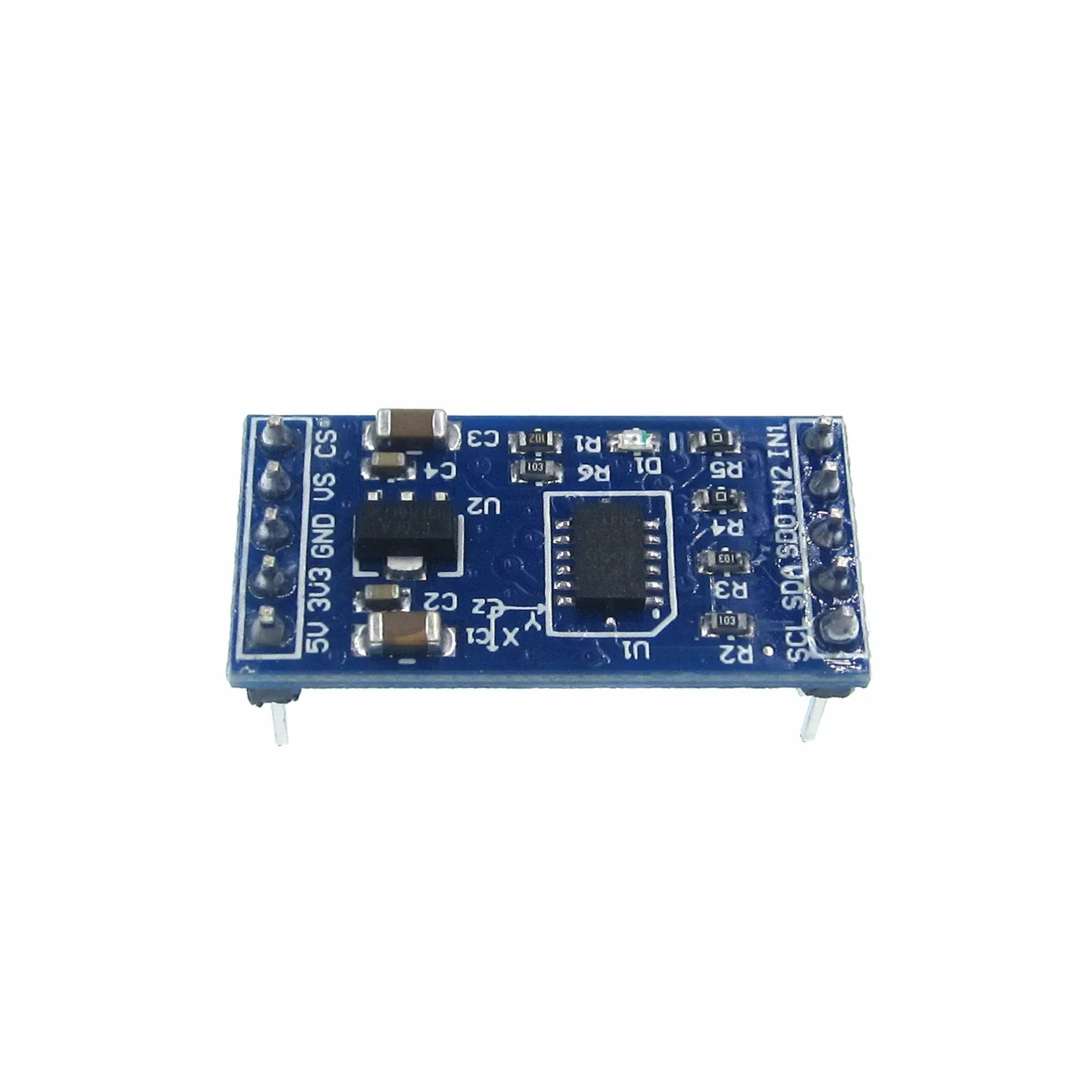

1, on-board ADXL345 digital output (supports I2C/SPI), low power consumption, compact acceleration sensor; 2, support 5V/3.3V voltage input, onboard RT9161 power chip, lower pressure drop than the 1117, faster load the appropriate speed, ideal for high-noise power supply environment; 3, the pin has been commonly leads, pin standard 100mil (2.54mm), convenient for lattice panels; 4, PCB size: 28 (mm) x14 (mm) 5, after the purchase comes with schematics, test procedures and related information
