Астрономическая камера с высокой частотой кадров 520 в секунду разрешением 0 4 мегапикселя интерфейсом USB3.0 сенсором Sony и автоматическим управлением ST4.

Description

high frame rate 520fps 0.4mp imx287 USB3.0 astronomical telescope camera with Sony sensor and ST4 auto guiding

(RisingTech provide 4 different color  Golden, Red, Blue, Green for buyer choice.


Buyer could leave meassge for us to select color when place order.

If buyer not specify color, we will shipping camera in random color)

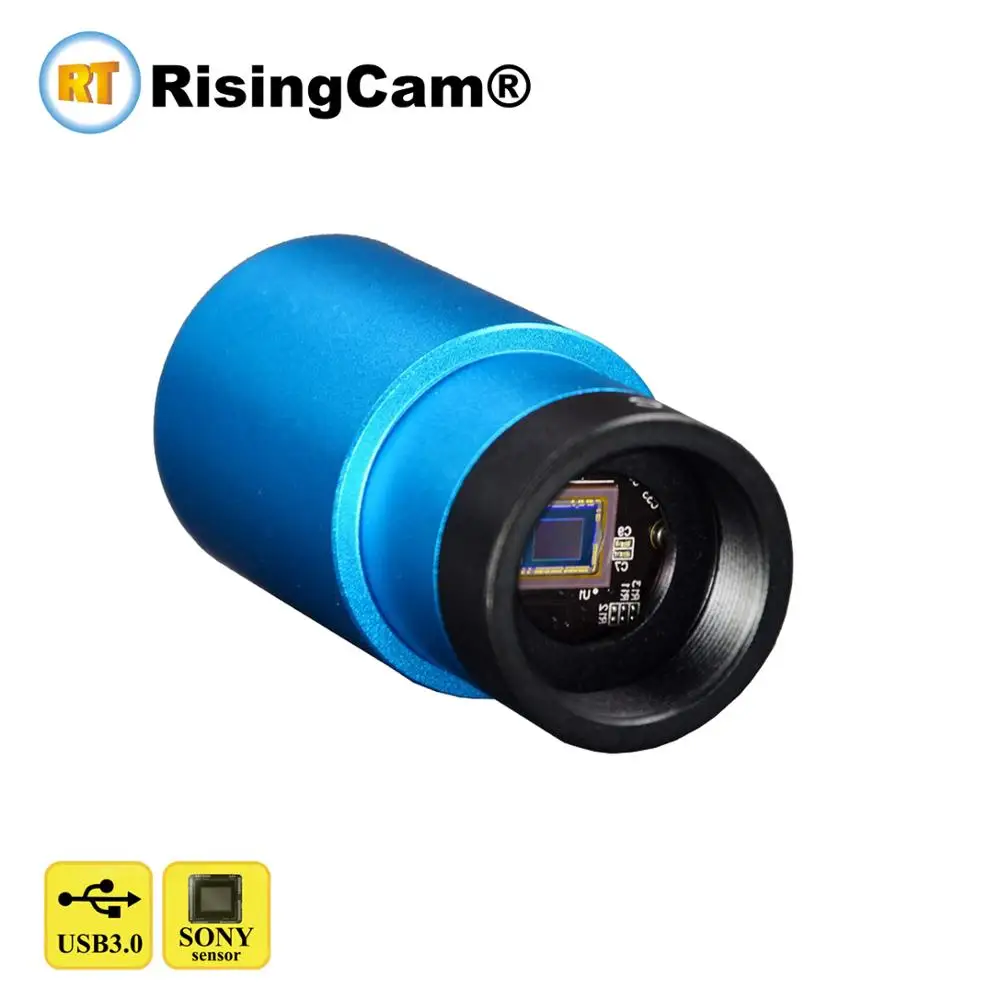

RisingTech G3M camera is Guiding CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device.

USB3.0 is used as the data transfer interface. A built-in ST4 auto guider port is designed for the easy connection of the auto guider.

Aluminum CNC housing with standard 1.25 inch interface(outer) to fit to telescope eyepiece and standard C-mount(inner) for standard industrial lens.

Native/ASCOM/WDM driver for easy connection with 3rd party astrophotography softwares.

The G3M camera can be widely used in astrophotography (Moon, Sun, Planets as well as Galaxies, Cluster and Nebulae).

Great camera for auto-guiding and multiple types of astrophotography (Moon, Sun, Planets as well as Galaxies, Cluster and Nebulae)

Carefully selected SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface
Sensor: Sony IMX287- 1/2.9" - (4.97x3.73mm), Frame rate: 520fps / 720x540

long time exposure (0.244ms-1000s)

Ultra-high sensitivity：4584mv with 1/30s for color camera， 7469mv with 1/30s for Mono Camera

Compact size and low amp glow Amp-glow Reduction

Color sensor Camera's protect window default install IR-Cut Filter 405-690nm (optioal: double-side AR coating Protective glass 350-1050nm)

Monochrome sensor Camera 's protect window default install double-side AR coating Protective glass 350-1050nm (optioal: IR-Cut Filter 405-690nm)

RisingTech can change IR-Cut filter and AR coating glass for buyer,

buyer could leave message tell us want IR cut filter or AR coating glass when place order,

if buyer not leave any message, we will make camera by our default installation.

A built-in ST4 auto guider port for the easy connection of the auto guider

Dedicated astrophotography software to support video preview, video record, video processing,

image capture and process, dark field correction, digital binning and raw data output

Native/ASCOM/WDM driver for easy connection with 3rd party astrophotography software

Aluminum CNC housing with standard 1.25" interface(outer) to fit to telescope eyepiece and standard C-mount(inner) for standard industrial lens

1.25" nosepiece for precise focusing and 1.25” astronomical filter installation

Thermal design to transfer the sensor heat to the aluminum house quickly

RisingSky Software Support Windows XP/7/8/10 system

We also Provide RisingView software for MAC system and Linux system User.

"C" stand for Color,

"M" Stand for Monochrome

Color sensor Camera's protect window default install IR-Cut Filter 405-690nm (optioal: double-side AR coating Protective glass 350-1050nm)

Monochrome sensor Camera 's protect window default install double-side AR coating Protective glass 350-1050nm (optioal: IR-Cut Filter 405-690nm)

RisingTech can change IR-Cut filter and AR coating glass for buyer,

buyer could leave message tell us want IR cut filter or AR coating glass when place order,

if buyer not leave any message, we will make camera by our default installation.

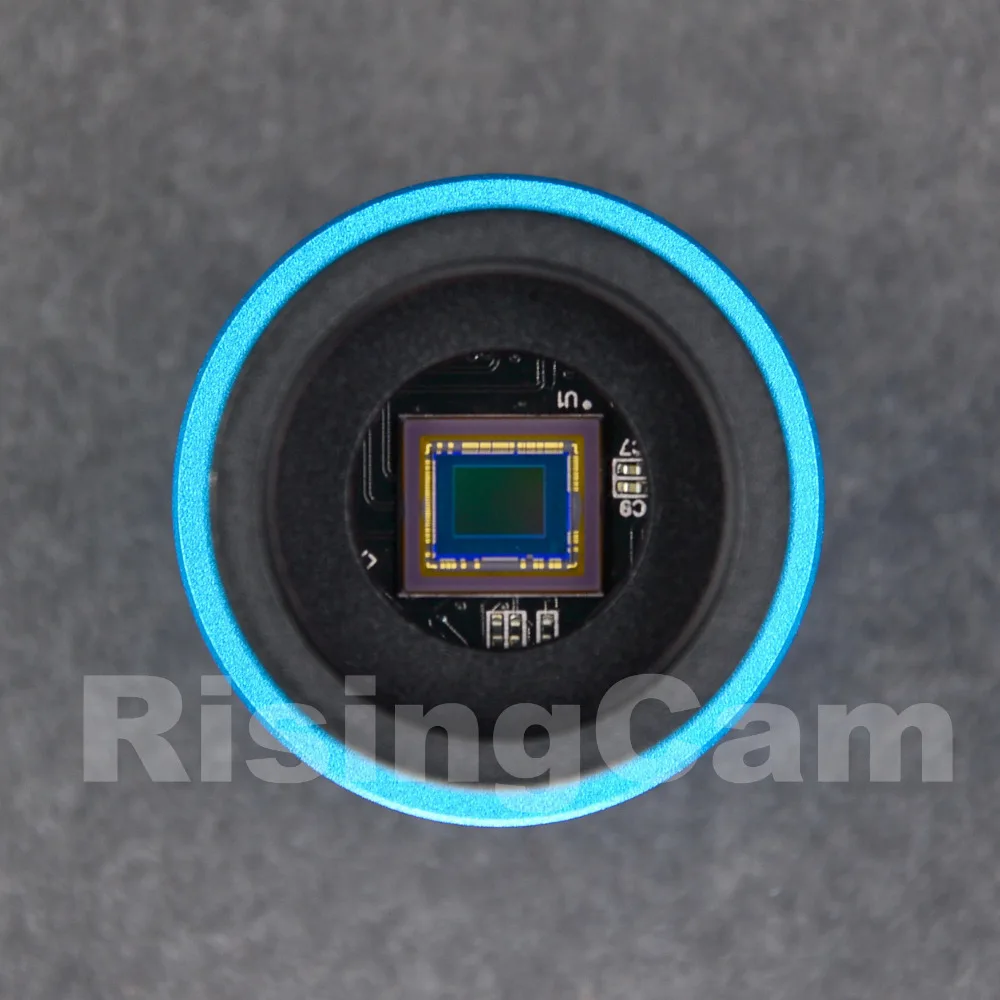

SONY Sensor IMX287 - 1/2.9"

Color sensor Camera's protect window default install IR-Cut Filter 405-690nm (optioal: double-side AR coating Protective glass 350-1050nm)

Monochrome sensor Camera 's protect window default install double-side AR coating Protective glass 350-1050nm (optioal: IR-Cut Filter 405-690nm)

RisingTech can change IR-Cut filter and AR coating glass for buyer,

buyer could leave message tell us want IR cut filter or AR coating glass when place order,

if buyer not leave any message, we will make camera by our default installation.

ST4 auto guider port, USB3.0 Output

Native/ASCOM/WDM driver for easy connection with 3rd party astrophotography softwares

(NOTE: RisingCam's Astronomical Camera support auto guiding only under Windows System)

Supported Software for this camera includes:

PHD Guiding

Nebulosity

MaxIm DL

SharpCap

MetaGuide

Fire Capture

Astro Art

Amp-glow Reduction Technology

What is amp-glow reduction technology?

Most sensor have amp-glow problem when you do long-time exposure , such as longer than 1s
“amp glow reduction technology” is a hardware modification to reduce the amp-glow of sensor.
not every sensor can benefit from this modification, but it is obvious for IMX224 sensor

The G3M Camera adopts Amp-glow reduction technology

Amp-glow reduction test result of G3M Camera

The G3M camera body, made from tough, alloy, ensures a heavy duty, workhorse solution.

No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

RisingSky is Professional software for Astronomical applications, which has multi-functions such as

Camera parameter adjustment, capture images&video, modify image, process image etc.

it can provide many tools choice for user.

RisingSky Support Windows XP/7/8/10 system

We also Provide RisingView software for MAC system and Linux system User.

RisingView for MAC system

RisingView for Linux system

Astronomy Photo Sample

Moon photo captured by G3M camera

Jupiter photo captured by G3M camera

Nebula photo captured by G3M camera

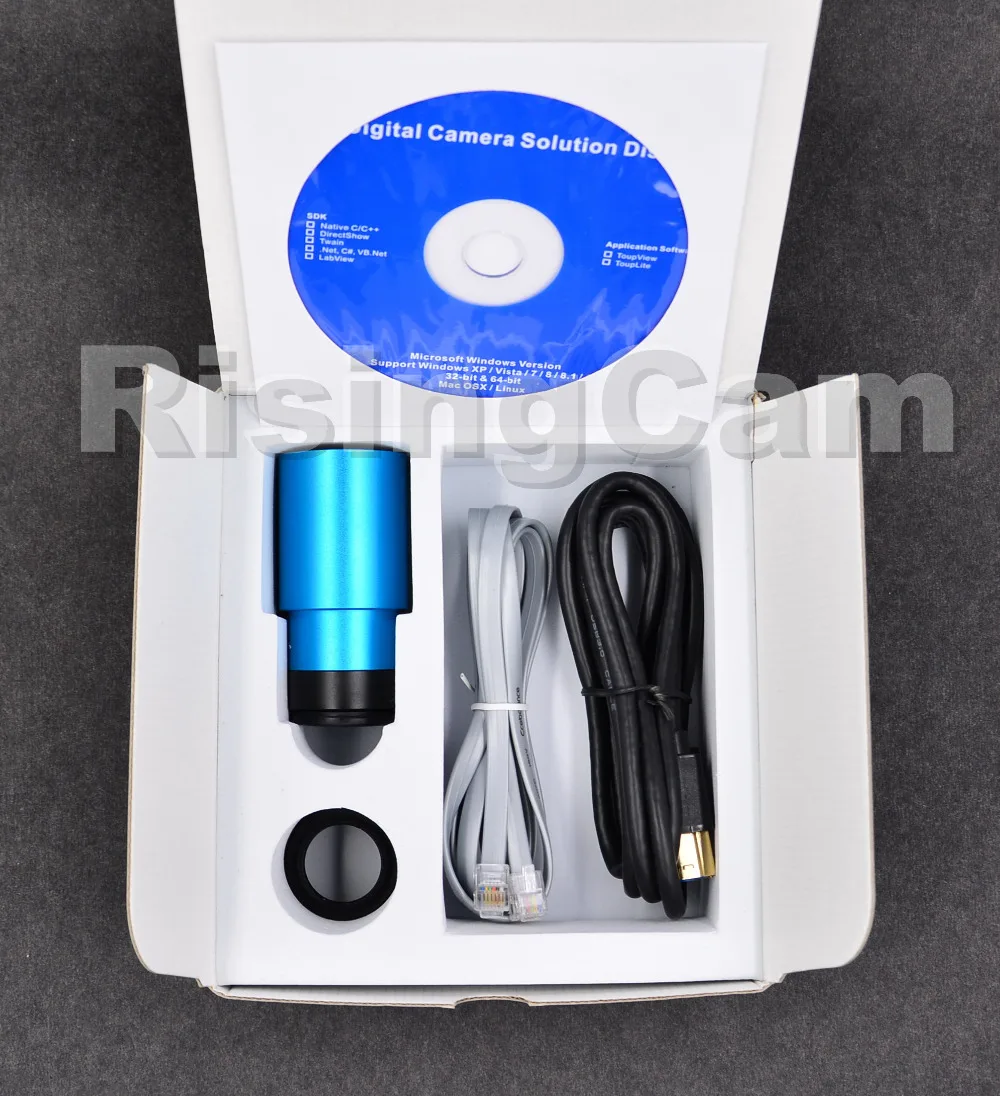

G3M CAMERA packing picture

USB3.0 Cable

ST4 Guide cable

1.25inch adapter
