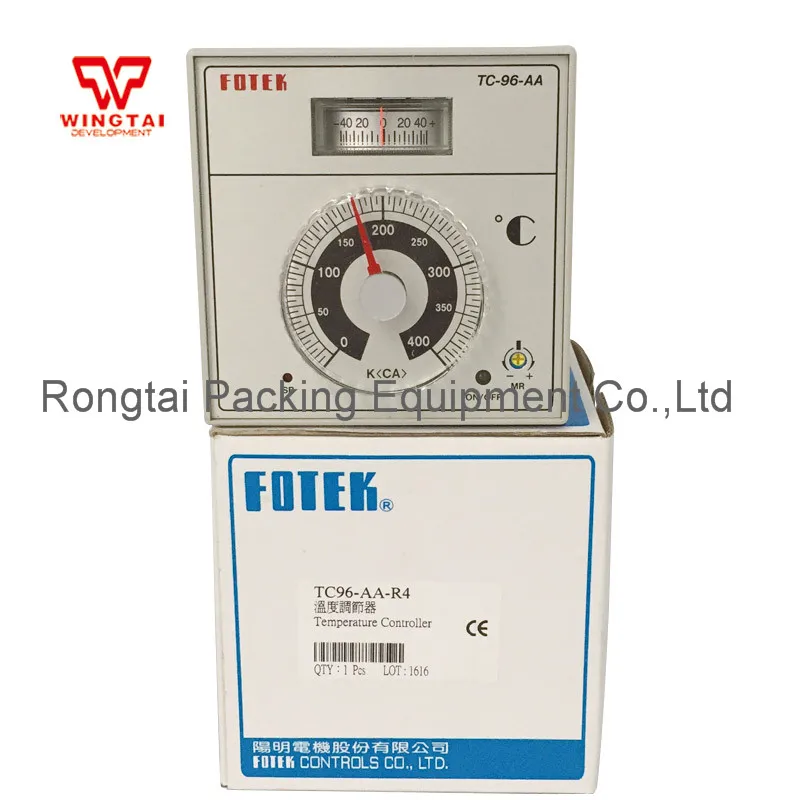

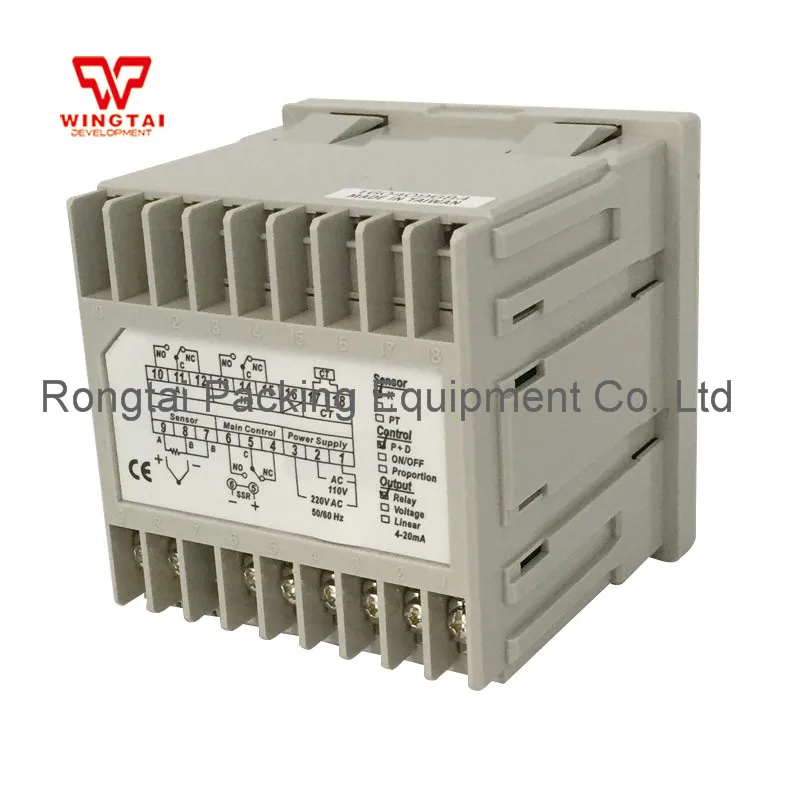

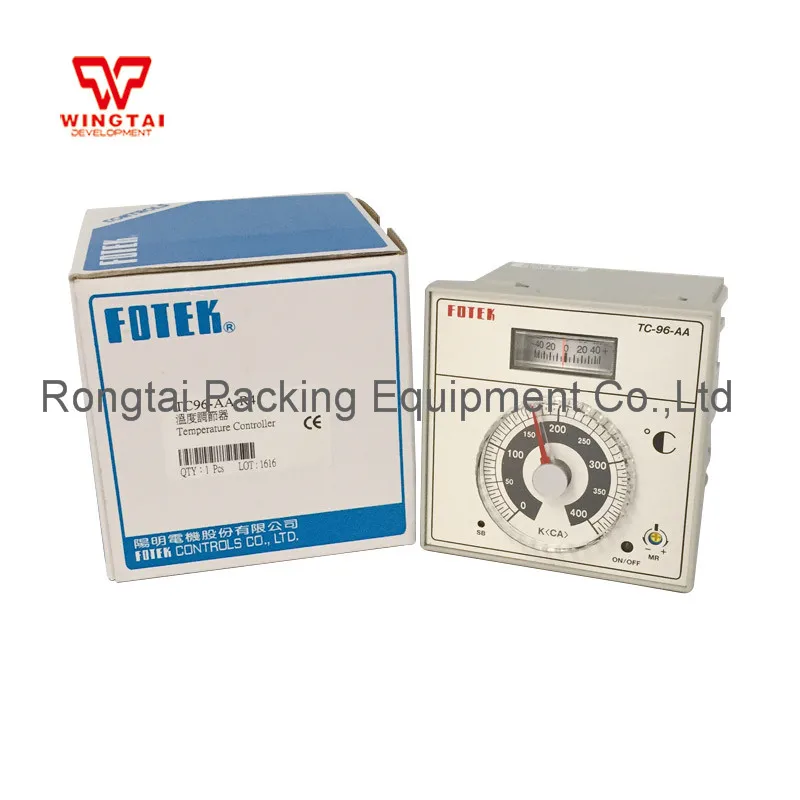

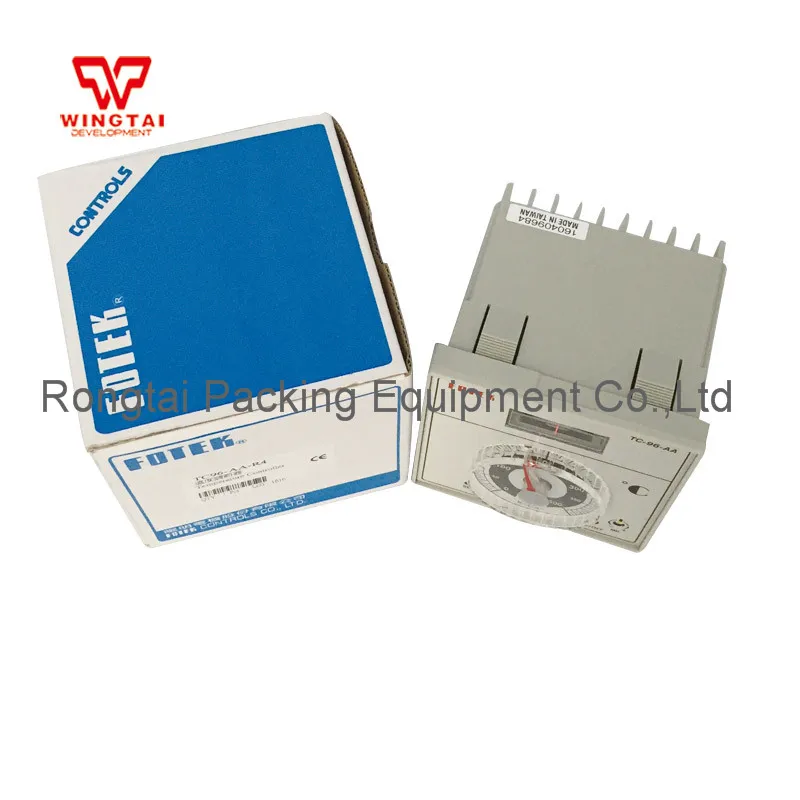

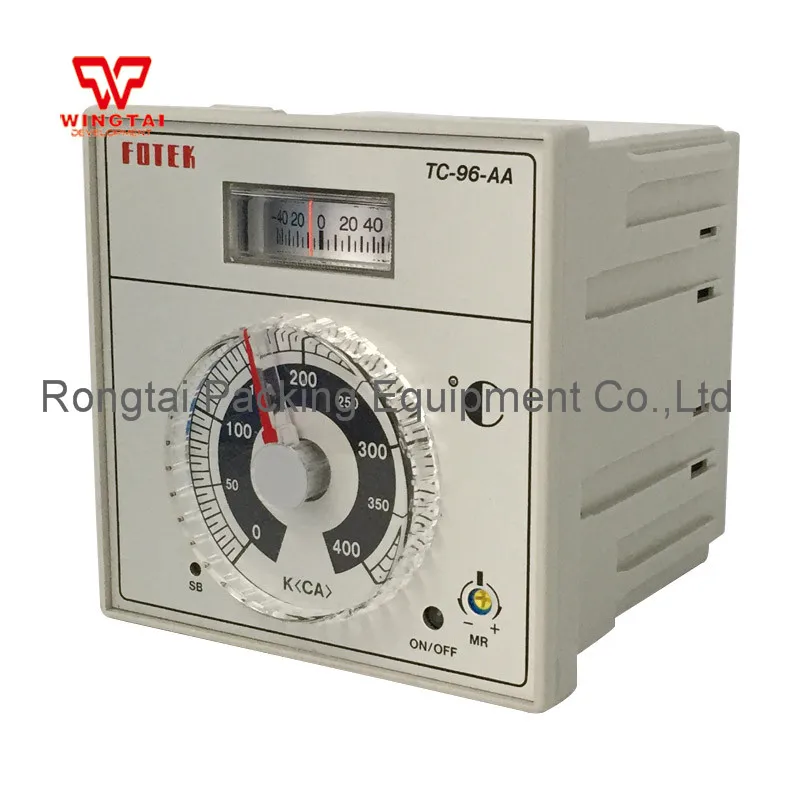

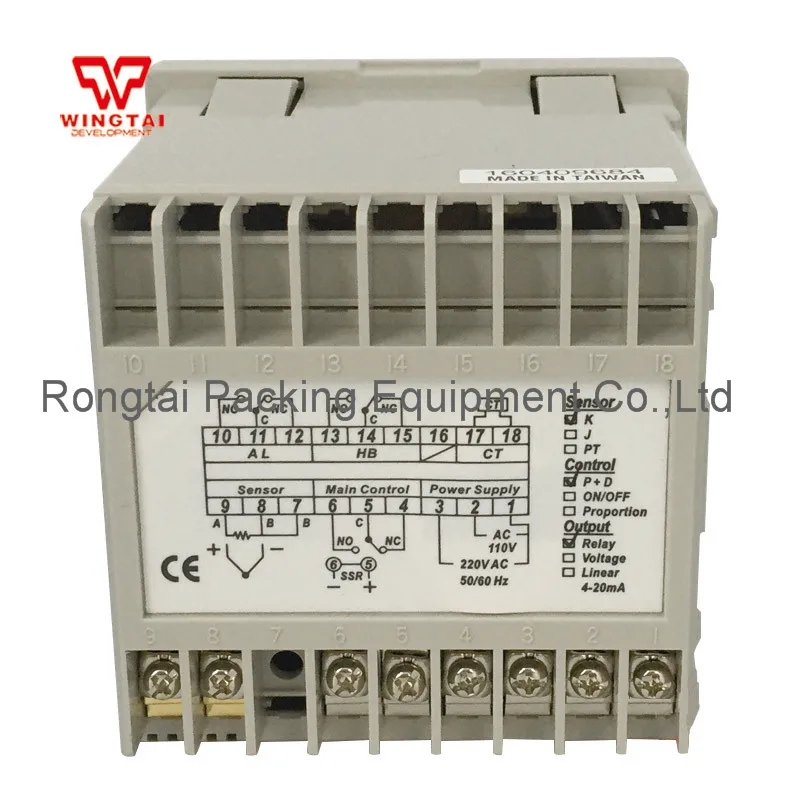

                 Taiwan Fotek Temperature Controller TC96-AA


Output Method:

Relay(5A/250VAC) ,

Voltage(20mA/12V) ,

Linear(4~20mA)

Please select the Output Method you need





Taiwan Fotek TC-96-AA Temperature Controller


Brand :Fotex

Model:TC96-AA

Control type:Temperature

Tested Object:Oven,hot runner

Temperature range:0~400°C

IP Rating:IP67

Power Supply:110 / 220VAC

Control Method:P+D,ON/OFF or Proportion

Dimensions:96*96mm

Hole size:93*93(mm)


1.High Rellability by S.M.T.&TQC.

2.With cold junction compensation,suited to operated at -20°C~+60°C.

3.All type with sensor break alarm LED.

4.With P+D control to control temperature easily.

5.High accuracy of Displaying & setting less than 0.5% of F.S.

6.With stand-by/over-heat alarm.(Optional).

7.With Heater break alarm.(Optional).


Alarm

Non

Display

Method

Analog Deviation Meter

Tolerance

1.0% of F.S.

Range

±40°C

Setting

Method

Trimmer(Variable Resister)

Tolerance

1.0% of F.S.

Range

-50 ~ +50 , 0 ~ 100 , 0 ~ 200 , 0 ~ 400 , 0 ~ 600 or 0 ~ 1200

Sensor Type

K(CA) , J(IC) or PT-100Ω

Output Method

Relay(5A/250VAC) , Voltage(20mA/12V) , Linear(4~20mA)

Control Method

P+D ON/OFF , ON/OFF or Proportion

Proportion Band

Appro 2.5% of F.S

Cycle Time

2 Sec or 20Sec (ON+OFF)

Manual Reset

Trimmer: Range±10°C

Unit of Degree

°C or °F

Electrical Data

Power Supply

110 / 220VAC ±20% 50/60Hz

Current Consumption

2.5VA max.

Insulation Resistance

Over 50MΩ/500VDC Between Power And Another Terminal

Dielectrical Strength

Over 2.5KV /1min Between Power And Another Terminal

Mechanical Data

Operation Temp./Hum

-20°C ~ +60°C ; 35%~85% RH

Vibration Resistance

10 ~ 55Hz / 1.5mm , 2Hrs in X.Y.Z Direction

Panel Thickness

1.0 ~ 8.0mm
