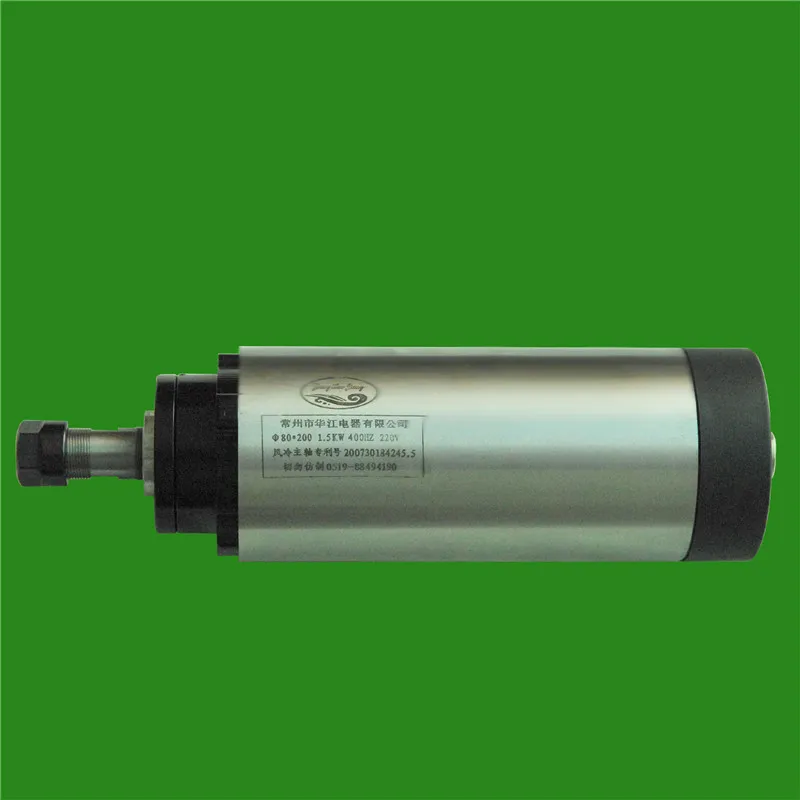

Электродвигатель шпинделя переменного тока 24000 кВт 400 об/мин 4 подшипника 80 мм В 8 А
16 368,45 руб.
E240 высокоскоростной Шпиндельный двигатель с воздушным охлаждением 300 Вт
7 179,82 руб.

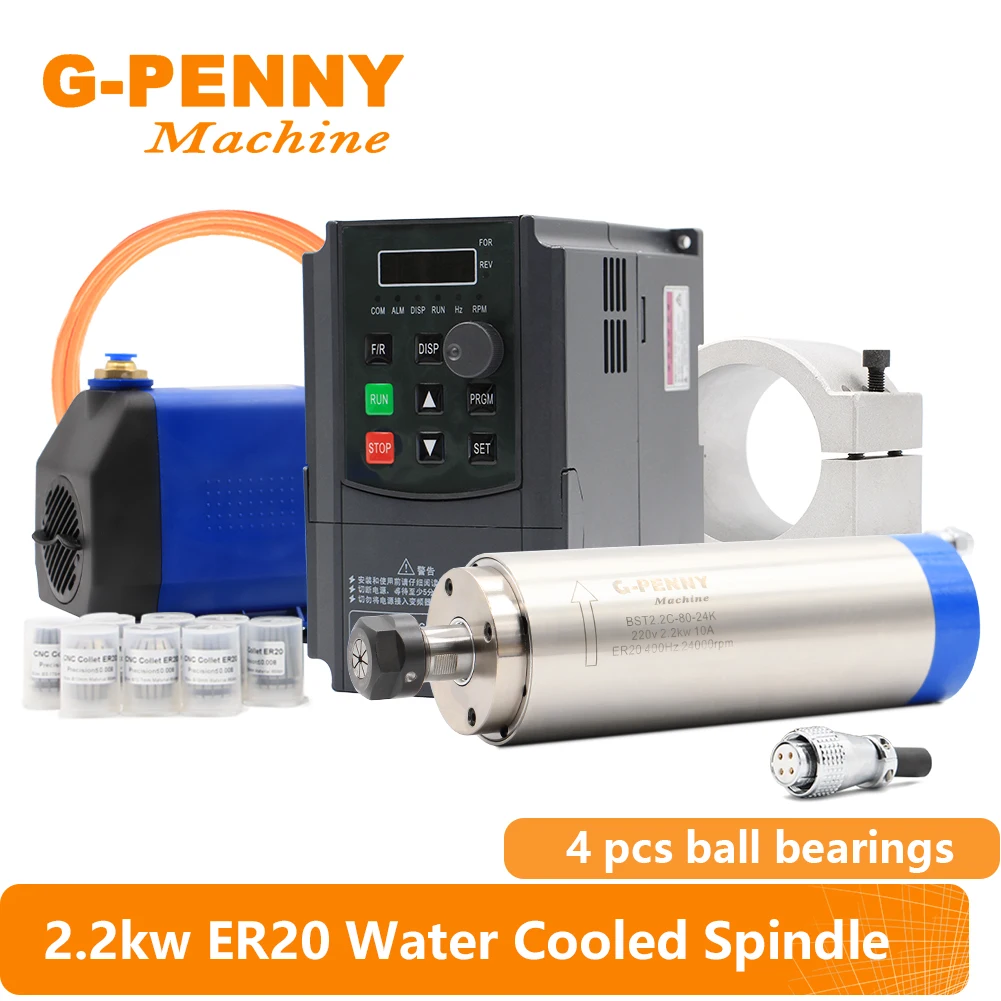

220v/380v CNC ER20 80mm Water Cooled 4pcs bearings spindle 2.2kw Frequency Driver VFD with clamping bracket water pump! | Инструменты
28 279,83 - 39 643,75 руб.
Constant power milling spindle motor 9000-18000rpm 4kw D120mm AC269V-AC380V voltage metal precision | Инструменты
US $1,196.69
New Design 2.2kw Air cooled spindle motor ER16 CNC router machine Cooling 80mm DIY 220vAC 4 bearings | Инструменты
Двигатель шпинделя 3 кВт с водяным охлаждением 105 мм 3000 Вт двигатель
42 717,50 руб.
New CWB-10KV/1000A Indoor And Outdoor Copper Conductor Wall Bushing 10KV 1000A High Pressure For Power Stations | Инструменты
US $113.40
Характеристики
2.2KW 220v Air cooled Spindle Motor Kit ER16 80mm GDZ80-2.2F+ Inverter VFD+ Mounting Bracket for CNC Router | Инструменты
История изменения цены
*Текущая стоимость US $341.25 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-19-2026 | 433.33 руб. | 442.8 руб. | 437.5 руб. |
| Jan-19-2026 | 351.59 руб. | 358.23 руб. | 354.5 руб. |
| Dec-19-2025 | 426.83 руб. | 435.2 руб. | 430.5 руб. |
| Nov-19-2025 | 423.82 руб. | 431.94 руб. | 427 руб. |
| Oct-19-2025 | 338.70 руб. | 345.65 руб. | 341.5 руб. |
| Sep-19-2025 | 416.36 руб. | 424.11 руб. | 420 руб. |
| Aug-19-2025 | 413.60 руб. | 421.20 руб. | 417 руб. |
| Jul-19-2025 | 409.44 руб. | 417.91 руб. | 413 руб. |
Описание товара
2.2KW Air-cooled Spindle Motor 24000rpm 220V 5A 400Hz ER16 D80mm GDZ80-2.2F & 2.2KW VFD Inverter& 80mm Bracket for CNC Engraving Machine
GDZ80-2.2F& FC300-2.2G-S2 & Bracket
Package Content :
1*2.2KW Spindle Motor
1*2.2KW VFD Variable Frequency Drive
1* 80mm Cast Aluminium Bracket
Spindle Motor Specification:
Providing the default Nut ER16 and Collet 6mm, if not please do contact us for a better solution.
| Type |
GDZ80-2.2F |
| Product type |
High-Speed Constant Torque Motorized Spindle Motor for CNC engraving machines |
| Rev |
24000rpm |
| Power |
2.2KW |
| Diameter |
Φ80mm |
| Voltage |
220 |
| Current |
5A |
| Frequency |
400Hz |
| Cool |
air-cooled |
| Bearing type |
2*7004 & 2*7002 |
| Lubricate |
grease |
| collet(mm) |
ER16 6mm (default) |
| repair time |
bearing(half year), spindle(one year) |
| Brand |
Changsheng(Made in china) |
VFD Specification:
| Model |
FC300-2.2G-S2 |
| Power (KW) |
2.2KW |
| Input Voltage(V) |
Input 1ph 220V 50/60Hz |
| Output Voltage(V) |
Output 3ph 0~220V |
| Output Current(A) |
11A |
| Output Frequency (Hz) |
0~1000Hz |
| Mounting dimensions(mm) |
W*H*D 135*240*170mm |
| Origin& Warranty |
China & One year |
Bracket Specifications
| Type |
Φ80mm Bracket |
| Material & Origin |
Cast Aluminium& China |
Kindly note:
- Setting the inverter must firstly set up the basal frequency, its basal frequency is based on the highest frequency of motorized spindle motor, if not setting the basal frequency (the factory setting is 50Hz),the motorized spindle motor would burn out once start running;
- the highest frequency, break frequency and the corresponding voltage also should be set according to the curve on the operating instruction; setting the current of the inverters is also based on the rated current of motorized spindle motor;
- the overcurrent is 120% of rated current; overload tripping is 100%, time is 5s;
- carrier frequency is set by the power of spindle motor,8kHz for less than 10KW motorized spindle motor, 5kHz is for more than 10KW spindle motor;
- the acceleration time and deceleration time are 10s and 20s respectively, if starting current exceed the rated current and need protection, it should extend the acceleration time.
- I/O lack-phase protection also should be set above the function of protecting inverters and motorized spindle motors.
- Connecting the inverter and the three-phase power of spindle motor, solder the inverter three-phase power cord on the plug 1(U1),2(V1),3(W1), plug 4 is ground wire. Then the inverter is connected with the external power supply and start work, then to check whether the rotation direction of spindle motor is consistent with its indication direction, if inconsistent, immediately shut down and change two wire on the three-phase power supply of connecting inverter and motorized spindle motor. The motorized spindle motor is prohibited running in the wrong rotation direction.
- Power lines should be taken waterproof and shielding measures. The connection between motorized spindle motor and inverter should not exceed 25m.When the power cord of the water-cooled spindle motor connects the terminal block, it must be bent into U shape and fixed on the bottom of the terminal block and then connect, so that can protect the condensed water of the power cord into the terminal block.
- Another, use shielding power lines to prevent its interference to inverter
