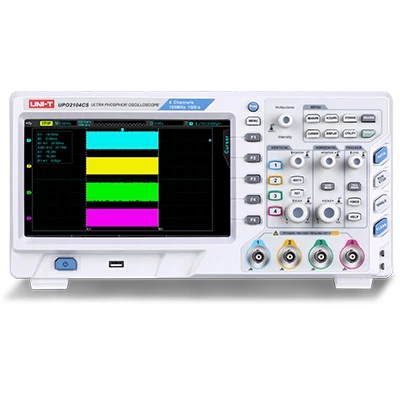

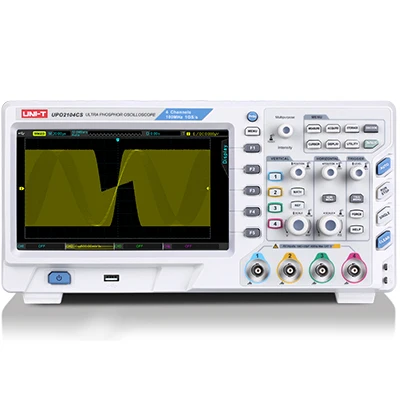

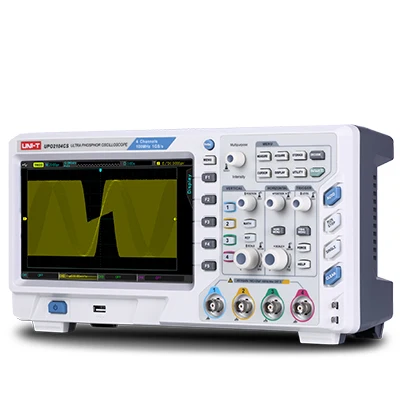

UNI-T UPO2104CS Ultra Phosphor Oscilloscopes 4CH 100MHZ Scopemeter Scope Meter 7 Inches Widescreen LCD Displays USB Interface |

Basic function / model

UPO2104CS

Analog bandwidth

100MHz

Channel number

4

Real time sampling rate

1GS/s (Dan Tongdao)

Storage depth

28Mpts (per channel)

Waveform capture rate

50000wfms/s

Time base

5 ns to 50s

Input impedance

(1M + 2%) / (20pF + 3pF)

Vertical sensitivity range

1 mV/div to 20 V/div (1 M)

DC gain precision

2% full scale

Waveform recording

Can record up to a maximum of frame waveform data

trigger

Edge, pulse width, under amplitude, over amplitude, N edge, delay, timeout, duration, build / hold, slope, video, code type;
(optional: RS232/UART, I2C, SPI)

Bus decoder (optional)

RS232/UART, I2C, SPI

Wave operation

A+B, A-B, A * A/B, B, FFT, logic operation, edit Advanced Computing

automatic measurement

Maximum, minimum value, peak to peak, the top value and the bottom end of the value, amplitude, period average value, average value, middle value, cycle RMS, root mean square value, impulse, pre washed, frequency, cycle, rising time and time, pulse width, negative pulse width, is accounted for, negative duty ratio and delay a - > b decline inDelay A to BPhase A - BPhase A - BMeasurement of area and area

Measure quantity

At the same time display 5 kinds of measurement

Survey statistics

Mean value, maximum value, minimum value, standard deviation and the number of measurements

Frequency meter

Hardware 6 bit frequency meter

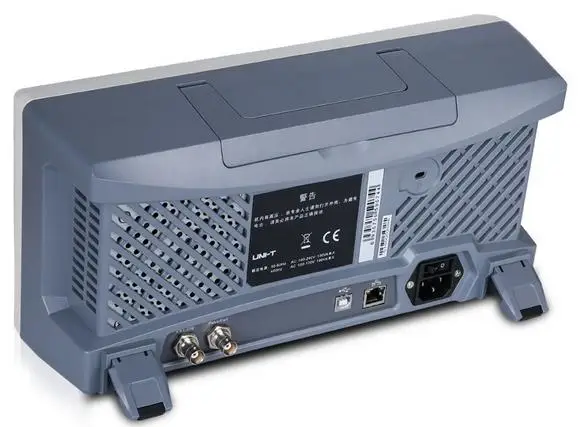

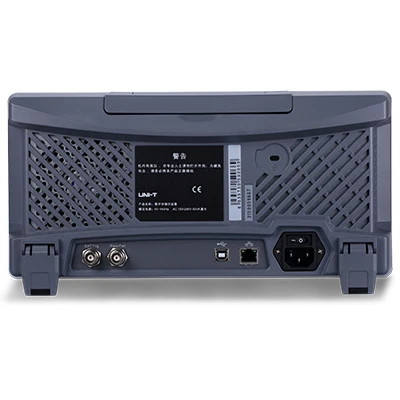

standard interface

Host USB, Device USB, LAN, OUT AUX

characteristics

Power Supply

100V ~ 240VACrms, 45Hz~440Hz

LCD size

8 inches LCD TFT, WVGA (800 x 480)

body color

Ivory white + gray

Body weight

3.5Kg

Body size (D * H * W)

105mm * 163.8mm * 336mm

Standard accessories

Probe X 2 (1 x, 10 x 2 channel) or probe X 4 (1 x, 10 x 4 x), power cord, power cord, USB cable, software CD

Standard packing

Carton, use manual

Standard packing quantity

2 Taiwan

Standard packing size (L * W * H)

325mm * 220mm * 550mm

Standard packing gross weight

9.5Kg

Optional accessories

LA module, 25MHz function / Arbitrary Waveform Generator
