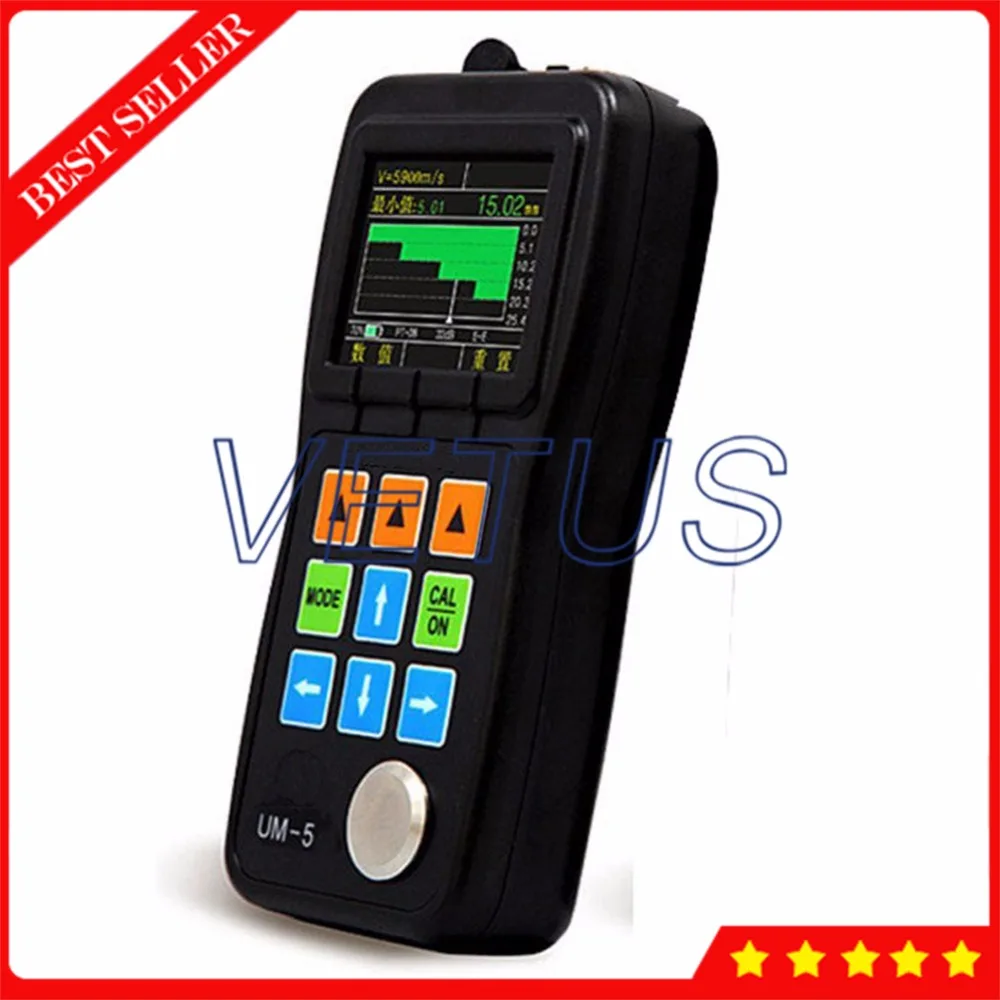

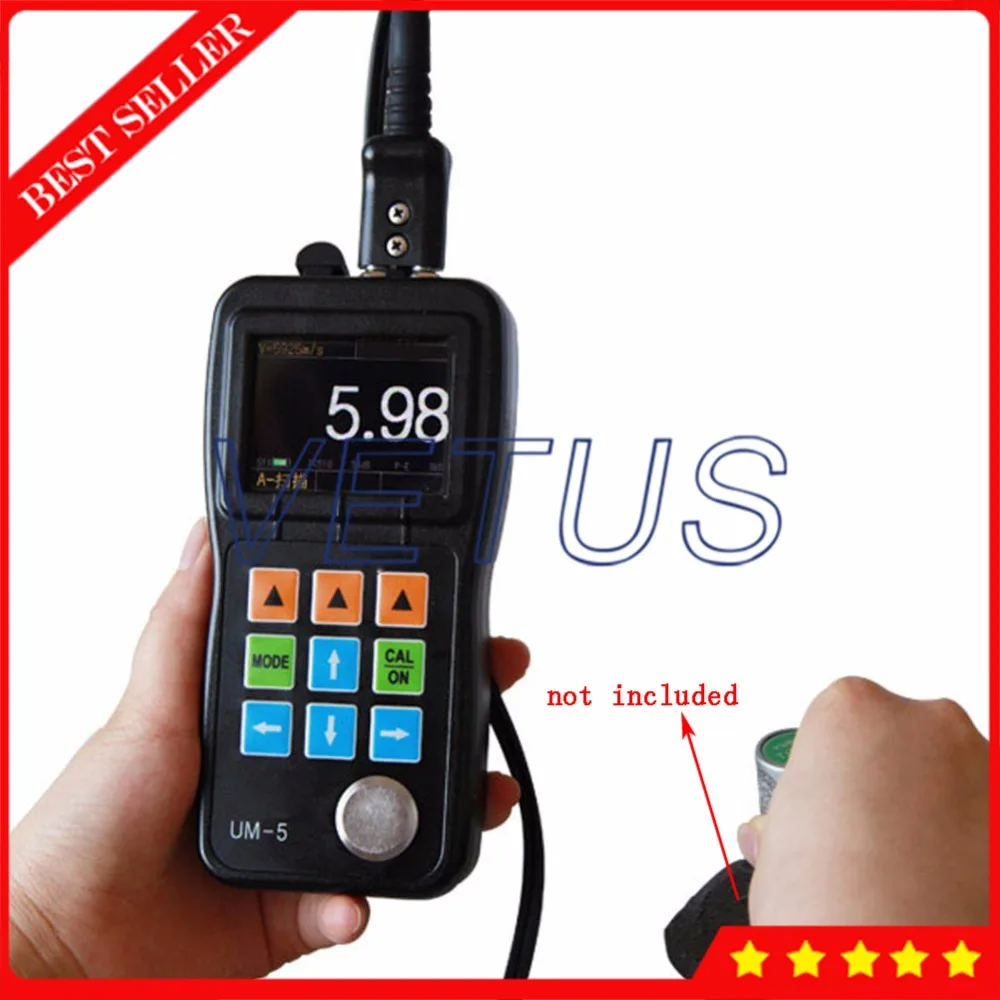

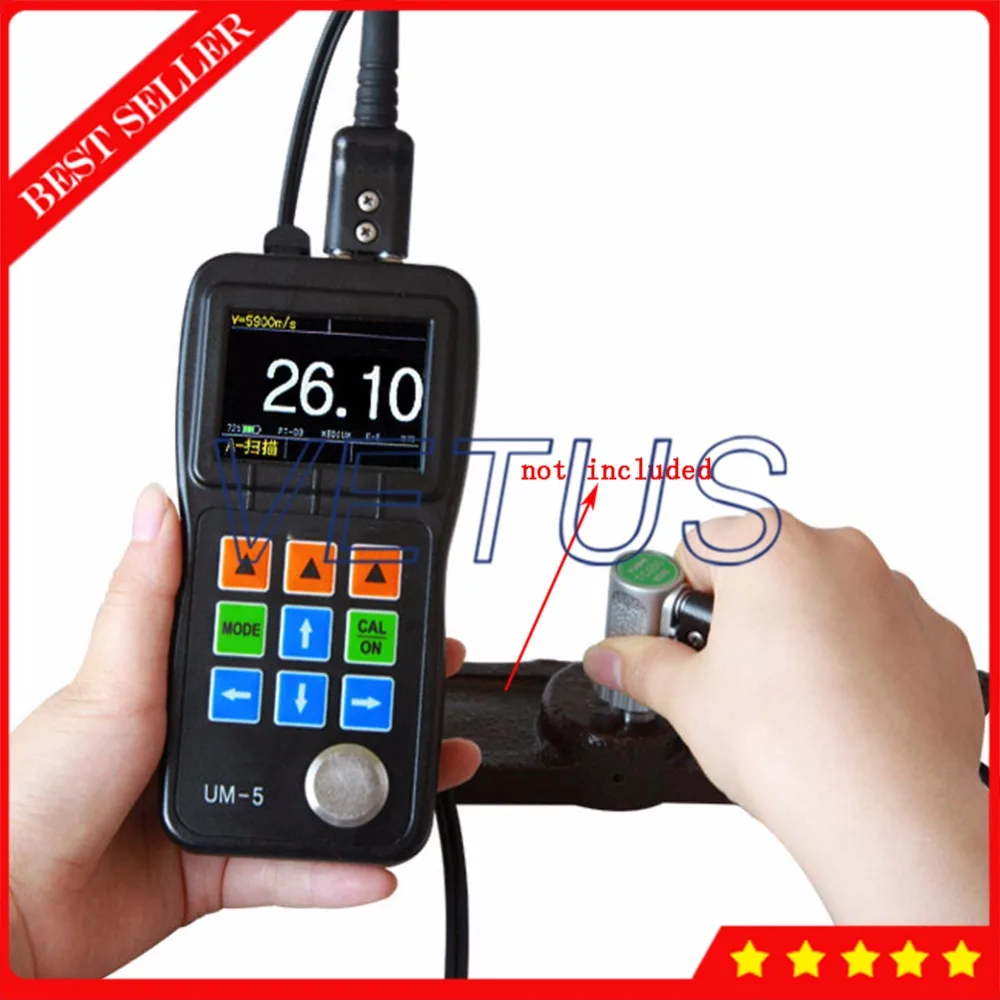

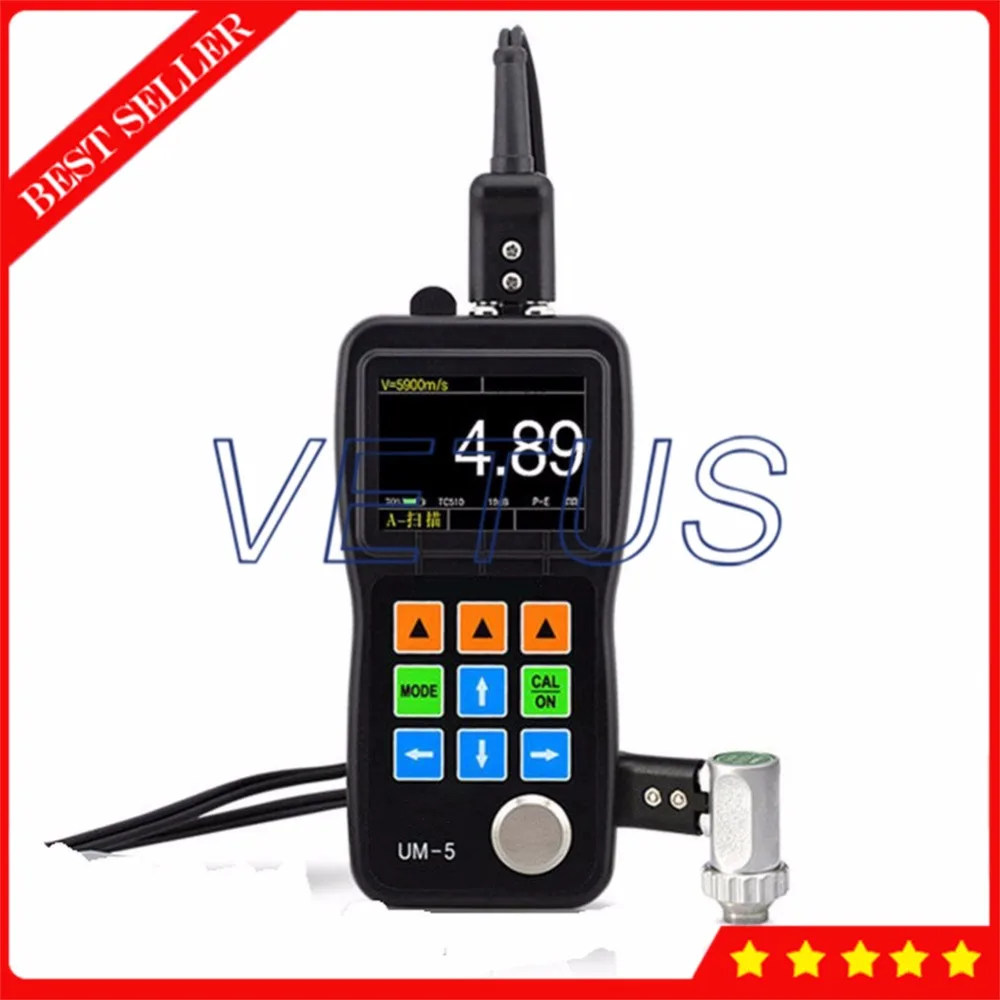

0.50mm-508mm A/b-Scan Digital Ultrasonic Thickness Gauge UM-5 for plastic glass metal steel thickness measurement tester

Application: UM-5 Series A/b-Scan Ultrasonic Thickness Gauges is used for measuring the thickness of metal materials, pipes, pressure vessels, sheet metals (steel, aluminum), plastic, steel pipes, PVC pipes, glass and other materials. Also be widely used in manufacturing, metal processing industry, chemical industry, industry inspection and testing field.   Brief Introduction：   2.4 Color OLED, 320×240 Pixels Display, Live Time A-Scan and Thickness Display, Time-based B-Scan Display, Echo-Echo Mode(Thru Paint & Coatings), Stores 100,000 Measurement Values and 1000 waveforms, etc.   UM-5 Operation Principle The ordinary ultrasonic thickness gauge with the principle pulse/echo method could do the test by the following two conditions.  1. The first underside echo must be higher than the gate. (The height of the electrical level of the gate is  unadjustable) 2. No other noise waves before the first underside echo are higher than the gate.  (Otherwise, we will get the thickness where the noise wave are produced)    For some conditions, the above situations could not be satisfied,for example, the highly corrosive near surface, coarse-grain materials (e.g. cast iron),aluminum, small diameter pipes, super thin sheet, super thick plate, rough surface, nonuniform inner structure, defect contained workpiece, lamination and so on which could not be tested by the ordinary gauges.    UM-5 will solve the above problems easily：  1. Make the first underside wave higher than the gate by adjusting the gain and height of the gate。  2. Invalidate noise waves before the first underside wave by the function of blanking.   MAIN FEATURES OF UM-5 Live Color A-Scan User could directly see the color waveform of the ultrasonic sound (or A-scan) on the screen, which is quite important for the occasions that we need to check the correctness of the testing results. Many cases will cause wrong testing results or even no readings. We could find the causes easily through the A-scan. Adjust the three parameters of GAIN, BLACKING, GATE, and then we will get the right readings.The uses for waveform: testing the correctness of thickness readings, finding out the causes of impacting the testing, and adjusting the parameters to solve the problems. GAIN ADJUSTMENT Adjust the amplification factor of echo signal, increasing and reducing by 1 dB by hand. It is quite effective for acoustic attenuation materials (e.g. cast iron).   BLANKING Invalidate the waves within the red blanking strip, and omit the useless noise waves that impact the measuring like the waves caused by the rough surface or nonuniform inner structure.    GATE                            The gauge will get the reading only when the wave is omit the front noise waves by blanking higher than the gate. So the adjustable height of gate is very important, especially for the applications of low echo signals (e.g. super thin sheet, super thick plate) RED ARROW The first intersection point between the waveform and gate is pointed by a red arrow, which can help judging whether the thickness value is correct (the red arrow should point the front of the first bottom echo if correctly tested).   RANGE  Adjust the wave scope on the screen, and they are visually compressed or spreaded. Without the correct wave range, the wave may be out of the screen, but the right reading will still show. DELAY  Tthe initial position of the wave on the screen, the wave will be moved visually. Without the correct wave range, the wave may be out of the screen, but the right reading will still show.The functions of RANGE and DELAY could magnify any section of the wave showing on the screen.   Live ColorB-Scan  UM-5 series thickness gauge has time-base B-scan function. Move the probe along the workpiece surface, then the cross-sectional profile of the workpiece display, use for observe the underside contour of the workpiece. When remove the probe from workpiece, it could be automatically capture a minimum value of the B-scan image, and indicate the position of the minimum by a red triangle. You can see any point thickness value of the B-scan image by moving the pointer.   RecitifIcation Modes:four modes selective RF：describe the whole echo waveform；  Half+：Show the Half -Wave positive without the Half- Wave negative；  Half-：Show the Half-Wave negative without the Half-Wave  Negative； FULL： show both the Half-Wave Positive and  upturned Half-Wave Negative.   More Practical Functions DIFFERENCE/RATE DIFF/RR%：This interface displays the currently measured and a nominal thickness input by user, the difference between the currently measured thickness and the nominal thickness and the ratio between the difference and the nominal thickness. Before using this mode, presetting the nominal thickness is needed. Max./Min. Capture：On this mode, the current thickness, minimum thickness and the maximum thickness will be shown on the screen at the same time. You could drag the probe along the surface of the work, and the minimum and maximum will be shown automatically on the screen. Alarm Mode：Dynamic  waveform color change on alarm Update Rate：Update the rate of measurement result. Optional 4Hz, 8 Hz and 16Hz. Multi- Languages Available：English、Chinese、Japanese,etc.

Specifications of UM-5 Series Ultrasonic Thickness Gauges
Display	2.4" color OLED, 320 X 240 pixels, contrast 10,000:1
Operating Principle	Pulse echo with dual element transducers
Measuring Range	0.50mm to 508mm(0.025" to 20.00"), depending on material, probe and surface condition0.
Limits of Tube (Steel)	Φ20mm×3.0mm(Standard probe)
	Φ15mm×2.0mm(PT-06 probe)
	The measuring error is up to ±0.1mm
Resolution	Selectable 0.01mm,0.1mm( 0.001",0.01")
Gain	Adjustable
Probe Calibration	One-Point Calibration, Two-Point Calibration
Measuring Error	±0.05mm (Low limit to 25mm)
	±0.2%H(25mm to 100mm)
	±0.5%H(100mm to Up Limit)
Update Rate	Selectable 4Hz, 8Hz, 16Hz
Material Velocity Range	500 to 9999m/s (0.0197 to 0.3937in/us)
Stability of the Values	Based on full digital technology, with zero cross measurement technology, the measured value will not be affected by echo intensity, material attenuation coefficient, gain and the height of gate, keep high measurement stability and reliability.
Repeatability	±0.05mm
Display Mode	Normal, Minimum / Maximum capture, DIFF/RR%
V-Path Correction	Automatic
Languages	Selectable Chinese, English, Germany, etc.
Alarm Settings	Minimum and Maximum alarms.
	Dynamic waveform color change on alarm
Power	2 AA size batteries(not included)
Operating Time	Approximately 40 hours
Instrument Shut-off：	Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Capacity	100,000 readings, 1000 waveforms, 400 files
Operating Temperature	-10°C to +50°C (+10°F to +120°F)
Size	153mm × 76mm ×37mm(H × W × D)
Warranty	1 year
Weight	200g(including batteries）

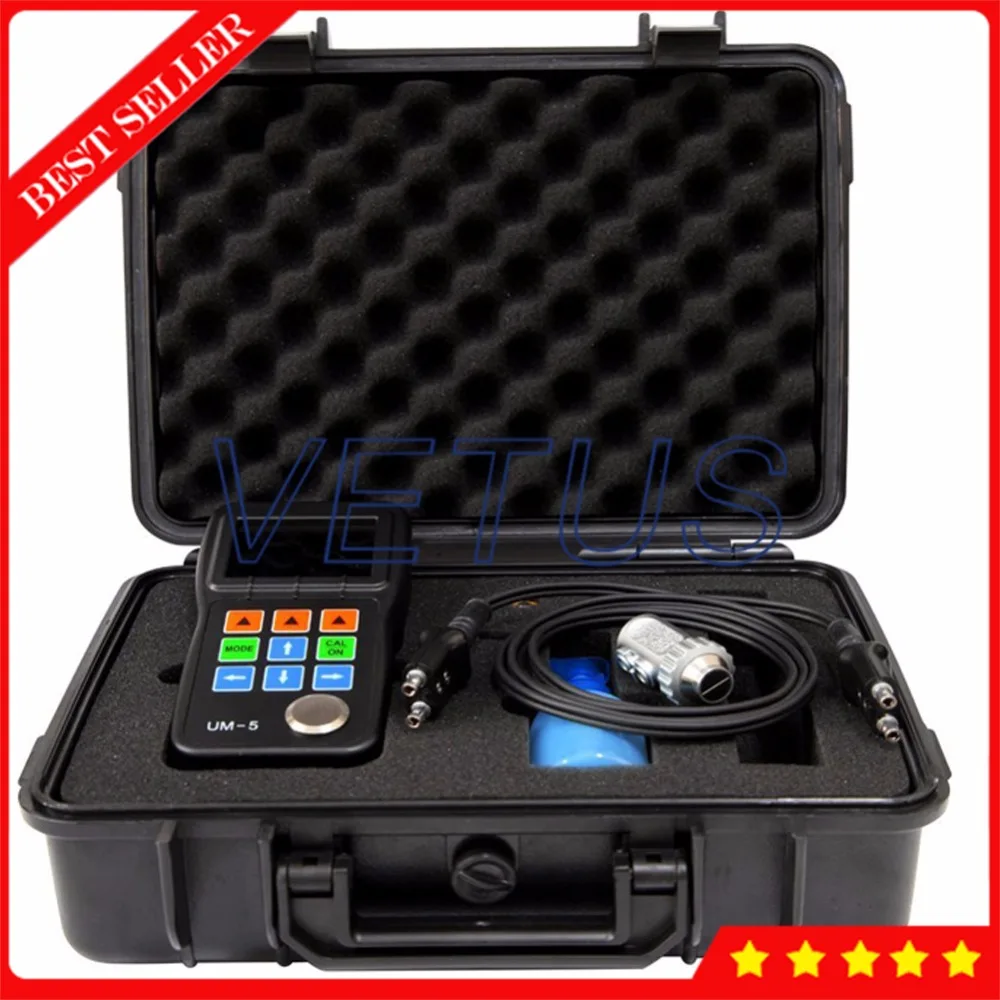

Standard Configuration	Ultrasonic Thickness Gauge,Standard Probe,Instrument Case,Couplant Bottle,Operating Manual, Certification, Packing List.
Optional Accessories	Various Probes, Probe Cables, Step Calibration Blocks, Communication Software and Rubber Bumpers.
