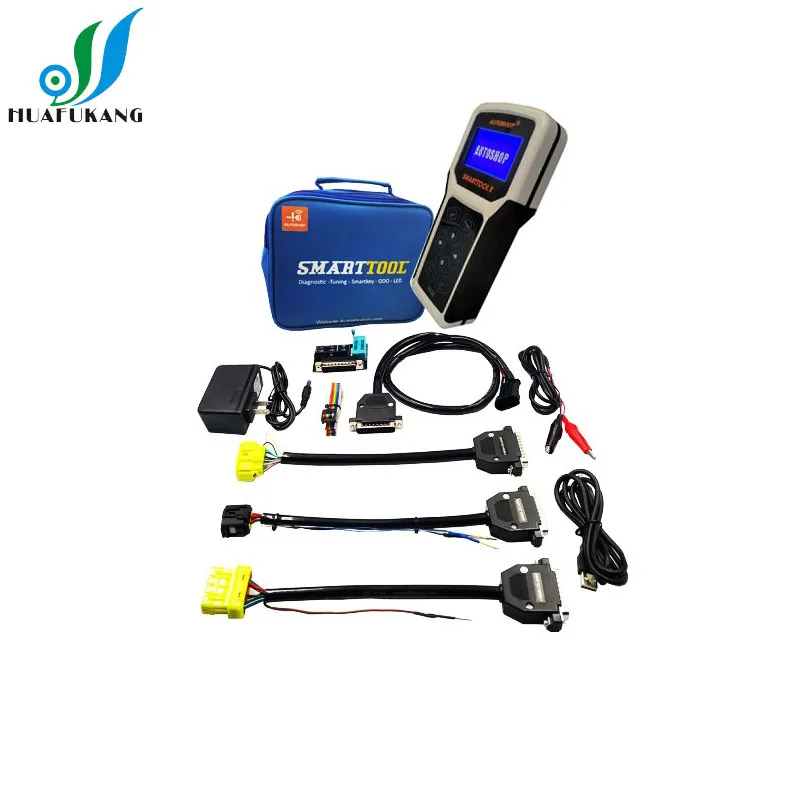

Smart key/ Keyless for Honda Yamaha and Suzuki motorcycle key programmer SMARTTOOL ECO Programming smartkey | Автомобили и

WHEN YOU place order please read clearly for the functions OPEN :

A model :  smart key with ODO （ Without Tmax yamaha )

B model :  Smart key full Tax   ( with all smart key functions)

C model  ： ODO  functions only

D model : smart key (without tax)

Top 11 reasons to choose from us

  1. Professional manufacturer and distributor of fault diagnosis equipment

  2. Distributors nationwide and a lot of countries around the world

  3. The technical support team is enthusiastically consulted and guided

  4. Pay with PayPal, Bank transfer or Western Union

  5. Best quality product

  6. Competitive price

  7. Fast delivery from 3-5 days

  8. Being a reliable sales unit

  9. Distributors in Europe, Asia, America and Africa

10. One year warranty and lifetime after-sale service

1. Smart key/ Keyless Honda, Yamaha and Suzuki

• Read KEYID from smart box

• Read ECMID from smart box

• Erase key lost

• Erase the missing key code

• Reflash EEPROM data of smart box

• Register new keys in the all keys lost case.

• Add key by key

• Check the synchronization between key and smart box

• Change ON / OFF key status

• Sync smart box and ECM automatically

• Replace new ECM

• Register up to 6 keys at once bike Honda

List:

• HONDA:AIRBLADE (2018-2020), CLICK 125i (2018-2020), LEAD 125 (2017-2020), PCX( 2016-2020), SH 125/150/300(2016-2020), SH MODE ( 2016-2020), VISION (2018-2020), VARIO 125/150 (2018-2020), X-ADV 750, FORZA 300 ( 2018-2020).

• YAMAHA : AEROX (2018-2020), GRANF FILANO, JANUS ( 2018-2020), NVX(2018-2020) , QBIX, XMAX,T-MAX 530i, T-MAX DX, T-MAX SX SPORT, T-MAX IRON MAX.

• SUZUKI: RAIDER FI (2016-2020), GSX FI (2016-2020).

2. PIAGGIO/ VESPA

• Register the new keys in the all keys lost case.

• Reset, erase all keys of IC / ECM.

• Support register new keys.

• Support list : AC13I, AC191, AC19I, AC20I, AC21I, AC23I, AC24I, AC25I, AC27I, AC32I, AC5I, AC8I, ACI600, AC601, ACI602, ACI603, ACII, AC2I, AC5I, AC8I, AC13I, MIU1, MIU2, MIU G3/RIU1, MIU4, PGU09, PGN04/PGS02/PGS06/PGT01.

•


Notice:To do Yamaha Tmax,need charge extra software fee!  need to get Authoriztion for TMAX and with 1 cable

For HONDA,YAMAHA,SUZUKI,PIAGGIO.

3. Odometer adjustment

• Read the current mileage

• Correct odometer value of motorcycle dashboard.

• Restore the original data

• Automatic correct odometer

• All moto, motobike Honda, Yamaha, Suzuki, Kawasaki and Piaggio

List of bikes:

HONDA

• Airblade (2013-2019)_EEPROM_93C66

• Airblade 125/150 2020_EEPROM_242C04

• Click (2013 -2020) _EEPROM_24C04

• CBR 15DR/150/250/1000_EEPROM_24C04

• Dylan 125_EEPROM_24C02

• Msx 125/150_EEPROM_93C66

• Future Neo_EEPROM_93C46

• Lead 125 (2013-2020) _EEPROM_93C66

• PCX( 2008-2019) _EEPROM_24C04

• PCX HYBRID 2020 _EEPROM_24C04

• SH 125/150/300(2015-2016) _EEPROM_93C56

• SH 125/150(2017-2019) _EEPROM_93C66

• SH 125/150 2020 _EEPROM_24C04

• SH 300I(2008-2016) _EEPROM_93C66

• SH 300I(2007) _EEPROM_93C56

• SH Mode ( 2015-2020) _EEPROM_93C66

• Sonic 125_EEPROM_93C66

• Vario 125/150 (2013-2020) _EEPROM_24C04

• Wave 125_EEPROM_93C46

• Winner 150 _EEPROM_93C66

• Winner X 2019_EEPROM_24c04

YAMAHA:

• Aerox PIC16F1947 read and write EEPROM

• Janus PIC16F1947 read and write EEPROM

• Nvx PIC16F1947 read and write EEPROM

• TFX PIC16F1947 read and write EEPROM

• MSLAZ PIC16F1947 read and write EEPROM

• Acruzo_EEPROM_93C66

• Exciter 150 (2014-2017) _EEPROM_93C66

• Exciter 150 (2018-2019) _EEPROM_93C66

• Fz150/150i/FZ16_EEPROM_93C66

• Grande_EEPROM_93C66

• Novo LX/4_EEPROM_93C56

• Novo SX/5_EEPROM_93C66

• Qbix_EEPROM_93C56

• R1/R15/RR15D_EEPROM_93C46

• Free Go 2019_EEPROM_93c66

PIAGGIO/VESPA

• Liberty( 2017-2019) _EEPROM_93C66

• Primavera (2017-2019) _EEPROM_93C66

• Sprint (2017-2019) _EEPROM_93C66

• Liberty( 2014-2016)_MCU R5F

• Primavera (2014-2016)_MCU R5F

• Sprint (2014-2016)_MCU R5F

SUZUKI

• An150_EEPROM_93C56

• En 150_EEPROM_93C56

• Raider (2012-2015) _EEPROM_93C66

• Gsx ( 2009-2015) _EEPROM_93C66

• Gsx Fi (2016-2019)_MCU R5F

• Raider Fi( 2016-2019)_MCU R5F

KAWASAKI

• Z1000R/Ninja_EEPROM_93C46

• Z125, NINJA 250, VERSY 650, Z300, Z900

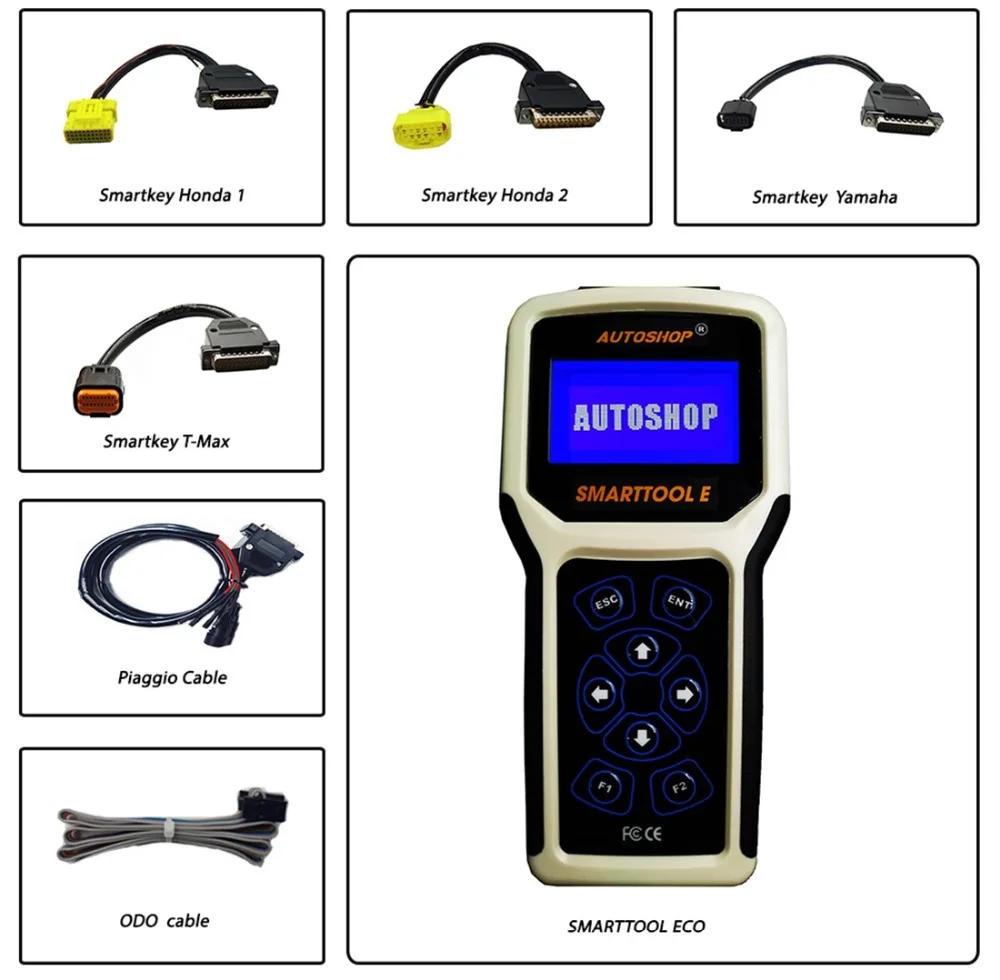

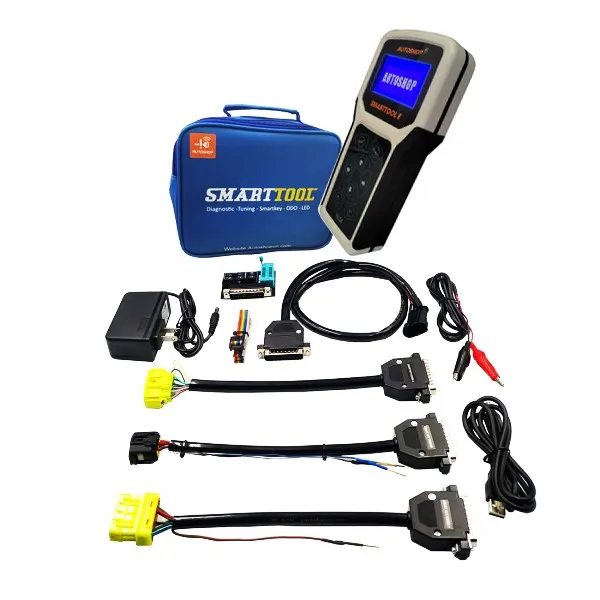

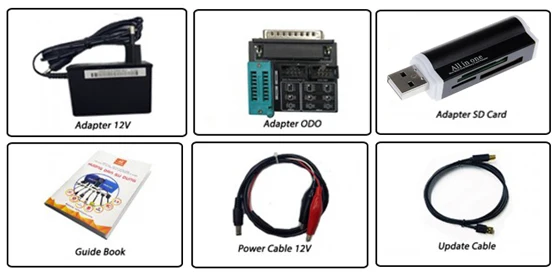

4. List of accessories
