Описание товара

SGP3000 DDS source generator / trigger pulse wave train output /PWM test remote control | ИнструментыSGP3000 DDS source generator / trigger pulse wave train output /PWM test remote control | Инструменты

SGP3000 series

Whole process control DDS signal generator



SGP3000 series DDS signal generator is the launched a cost-effective and convenient client system integrated product signal generator assembly, instrument adopts large scale FPGA integrated circuit and high-speed MCU microprocessor, the internal circuit adopts active crystal as the reference signal, high stability. Surface mount technology greatly improves the anti-interference and service life of the instrument. Display interface using LCD1602 LCD display, divided into two lines up and down display, the above line shows the current frequency, the following line shows variable other parameters or functions. The instrument has great advantages in signal generation, waveform scanning, parameter measurement and application. It is an ideal test and measurement equipment for electronic engineers, electronic laboratories, production lines and teaching and scientific research.

The two digit 00 in the SGP3000 series instrument model represents the sine wave frequency upper limit (MHz) of this type of instrument. Example: SGP3002, 02 means that this type of sine wave output frequency up to 2MHz.

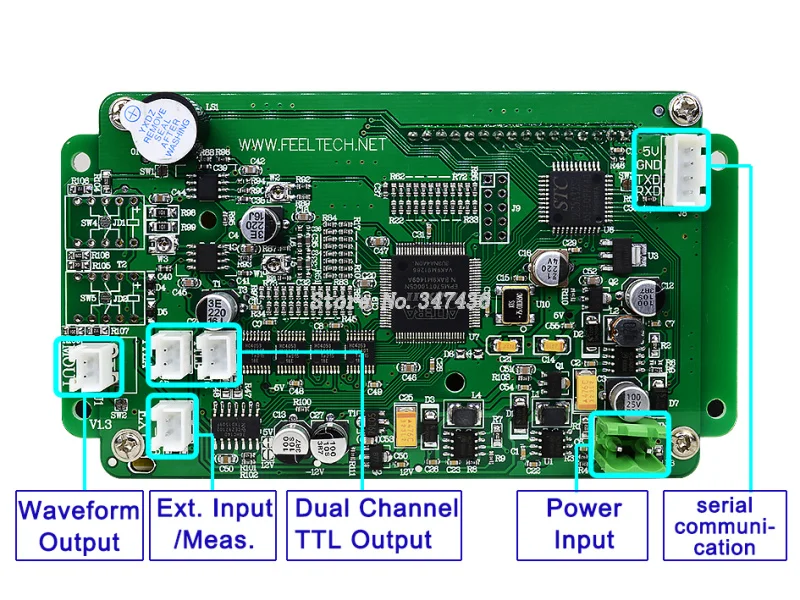

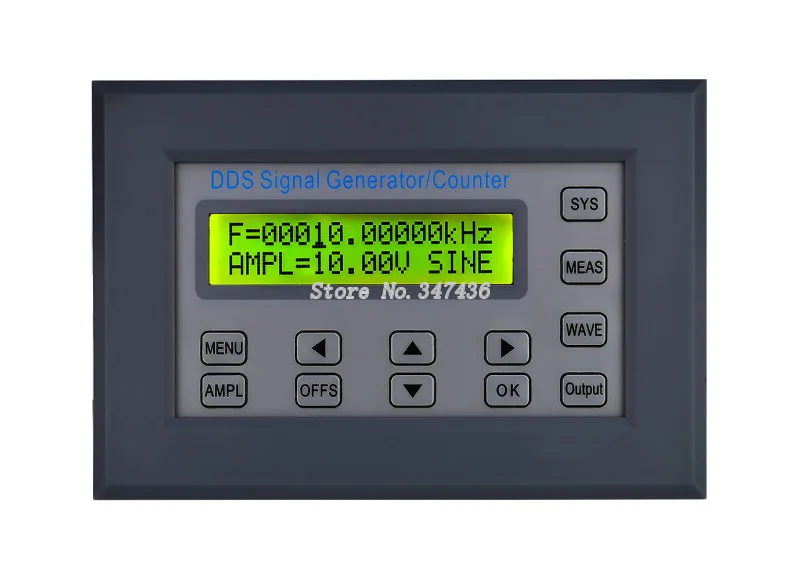

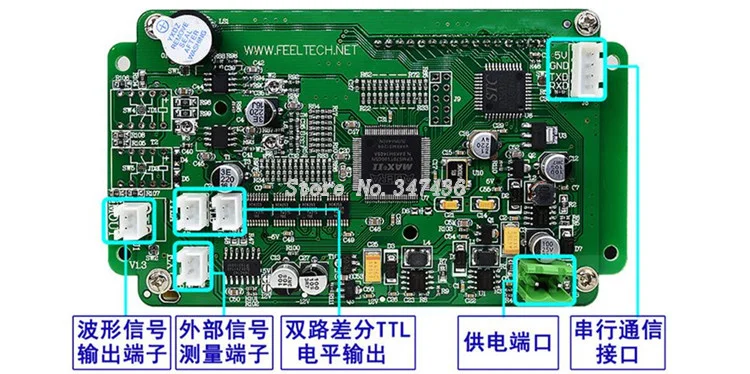

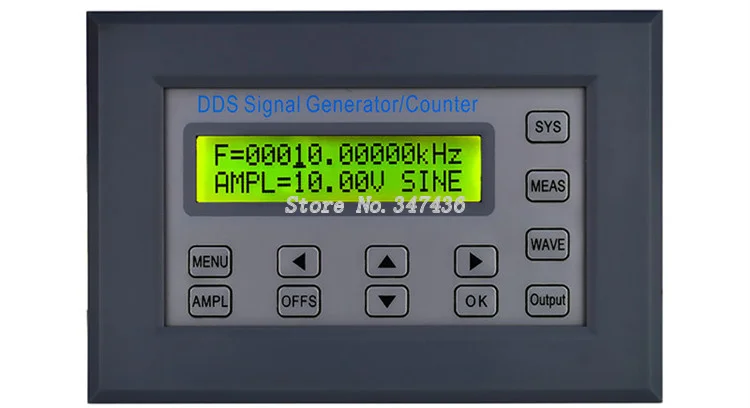

  The front view of the SGP3000 is shown below:   The back view of the SGP3000 is shown below:





Reminder

1, SGP3000 series function signal generator all interfaces are from the back of the circuit board, the instrument comes with all the interface connection line. 2, the default DC12V power supply, if you need DC14V~DC35V power supply, you can contact customer service customization!



3, this product has Chinese mask and English mask two versions (LCD content is in English), photographed can leave a message what kind of version, no message of random delivery.

1., signal stability is high The instrument uses active crystal oscillator as the benchmark, and the frequency accuracy can be achieved10-6Order of magnitude 2. waveform diversity Can output sine wave, Fang Bo (dutycycle adjustable), triangle wave, pulse wave (pulse width can be accurately set up), sawtooth wave, sawtooth wave, drop four pulse square columns, eight square columns and other common waveform signal. It is worth mentioning that the market has a few thousand dollars less than the instrument of pulse wave function, the instrument of pulse wave pulse width can be accurately set between 10nS-1S, pulse width and frequency can be adjusted independently in any frequency, the pulse width can be set by the user to maintain a fixed value. This function is very useful in the field of control and measurement. 3. measuring functions are diverse Shortcut key operation, with a key to enter the measurement function. The instrument not only has the function of 60MHz frequency meter, but also has a counter with 10 bits and 10 decimal numbers. 4. bias level adjustment precision The bias level of the instrument can be adjusted continuously between -10V and +10V. This function is essential in the field of sensor experiment, signal simulator, teaching experiment and so on. For example, a small signal with an amplitude of 1V and a bias of 2.5V is input to the comparator circuit 5. powerful sweep function This machine can realize two scanning modes, linear sweep frequency and logarithmic frequency sweep mode. The maximum sweep time can reach 999 seconds, and the starting frequency and the termination frequency of the sweeping frequency can be arbitrarily set. 6. accurate burst function Burst function can accurately control the instrument output 1-65536 pulse string; 7. powerful communication This instrument can be used independently, and can control all its functional parameters through the serial port, the communication protocol is open, convenient for the two development of the user. 8. panel layout reasonable This instrument has the advantages of small volume, powerful function, all parameters are the key operation, a large number of shortcut keys, as much as possible to reduce the key reuse, flexible parameter setting the functionality you need to make your operation always others quickly step! 9. flexible boot storage The instrument supports one key access storage and loading function, which can store the instrument state parameters of the 30 groups of users, can be called out at any time, and greatly facilitates the operability of the user. 10. flexible and convenient installation method This instrument adopts embedded panel mounting structure, which is convenient for users to integrate product and equipment. 11. can choose power module The maximum output voltage of the machine is 20V, and the output current is less than 80mA. It can satisfy the application in most occasions! If this signal still can not meet your needs, in order to solve some of the need for greater amplitude and current applications, we can also support the use of power amplifier module. The company has 30W, 60W, 100W high-power and 10MHz bandwidth power amplifier, if you need to buy a friend, you can consult the customer service!

Product specification SGP3002 SGP3005 SGP3010 SGP3015 SGP3020
  0Hz - 2MHz 0Hz - 5MHz 0Hz - 10MHz 0Hz - 15MHz 0Hz - 20MHz
  0Hz - 2MHz 0Hz - 5MHz 0Hz - 5MHz 0Hz - 5MHz 0Hz - 5MHz
  0Hz - 2MHz 0Hz - 5MHz 0Hz - 5MHz 0Hz - 5MHz 0Hz - 5MHz
  0Hz - 2MHz 0Hz - 5MHz 0Hz - 5MHz 0Hz - 5MHz 0Hz - 5MHz


  0~20Vp-p()
  50Ω±10%
  ±10V
  0.01Hz(10mHz)
  ±5×10-6
  ±2×10-6/3
  ≤0.8% ( 1kHz)
  ≥98% (0.01Hz~10kHz)
  ≤30ns
  1%~99%
  10nS~1S
TTL
  >3Vp-p
  >20 TTL
TTL ≤20ns

  0-4294967295
  1Hz~60MHz
  1Vp-p~20Vp-p



  M1~M2
  1s~999s/

  LCD1602
  M0-M19(M0:)
  120mm ()×70mm() ×30mm()
  350g



  0~40 80%
  DC12VDC14V-DC35V
