1, working voltage: the default delivery DC12V

3, working temperature: - 40 ℃ to + 80 ℃
4, receiving sensitivity: p - 105 DBM
5, working frequency: 315/433 MHZ (optional)
6, the output current: 3 A or less
7, weight: 0.2 KG

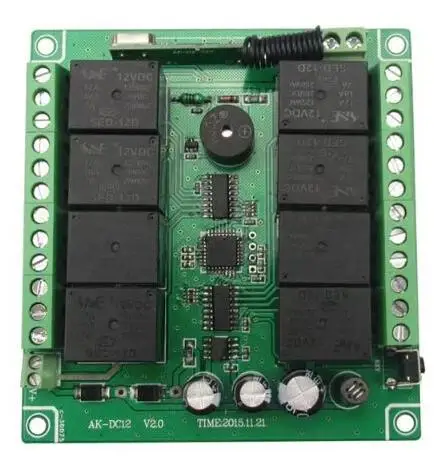

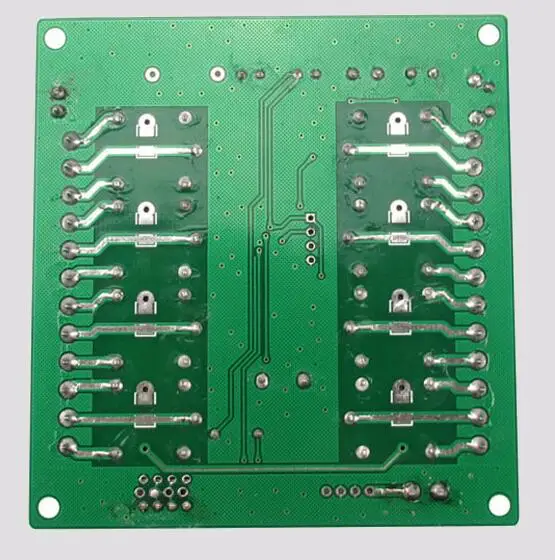

8, size: circuit board: 86.95 * 92.6 * 92.6 mm shell: 90.2 * 115 * 40 mm

Output way
jog - press 1 learning
 inter-lock, press 2 l study
self-lock, press  3  learning
jog 1-4, 5-8 road self-lock, press the 4 key learning
jog 1-4, 5-8 road  inter-lock, 5 key learning
1-4 road inter-lock, 5-8 road self-lock, press the 6 key learning
1-4 road inter-lock, 5-8 road jog, press 7 key learning
1-4 road self-locking, 5-8 road jog, press 8 key learning

Learning methods and steps
1, press the receiver learn key - the buzzer sounded, said the state of learning,
2, press any key, remote control buzzer to stop noise, says it has learning success.
remove information
Push the receiver to learn long until the buzzer sound stops, said the stored information has been successfully removed

The learning method and the step

1, press the receiver learning key - the buzzer, said to enter the learning state,

2, press the remote control button, the buzzer stops any noise, said to have success in learning.

Clear stored information

Long press the receiver button until the buzzer sound to stop, said the stored information has been successfully cleared.

Note:433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

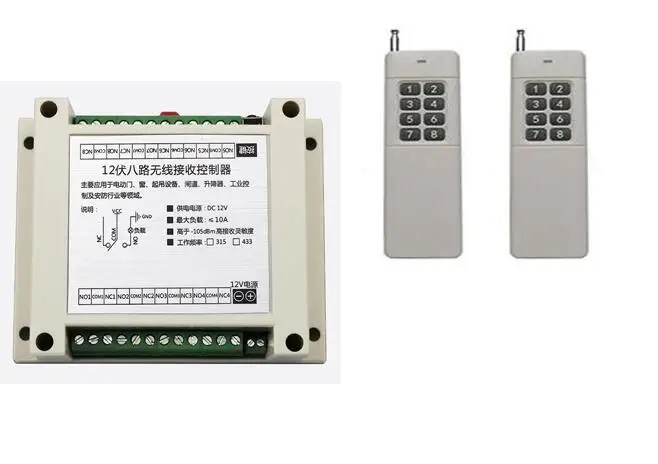

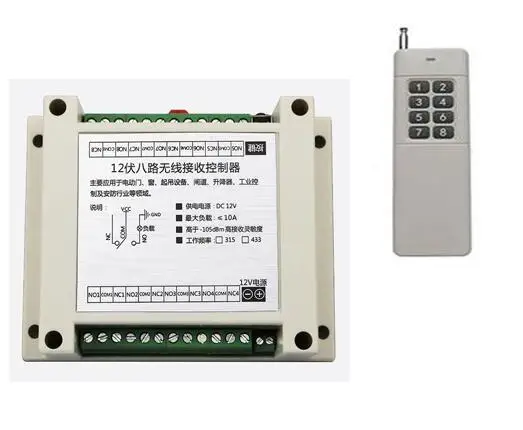

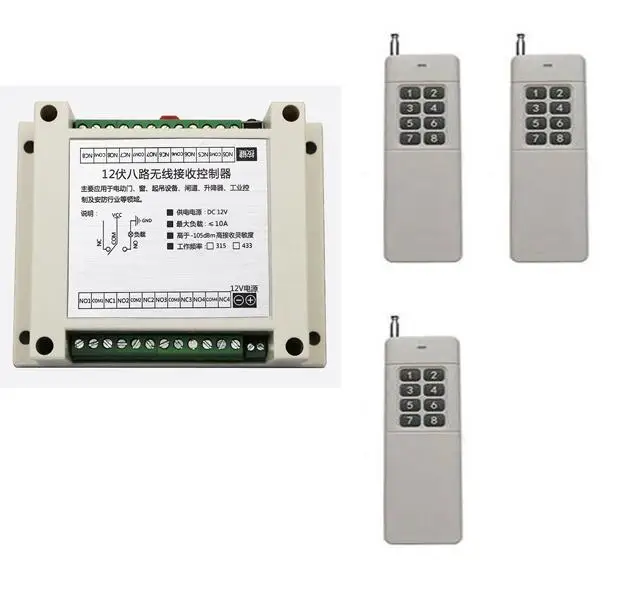

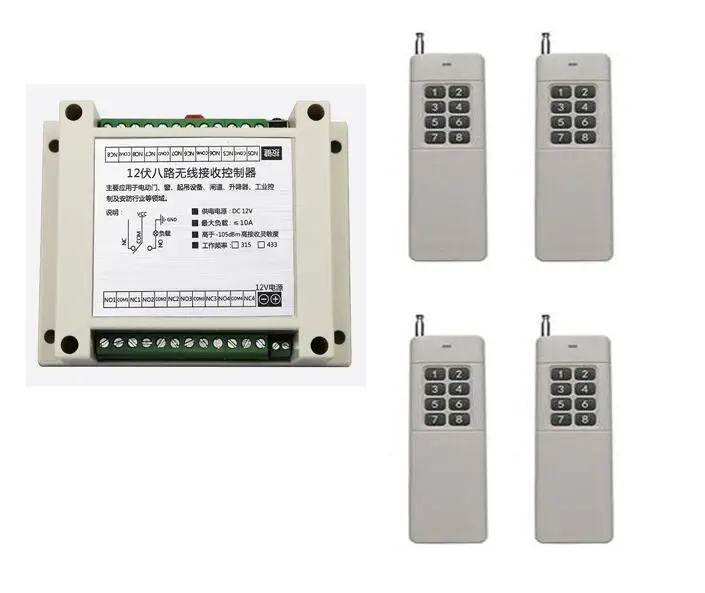

package included:
1*receiver
1~4* transmitter
