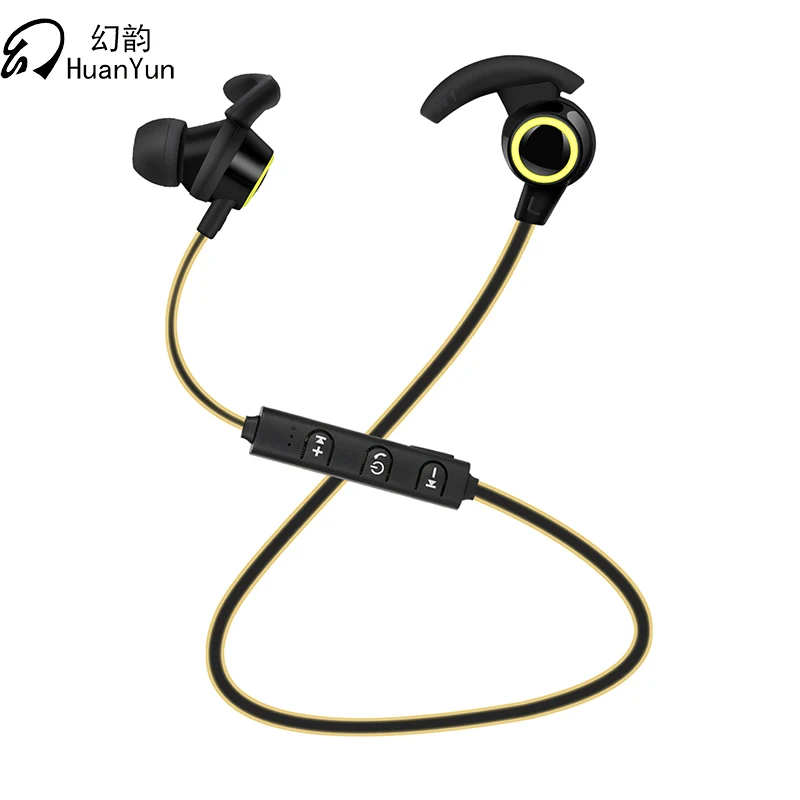

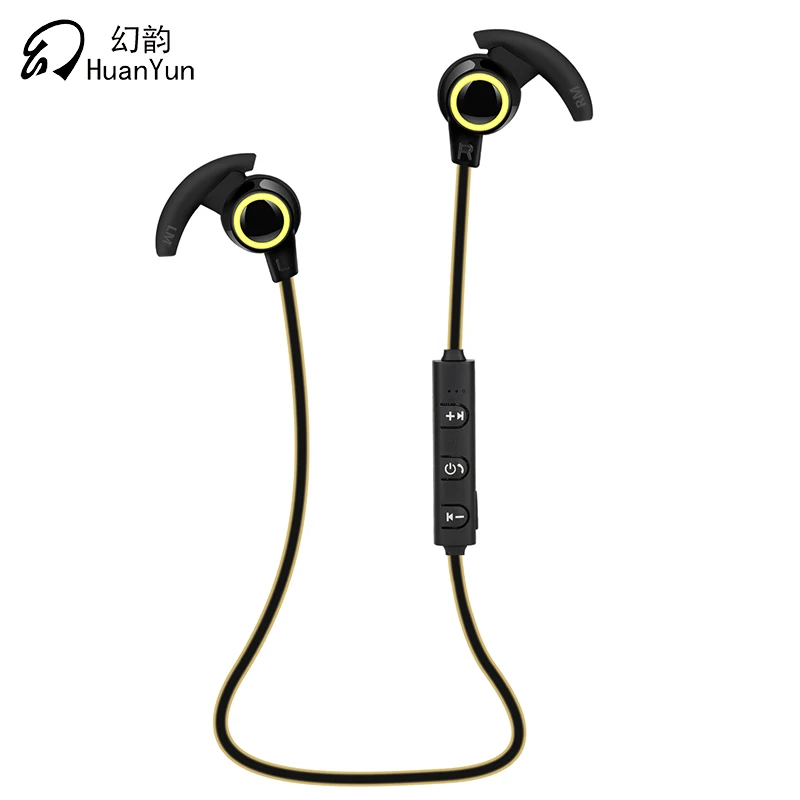

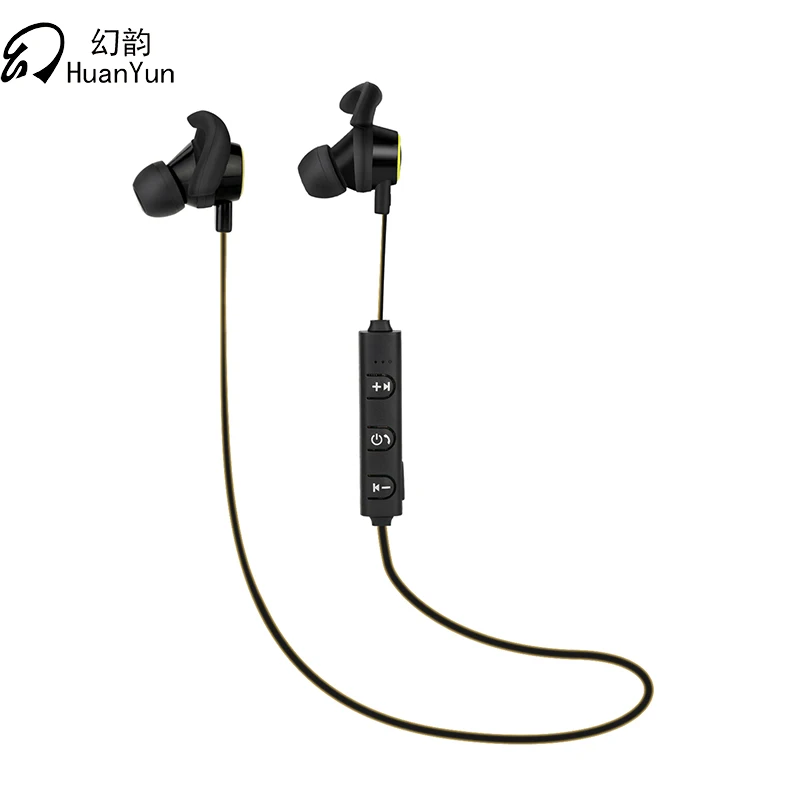

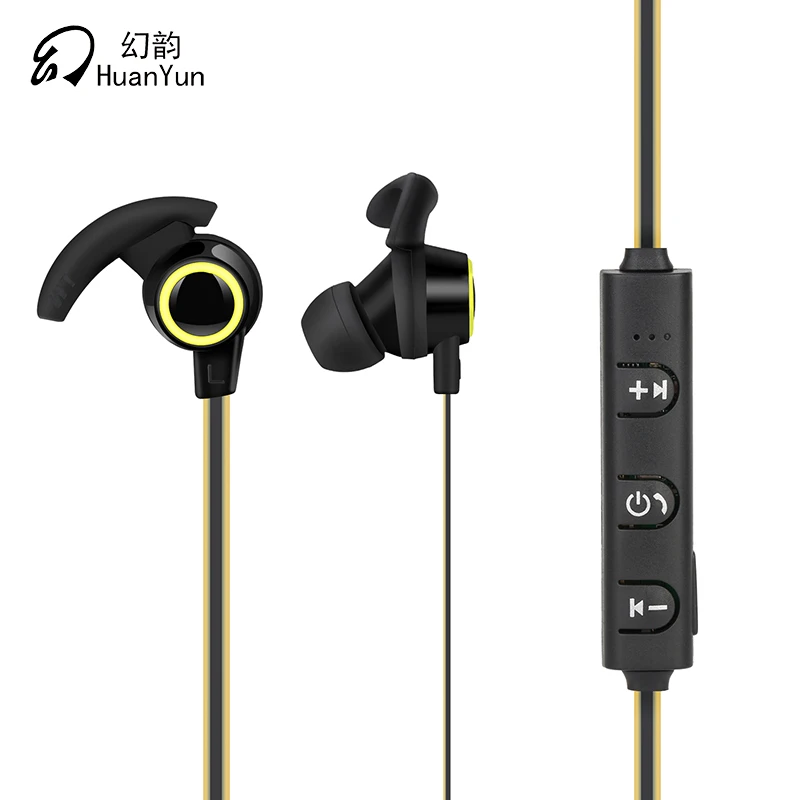

 Product Name: AX-02 sports Bluetooth headset

1, description

This specification applies to the AX-02Sport Bluetooth Headset, Model AX-02. This wireless Bluetooth hands-free headset provides a quiet and comfortable listening experience. Specially designed with an in-ear style that gives you ultimate comfort and fit. Stylish design and advanced technology, you will be cool and stylish once wearing it. VC 6.0 Noise reduction, clear talk while liberating your hands, keeping maximum comfort while looking good.

2, the parameter specifications

(1) Bluetooth chip and Bluetooth version: 4.1

(2) Bluetooth protocol: A2DP AVRCP HFP HSP

(3) Battery: 3.7V 60mAh

  (4) charging power: 5V / 80mAh

  (5) Sensitivity: 42±3dB

  (6) Impedance: 32Mw

(7) transmission distance: accessibility 10m

(8) Frequency: 2.4GHZ

(9) talk time: about 2hours

(10) songs time: about 2.5 hours

(11) standby time: about 100 hours

(12) Product Weight: 14g

3, functional description

(1) play music, music up and down music switch,

(2) volume adjustment, voice switching in English,

(3) call voice number function

(4) the last redial

(5) operating voice prompts,

(6) IOS system shows the power,

(7) to support WeChat, car navigation, QQ voice and other software

4, the system status

  (1) turn on the machine: long press the power button for 3 seconds

  (2) into the pair: press the power button for 5 seconds into the pairing state

   (3) volume plus or minus: short press the volume key is to adjust the volume plus,

   short press the volume key is to adjust the volume reduction

 (4) switch between English and Chinese: Double-click the power button in pairing

 (5) play pause: short press the power button

 (6) Previous: Volume - key Press for 2 seconds

 (7) Next song: Volume + key Press 2 seconds

 (8) to answer the phone: short press the power button

 (9) refused to answer the phone: press the power button when long

 (10) the last replay: double-click the power button

5, LED lights display

(1) boot: blue light

(2) shutdown: blue light flashing red light flashes 3 times

(3) matching: red and blue lights alternately flash

(4) connection status: blue light flash slowly (5 seconds 1 down)

(5) No connection status: blue light slow flash (5 seconds 1 down)

(6) to phone: blue light flash (1 second under 1)

(7) low power: red light flash (1 second look)

6, shape and size

1, the product size: 33 * 24 * 25mm, line length: about 60cm

2, the product color: green, blue, red.

7, packaging

 (1), PC sealed bag packaging

 (2) with packaging accessories Weight: 30g

4, packing list: 3 pairs of ear cap (1 pair in headphones), USB charging cable 1, user's Guide 1, headphones 1
