1set 125Khz 1M mid long distance range rfid reader with wiegand26 output use with EM Card for car parking system

This order is Wiegand 26 output format

Specifications:
Frequency: 125kHz
Supported:125KHz EM ID card or compitable cards
Interface: Wiegand (26 / 34 / 42-bit), Magstripe, clock and data, RS232, RS485
(9600, n, 8, 1), EIA and TTL levels
Communication:Weigand26,Weigand34
Voltage:DC9~12V
Current<50mA
Temperature:-25° C to 85° C Ambient Temperature
Humidity:10%~90%
Punch interval:Less than 0.5sec
Reader speed:Less than 0.2sec

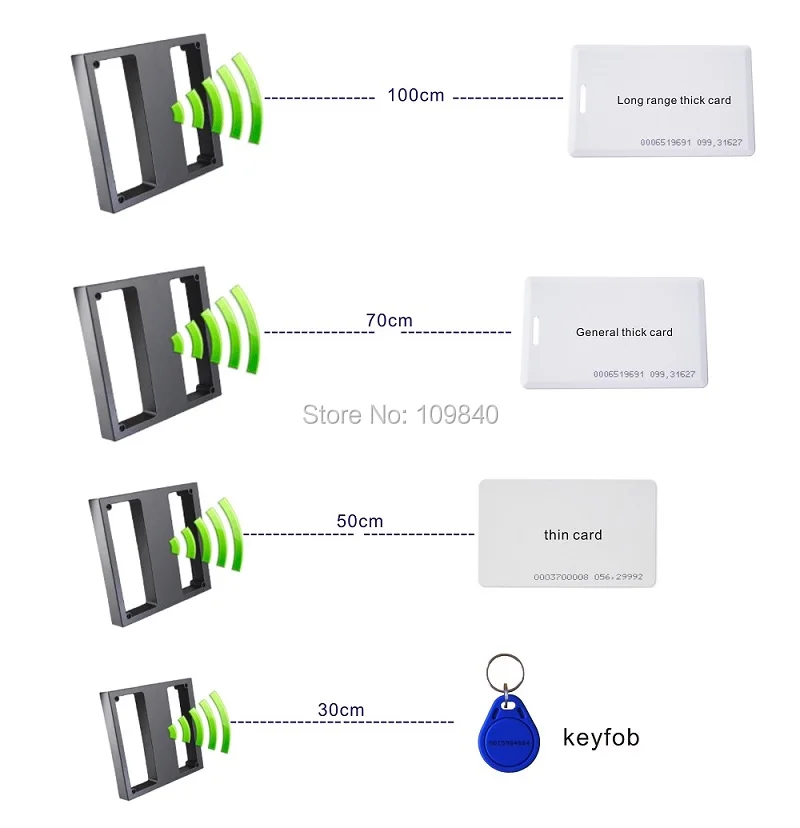

Reading Range:65 - 105cm, depending on transponders
Warranty:1 year
Waterproof:IP67
Customization:yes
Built-in:Antenna,speaker,buzzer,red(bule)green color LED
Transmission:Weigand
Size:230X230X35mm
Metarials:ABS Case Material (Black Resin for Water-Proof Function)
Color:Black
Application:
For access control ,attendance,fees,patrol,card,building onsay,
parking systems, highways and rfid application.

Advantage:
This series of reader with high sensitivity receiver,small operation
current,single DC power supply,low price,and high reliability.

Introduction:
Using + type screw driver to loosen the screw between the panel
and motherboard. And then embed the motherboard to the side wall with
the plastic plug and screws.

Notice
1.Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2.When external Power is used, make sure sharing the power with Controller Box or using the same GND
3.When the distance between card reader and controller is more than 50m,please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires

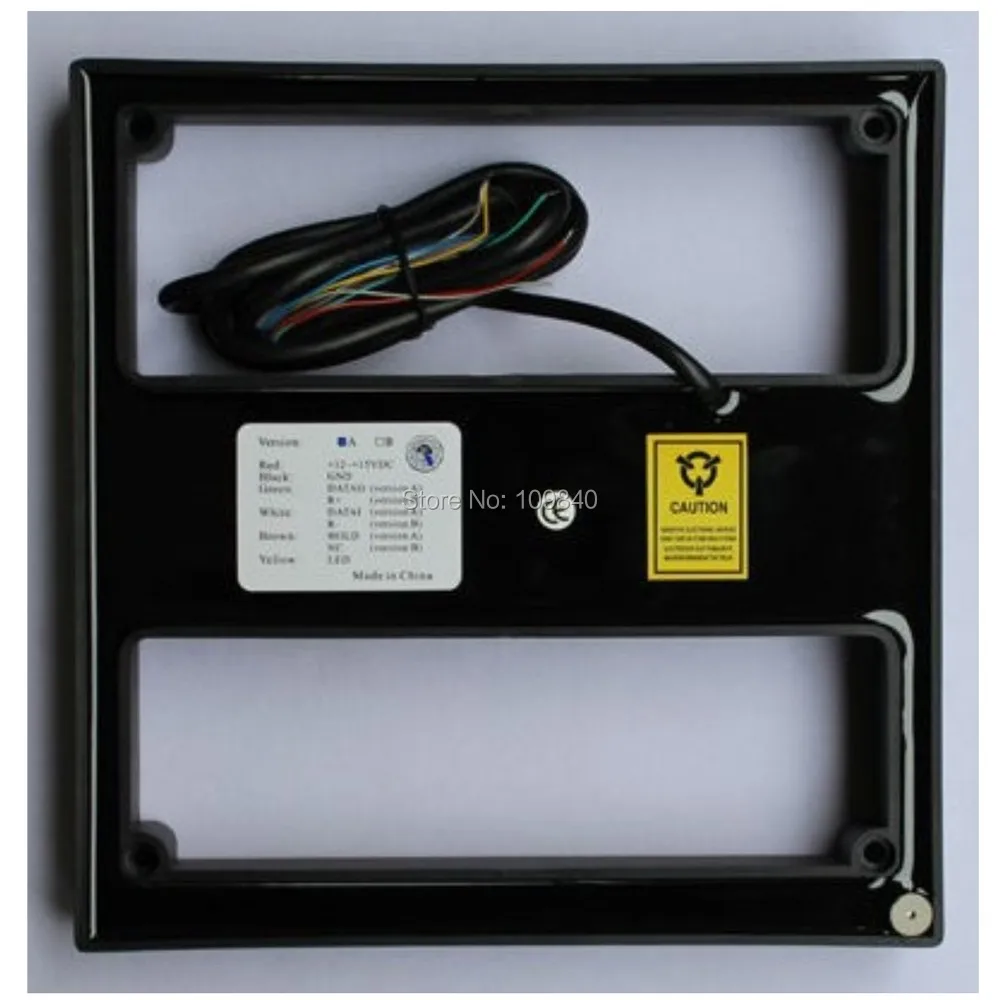

Wiring that

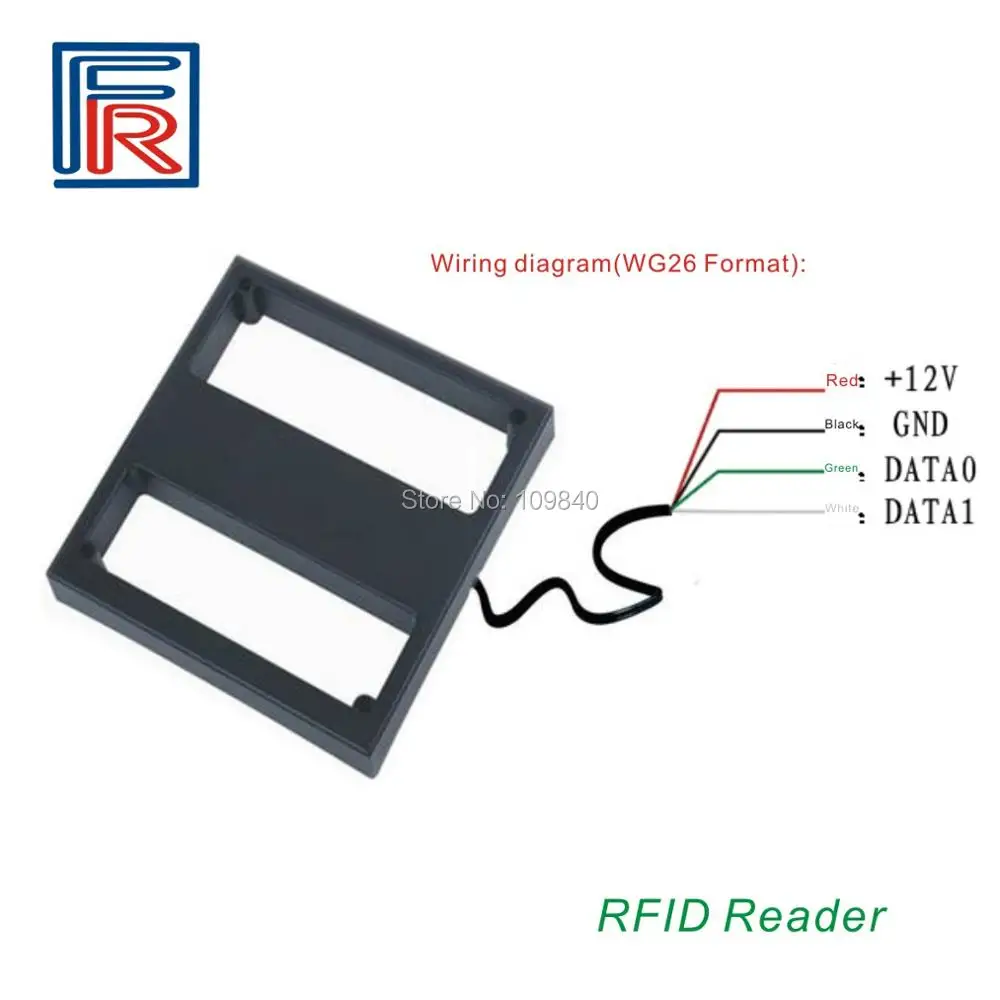

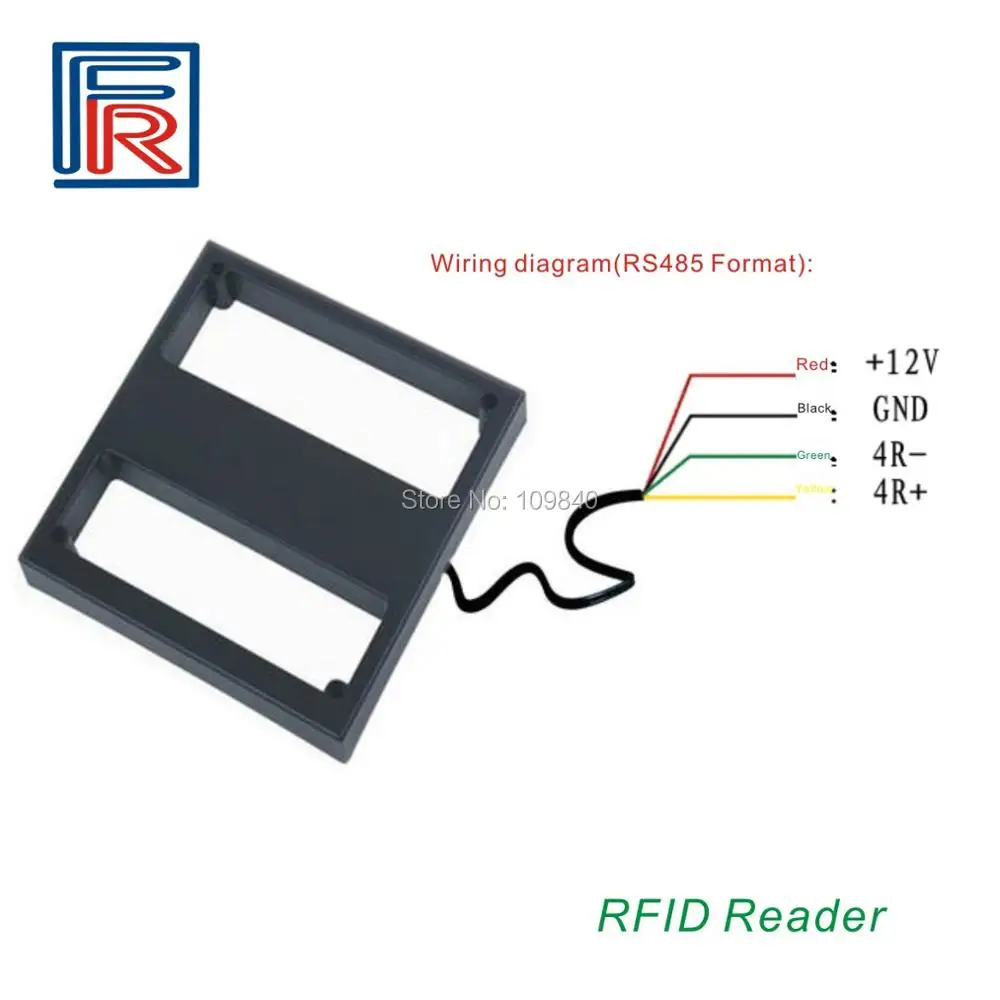

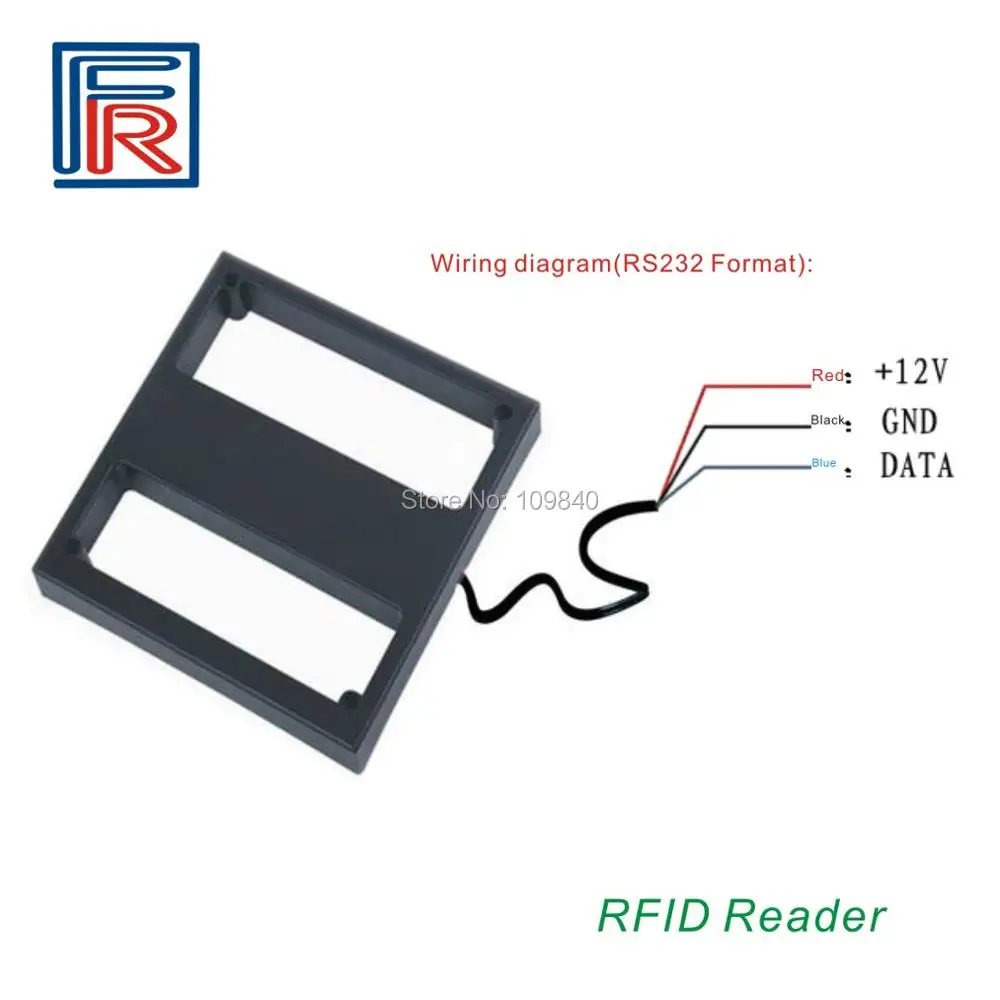

WG26/34                              RS485                             RS232
Red line: DC12V                Red line: DC12V             Red line: DC12V
The black line: GND         Black line: GND               Black line: GND
The green line: D0           Green line: 4 R +             Blue line: Data
White lines: D1                 Yellow line: 4 R-
