PUHUI T-937M Reflow Oven T937M Lead-free Reflow Solder Oven BGA SMD SMT Rework Sation T 937M Reflow Wave Oven

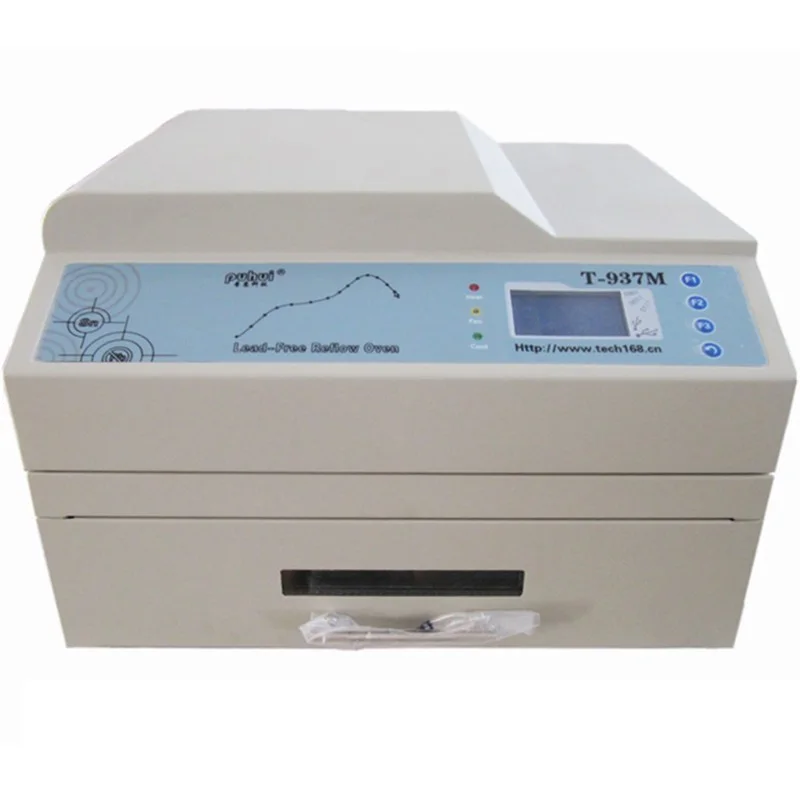

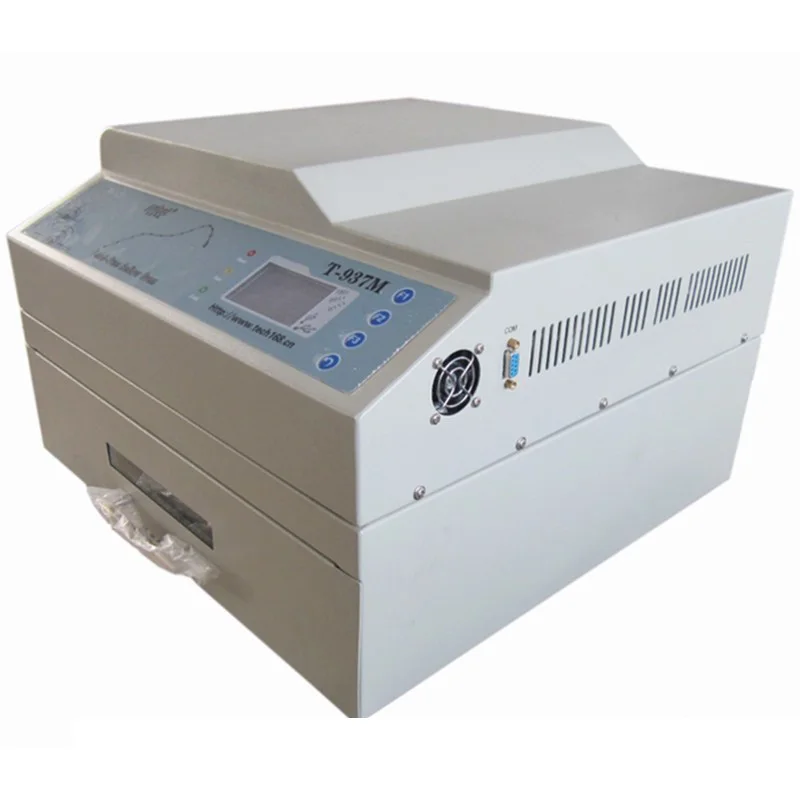

The INFRARED IC HEATER T-937M is a micro processor controlled reflow-oven. It can be used for effectively soldering various SMD and BGA components. The whole soldering process can be completed automatically and it is very easy to use. This machine uses a powerful infrared emission and circulation of the hot air flow, so the temperature is being kept very accurate and evenly distributed.

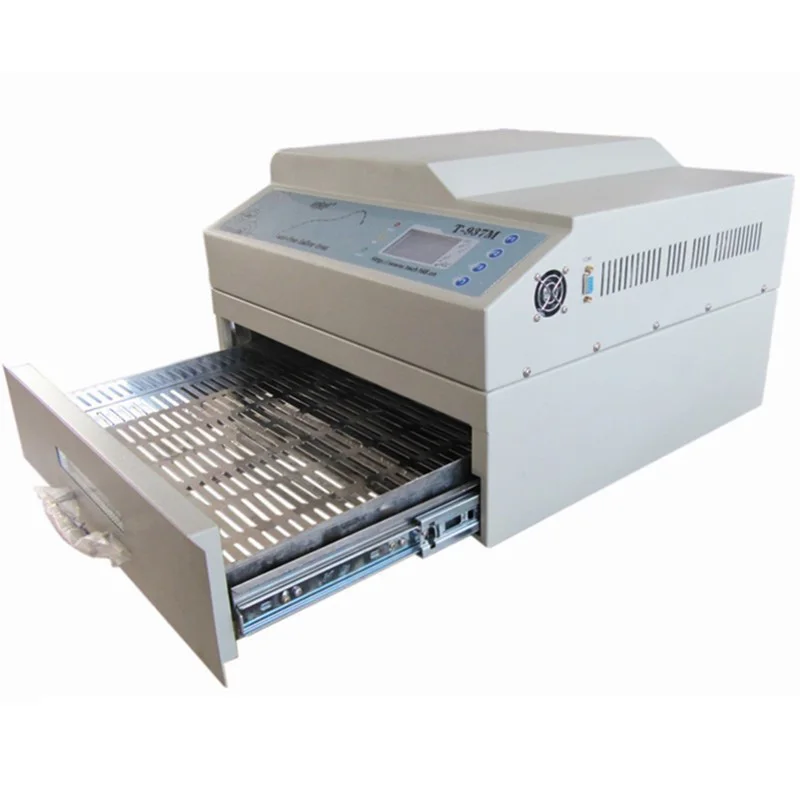

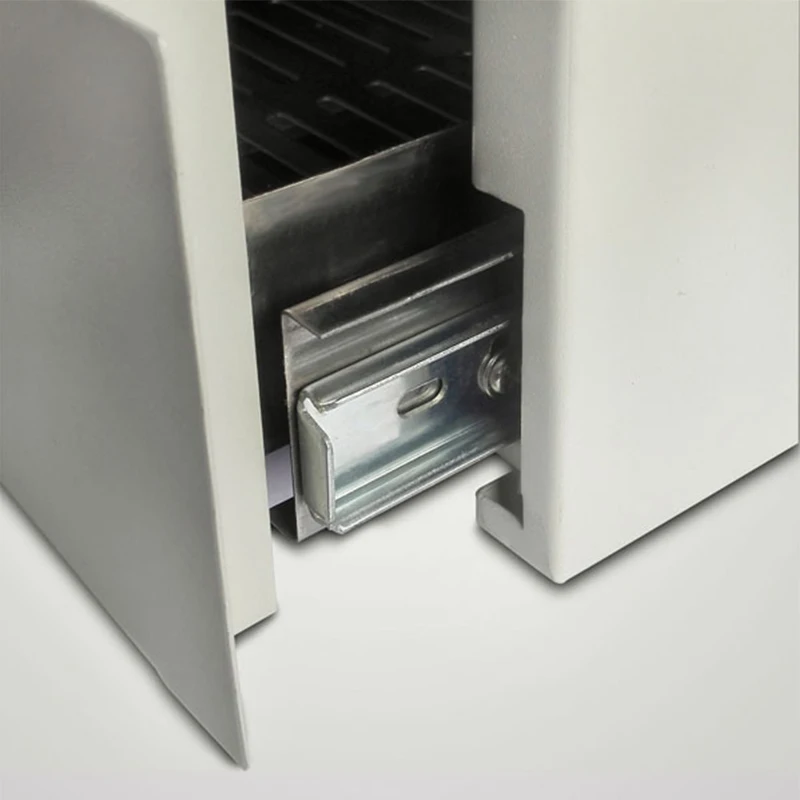

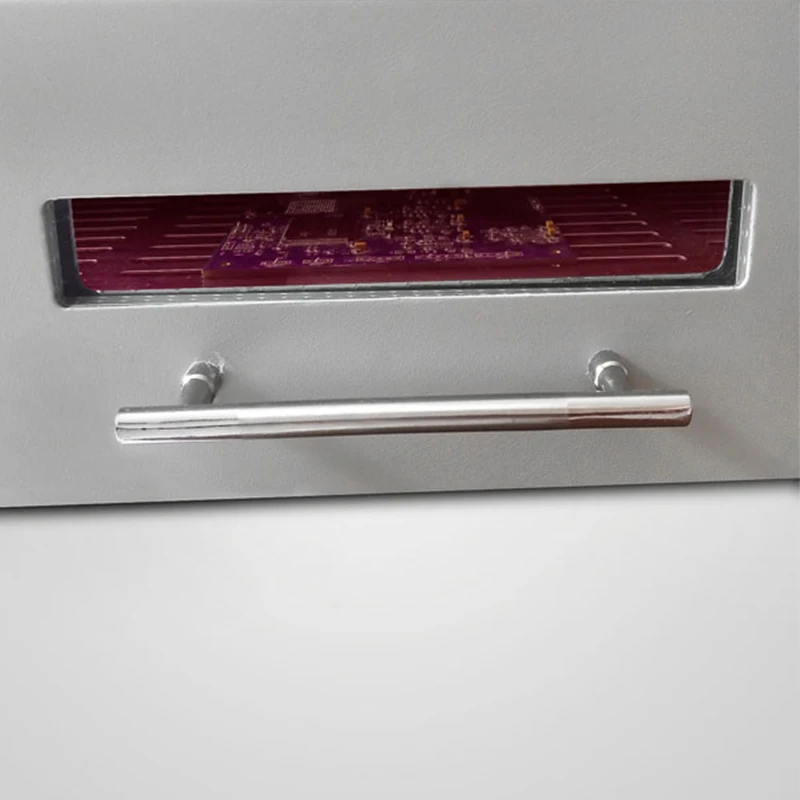

A windowed drawer is designed to hold the work-piece, and allows safe soldering techniques and the manipulation of SMD/BAG and other small electronic parts mounted on a PCB assembly. The T-937M may be used to automatically rework solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.

Features:

(1) A large infrared soldering area. Effective soldering area: 350*400mm; this increases the usage range of this machine drastically and makes it an economical investment.

(2) Choice of different soldering cycles. Parameters of eight soldering cycles are predefined and the entire soldering process can completed automatically from Preheat, Soak and Reflow through to cool down.

(3) Special heat up and temperature equalization with all designs. Uses up to 3300 Watts of energy efficient Infrared heating and air circulation to re-flow solder.

(4) Ergonomic design, practical and easily operated. Good build quality but at the same time light weight and a small footprint allows the T937M to be easily bench positioned transported or stored.

(5) Large number of available functions. The T937M can solder most boss-eyed or double-face PCB boards small parts, for example CHIP, SOP, PLCC, QFP, BGA etc. It is the ideal rework solution from single runs to on-demand small batch production.

a. This oven solder leadfree paste very well.

b. This oven can connect with PC, easy to input/set/transmit/adjust/save/manage wave data.

c. Many kinds wave input style in control software, easy to set wave.

d. The control software is with graphical display, display the wave intuitively.

e. The control software is with wave printing function, easy to save/manage/analysis the wave data.

f. The control software is with 299 kinds of paste data inside.

g. Adopt stable and high-speed MCU and advanced intelligent temperature measurement technology,

temperature in the oven is very stable,exact and even.

h. Add the compensation circuit, make the oven temperature keep stable from different environment.

i. This oven is with hot air fan inside, to make the temperature inside more even.

j. The temperature is room temp to 350C, suit for single/double side PCB board and lead/leadfree

paste soldering.

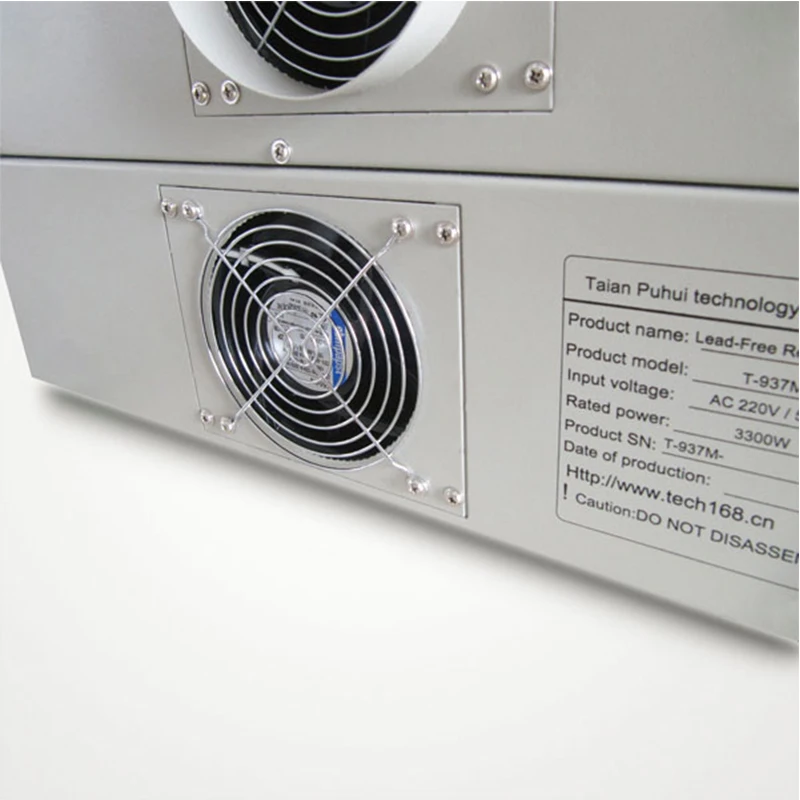

k. Add special exhaust on the back, provide good operation environment.

l. Friendly human-machine operation interface, perfect LCD display, very easy to operate.

m. Good database management function.

n. Thermostatic timer function

Specifications:

Model: T-937M

Effective Soldering max area: 350 x 400mm

Rated power: 3300W

Temperature Range: 0°C-350°C

Process cycle: 2~16 min

Voltage: 110V~240V

Frequecy: 50Hz~60Hz

Product size: 473×466×290mm

Packing size: 500×500×300mm

Net weight: 20.7kg

Gross weight: 22.5kg

Packing List:

1 x Reflow Oven T-937M

1 x Power Cable

1 x Fuse

1 X CD Communcation Cable

1 x User Manual (CD)

Remark:

The voltage could be 110 V/60 Hz or 220 V/50 Hz (optional). By default, we will ship the product with voltage and frequency standard in the recipient\'s country. If you need something different, please send us a message.
