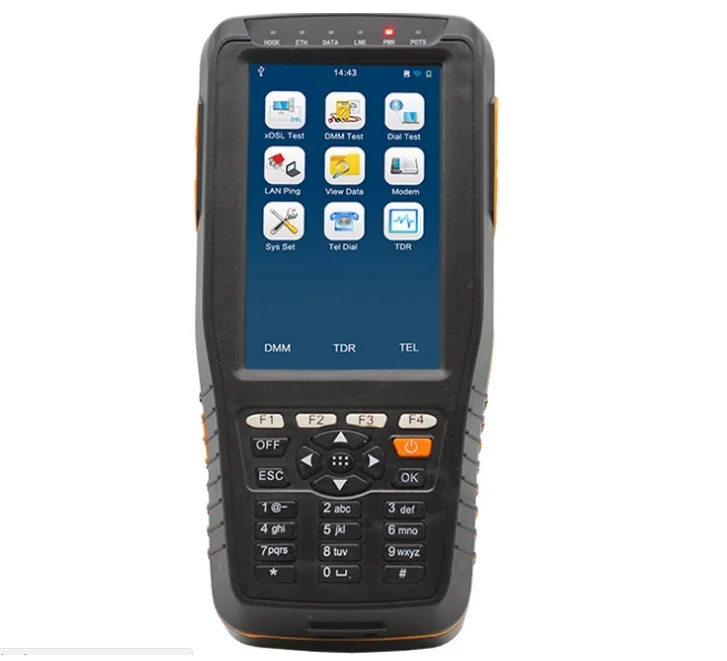

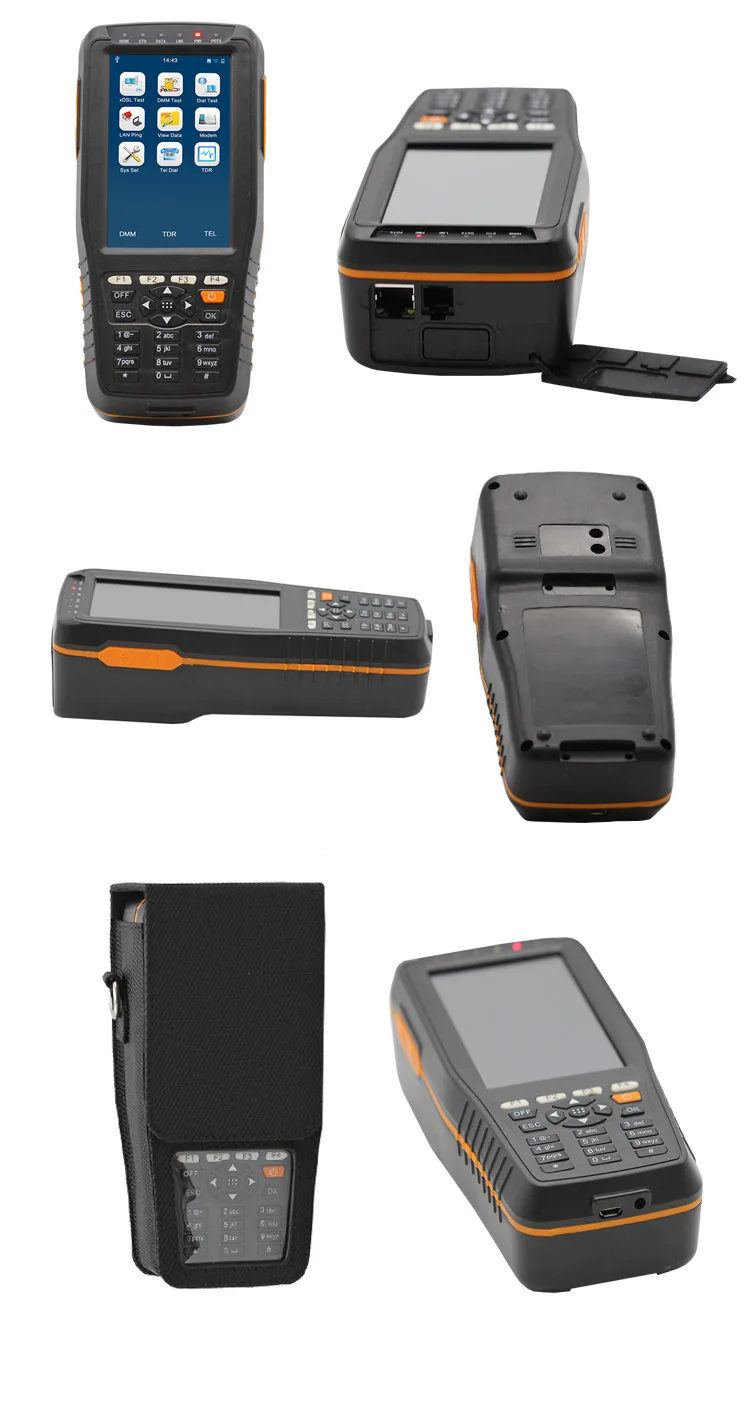

TM-600 C ADSL2+ Тестер ADSL с отслеживанием тона.

---



• Tone Tracker (Cable Tracker) (Have)
• TDR Cable Fault Locator (Optional )



Note: This item is TM-600 C ,  if you need other item ,please click the below

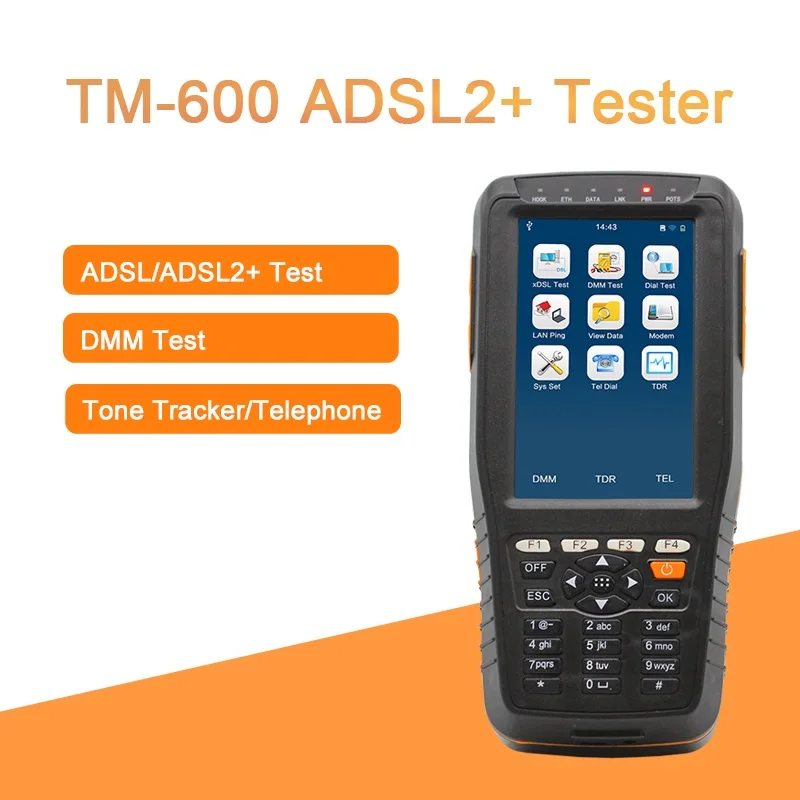

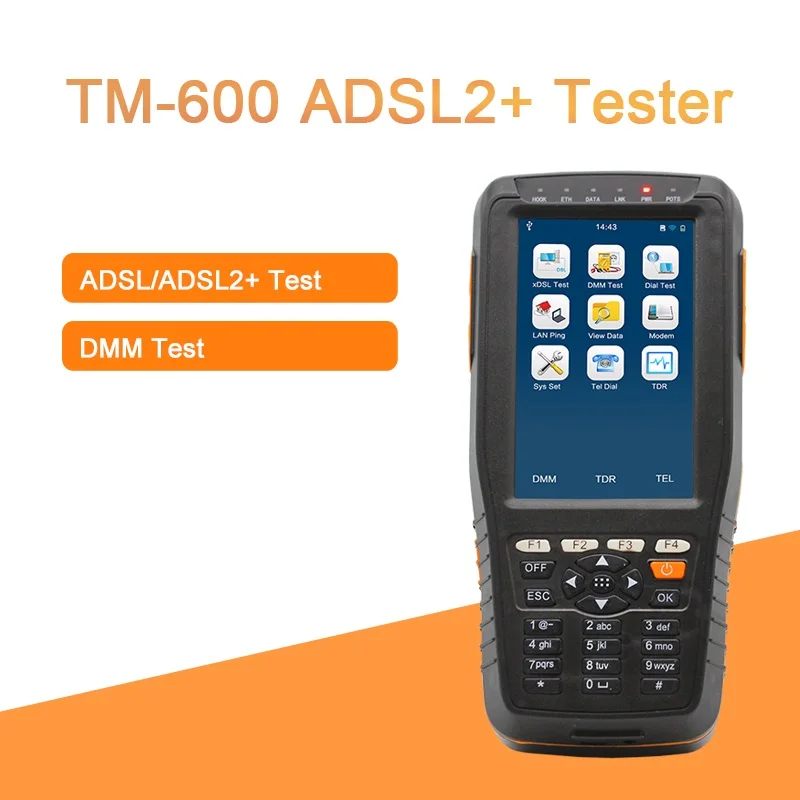

TM-600 Basic version	TM-600 C (Basic version+ Tone Tracker -Cable Tracker Function))

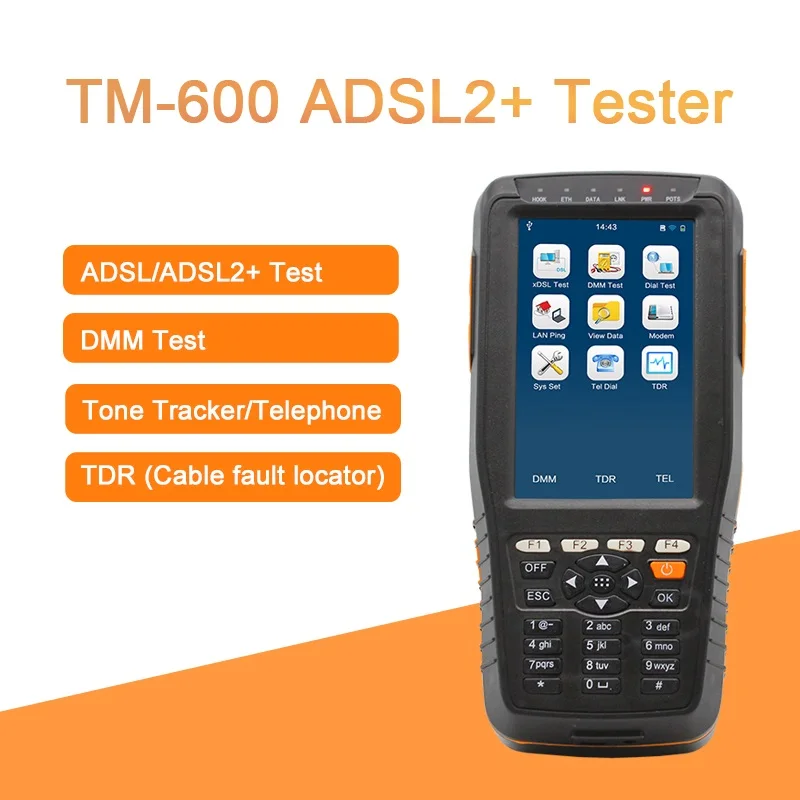

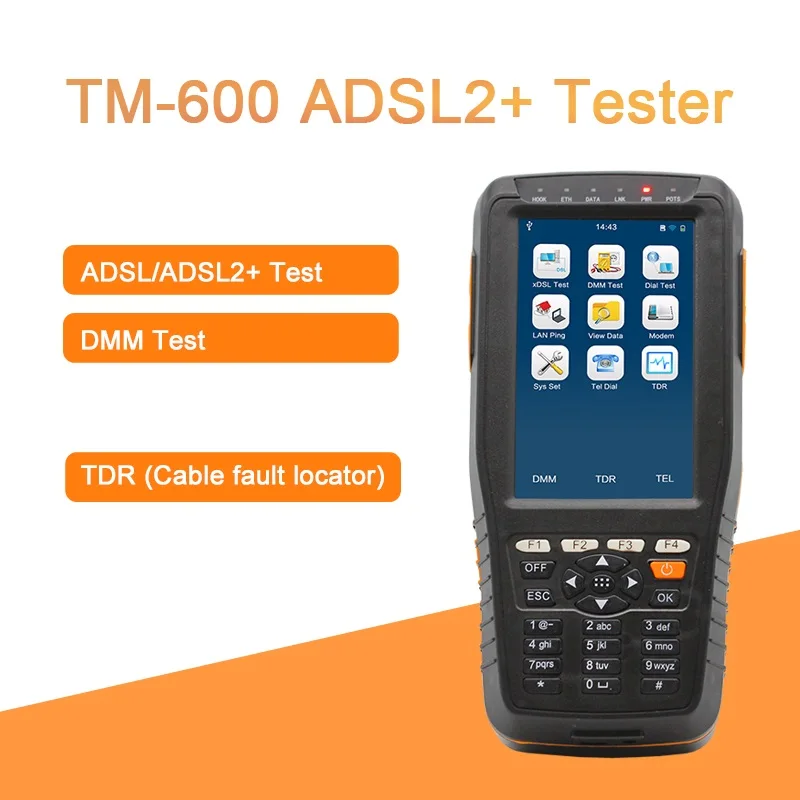

TM-600 T (Basic version+ TDR Function)	TM-600 TC  —Full function (Basic version+ TDR+ Tone Tracker -Cable Tracker Function))



Description:



TM-600 ADSL2+ Tester specially designed for xDSL line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL etc) and maintenance It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on.

TDR and Tone Tracker function can be added to this device as options.

It is one multifunction tester with smart size, true color LCD and powerful management software as well as the 6600mah rechargeable battery etc



Function

  DSL Physical layer test  Modem Emulation (Replace the user Modem completely) PPPoE Dialing (RFC1683,RFC2684,RFC2516) PPPoA Dialing (RFC2364) Telephone Function DMM Test Ping Function (WAN & LAN) Data upload to computer and software management Setup system parameter: backlight time, shut off automatically time without operation, press tone,  Revise PPPoE / PPPoA dial attribute, user name and password; restore factory value and so on.       Check dangerous voltage Tone Tracker (Optional) DR Cable Fault Locator (Optional)   Key Features:   Test objects: ADSL; ADSL2; ADSL2+; READSL Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance) Supports Modem emulation and simulating login to Internet Supports ISP login (user name / password) and IP Ping test (WAN PING Test, LAN PING Test) Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)  Connects to CO via alligator clip or RJ11 Rechargeable Li-ion Battery Beep and LEDs alarm indications (Lower Power, PPP, LAN,xDSL) Data memory fuction LCD display, Menu operation Auto shut off if no any operation on keyboard Compliant with all known DSLAMs Software management Simple, portable and money-saved



Specifications:



ADSL2+
Standards	ITU G.992.1(G.dmt),ITU G.992.2(G.lite),ITU G.994.1(G.hs),  ANSI T1.413 issue #2,ITU G.992.5(ADSL2+)Annex L
Up channel rate	0~1.2Mbps
Down channel rate	0~24Mbps
Up/Down attenuation	0~63.5dB
Up/Down noise margin	0~32dB
Output power	Available
Error test	CRC, FEC, HEC, NCD, LOS
Display DSL connect mode	Available
Display channel bit map	Available
ADSL
Standards	ITU G.992.1 (G.dmt), ITU G.992.2(G.lite)  ITU G.994.1(G.hs), ANSI T1.413 Issue # 2
Up channel rate	0~1Mbps
Down channel rate	0~8Mbps
Up/Down attenuation	0~63.5dB
Up/Down noise margin	0~32dB
Output power	Available
Error test	CRC, FEC, HEC, NCD, LOS
Display DSL connect mode	Available
Display channel bit map	Available



DMM Test
DC voltage (V):	-400~400
AC voltage (V):	0~400
Loop resistance(Ω):	0~20000
Capacitance (nF):	0~1000
Insulation resistance (MΩ):	0~50
Tone Tracker (Have)
With supplied accessories, it can do cable tracing and find the trend of the lines
TDR Function (Optional) Auto Test the cable fault distance (Cable Break/ Cable Mix)
Test Range	<2.5km
Dead Zone	<1m
Resolution Rate	1m
General Specification
LCD	800x480 TFT
Power supply	Internal Rechargeable 6600mAH Li-ion battery
Battery Duration	4 to 5 hours
Working temperature	0-40 oC
Working moisture	5%-90%
Dimensions	170mm×70mm×52mm
Weight:	<0.6kg
