Cnc Z-Axis Router Mill Touch Plate Mach3 Tool Setting Probe Milling Tools Best Quality | Инструменты

Cnc Z-Axis Router Mill Touch Plate Mach3 Tool Setting Probe Milling Tools Best Quality | Инструменты

• Material: wire+metal
• Color: as shown in pic
• Specification:

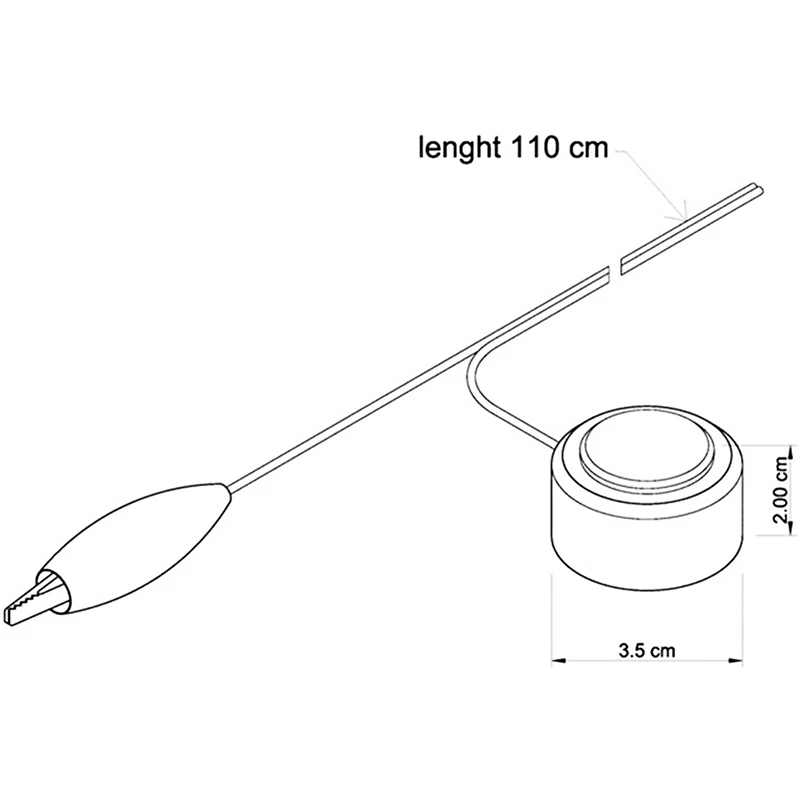

• Size: approx. 3.5 x 2cm/ 1.38 x 0.79inch (D x H)
• Effective surface of the knife: approx. 25mm /0.98inch (diameter)
• Line length: approx. 110cm

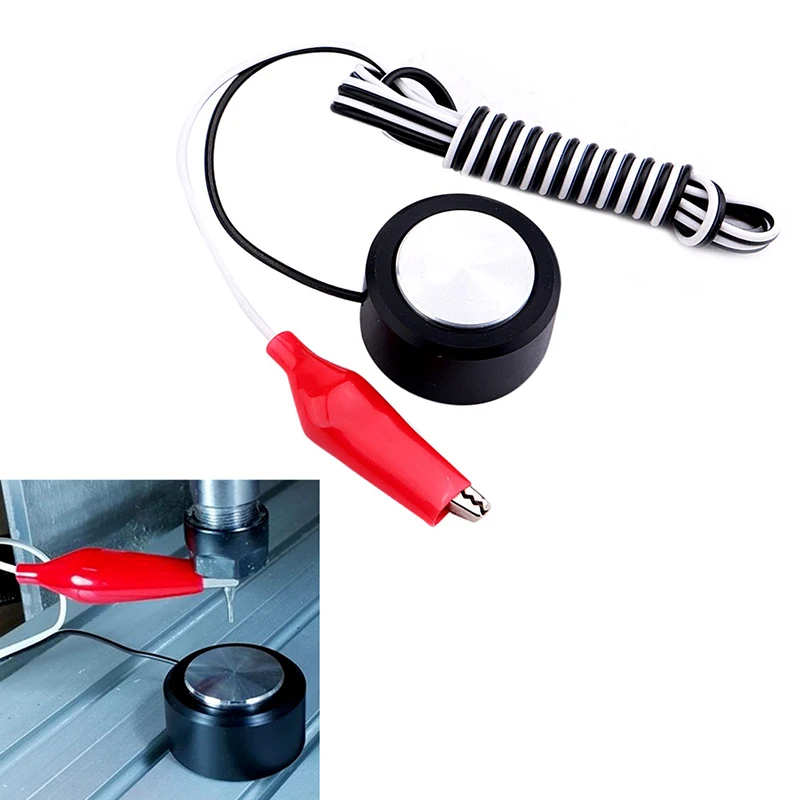

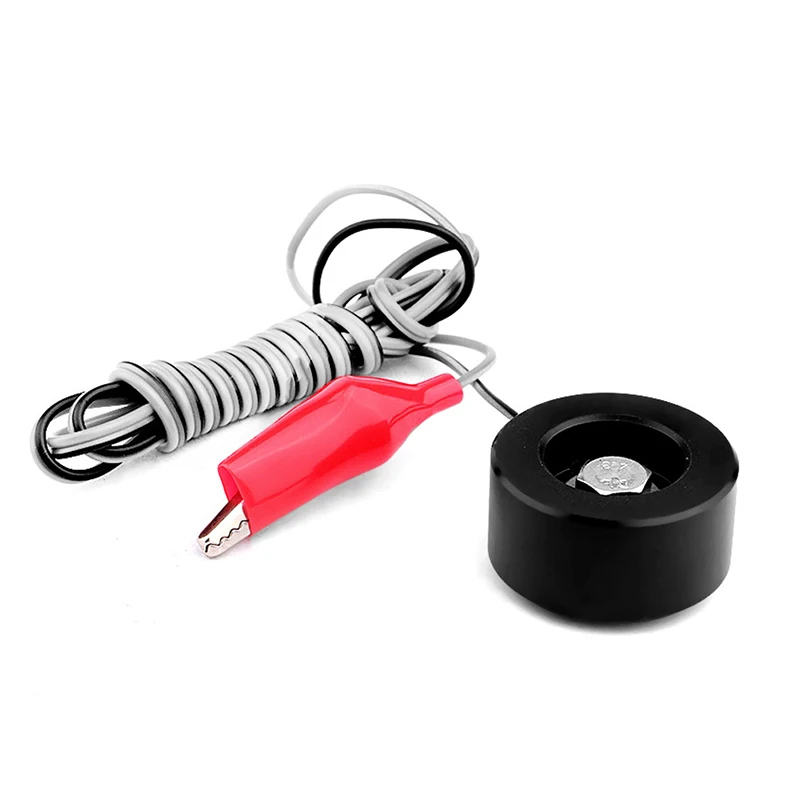

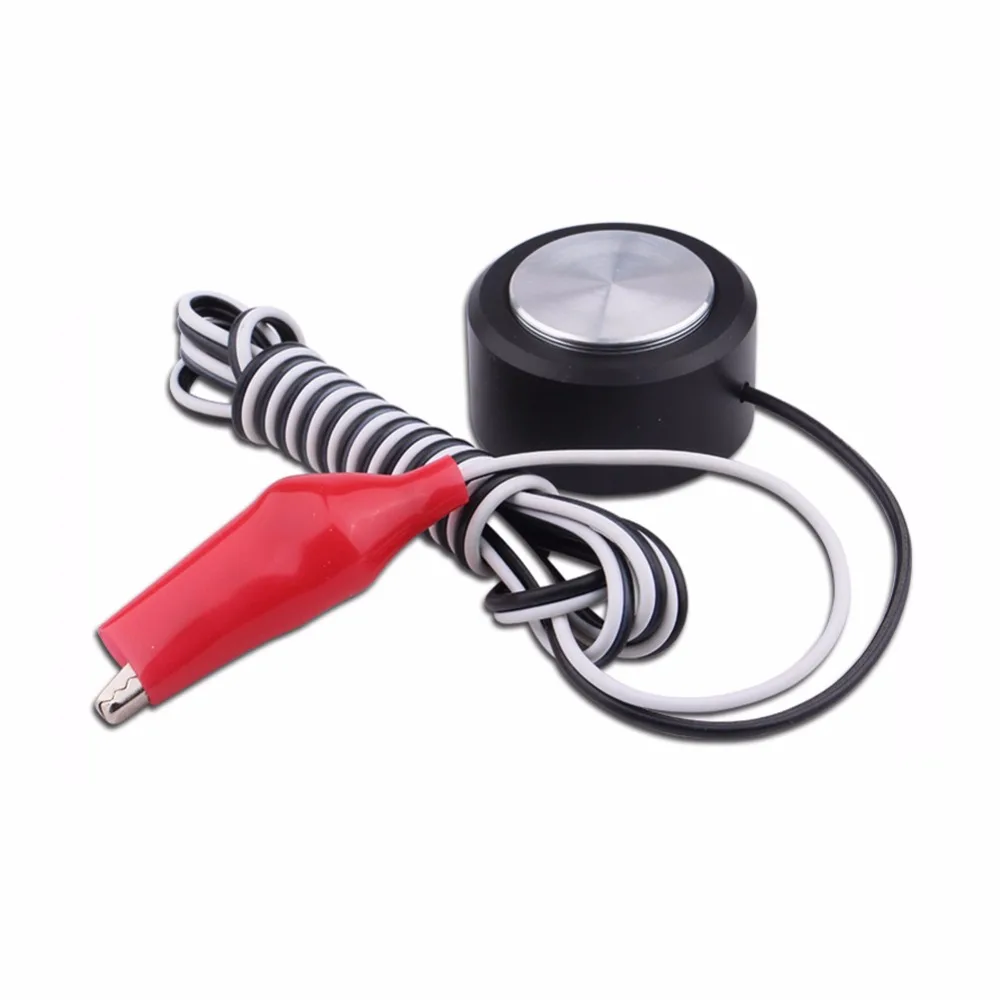

• CNC Router Mill Tool Setting Touch Plate
• CNC Z Axis Router Mill Touch Plate Mach3 Tool Setting Probe New Milling Hot Kit
• These touch plates make setting your tool height and zeroing your z-axis a breeze. These are fully functional in Mach 3 and many other CNC controller software.

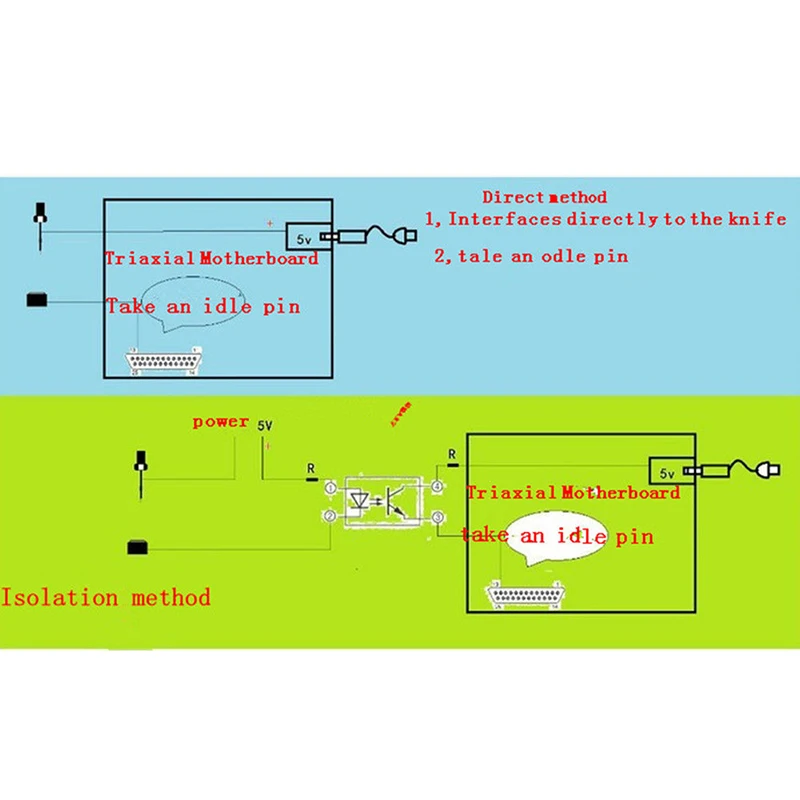

• Two ways to connect this item:
• If your interface board has the limit switch port or other probe port, you can connect it to that port
• If your interface board does not have that port, your driver board has that port, you can connect it to the driver board's limit switch port
• Then in the Mach 3, you need to setup the probe(Mach3 --- Config---Ports and Pins---Input signals Probe enabled , the pin number type the one you use) and the Auto-Tool-Zero. in the attachment, it is the code, you can edit it as your requirements

• Usage:
• The wire connect on the control panel interface.
• The clip and the control board GND (negative) is connected.

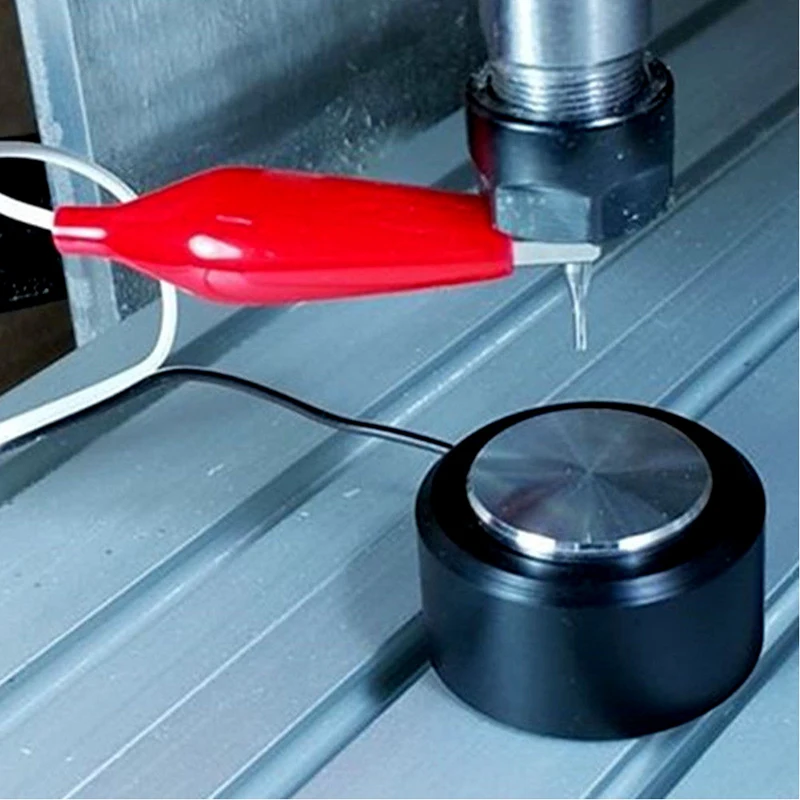

• The tool can be clamped portion of the operation when the knife with a clip.
• When the tool contacts the knife that the process is complete.

• Quantity: 1 PC
• Note:
• Manual measuring, please allow 0-1cm error,thank you.
• Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!!!
•
•
• 1 x CNC router engraving machine tool
